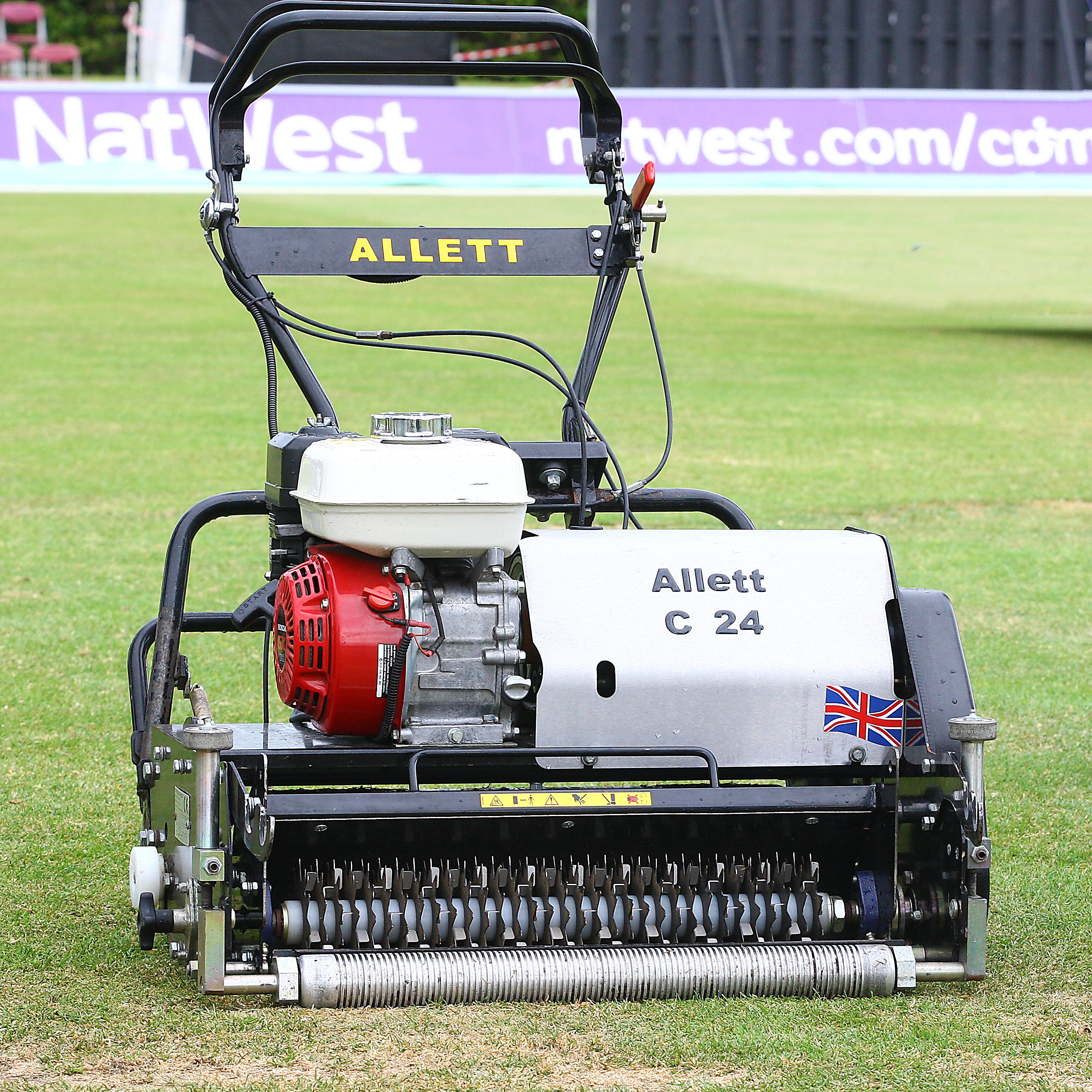

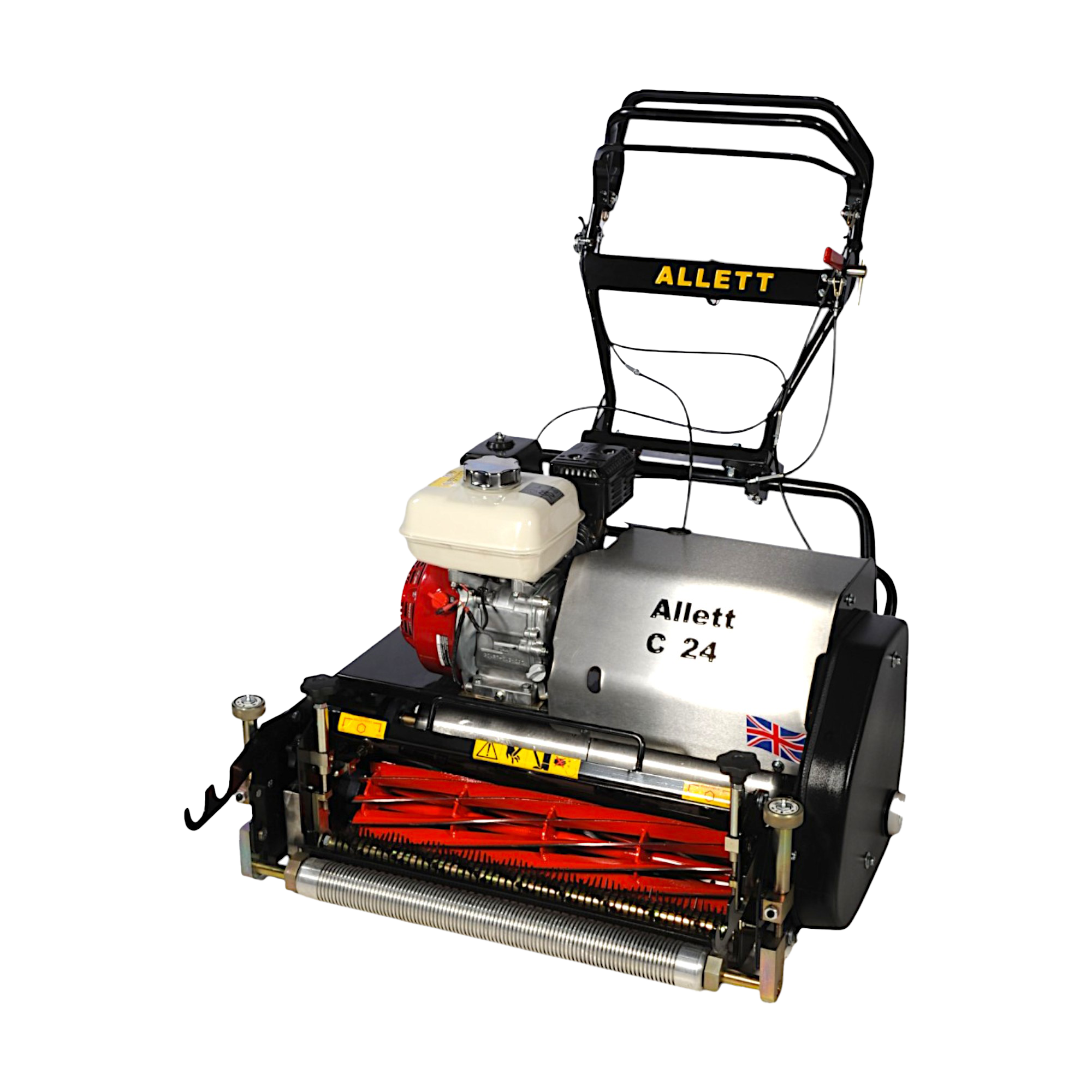

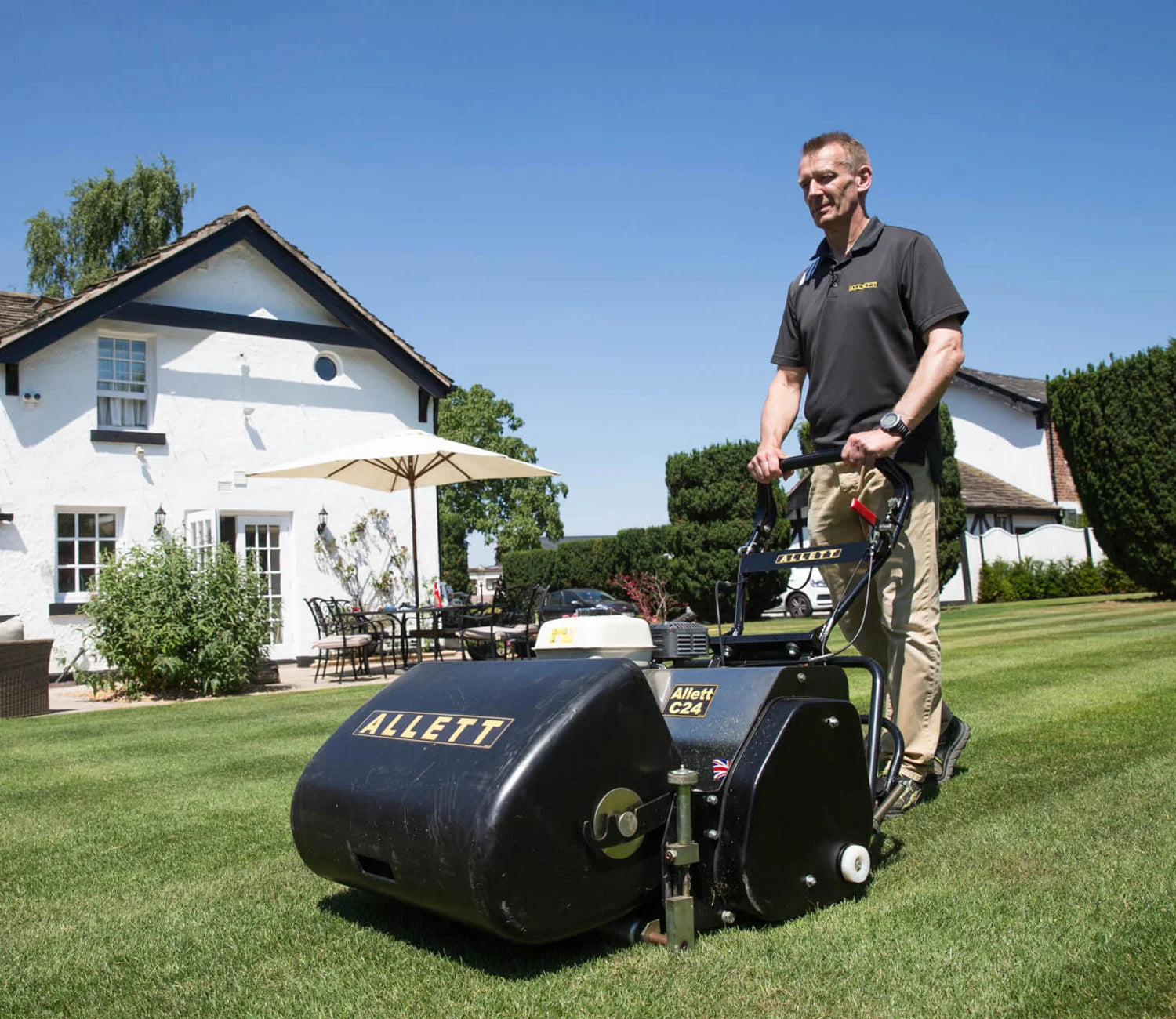

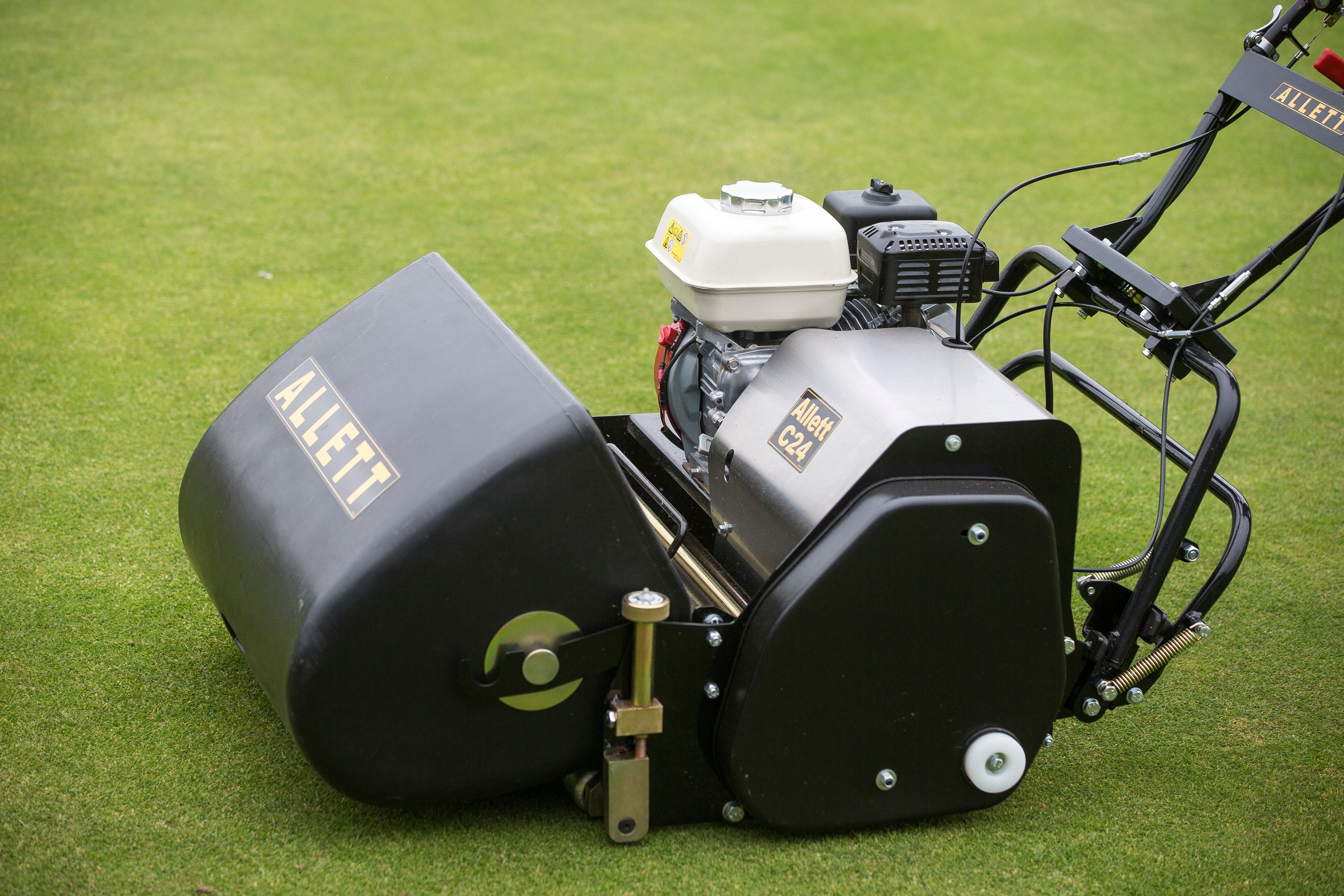

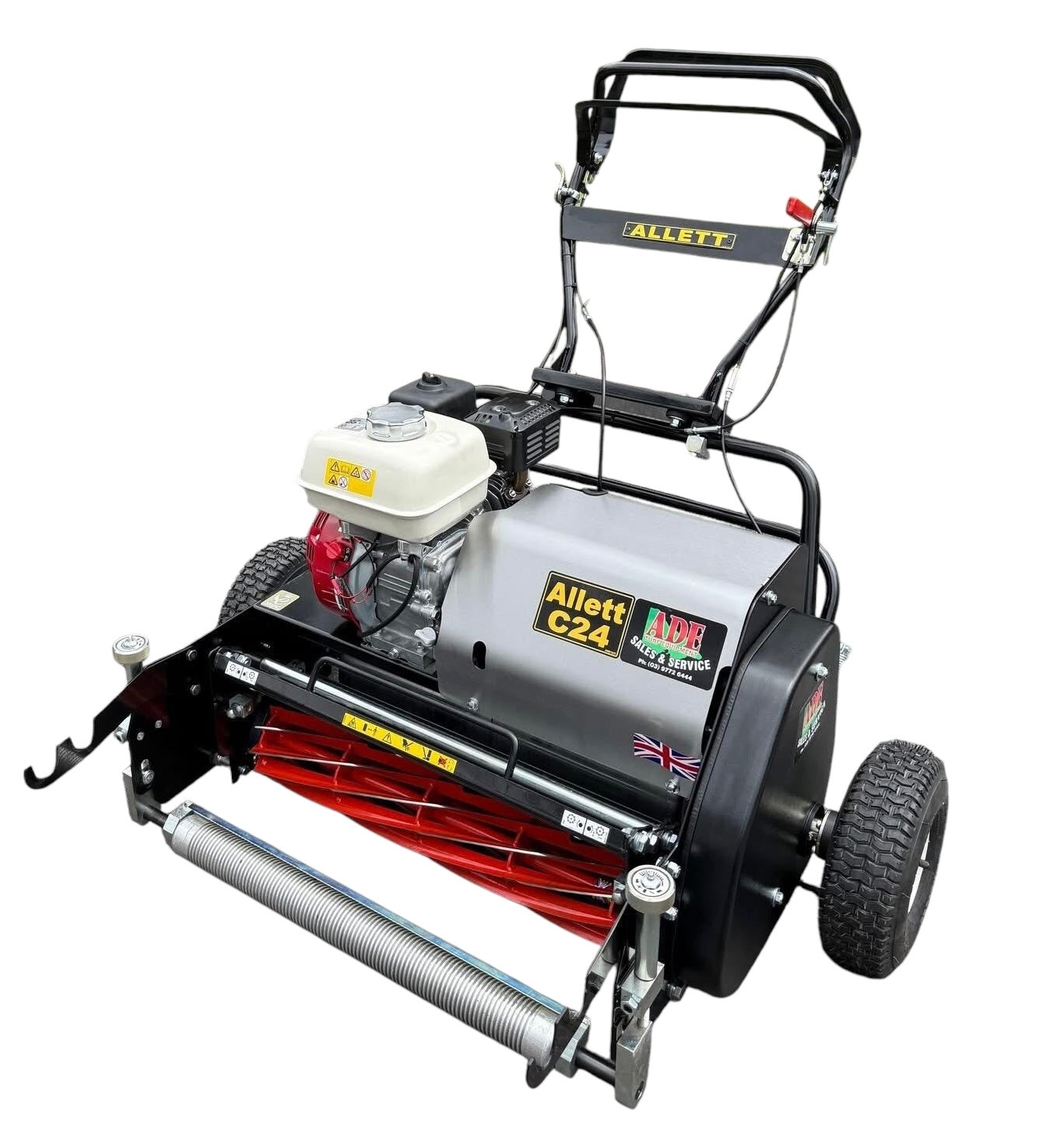

Allett C24 Cylinder Mower (Power-unit with Grassbox)

BEHIND THE ALLETT C24

The Allett C24 (part of our professional mowers C Range) delivers a wide range of professional turf maintenance functions from a single pedestrian controlled machine to suit most maintained turf areas.

Each purpose-designed, easy-change, C-Range cartridge head becomes an integral part of the machine, enabling tasks ranging from fine turf mowing, verti-cutting and slitting to brushing, scarifying and sorrel rolling to be carried out successfully and without compromise.

Such year-round versatility greatly extends the cost-effectiveness of the C-Range power unit, enhancing the value of the investment for the benefit of owners such as sports clubs, turf maintenance contractors and other professionals looking to produce high-quality turf surfaces. The C-24 is ideal for finer sports turf surfaces such as cricket, bowls and golf as well as formal lawns where low weight and a great finish are paramount. All models have adjustable handlebars, equipped with anti-vibration mounting. Grass boxes are manufactured out of moulded plastic with a steel reinforcing strip. Engineered to operate effectively at low engine speeds the C24 delivers low fuel consumption, noise levels and vibration.





Honda GX160 engine

Power output- 3.6kW (4.8hp) @ 3,600 rpm

3.1-litre fuel tank

24” (610mm) working width

Overall width- 890mm (35in)

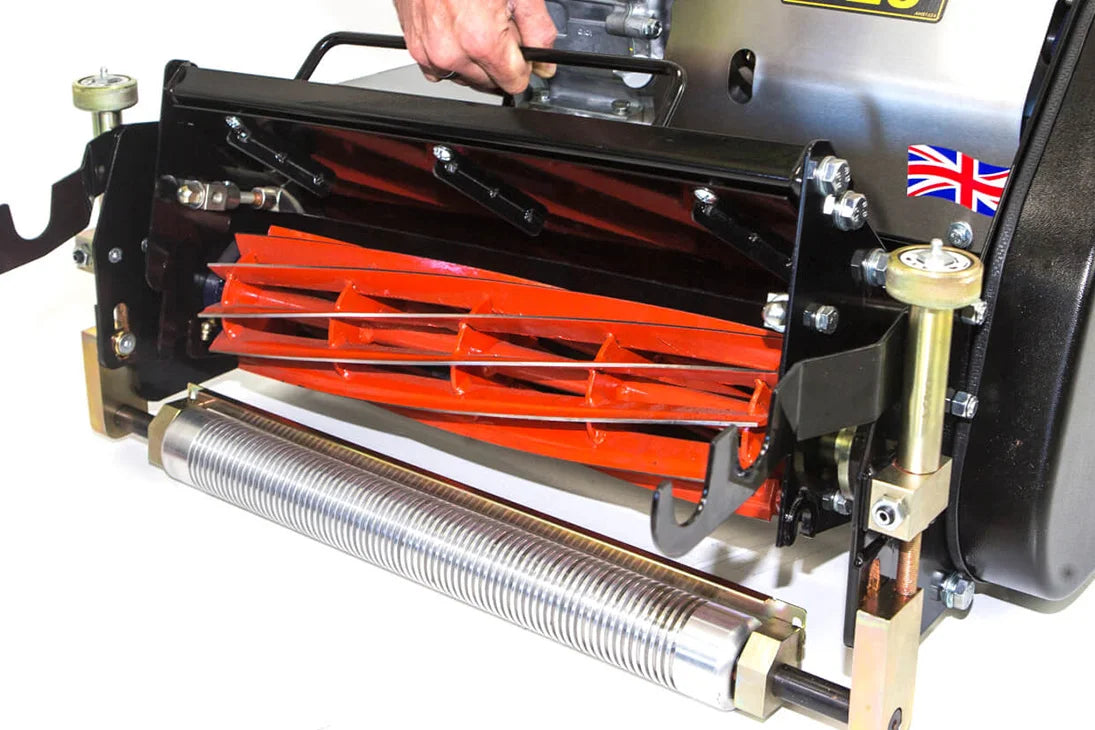

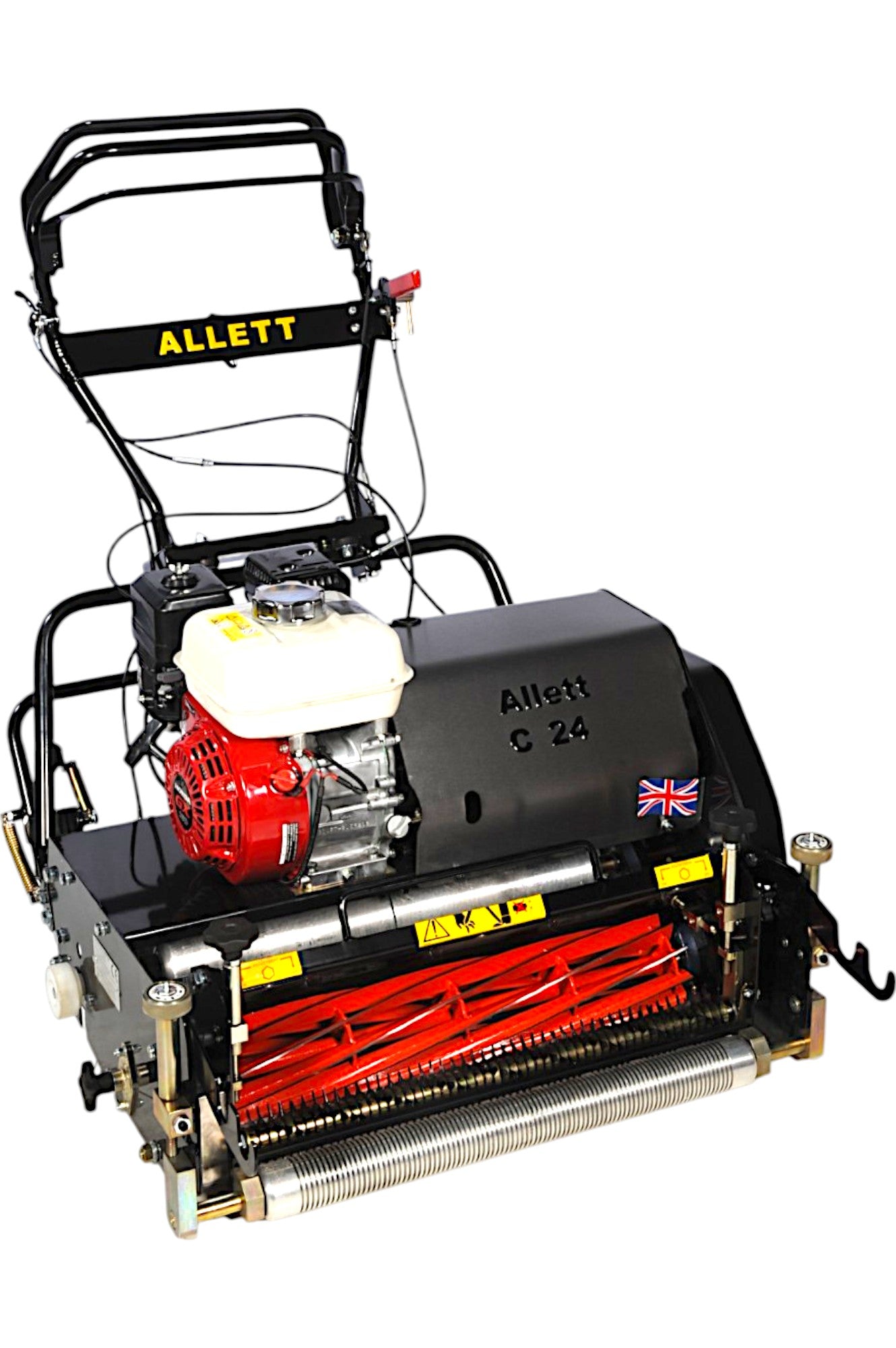

Six-blade ‘Quick Cartridge’ cylinder. 10 blade cylinder available

6 blade-93cpm/10 blade-155cpm

2.4mm – 19mm (0.1″ to 0.75″) cut height

Adjustable handlebars with anti-vibration mountings

Drive engagement Handle-mounted lever engaging V belt via cable

Cartridge head engagement Handle-mounted lever engaging V belt via cable

Rear roller Two-piece aluminium with steel bevel gear differential

Front roller Grooved aluminium with scraper and sealed end-bearings (plain roller optional)

Turf Groomer (Available on 10-blade cutting groomer only) 45 blades @ 10mm spacing (C20). 54 blades @ 10mm spacing (C24). Groomer’s working height infinitely between upper and lower limits. The unit can be raised fully above the turf if grooming is not required.

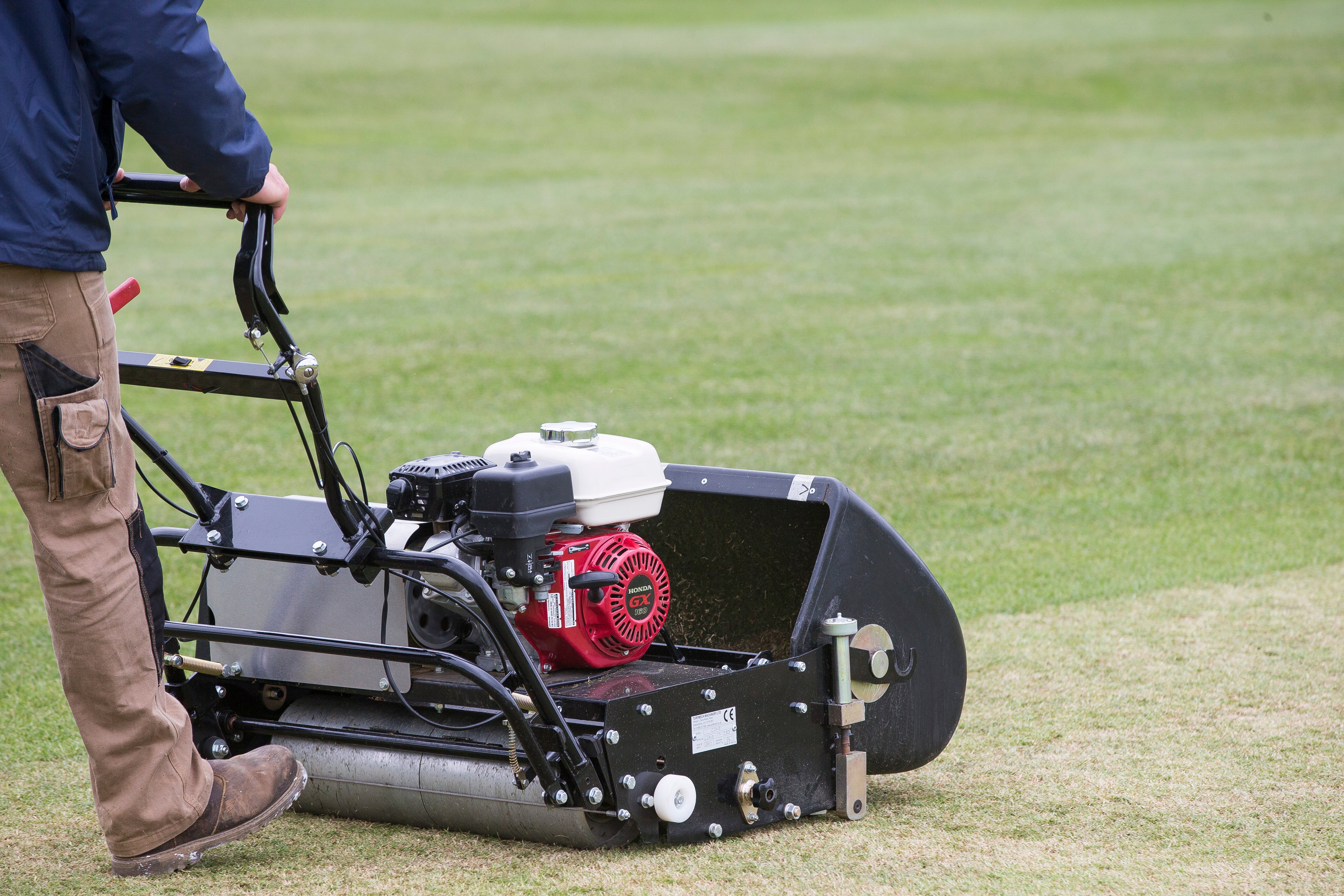

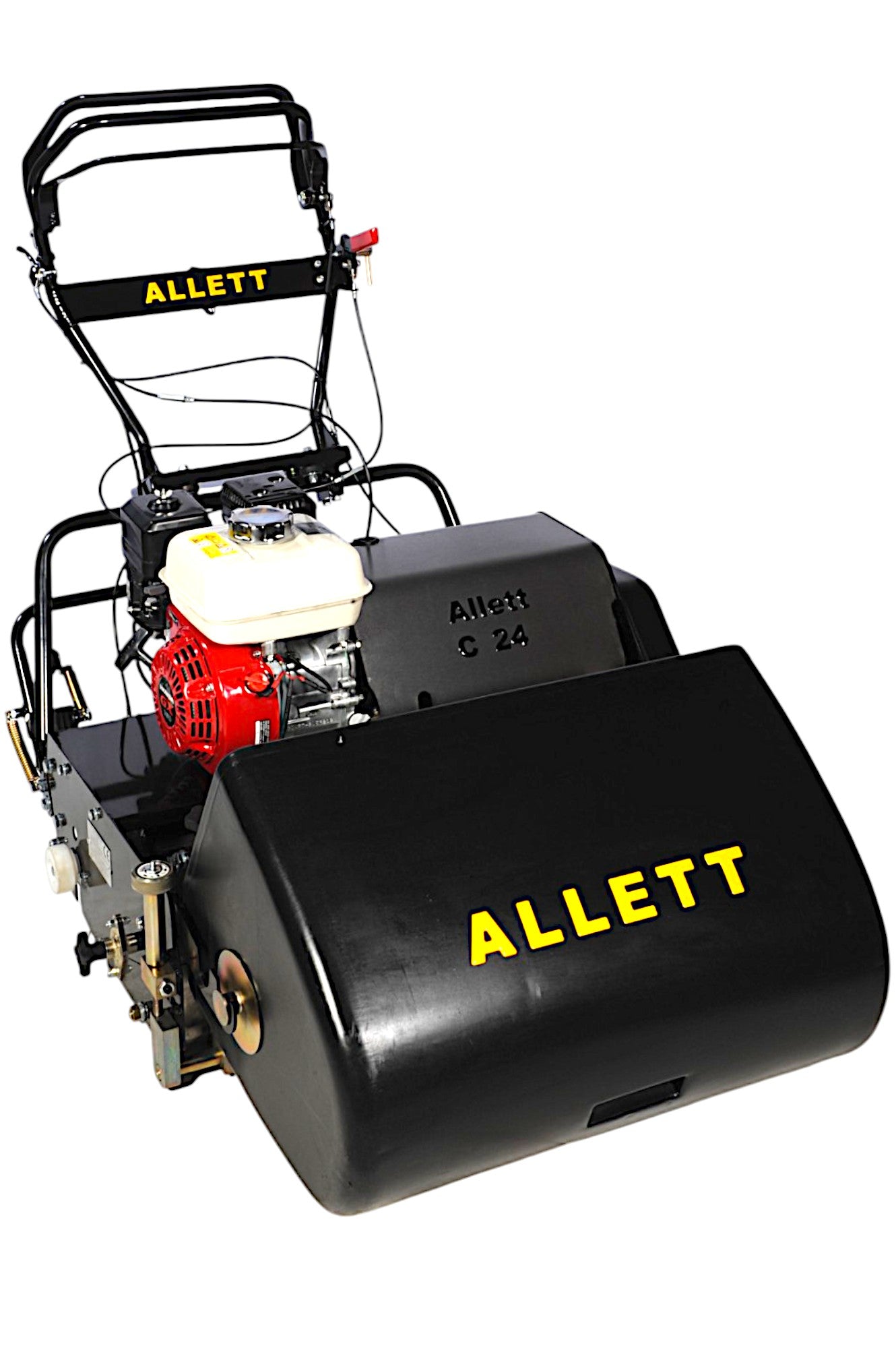

Grassbox Moulded plastic with steel reinforcing strip

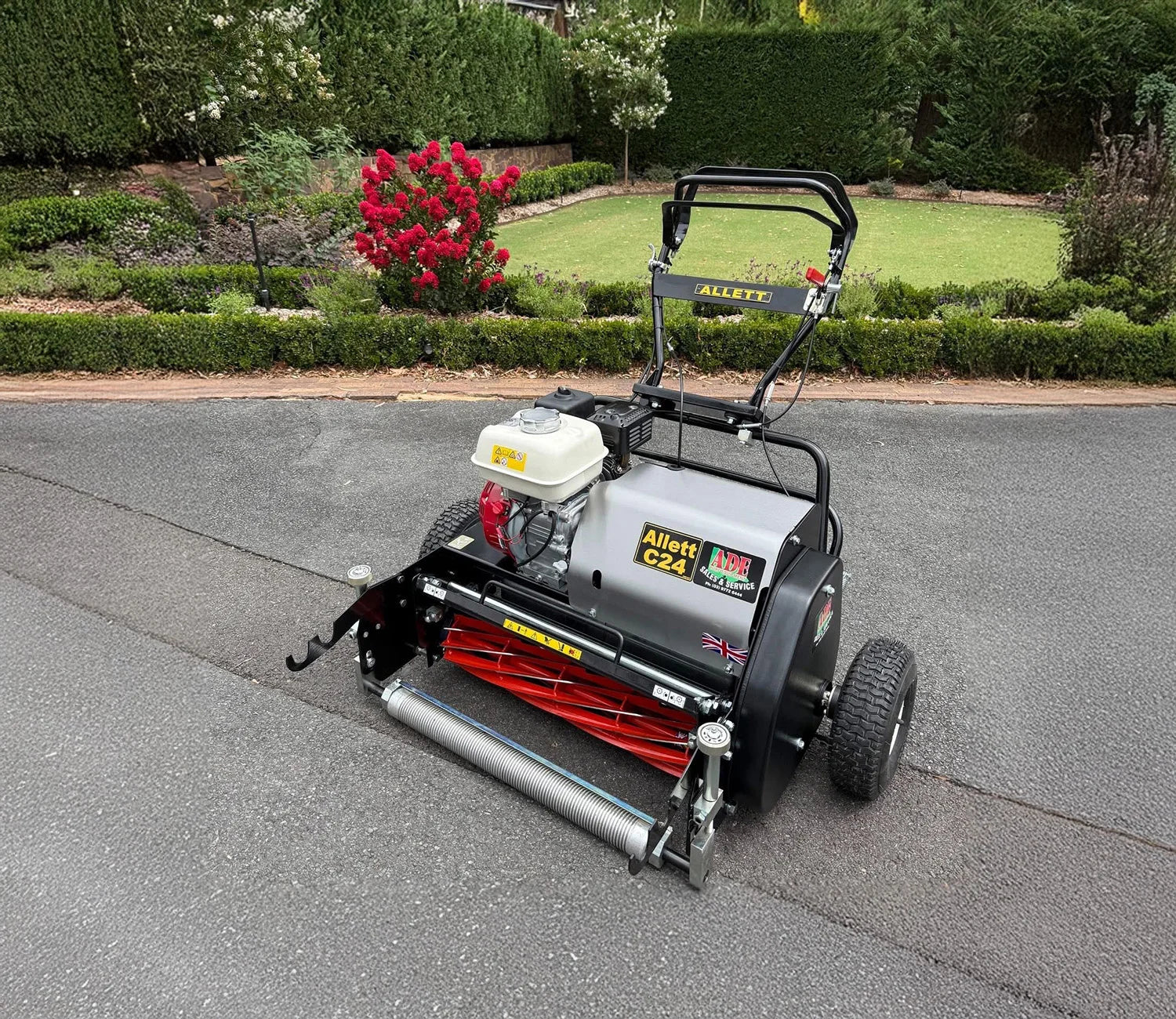

Optional accessories- Scarifier with Tungsten tipped blades, Scarifier, Turf Rake, 6 bladed cylinder, 10 bladed cylinder, Sorrel Roller, Brush, 10 bladed cylinder with groomer, Verticut, Slitter C027 Cartridge Stand and C015 Transport Wheel Kit

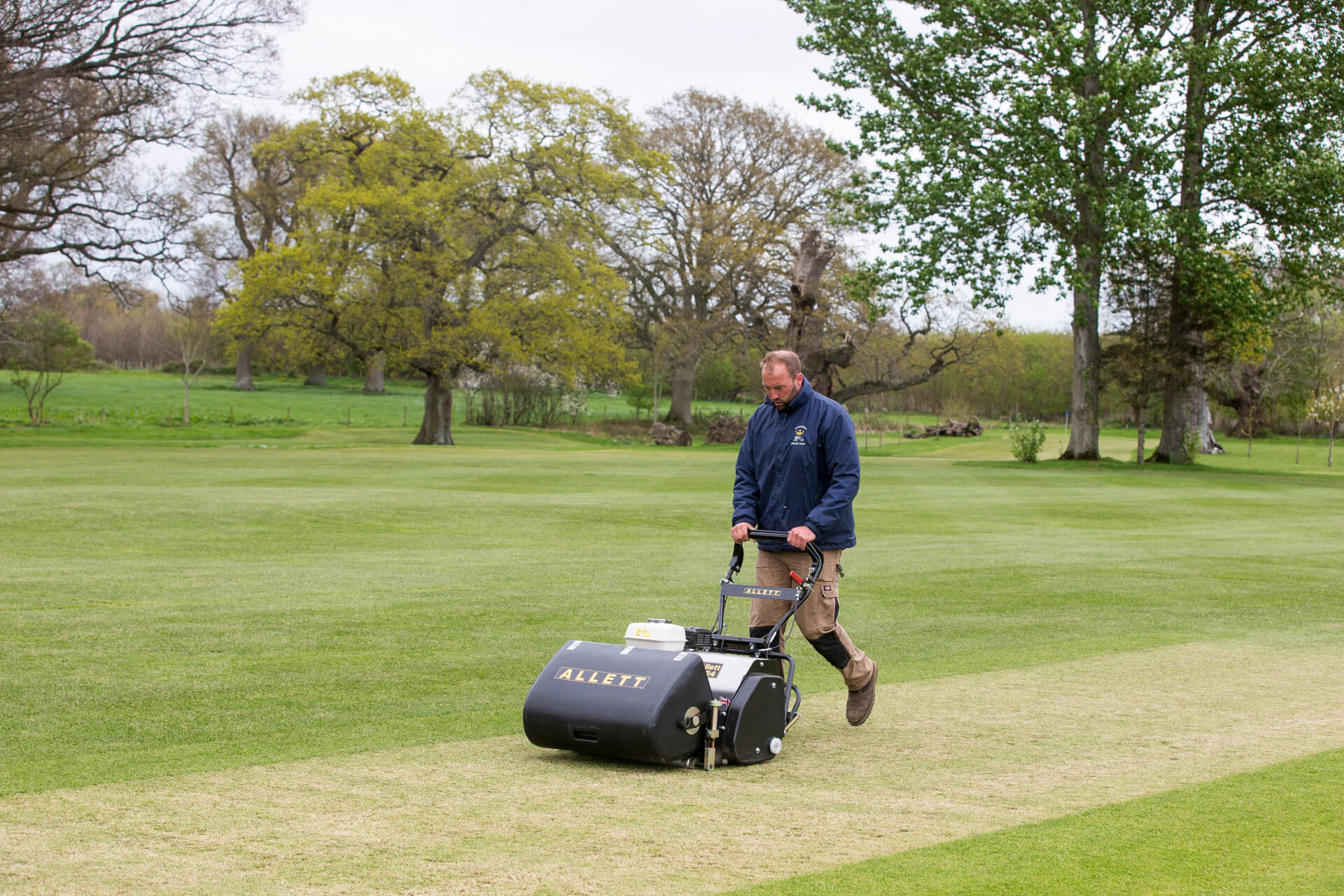

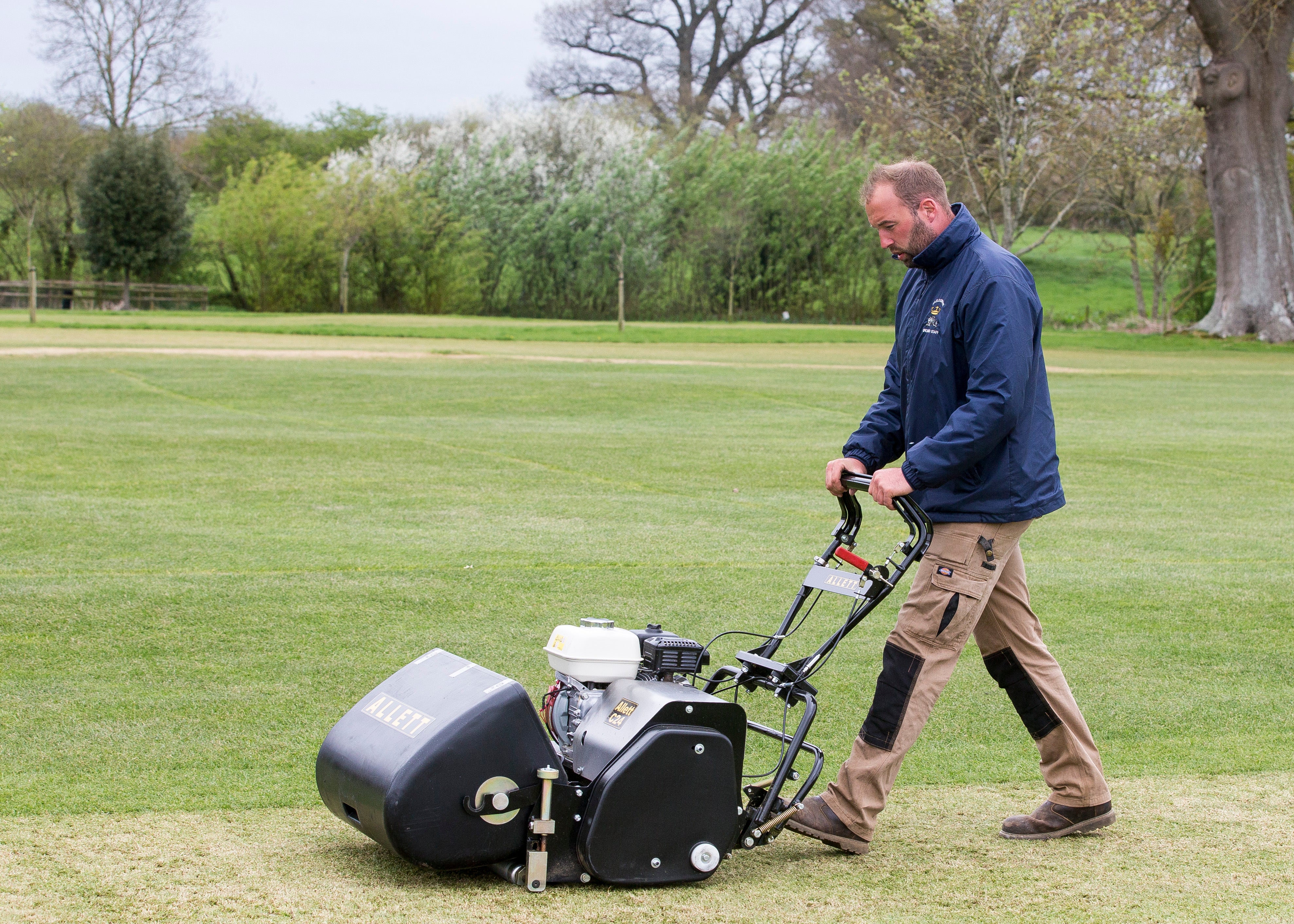

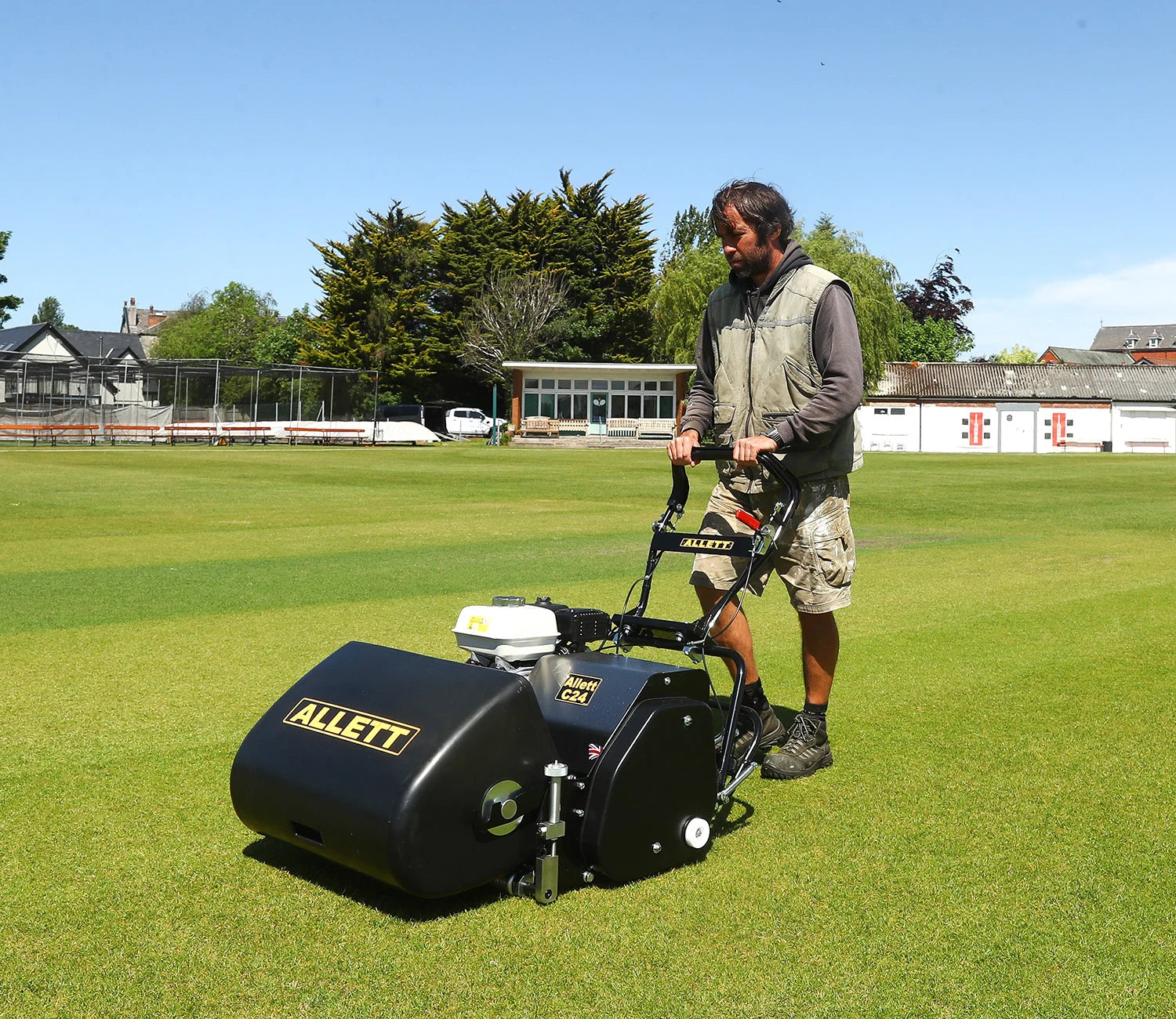

Popular for cricket wickets and squares as well as bowls and golf

94kg dry weight with no cartridge in

Warranty: 24 Months/1500 Hours for Sports User. 48 Months/1500 Hours for Home User

Other Models Available in the C Range:

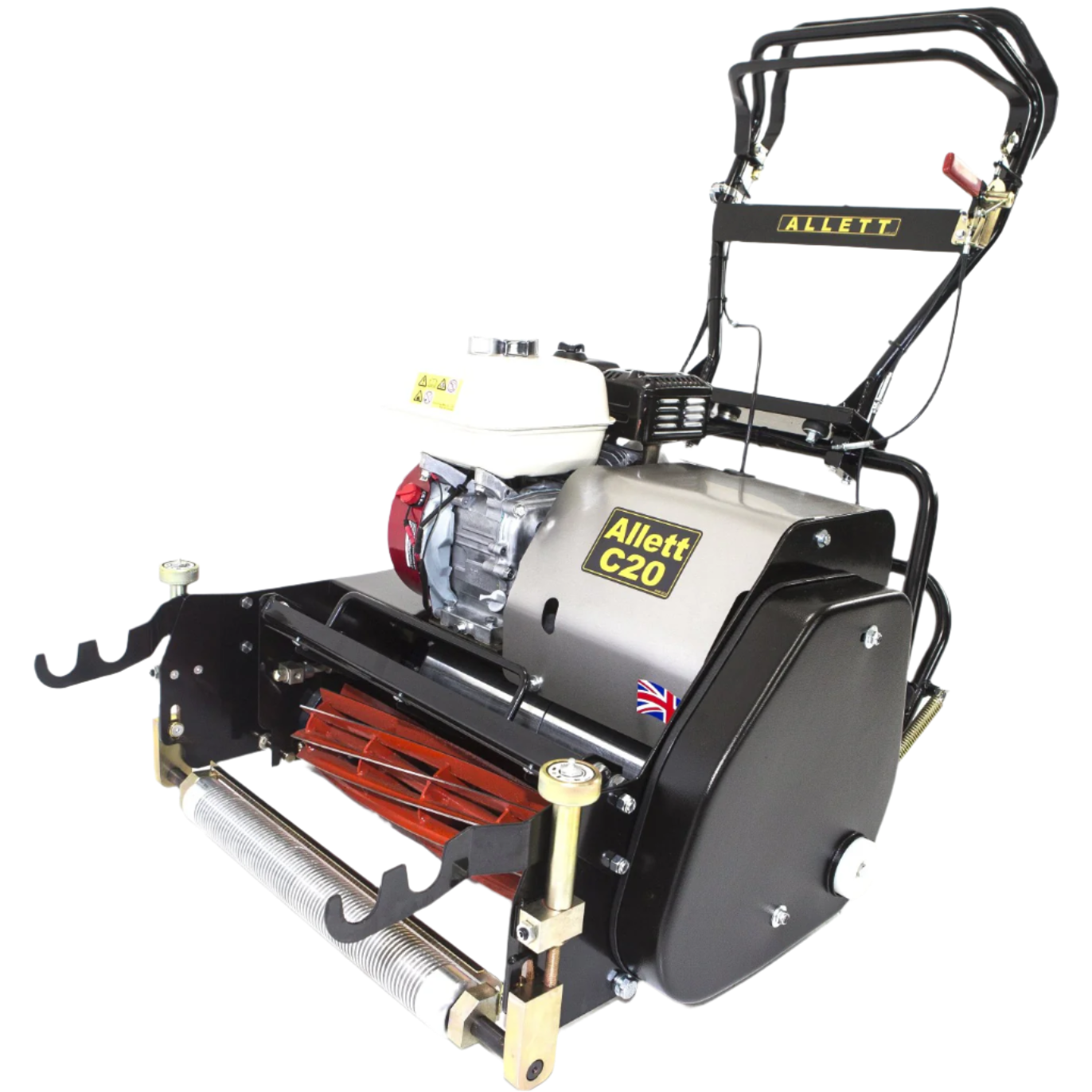

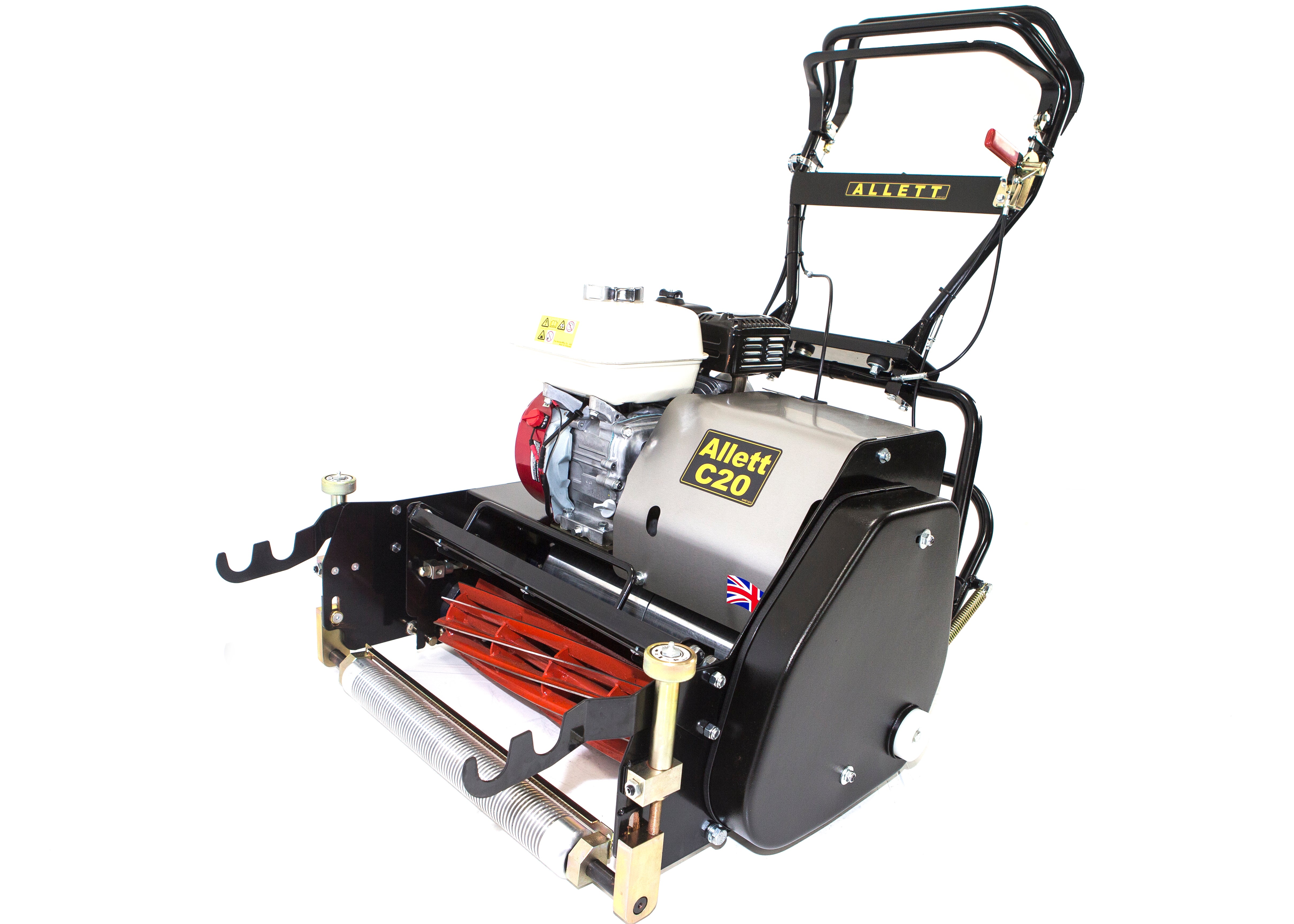

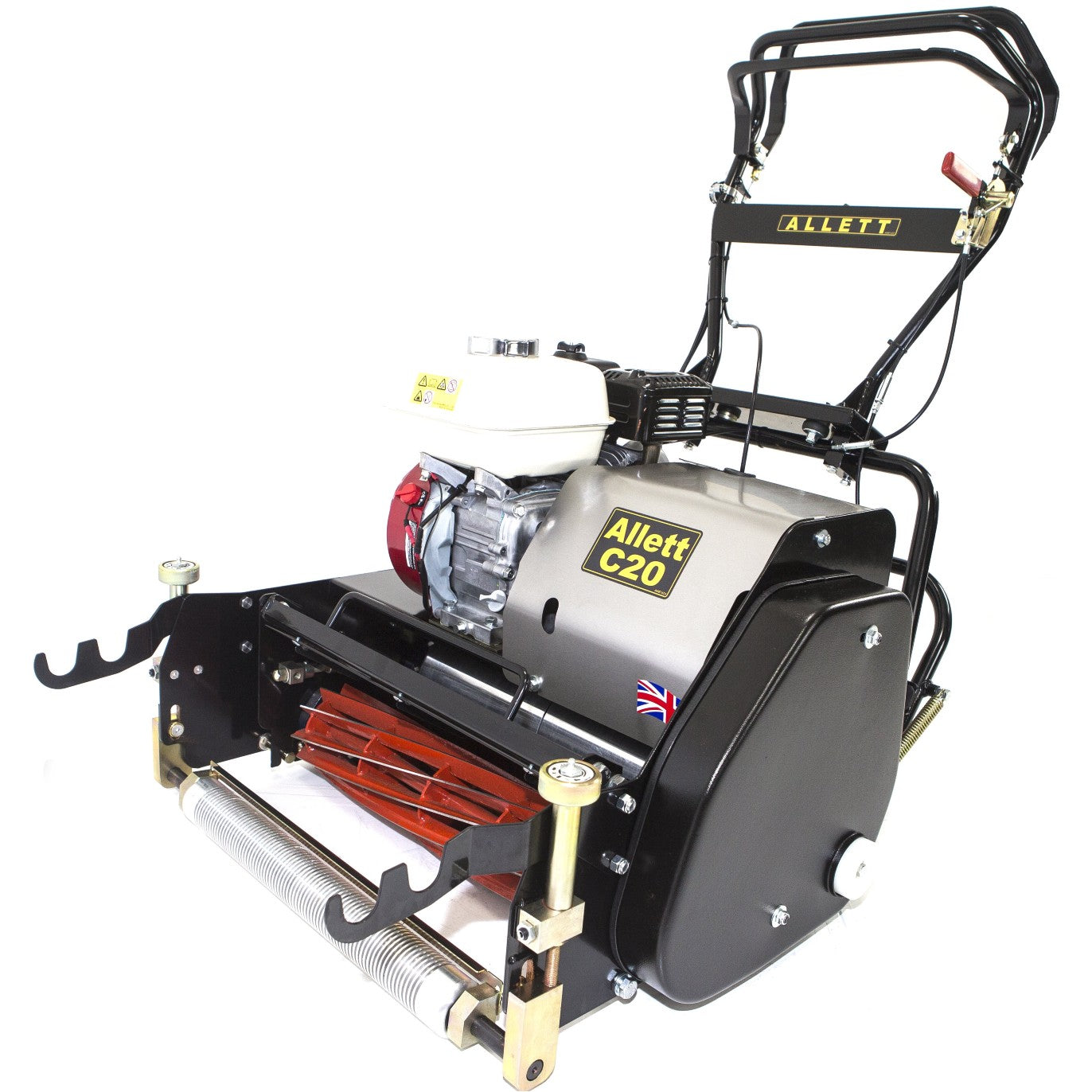

C20, C27 & C34 (Petrol)

C27E & C34E (Battery)
