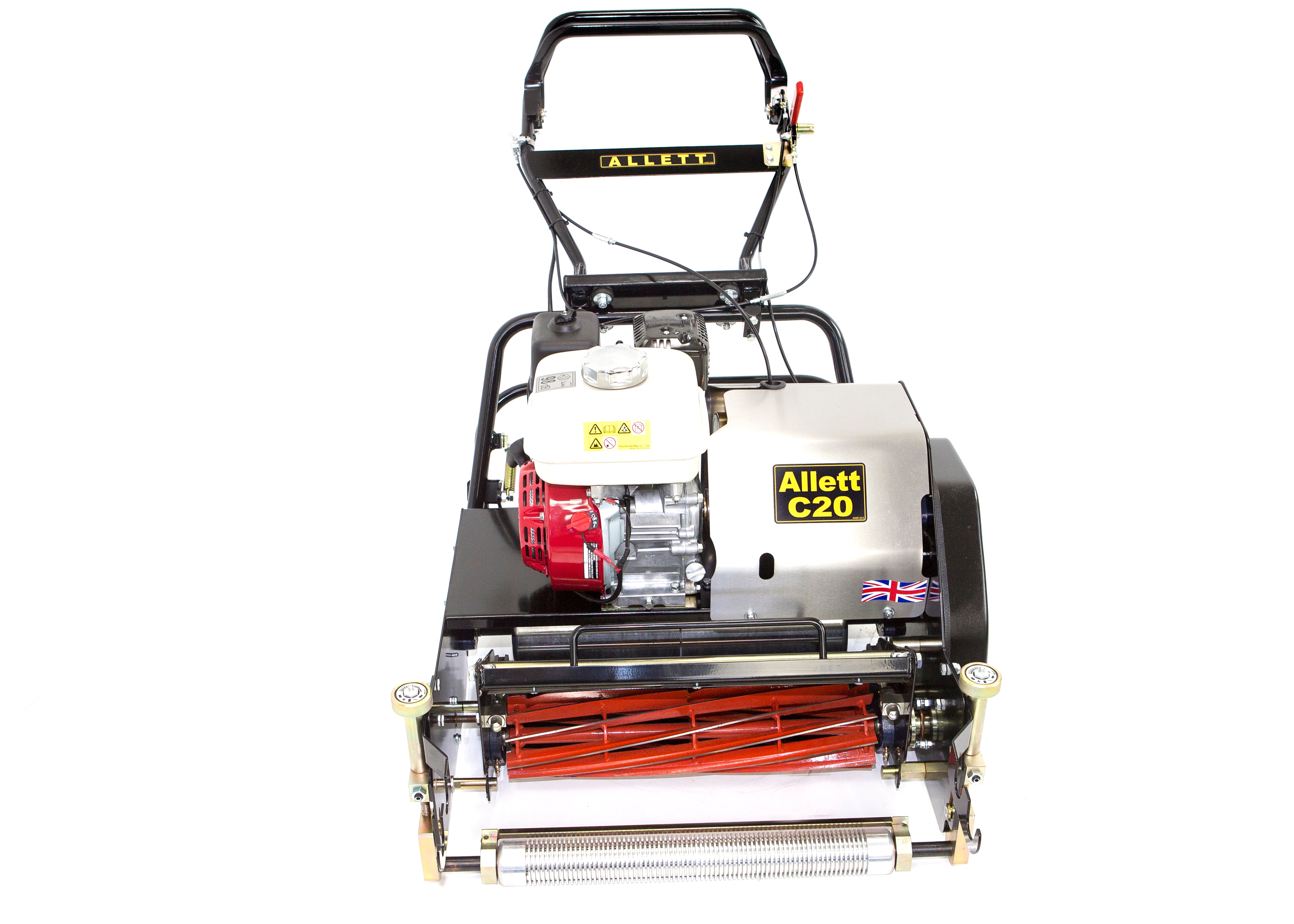

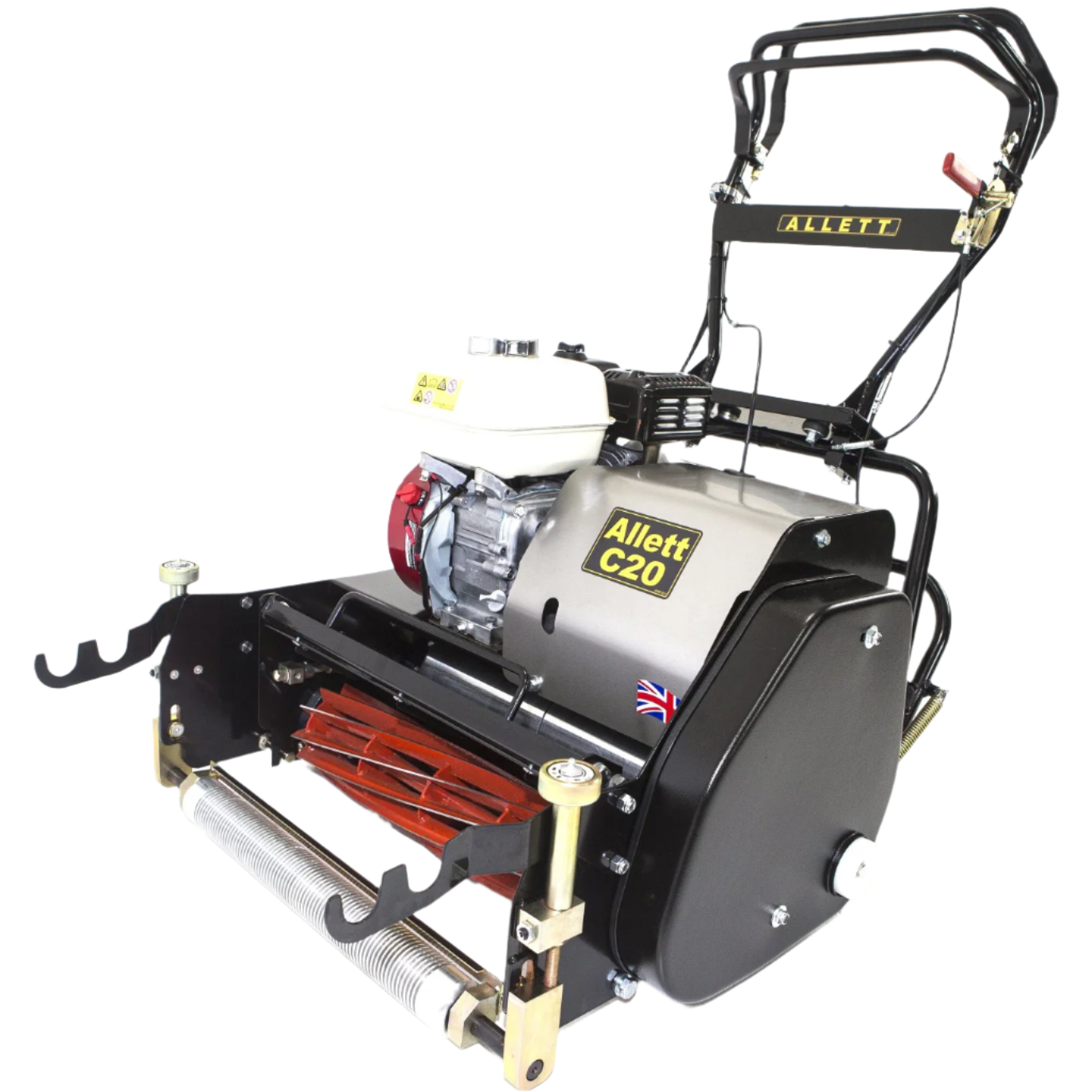

Allett C20 Cylinder Mower (Power-unit with Grassbox)
The Allett C20 is the ideal choice for professional groundskeepers, sports turf managers, and gardeners seeking a versatile, high-performance solution for fine turf maintenance.
Part of the C-Range, the C20 is engineered to deliver a wide range of turf care functions using a single, pedestrian-controlled machine. Its easy-to-change, purpose-built cartridges allow users to switch seamlessly between fine turf mowing, verti-cutting, scarifying, brushing, and sorrel rolling — making it perfect for maintaining cricket wickets, bowling greens, golf greens, and formal lawns.
With a cutting width of 51cm (20") and the option of a six-blade or ten-blade cylinder, the C20 delivers precise results with adjustable cutting heights from 2.4mm to 19mm.
The lightweight design, anti-vibration handlebars, and efficient Honda GX160 engine ensure smooth operation, low fuel consumption, and minimal noise — reducing operating costs.
Built for year-round use, the C20 offers excellent value, especially when paired with optional accessories like the cartridge stand and transport wheel kit.
Whether you're maintaining sports pitches, prestigious lawns, or fine turf surfaces, the Allett C20 provides the flexibility, durability, and professional performance you need.
Precision Cutting for Fine Turf
- 51cm (20") cutting width
- Delivers a professional finish for low-cut turf surfaces
- Cut rates: 6-blade – 93 cuts per metre / 10-blade – 155 cuts per metre
- Overall width: 79cm (31")
- Overall height: 109cm (42.9")
- Overall length: 137.5cm (54")
Engine and Power
- Honda GX160 engine – reliable and fuel efficient
- Power output (net): 3.6kW (4.8hp) @ 3,600 rpm
- 3.1-litre fuel tank
- Low noise and minimal vibration during operation
Versatile Cartridge System
- 6-blade and 10-blade cylinder options available
- Compatible with scarifying, verticutting, brushing, and more
- Expands mowing capabilities year-round
Adjustable Cutting Height
- Range: 2.4mm to 19mm (0.1″ to 0.75″)
- Allows for precision control cutting height

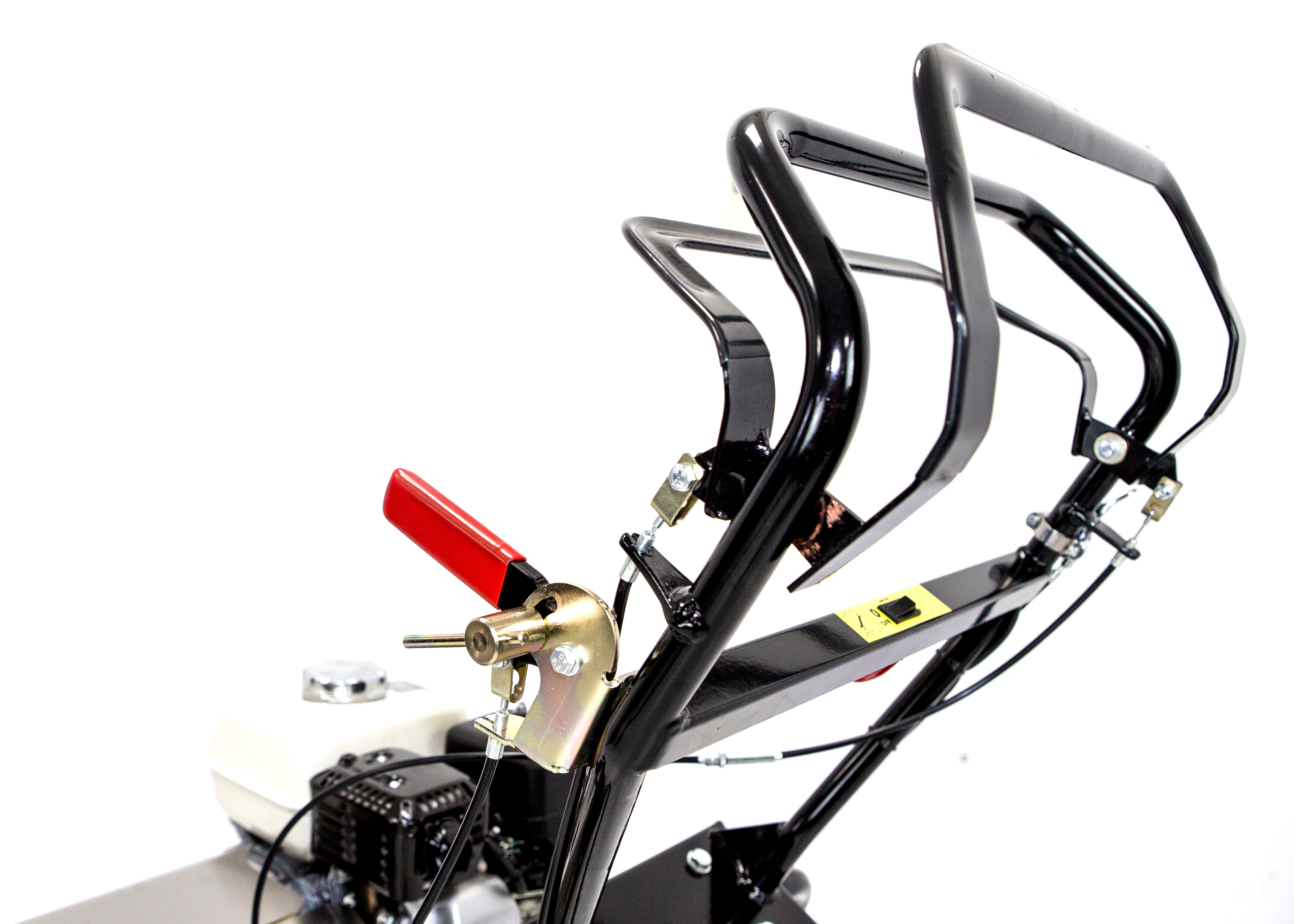

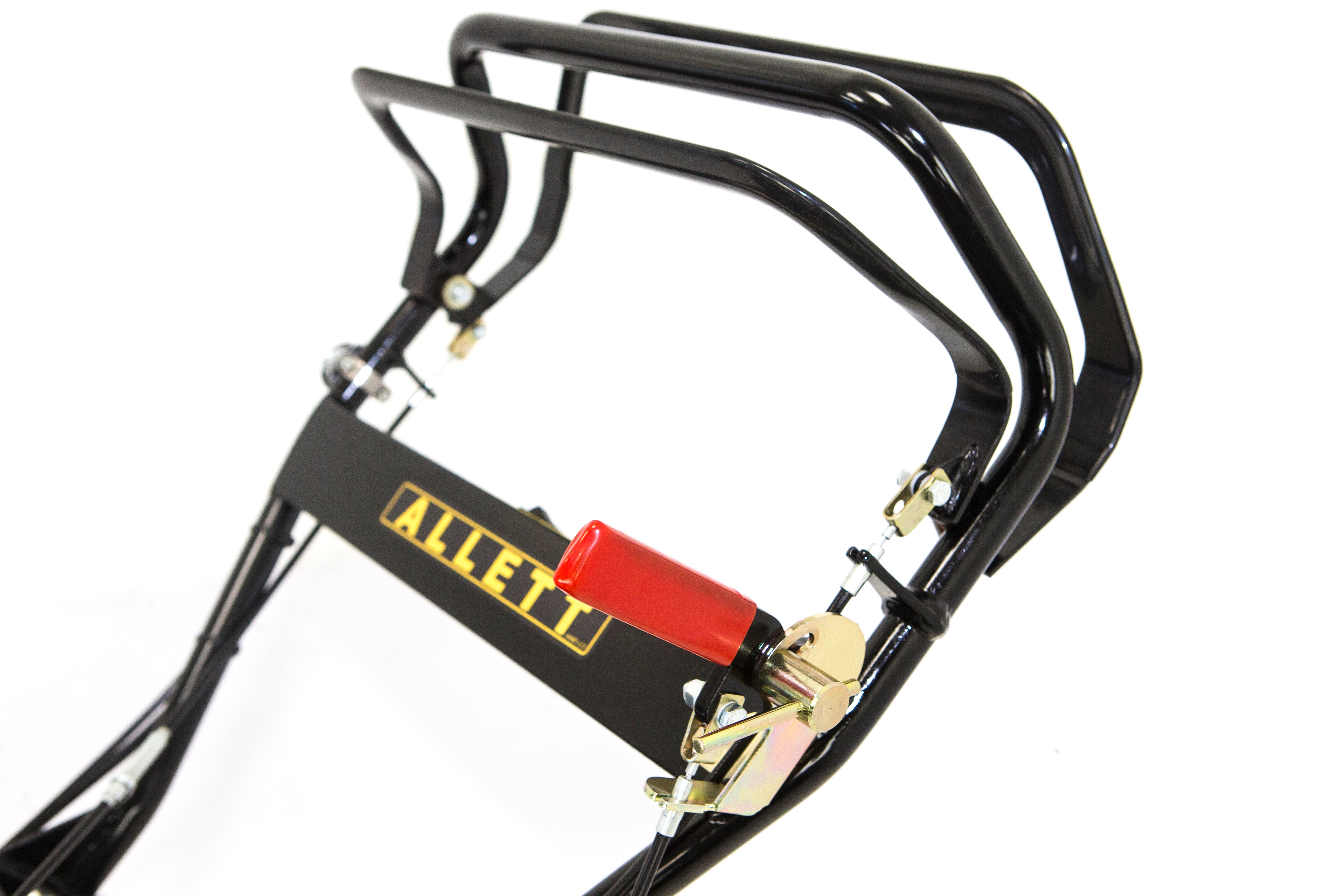

Ergonomic Design
- Adjustable handlebars with anti-vibration mountings
- Reduces operator fatigue
Drive and Cylinder Engagement
- Drive engagement: Handle-mounted lever engaging V belt via cable
- Cartridge head engagement: Handle-mounted lever engaging V belt via cable

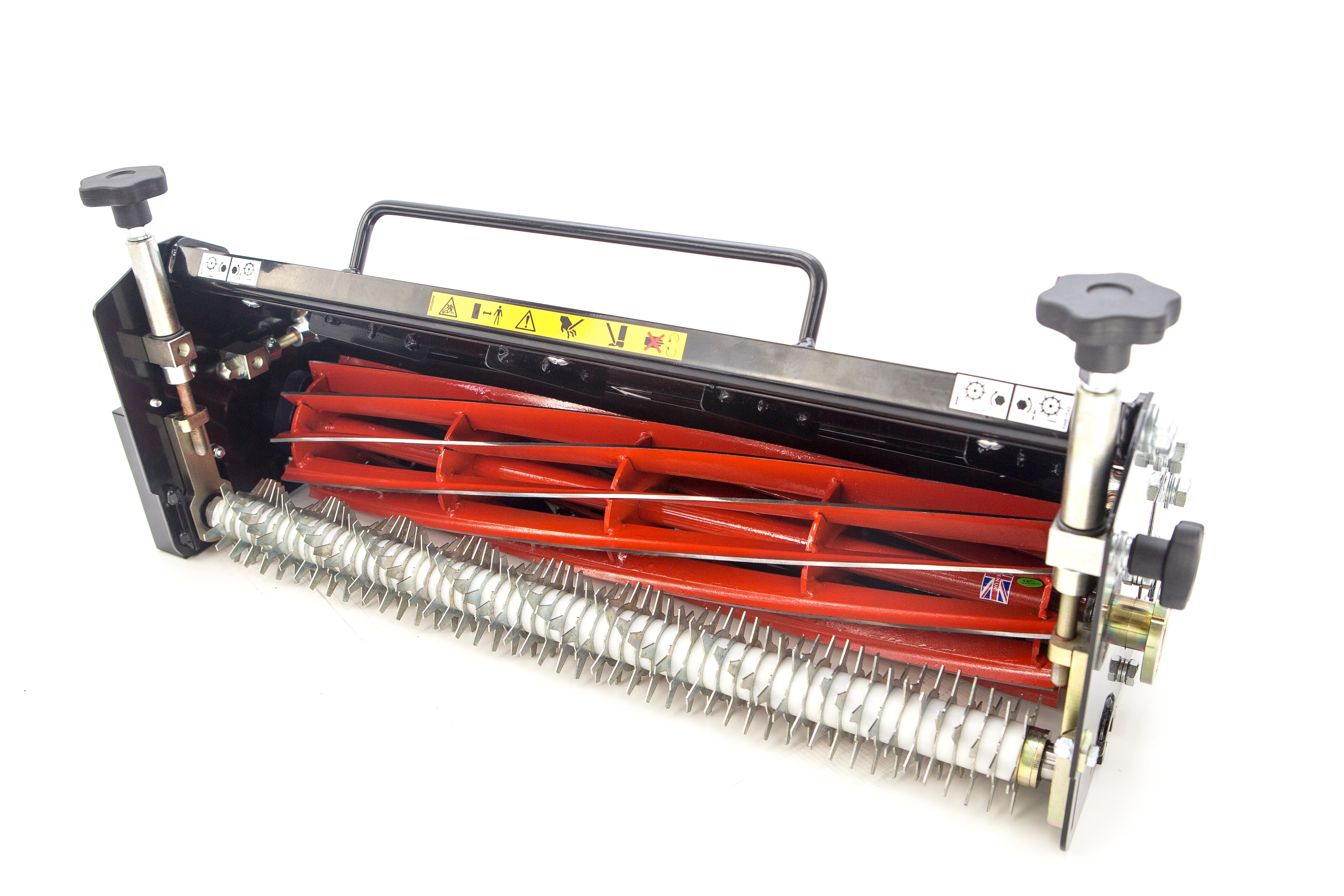

Groomer Specifics
- Available only on 10-blade groomer cartridges
- 45 blades @ 10mm spacing
- Infinitely adjustable working height
- Unit can be fully raised above turf when grooming is not required
Available Cartridges

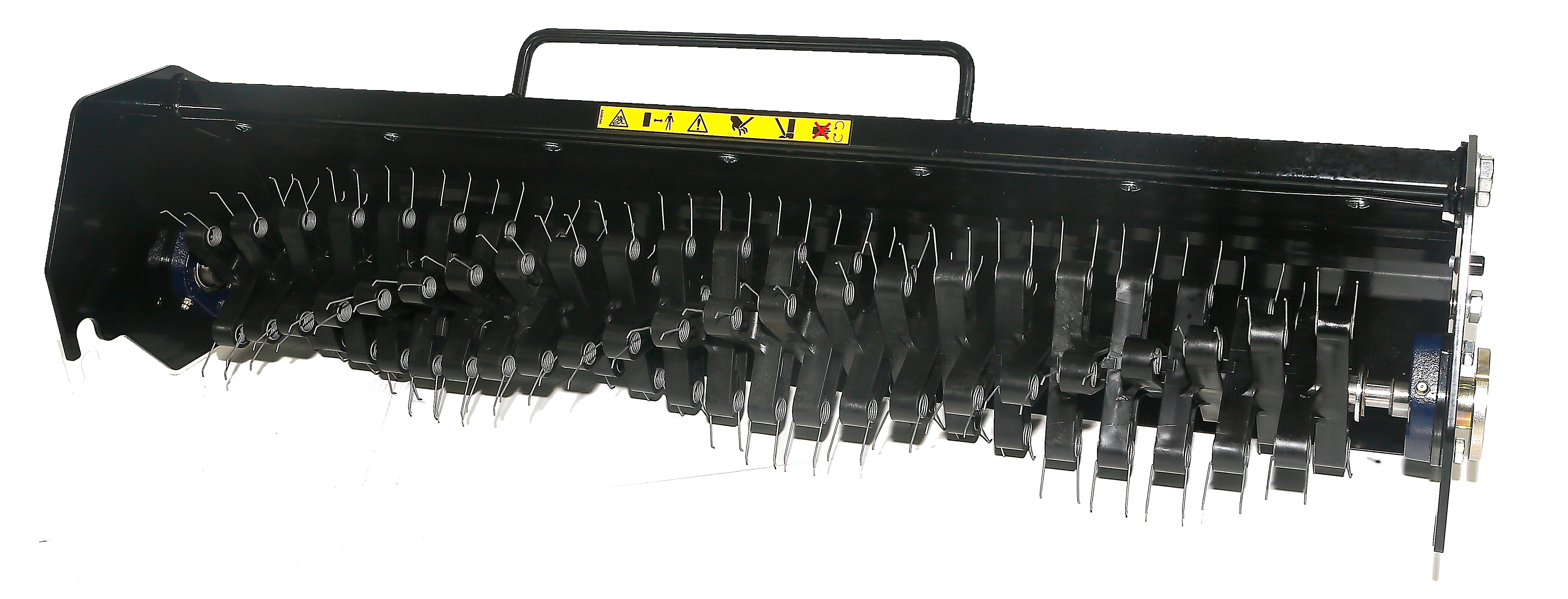

- Scarifier with tungsten tipped blades

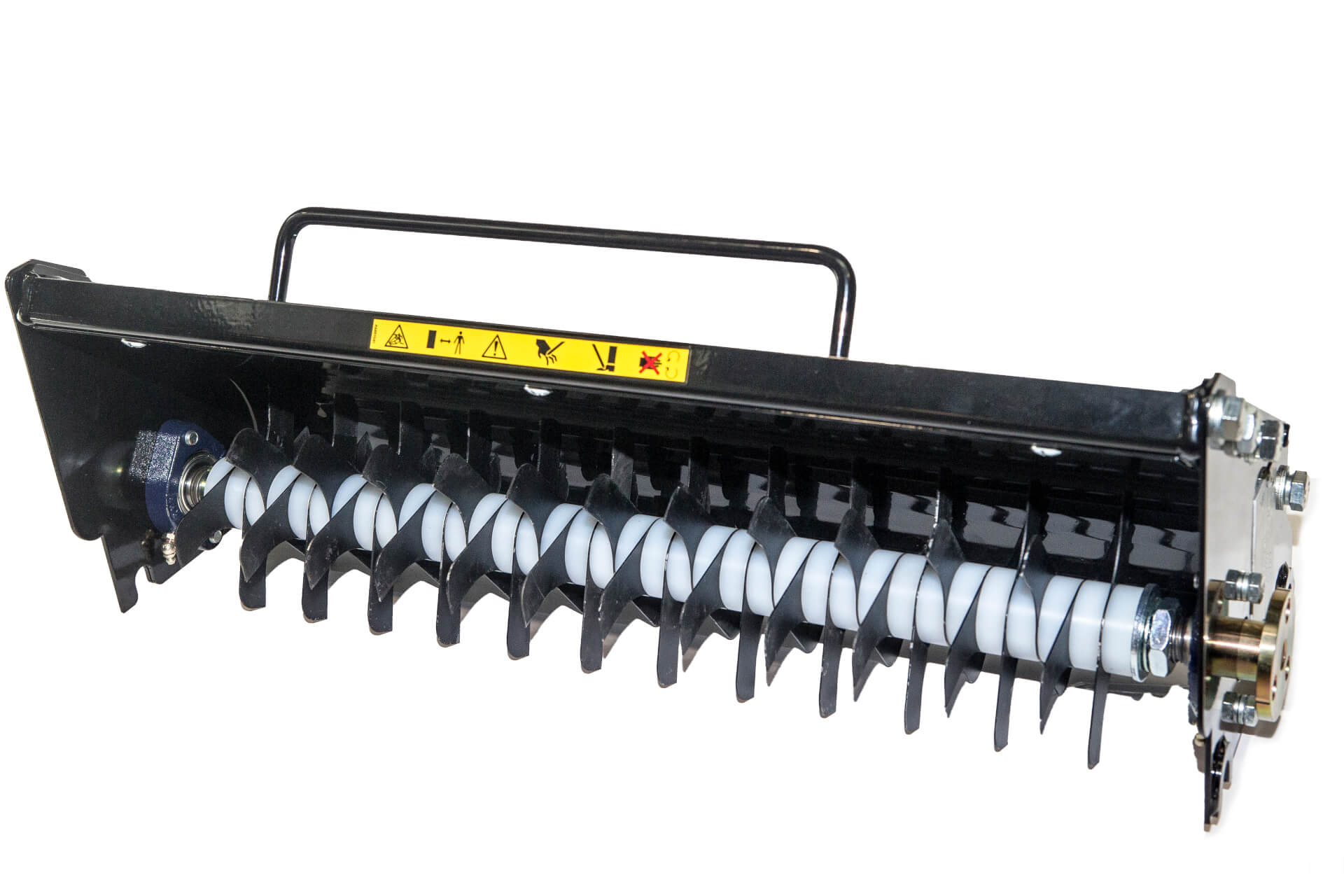

- Scarifier

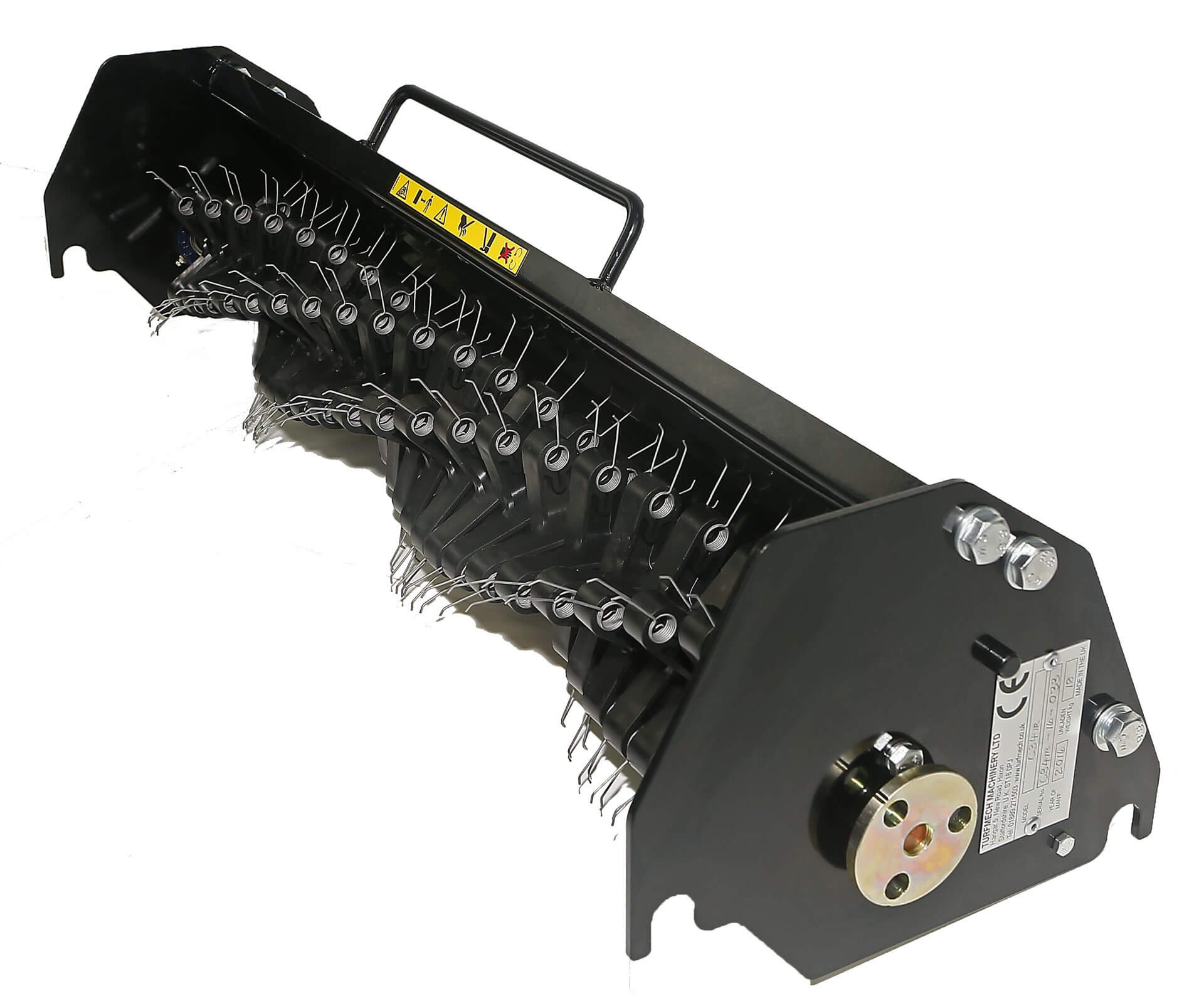

- Turf Rake
- 6-bladed cylinder
- 10-bladed cylinder

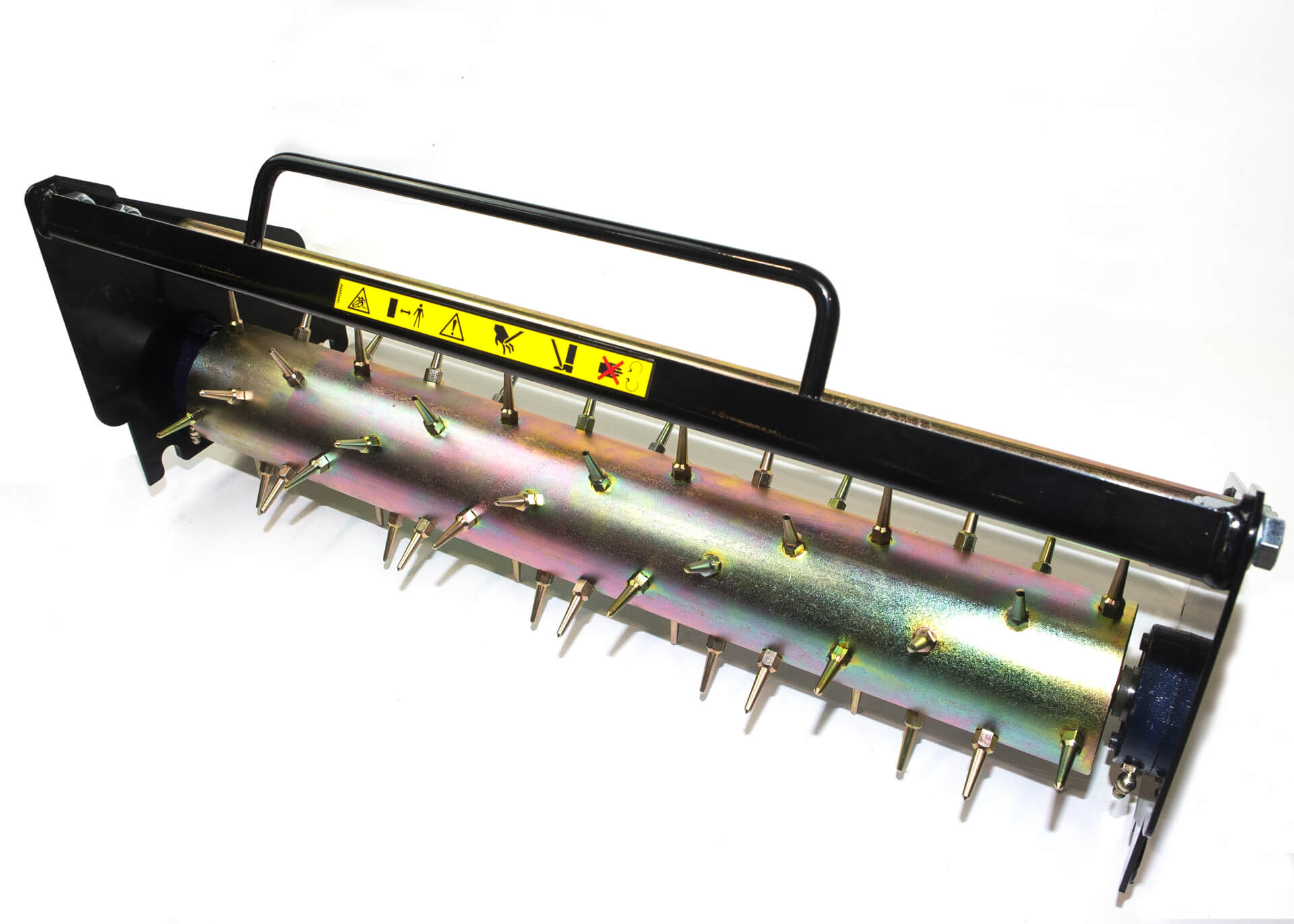

- Sorrel Roller

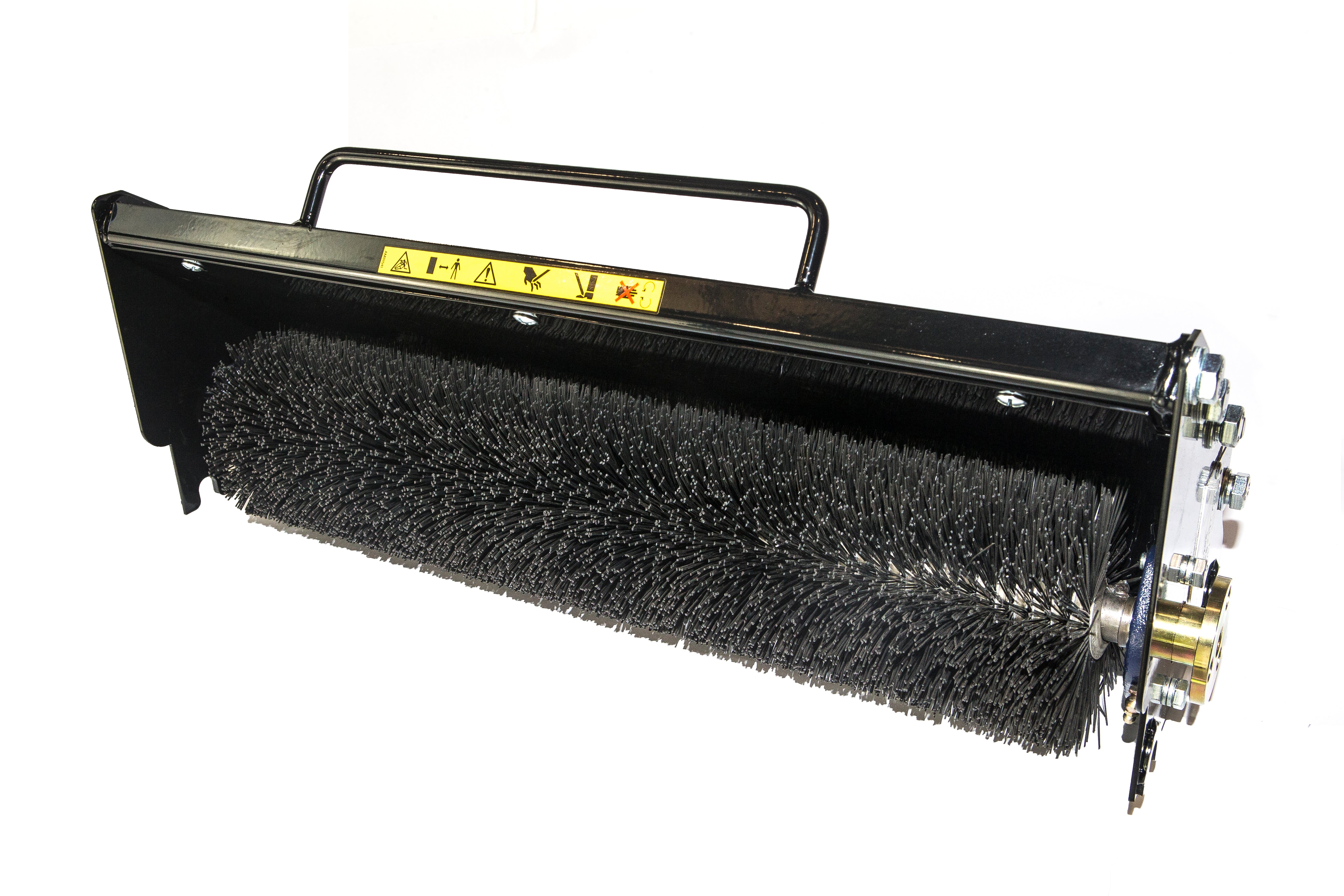

- Brush
- 10-blade with groomer

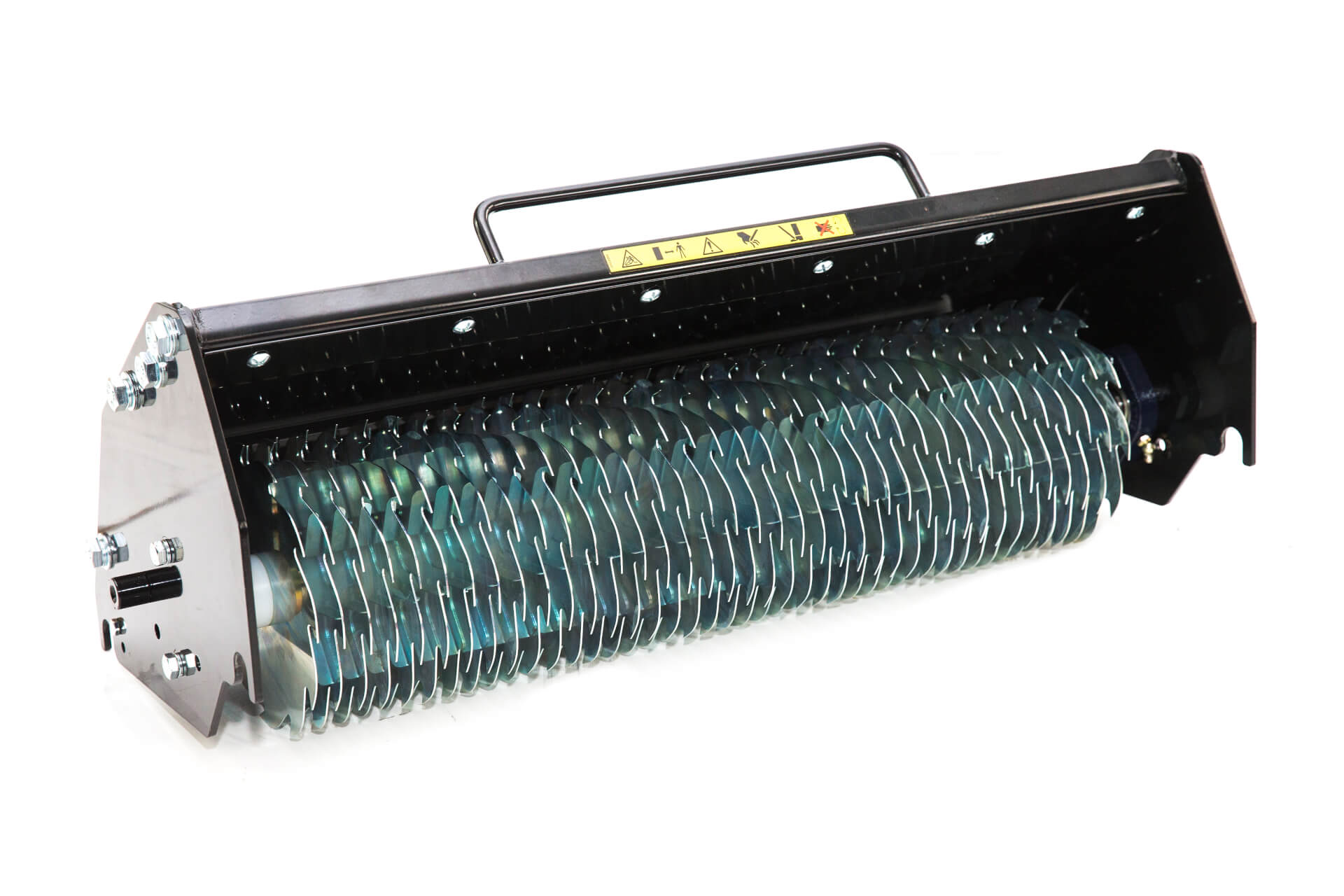

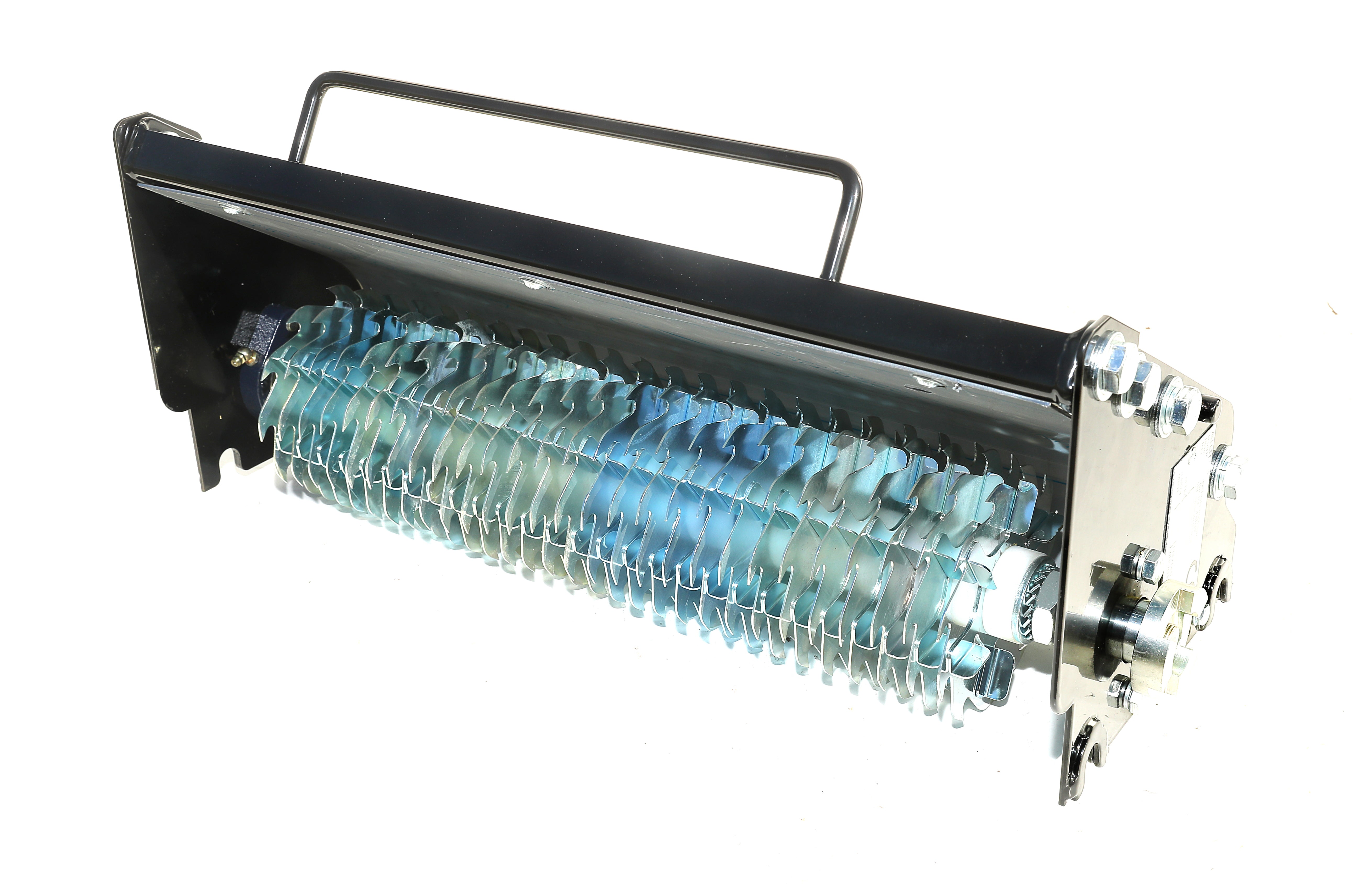

- Verticut

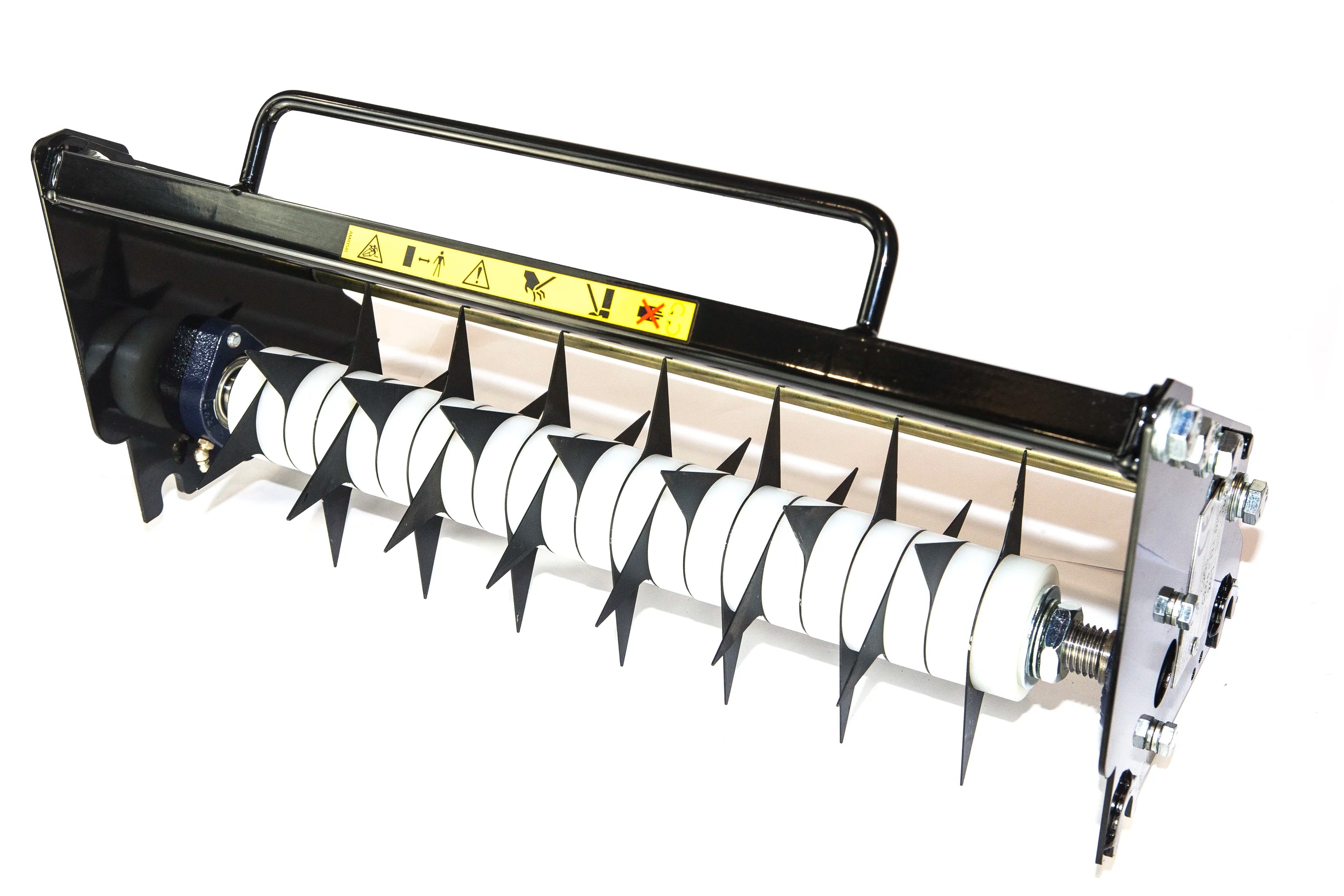

- Slitter
Durable Construction
- Robust two-piece aluminium rear roller
- Grooved aluminium front roller with sealed bearings
- Scraper included; plain roller available as optional extra

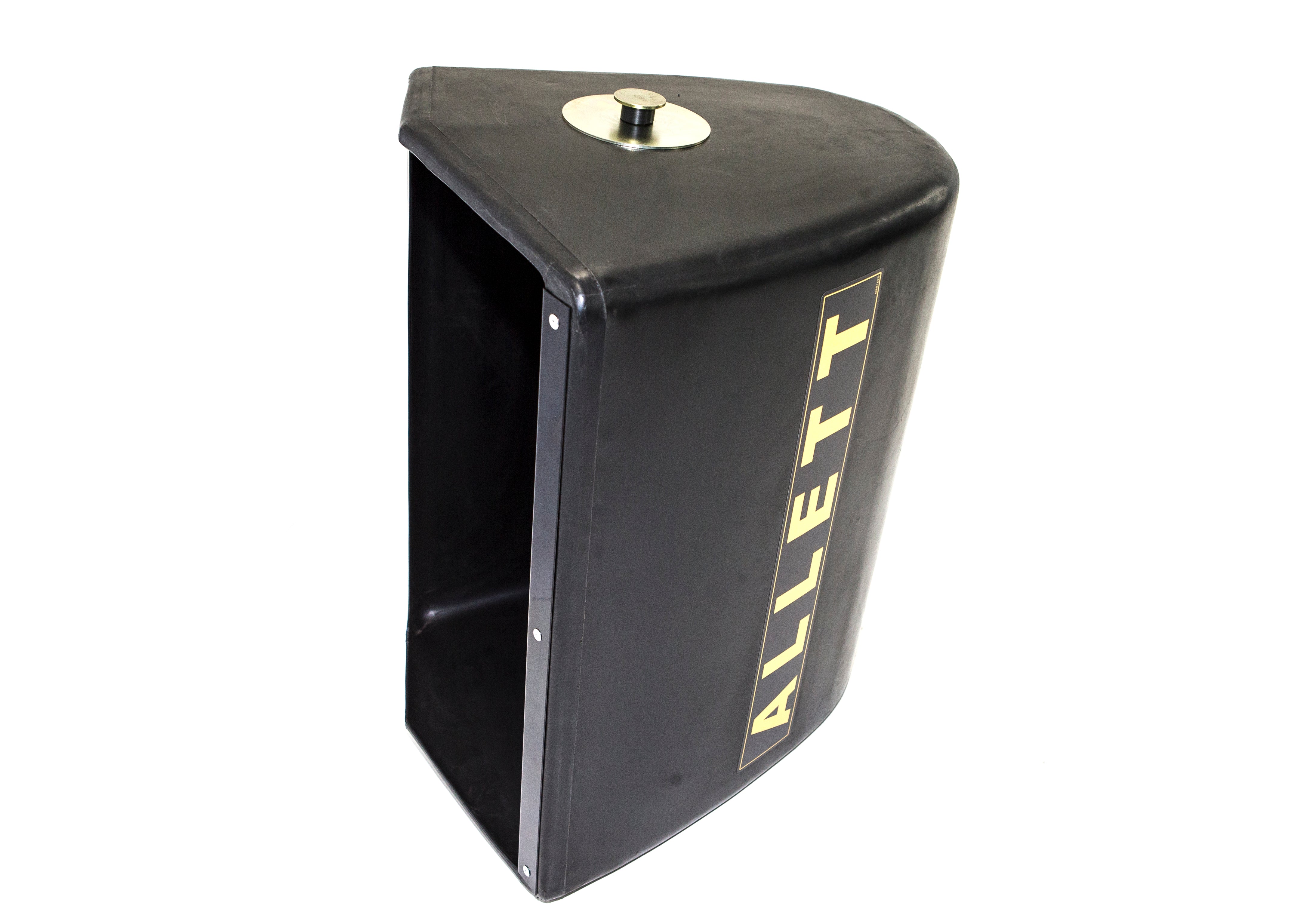

Efficient Grass Collection
- Large capacity grassbox made from moulded plastic (79L)
- Steel reinforcing strip for added durability
- Minimises downtime for emptying
Weight and Manoeuvrability
- Weight: 88.5kg (195lb)
- Easy to manoeuvre around tight areas and complex turf layouts
- Provides professional-grade performance with minimal effort
Optional Accessories

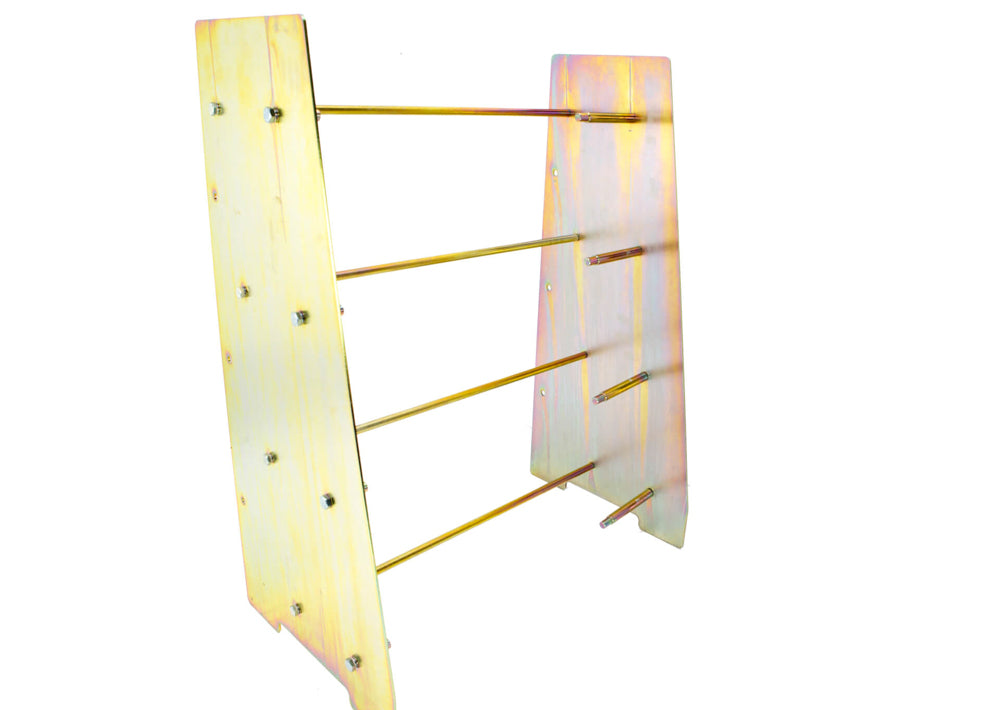

- C027 Cartridge Stand
- C015 Transport Wheel Kit
- Enhances transport and storage convenience
Warranty & Longevity
- 24-month or 1,500-hour warranty for sports users
- 48-month or 1,500-hour warranty for home users
- Reliable, long-lasting machine for turf professionals

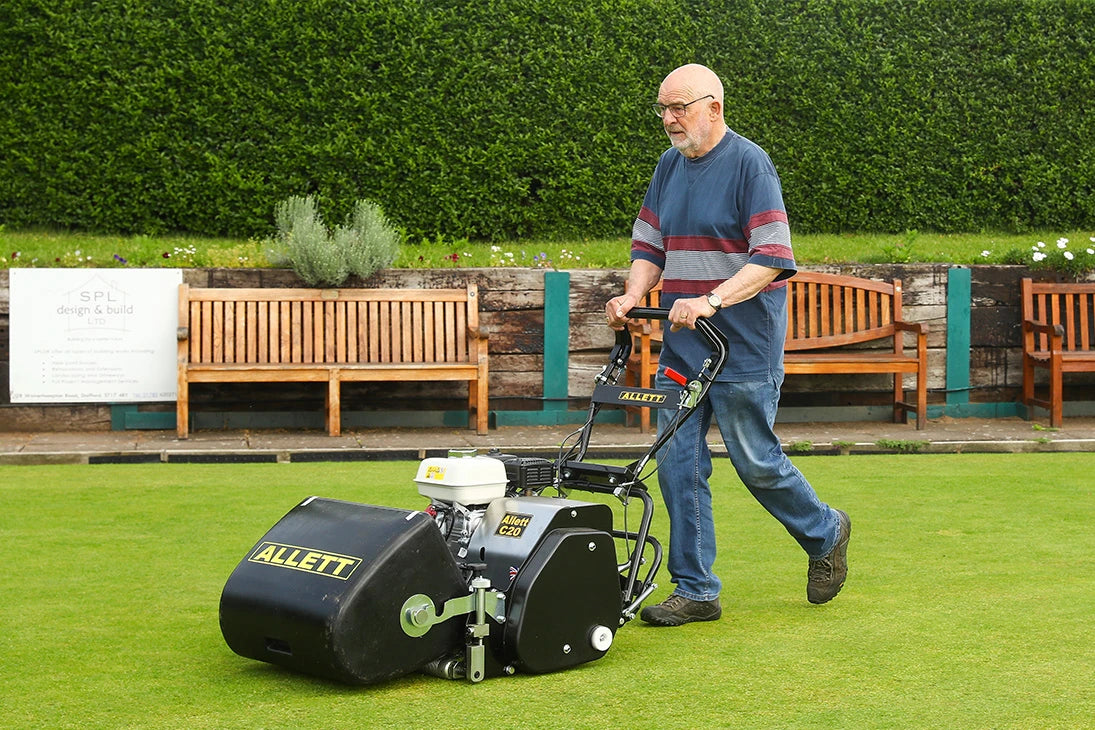

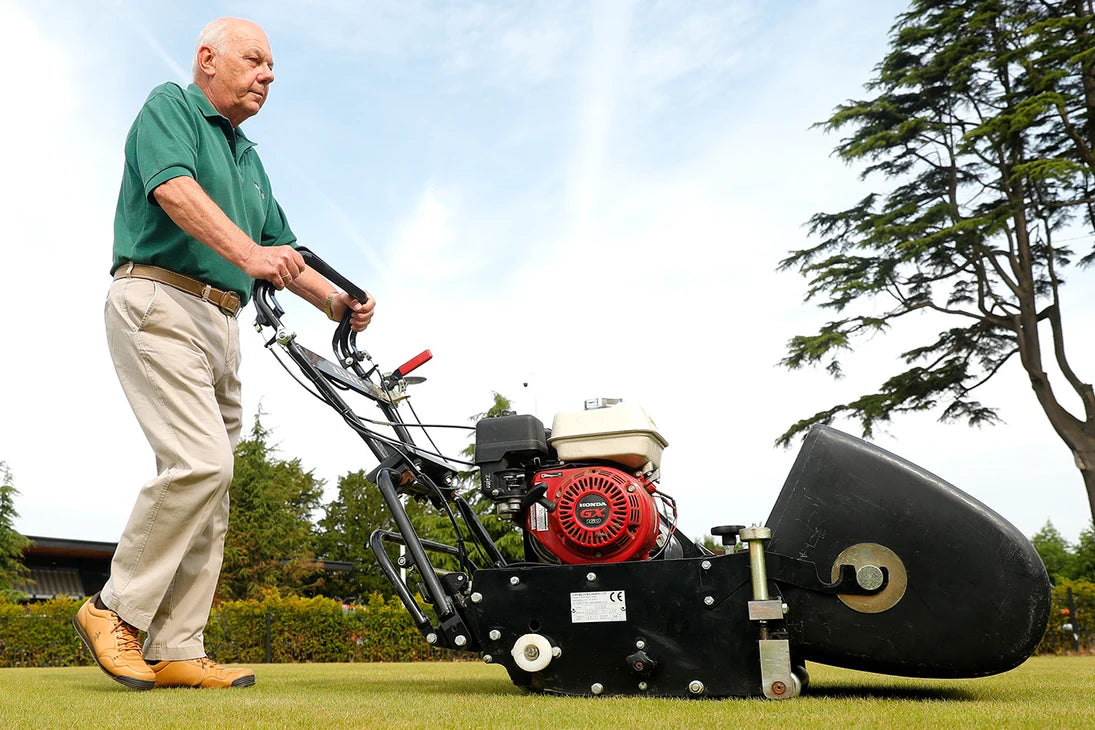

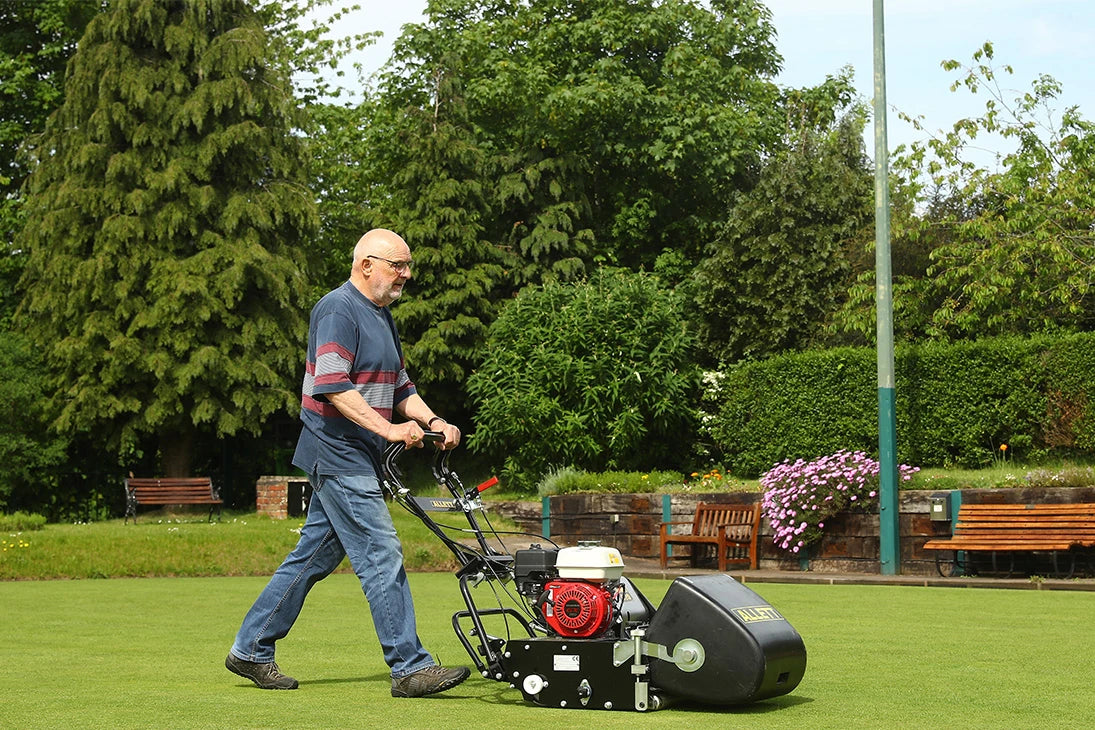

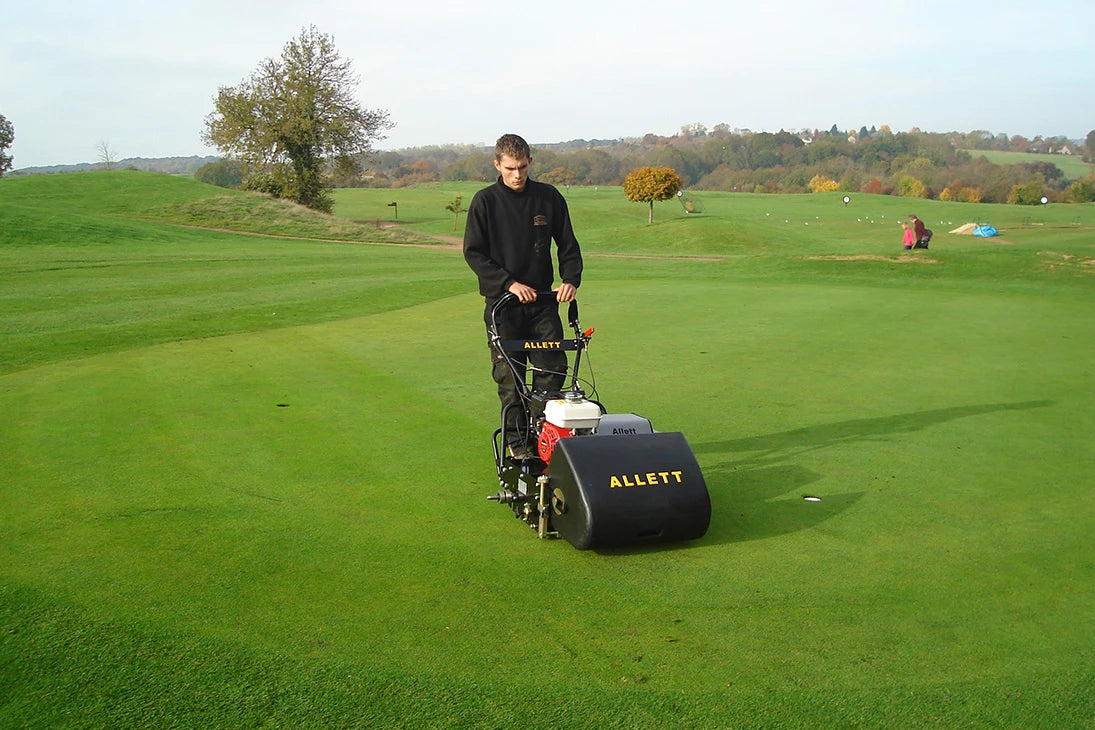

Ideal for low cut lawns
The Allett C20 is ideal for cricket wickets, greens, and low-cut lawns due to its precision cutting (2.4–19mm), interchangeable turf care cartridges, professional-grade Honda engine, and stable roller-based design—delivering a clean, consistent finish and year-round versatility for fine turf maintenance.

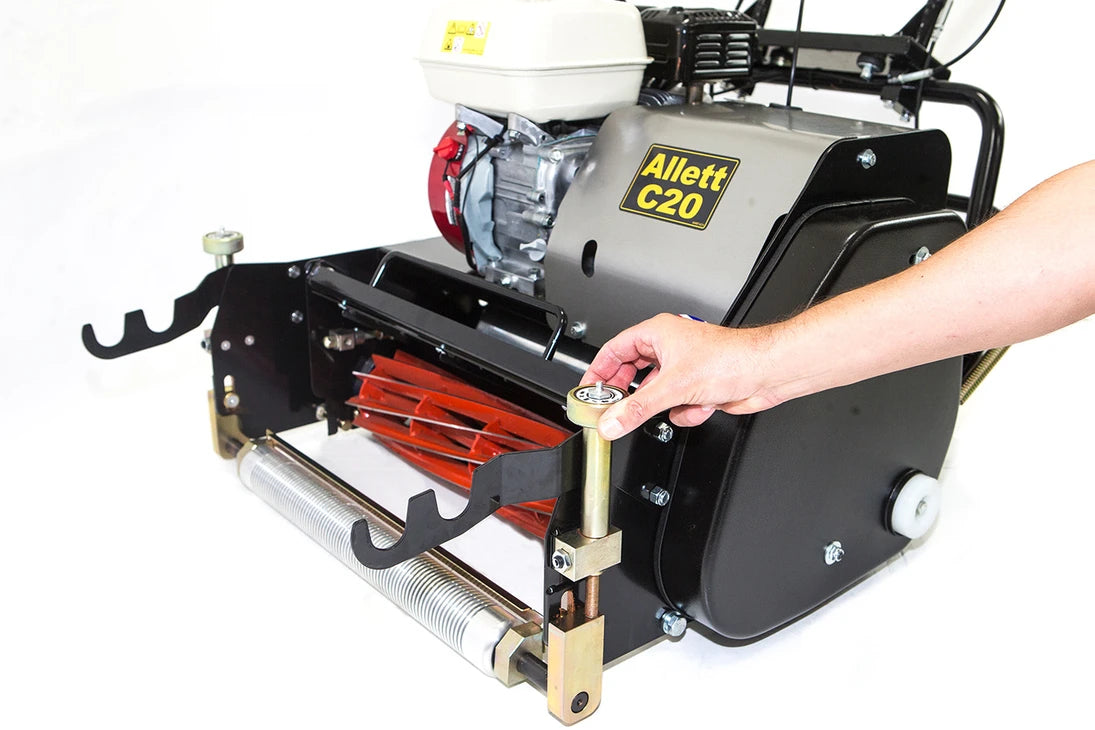

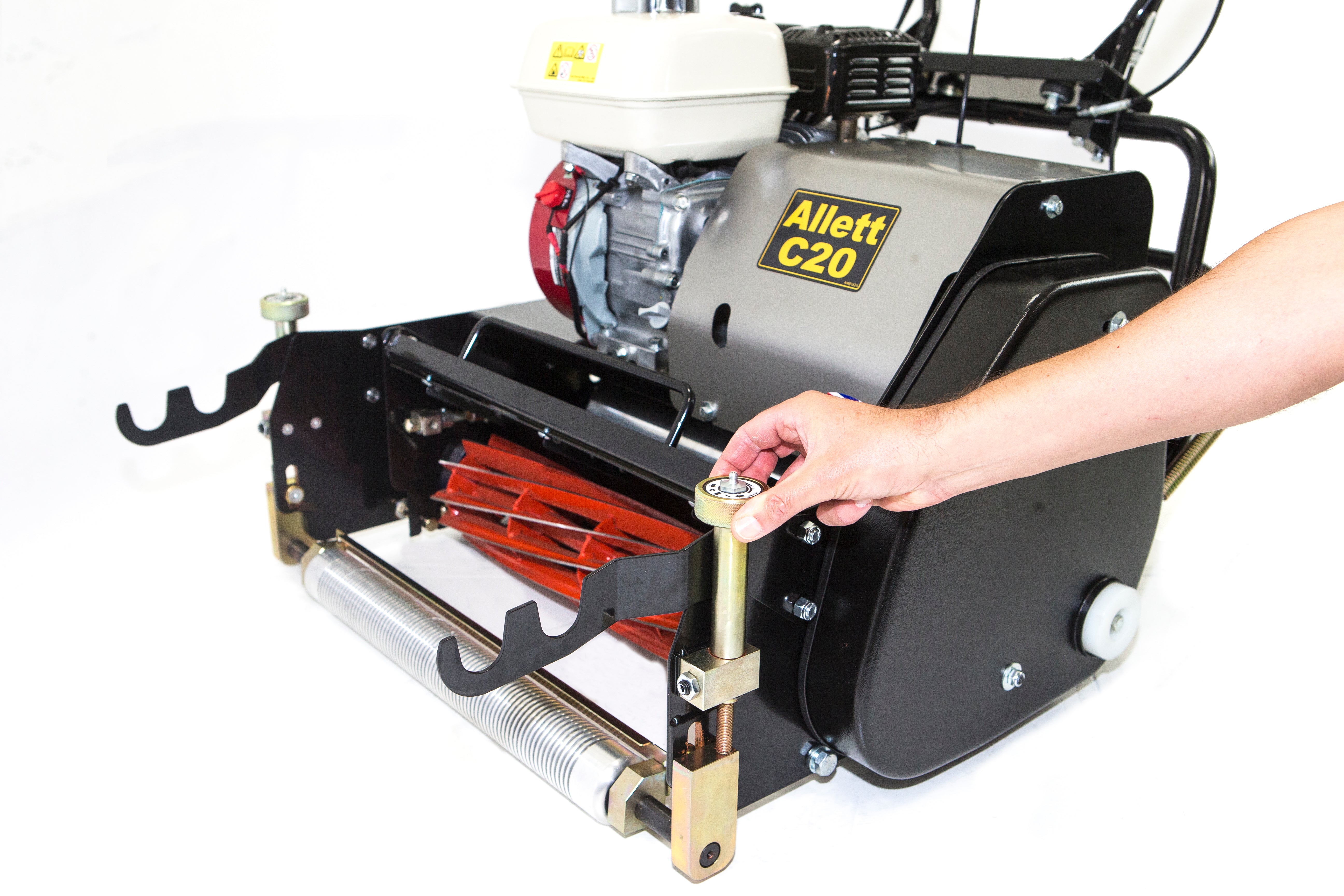

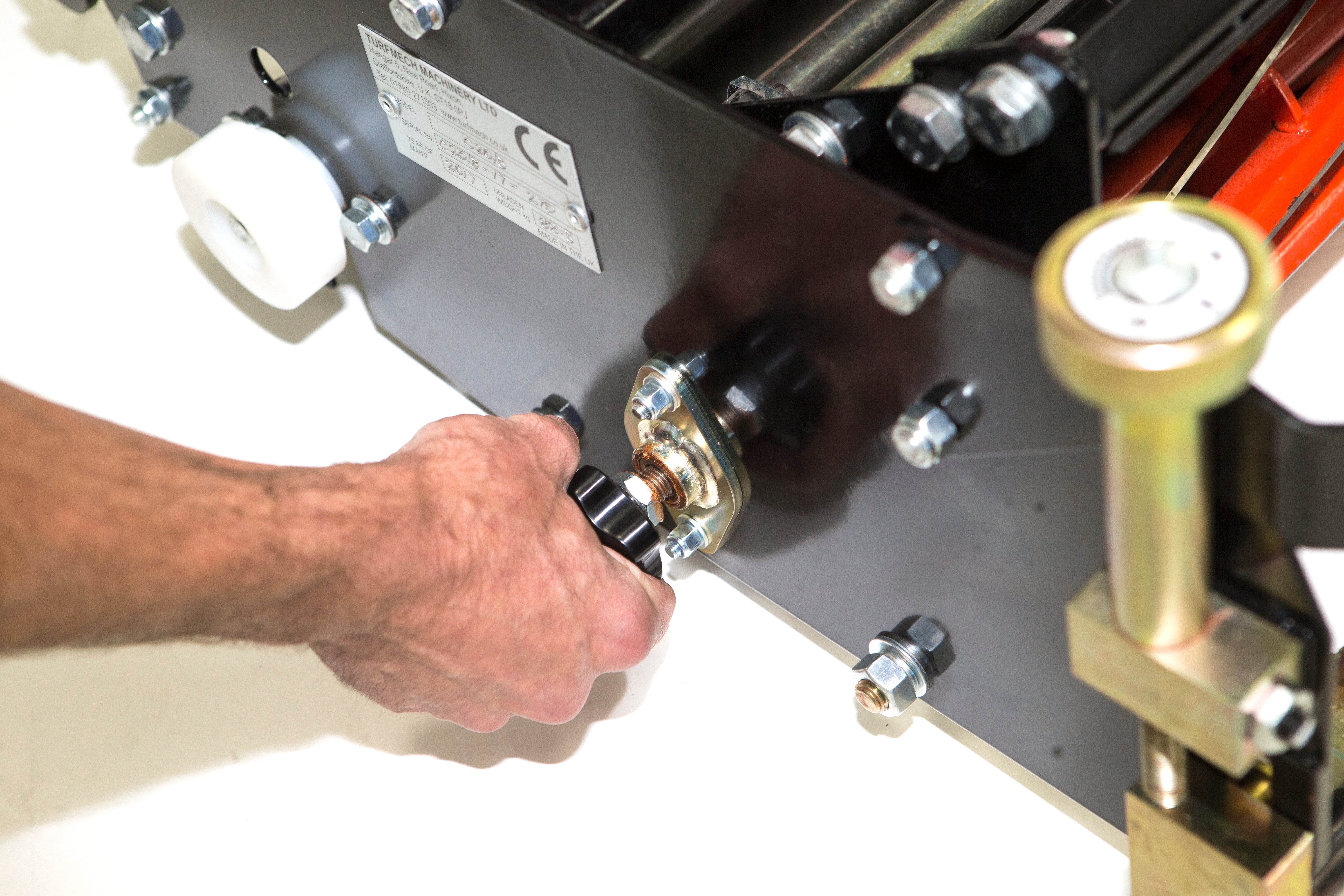

Micrometer style HOC adjustment
The Allett C20 features a micrometer-style height adjuster, allowing precise cutting from 2.4mm to 19mm — ideal for maintaining low, even cuts on cricket wickets, bowling greens, and fine turf surfaces where accuracy is essential.

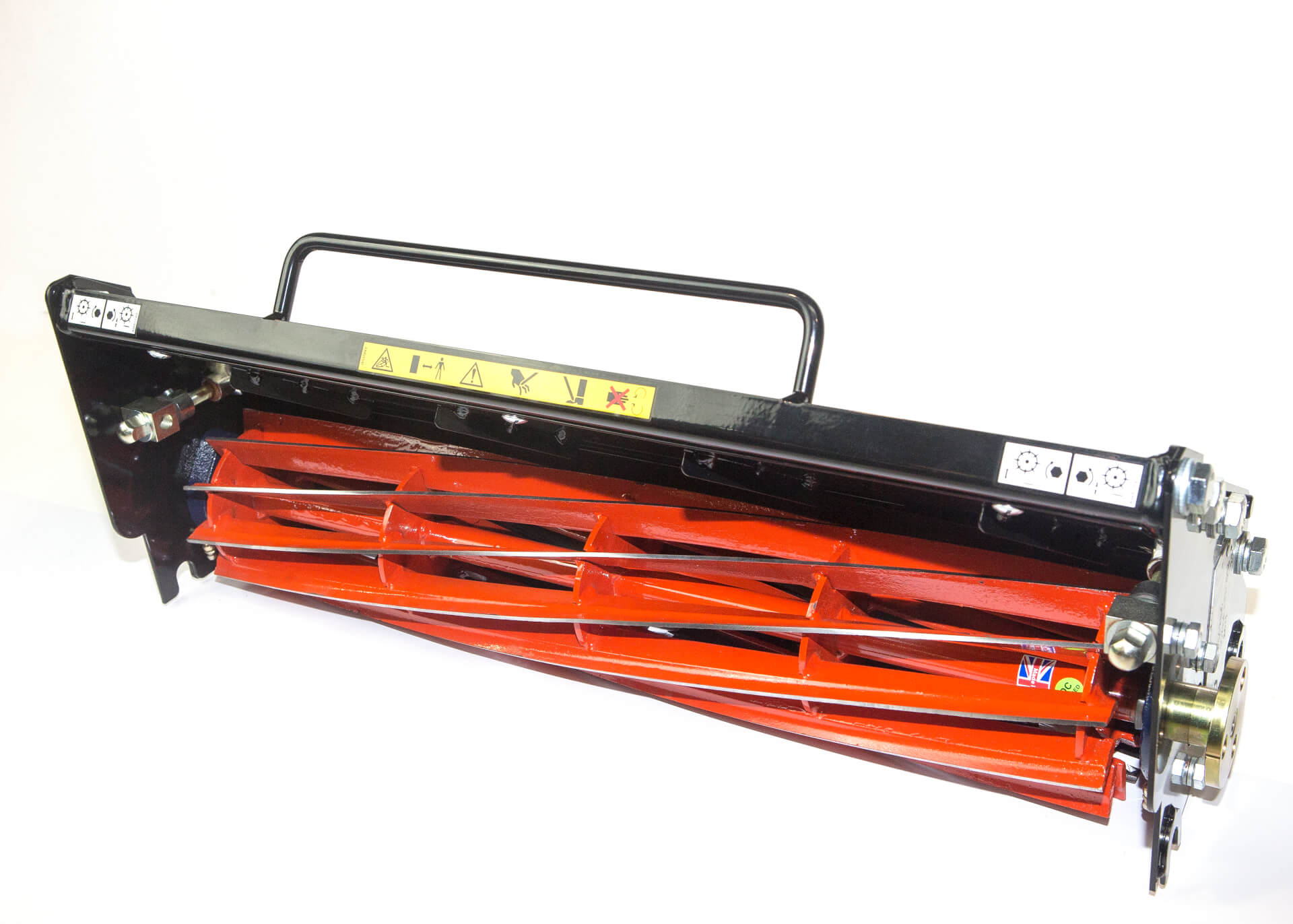

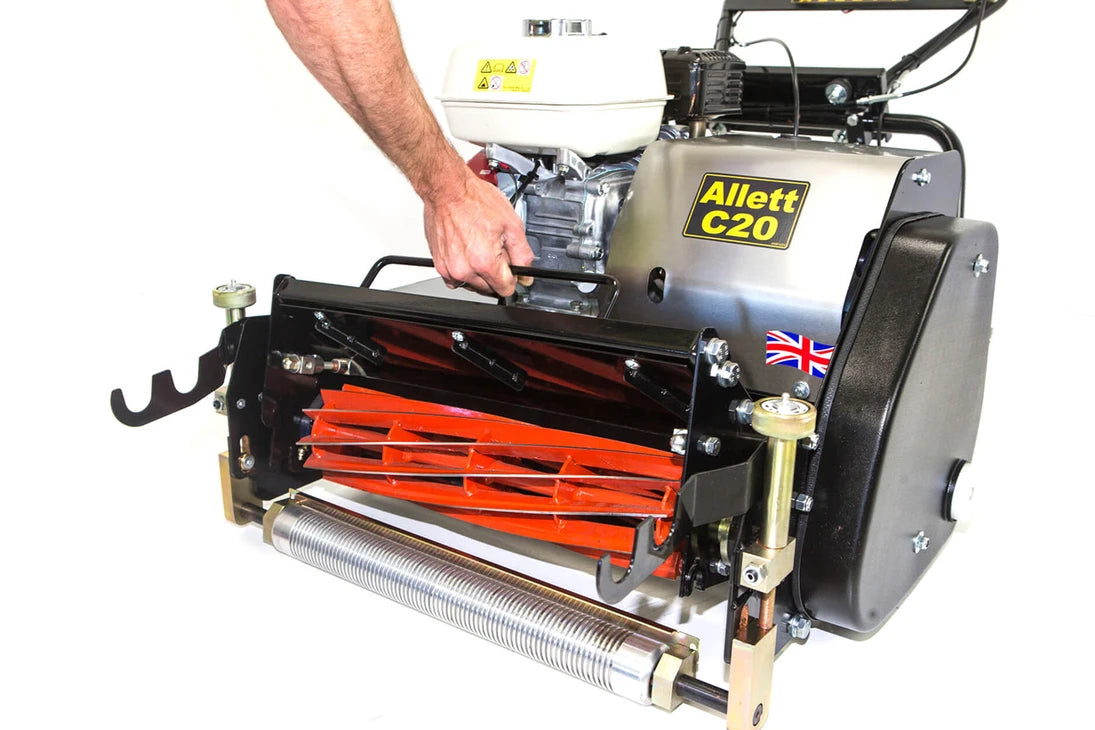

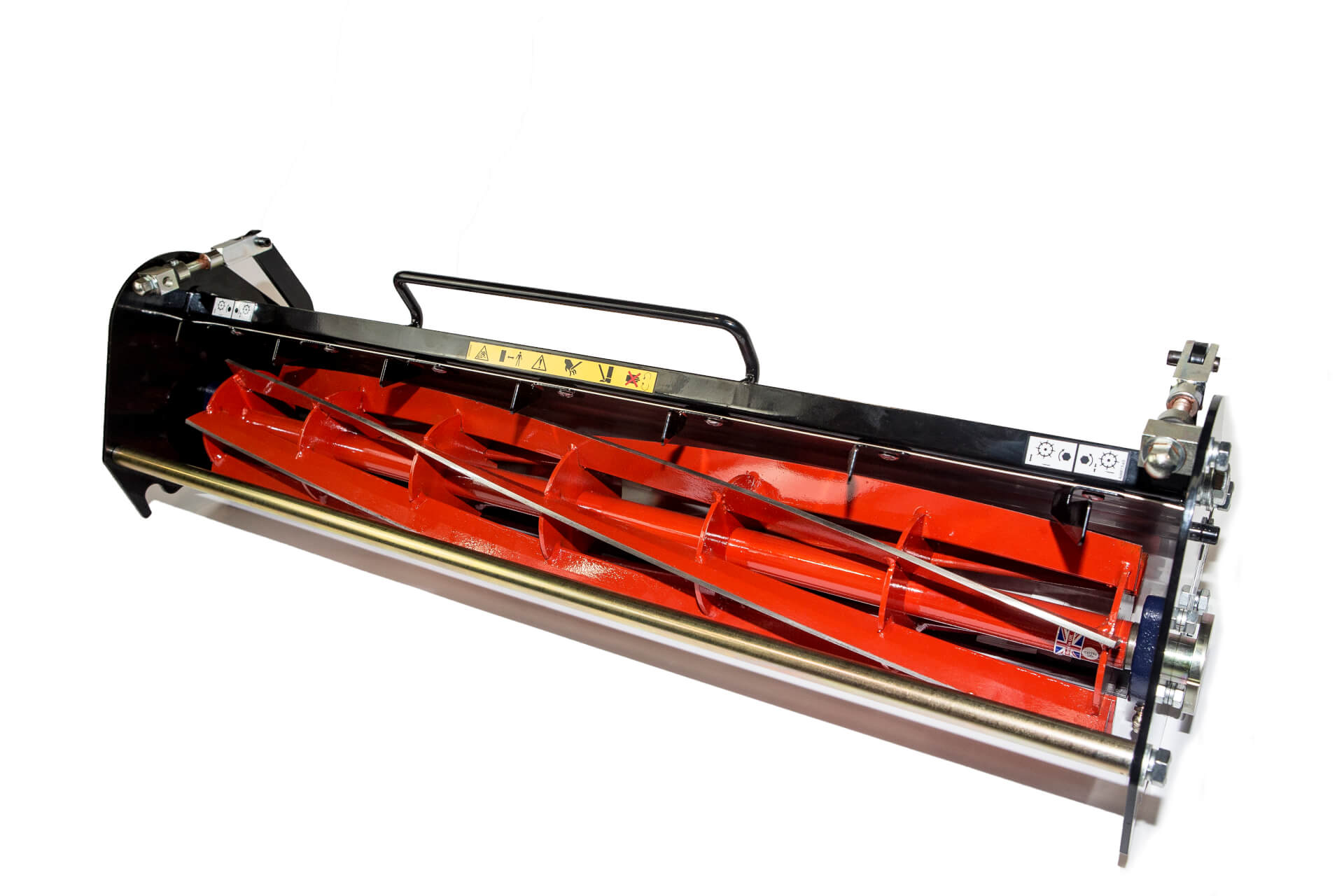

6 & 10 Blade cutting cylinders
The Allett C20 offers interchangeable 6- and 10-blade cutting cylinders, allowing users to choose between standard or ultra-fine cuts. This flexibility ensures optimal turf quality on sports surfaces like cricket wickets and golf greens, adapting to different mowing frequencies and grass conditions.

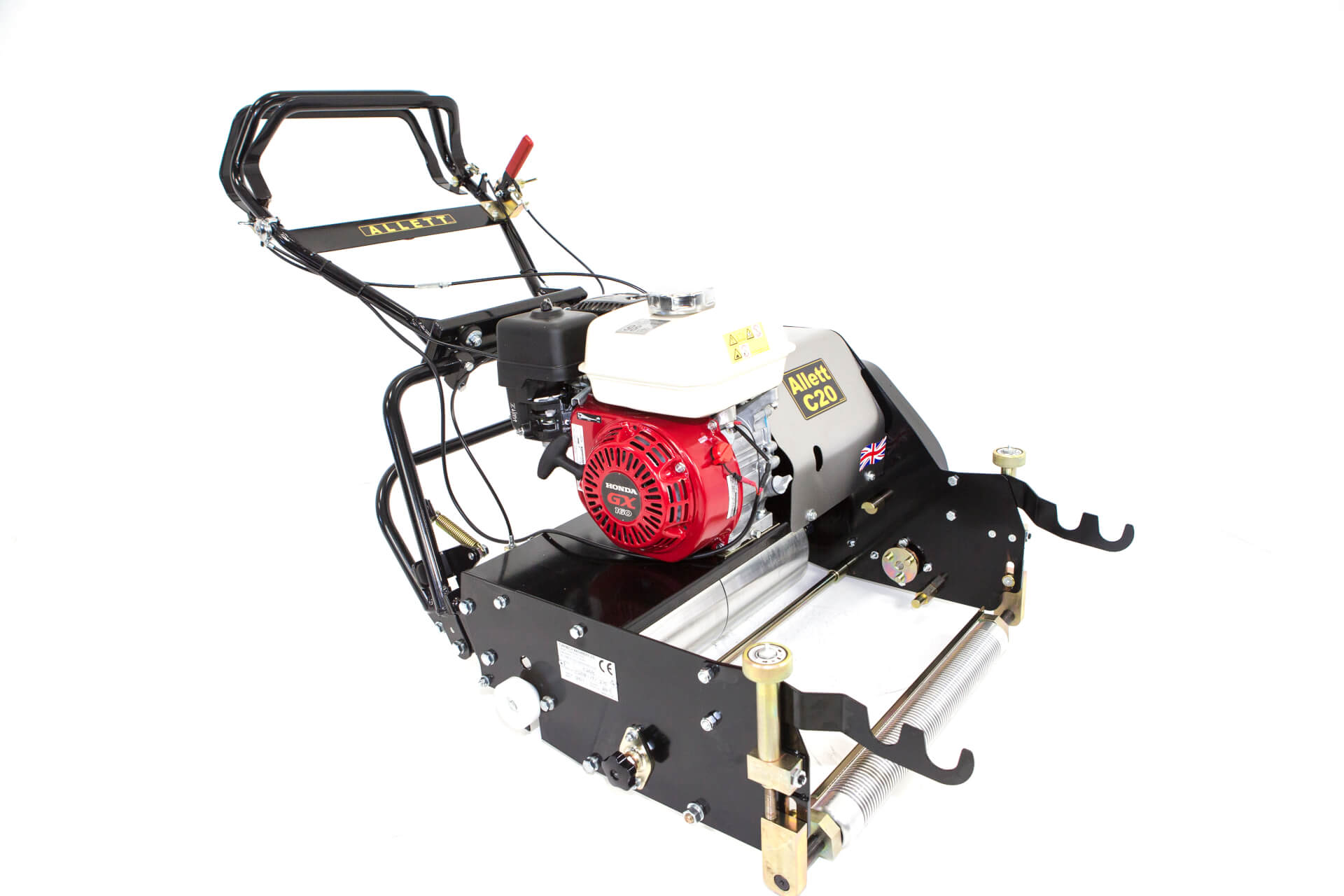

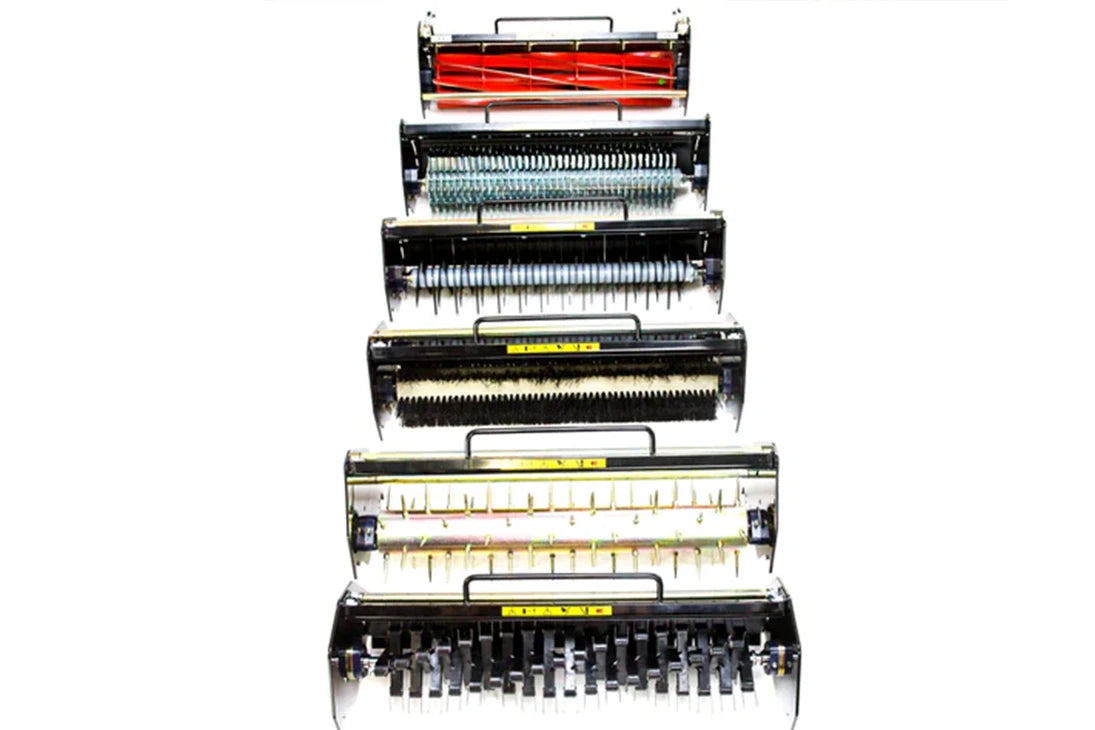

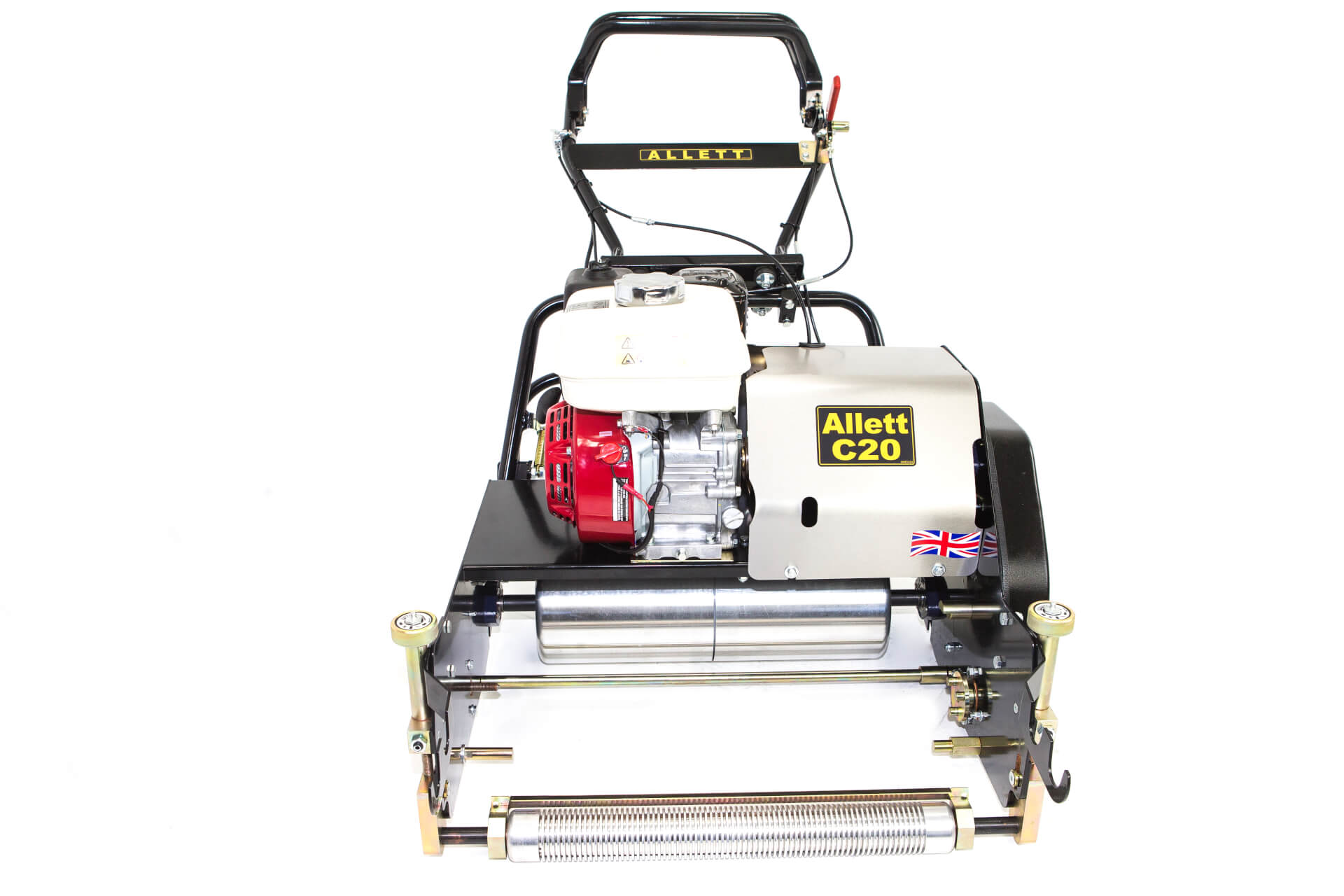

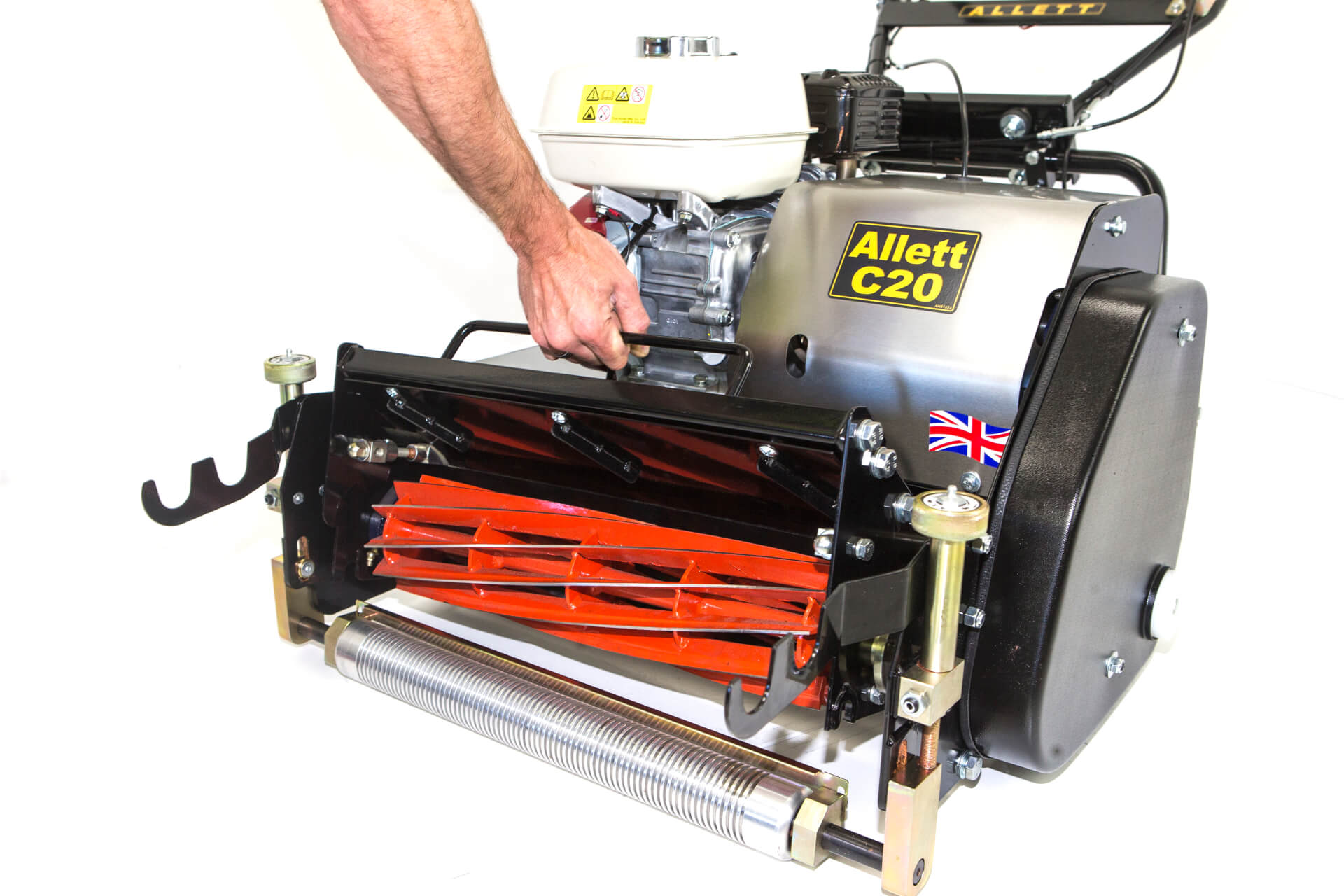

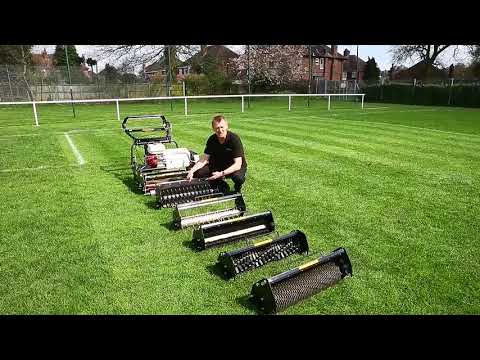

Interchangeable cartridge mower
The Allett C20 features a 10-cartridge system, including options for mowing (6- and 10-blade), scarifying, verti-cutting, brushing, sorrel rolling, and more. This versatile setup allows year-round turf maintenance with a single machine—perfect for cricket wickets, golf greens, and other fine turf surfaces.
Honda GX160 engine
The Allett C20 is powered by the dependable Honda GX160 engine, a 163cc 4-stroke unit known for its durability, low noise, and fuel efficiency. It provides reliable, consistent performance—perfect for professional groundskeepers maintaining fine turf surfaces like cricket wickets and golf greens.

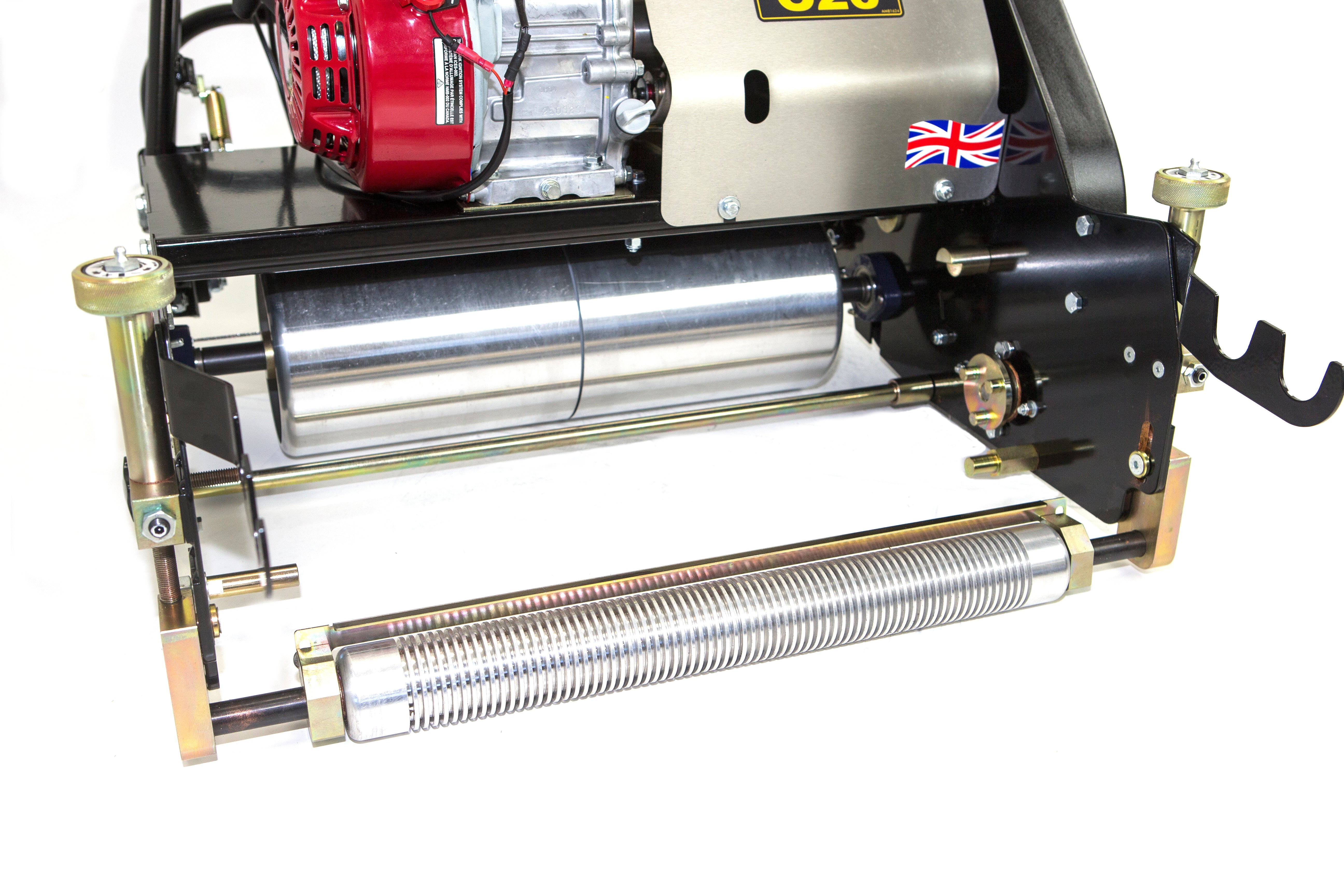

Grooved Front Roller
The grooved front roller enhances turf contact and precision, helping guide grass blades upright before cutting. Its design improves traction and consistency, delivering a cleaner finish. Paired with sealed bearings and a scraper, it ensures low maintenance and prevents debris buildup—ideal for achieving a professional striped appearance.
Available cartridges:
Additional accessories:
Allett C-Range

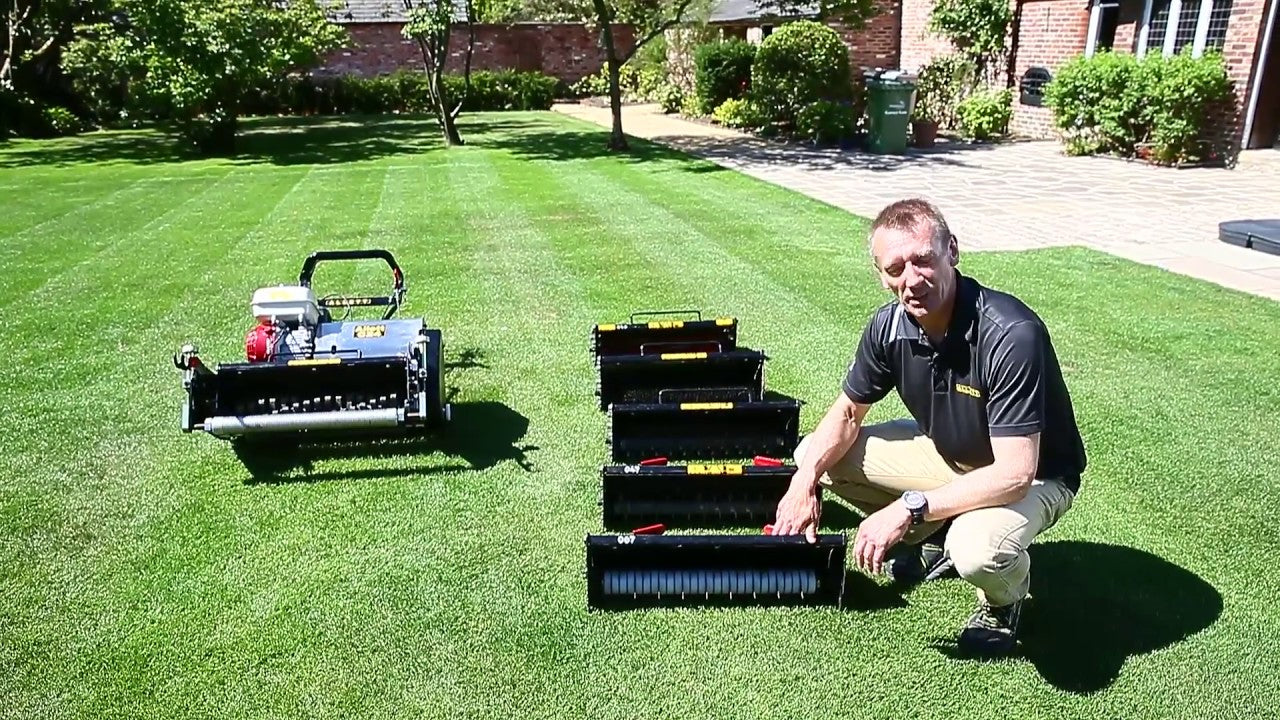

Watch the Allett C20 in action – a professional-grade cylinder mower designed for fine turf maintenance. This video demonstrates its precision cutting, quick-change cartridge system, and smooth handling, making it ideal for cricket wickets, bowling greens, golf greens, and formal lawns. See why groundskeepers and turf professionals trust the C20 for year-round performance.
HOW THEY COMPARE

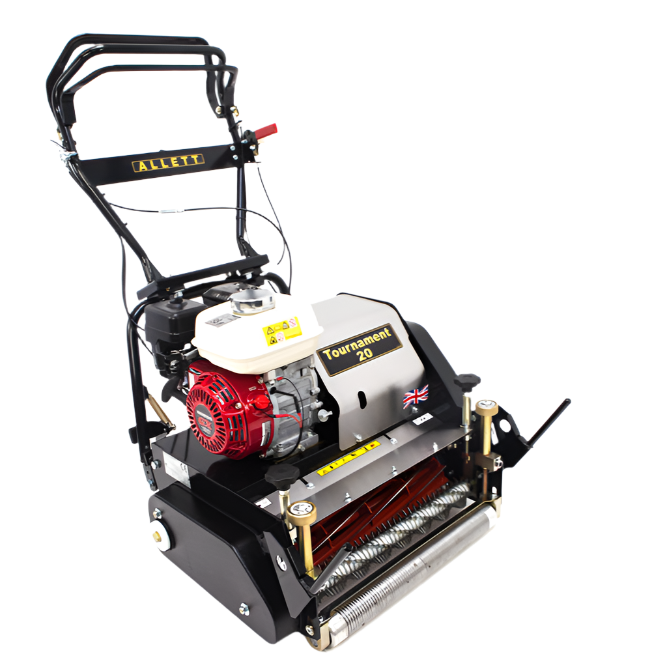

Our comparison table provides a detailed breakdown of the Allett C20 model, along with an Allett Stirling Sport & Tournament 20. Allowing you to easily compare their technical specifications side by side. From cutting widths and engine power to weight and height adjustments, this table helps you find the perfect mower for your needs.
Sports Pro
Sports Pro
Sports Pro
Bowls, Cricket Wickets, Croquet, Golf Greens and Surrounds, Golf Tees, Lawn Tennis, Formal Lawns
Bowls, Cricket Wickets, Croquet, Golf Greens and Surrounds, Golf Tees, Lawn Tennis, Formal Lawns
Bowls, Cricket Wickets, Croquet, Golf Greens and Surrounds, Golf Tees, Lawn Tennis, Formal Lawns
510mm (20")
510mm (20")
510mm (20")
790mm (31")
655mm (26")
686mm (27")
909mm (35.5") with transport wheels
Honda GX160 engine
56V 10Ah Removable Battery
Honda GX120 engine
3.6kW (4.8hp) @ 3,600 rpm
1000W @10A Motor
2.6kW (3.5hp) @ 3,600 rpm
120mm (4.7") diameter cutting cylinder equipped with 10 blades. All-welded construction
137mm (5.3") diameter cutting cylinder equipped with 10 blades. All-welded construction
120mm (4.7") diameter cutting cylinder equipped with 10 blades. All-welded construction
2.4mm (0.1") bottom blade as standard. 4mm (0.16") bottom blade available on request
2.4mm (0.1") bottom blade as standard. 4mm (0.16") bottom blade available on request
2.4mm (0.1") bottom blade as standard. 4mm (0.16") bottom blade available on request
45 blades @ 10mm spacing (optional cartridge)
28 blades @ 16mm spacing (optional cartridge)
45 blades @ 10mm spacing (standard)
Hand-adjustable from 2.4mm to 19mm (0.1" to 0.75")
Hand-adjustable from 3mm to 50mm (0.1"to 2")
Hand-adjustable from 2.4mm to 19mm (0.1" to 0.75")
6 blade: 93 cuts/metre
10 blade: 155 cuts/metre
138-389 cuts/metre
246 cuts/metre
Adjustable handlebar with anti-vibration mounting
Adjustable handlebar with anti-vibration mounting
Adjustable handlebar with anti-vibration mounting
Handle-mounted lever engaging V belt drive via cable
Handle-mounted push button (left or right handed operation) engaging belt drive
Handle-mounted lever engaging V belt drive via cable
Handle-mounted lever engaging V belt via cable
Handle-mounted bail bar engaging belt
Handle-mounted lever engaging V belt drive via cable
Two-piece aluminium rear-roller with steel bevel gear differential
Two-piece steel rear-roller with steel bevel gear differential
Two-piece aluminium rear-roller with steel bevel gear differential
Grooved aluminium front-roller with scraper and sealed end-bearings
Steel / zinc-plated front roller with scraper bar, locking kit fitted to front roller
Grooved aluminium front-roller with scraper and sealed end-bearings
Moulded plastic grassbox with steel reinforcing strip (79L)
Lightweight wire frame fabric grass catcher (70L)
Moulded plastic grassbox with steel reinforcing strip (32L)
88.5kg (195lb)
57kg (126lb)
96kg (212lb)
1090mm (42.9")
1100mm (40")
1020mm (40")
1375mm (54")
900mm (35")
1270mm (50")
Scarifier with Tunsten tipped blades, Scarifier, Turf Rake, 6 bladed cylinder, 10 bladed cylinder, Sorrel Roller, Brush, 10 bladed cylinder with groomer, Verticut, Slitter
C027 Cartridge Stand and C015 Transport Wheel Kit
Aerator, dethatcher, groomer, lawn brush, scarifier, verticut, 6-blade cylinder (10 blade comes as standard)
Allett Cartridge Stand - AHCS-1
Smooth front roller in place of grooved roller
TS029 transport wheels & stand
24 Months/1500 Hours for Sports User. 48 Months/1500 Hours for Homeowner
12 Months for Sports User, 24 Months for Homeowner
24 Months/1500 Hours for Sports User. 48 Months/1500 Hours for Homeowner

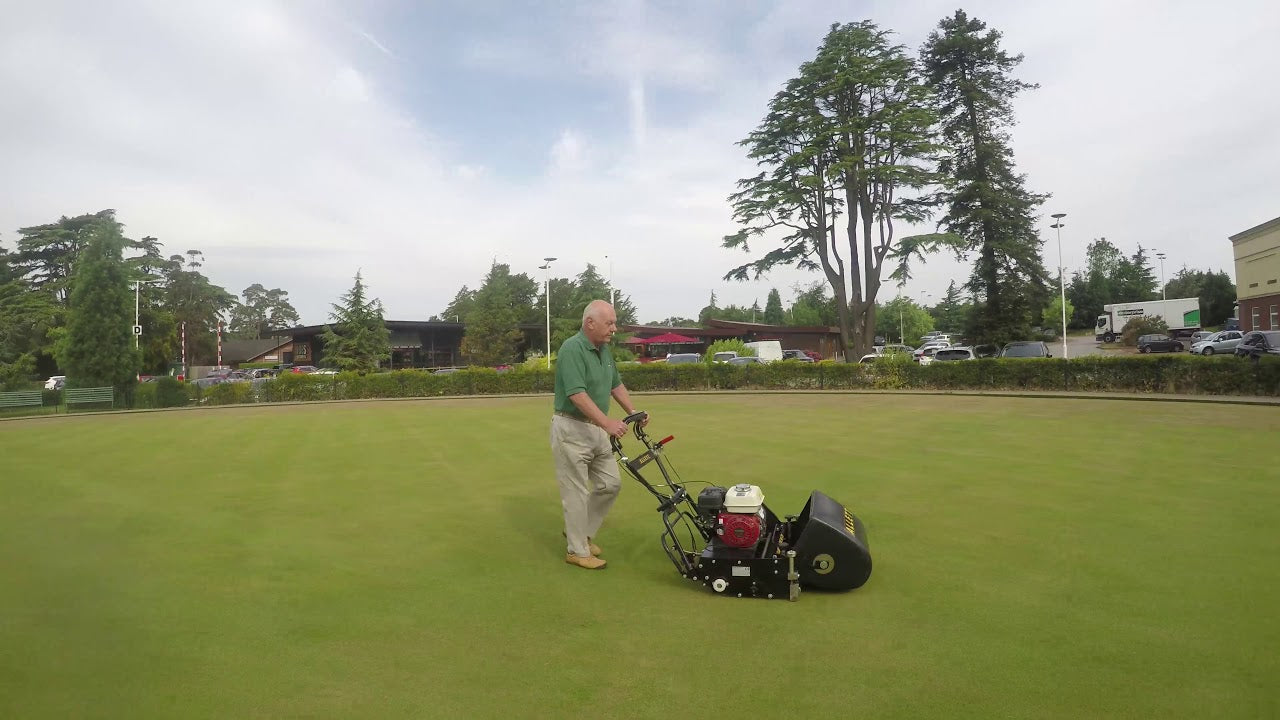

C20 in Action
Explore the Allett C20 in action with our curated YouTube playlist, featuring this professional-grade mower being used in top stadiums and sports fields. Watch as groundskeepers achieve immaculate, striped finishes on some of the world’s best pitches. Plus, learn essential maintenance tips and step-by-step guides on how to operate and care for your C20 mower, ensuring peak performance and longevity. Whether you're a professional turf manager or an enthusiast, these videos provide valuable insights into the power and precision of the Allett C20
FAQ
In our FAQs for the Allett C20, you'll find answers to common questions about the mower's features, maintenance, and performance. We’ve gathered insights on everything from how to adjust cutting heights and maintain the mower, to recommendations for the best usage on different types of turf.
What types of turf are best suited for the Allett C20 Cylinder Mower?
The C20 is ideal for fine turf maintenance, making it perfect for cricket wickets, bowling greens, golf greens, and other formal low-cut lawns. Its precision cutting system ensures a professional finish on these sensitive turf surfaces.
Can the Allett C20 be used year-round?
Yes, the C20 is designed for year-round use with its versatile cartridge system, which allows you to easily switch between mowing, verti-cutting, scarifying, brushing, and more. This makes it ideal for maintaining fine turf throughout the year.
What cartridges are available for the Allett C20?
The C20 offers a range of interchangeable cartridges, including 6-blade and 10-blade cylinders for mowing, as well as scarifiers, turf rakes, sorrel rollers, brushes, verticutters, slitter attachments, and a groomer option for turf grooming.
How does the Allett C20 help with operator comfort?
The C20 features adjustable handlebars with anti-vibration mountings that reduce operator fatigue during extended use. This ergonomic design ensures comfort and control, even during long mowing sessions.
What warranty comes with the Allett C20?
The C20 comes with a 24-month or 1,500-hour warranty for sports users and a 48-month or 1,500-hour warranty for homeowners. This generous warranty provides peace of mind, demonstrating the mower’s durability and reliability for professional use.
