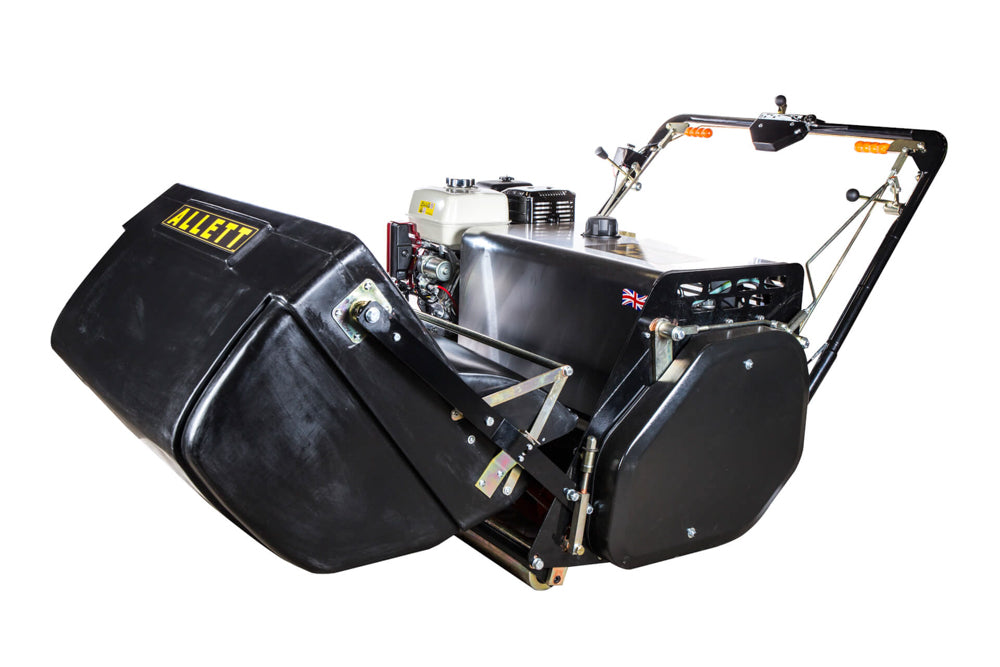

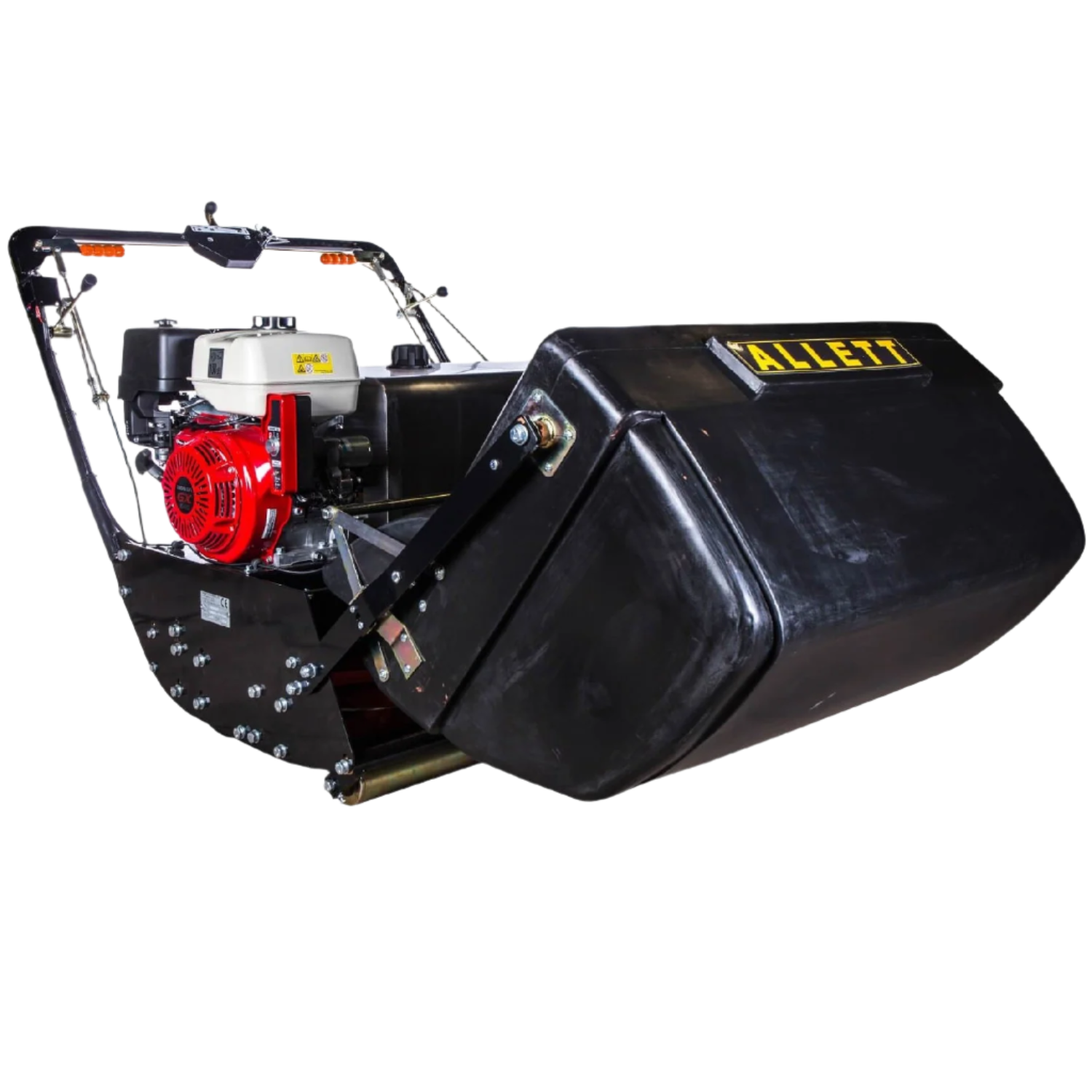

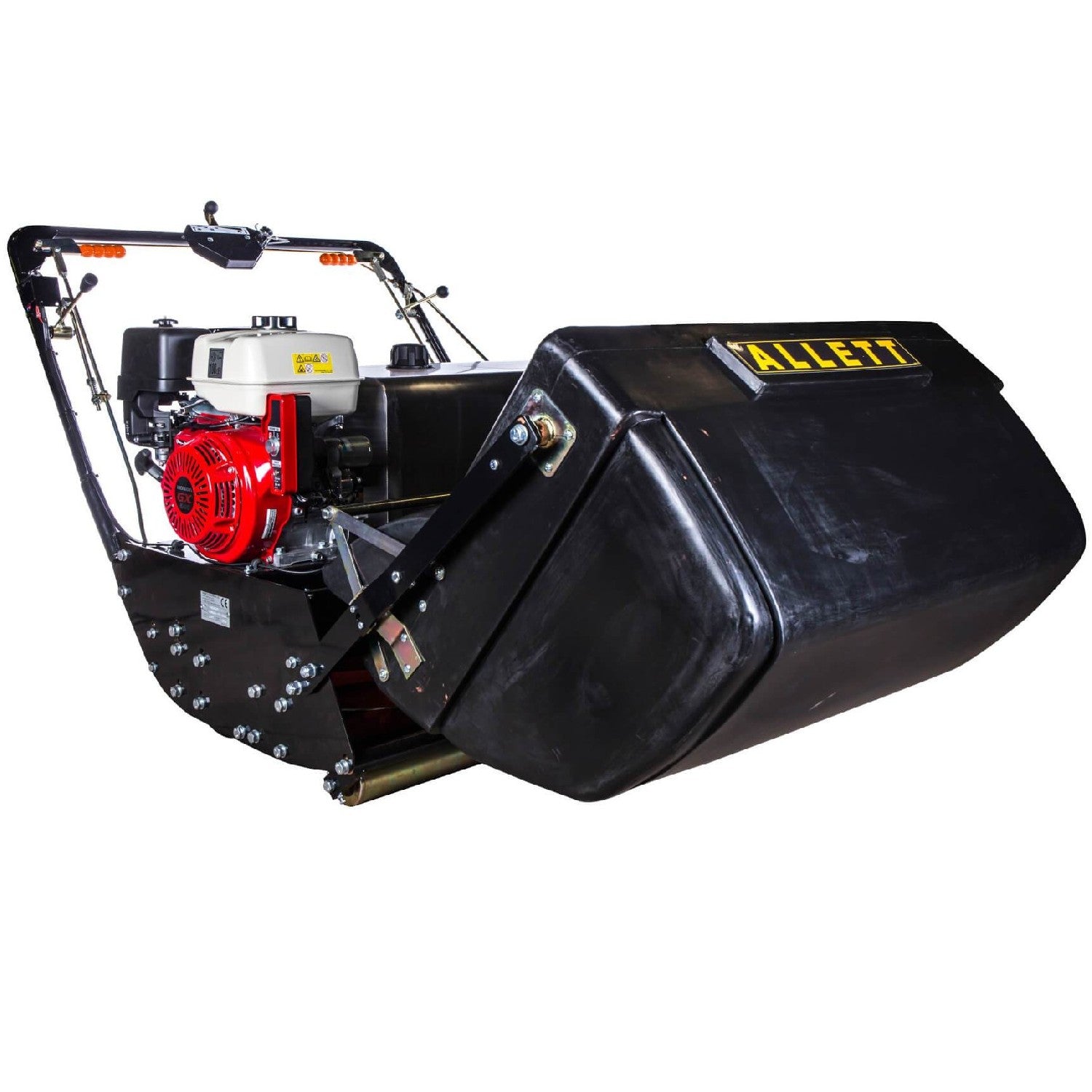

Allett Regal 36 Cylinder Mower
The Allett Regal is widely recognised by professional groundskeepers as the ultimate large-area dedicated cylinder mower—trusted on cricket pitches, sports grounds, and expansive open spaces worldwide. Renowned for its exceptional build quality, high work rate, and user-friendly operation, the Regal delivers elite-level performance with minimal effort.
Featuring a hydrostatic forward and reverse drive, the Regal offers infinitely variable mowing speeds and adjustable cuts per metre, giving you full control over finish and pace. Power steering with independent braking ensures outstanding manoeuvrability and precision, allowing for tight turns and efficient coverage, even in complex areas. With a generous 91cm (36") cutting width and reliable recoil start, it’s perfectly suited to stadiums, parks, and sports facilities.
The Regal is also compatible with the Autosteer trailing seat, making it the go-to choice for precision mowing and delivering crisp, defined stripes across large turf surfaces. Its three-section rear roller is rubber-covered for excellent traction and quiet operation over hard ground. Inside, hardened steel differential gears run in a sealed oil bath for long-lasting performance. The trailing seat also features a rubber-covered roller for consistent striping.
Powered by a robust 11hp Honda engine and equipped with a high-spec hydrostatic unit, the Regal delivers smooth, consistent power. Height and cutter adjustments are simple and precise, helping you maintain a flawless cut with ease. Ideal for professional grounds care, the Regal provides an unrivalled finish on large lawns and sports fields—and comes with a two-year warranty covering parts and labour.
Cutting System
- Cutting width: 914mm (36″)
- Cutting cylinder: 159mm diameter with 6 blades
- Height of cut: Adjustable from 6.5mm to 44.5mm (¼″ to 1¾″)
- Clip rates: Variable by speed – 2mph = 169 cpm, 3mph = 112 cpm, 4mph = 84 cpm, 5mph = 67 cpm, 6mph = 56 cpm, 7mph = 48 cpm, 8mph = 42 cpm

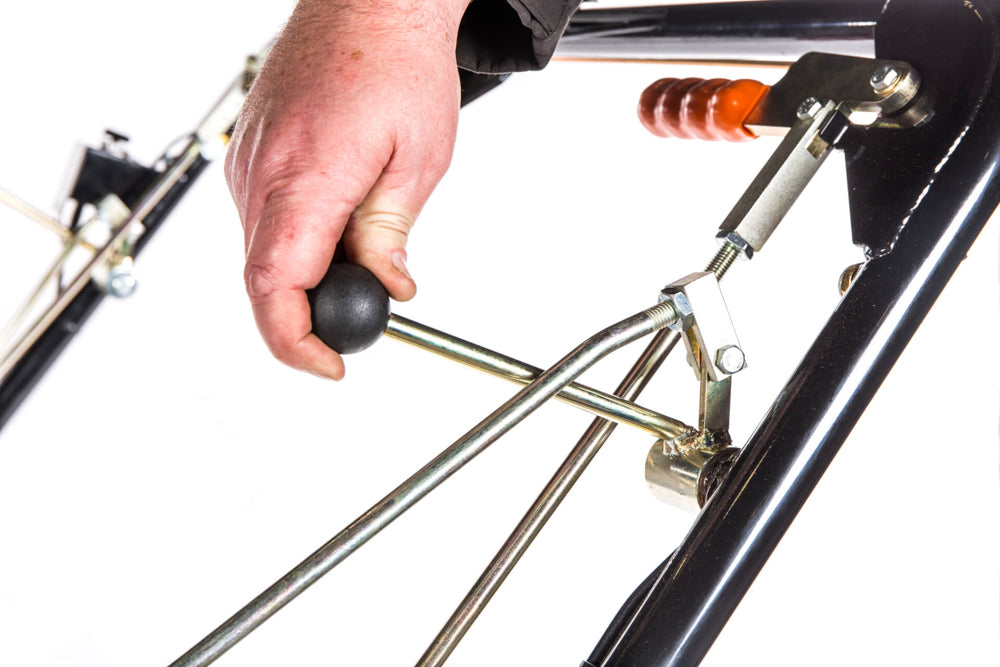

- Cylinder engagement: Handle-mounted lever operating triple V belts
Drive & Maneuverability
- Transmission: Eaton Model 11 hydrostatic drive (forward and reverse)
- Speed: Infinitely variable; top speed approx. 12kph (8mph) with trailing seat
- Steering: Power steering with independent braking for tight turns
- Rear roller: Three-piece rubber-covered steel with sealed spur gear differential
- Front roller: All-steel with sealed end-bearings
Engine & Power
- Engine: Honda GX340
- Power output: 8kW (10.7hp) @ 3,600 rpm
- Start type: Recoil start
User Comfort & Controls
- Handlebar: Adjustable with anti-vibration mountings
- Controls: Easy-to-use hydrostatic levers and cylinder engagement

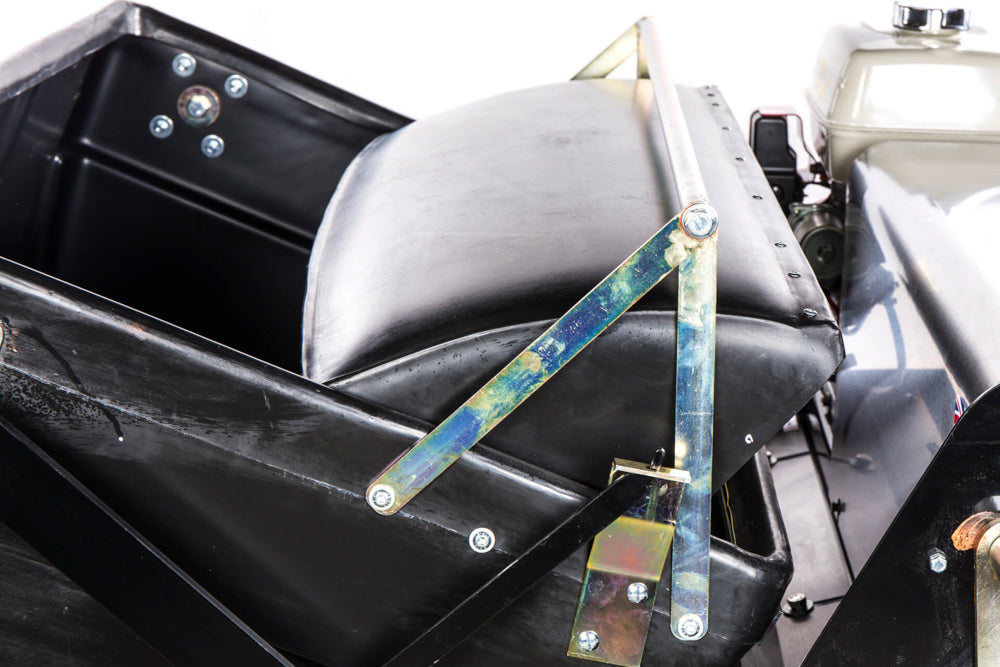

- Grassbox: Lift-and-tip moulded plastic with steel reinforcing strip
Build & Dimensions
- Weight: 352kg (702lb)
- Overall length: 2,083mm (82″)
- Overall width: 1,118mm (44″)
- Overall height: 1,016mm (40″)
Stripe Quality & Accessories
- Stripe quality: Excellent with 3-piece rubber roller and trailing seat
- Optional accessories:

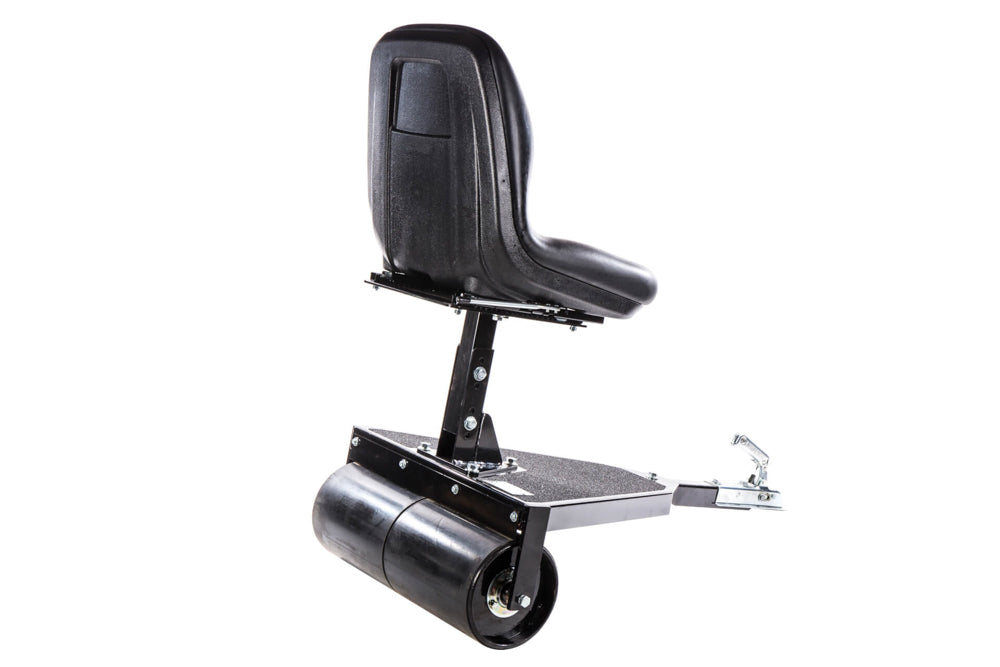

TS100/1 Trailing Seat (Auto-steer, rubber roller)
AFK295 Enhanced Vibration Dampening Kit
Warranty
- Sports users: 24 months / 1,500 hours
- Homeowner users: 48 months / 1,500 hours

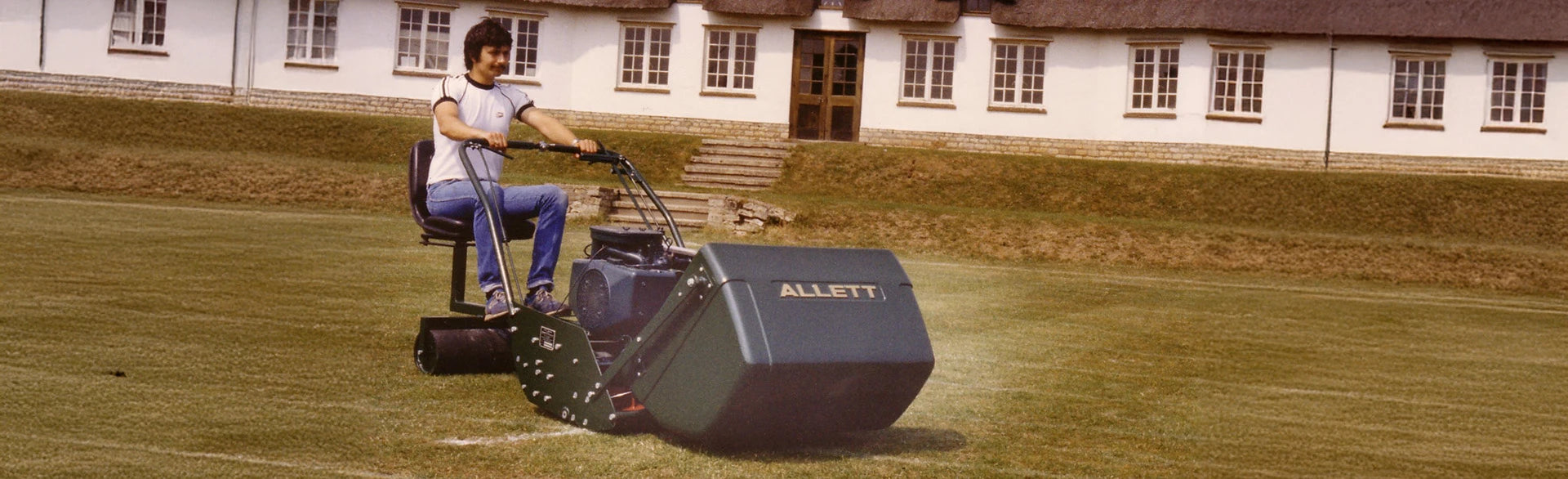

Engineered in 1965. Refined by decades of excellence.

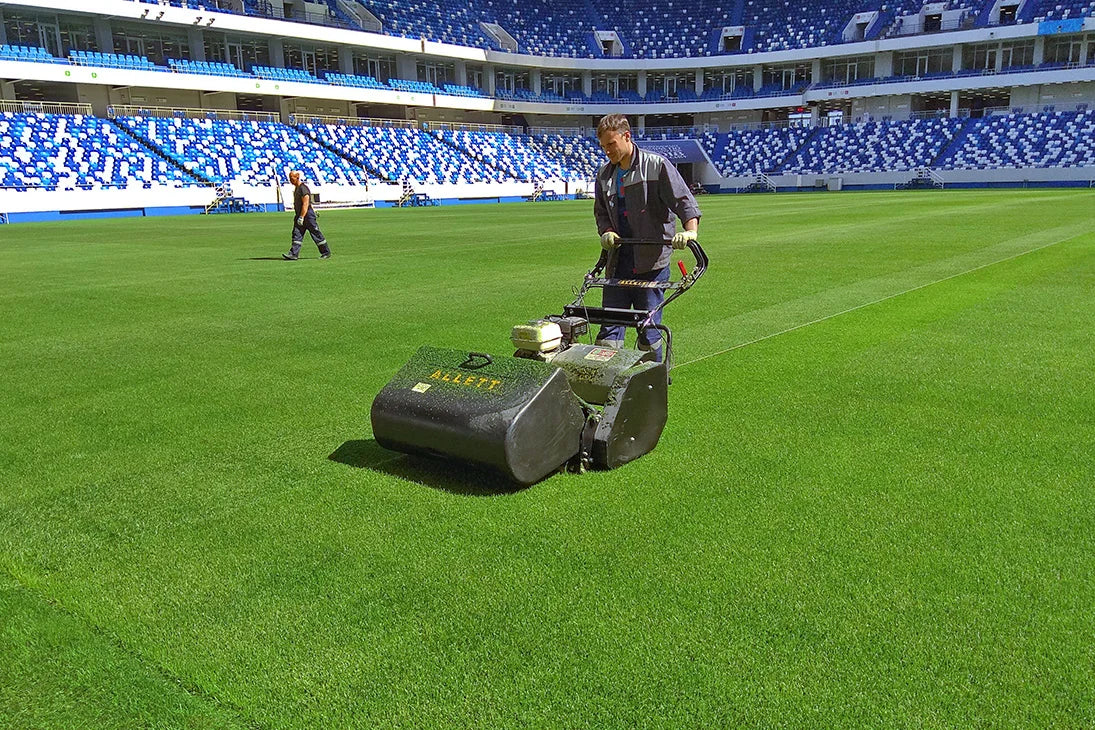

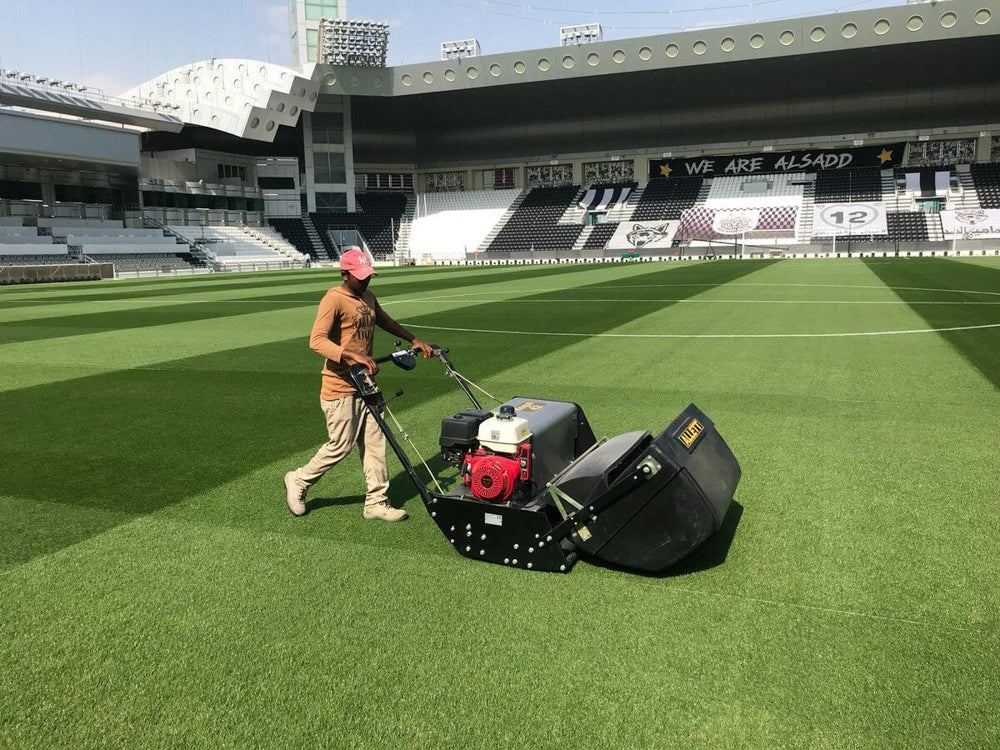

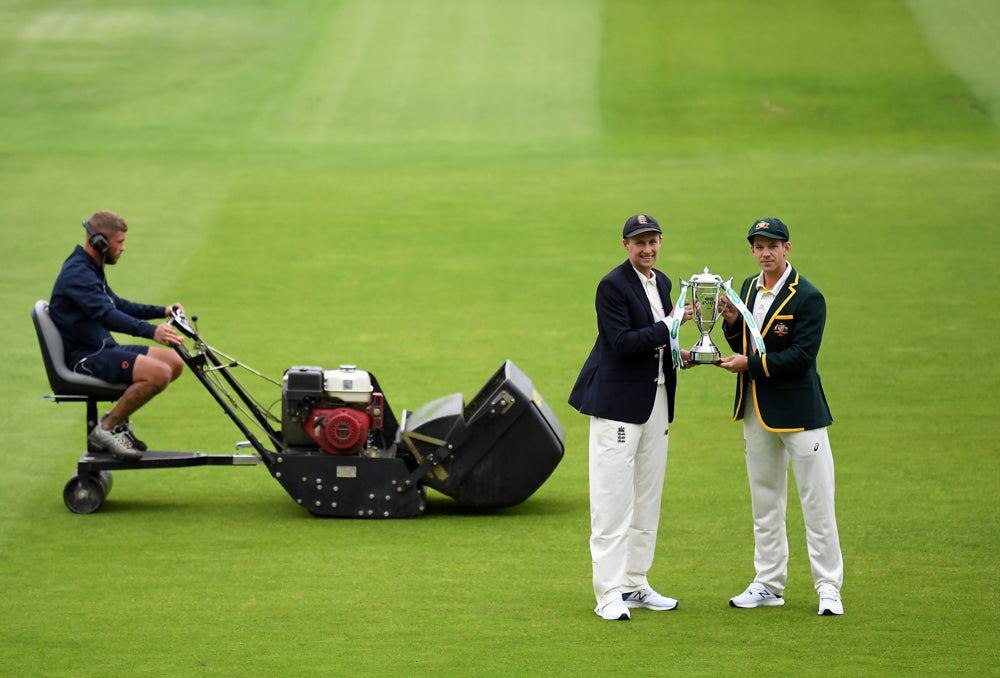

Popular in Large Surface area Turf sports
The Allett Regal 36 is widely used on large-scale sports turf such as football pitches, rugby fields, and cricket grounds. Its 36" cutting width, heavy build, and precision clip rate control make it ideal for covering big areas quickly while delivering a high-quality, striped finish. Trusted by professionals, it’s built to meet the demands of elite turf maintenance.

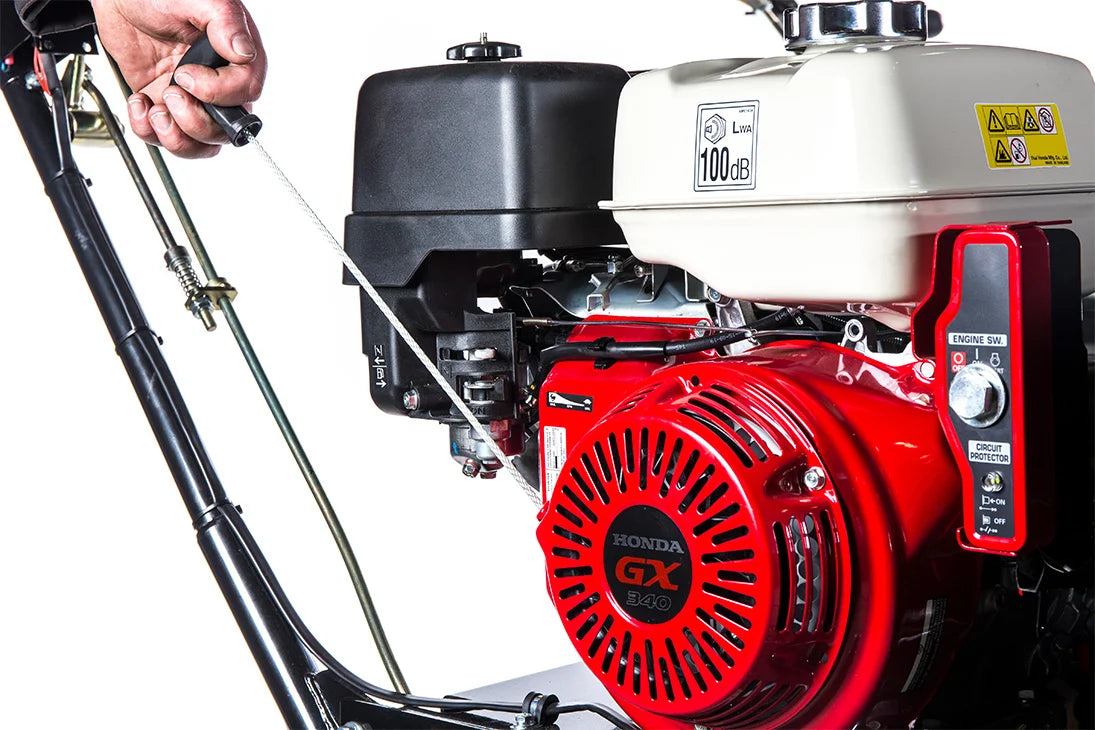

Honda GX340 engine
At the heart of the Regal 36 is the Honda GX340 – a reliable 11hp (8kW) four-stroke engine known for its durability and performance in demanding environments. With easy recoil start and smooth operation, it provides consistent power for both mowing and drive systems, making it ideal for professional groundskeepers who need dependable performance day after day.

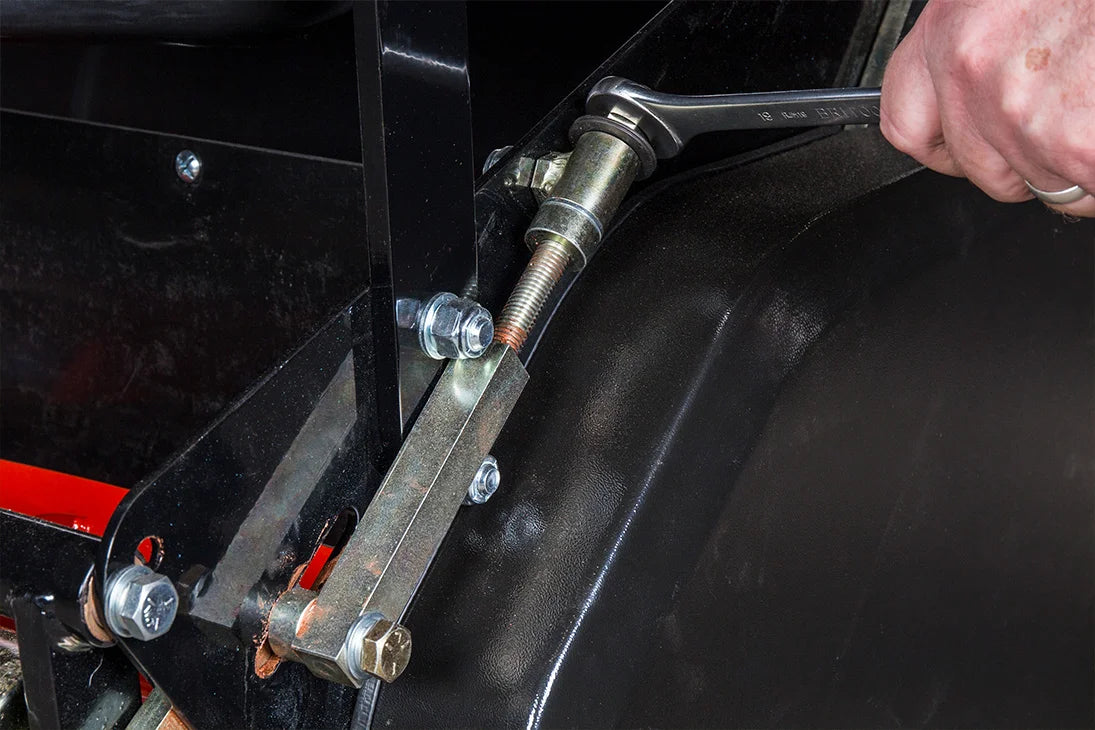

HOC Range 6.5mm to 44.5mm
The Allett Regal 36 offers a versatile cutting height range from 6.5mm to 44.5mm, allowing grounds teams to tailor the finish to suit different turf types and seasonal conditions. Whether maintaining a tightly cut cricket square or a slightly higher football pitch, the easy micro-adjustment system ensures precision control for optimal turf health and presentation.

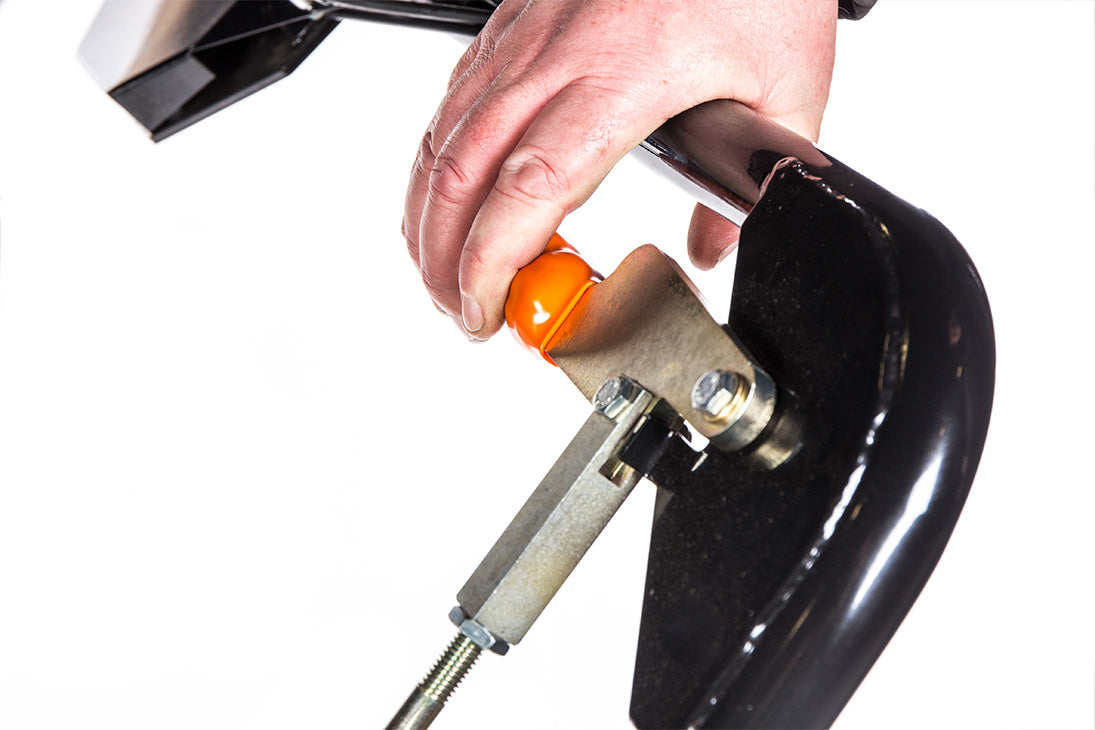

Power Steering with Independent Brakes
The Allett Regal 36 features power steering with independent braking, giving operators exceptional control and manoeuvrability—especially on turns and tight areas. Each wheel can be braked independently, allowing for smooth, precise steering without damaging the turf. This system reduces operator fatigue and makes the mower easy to handle, even over large areas or around obstacles.

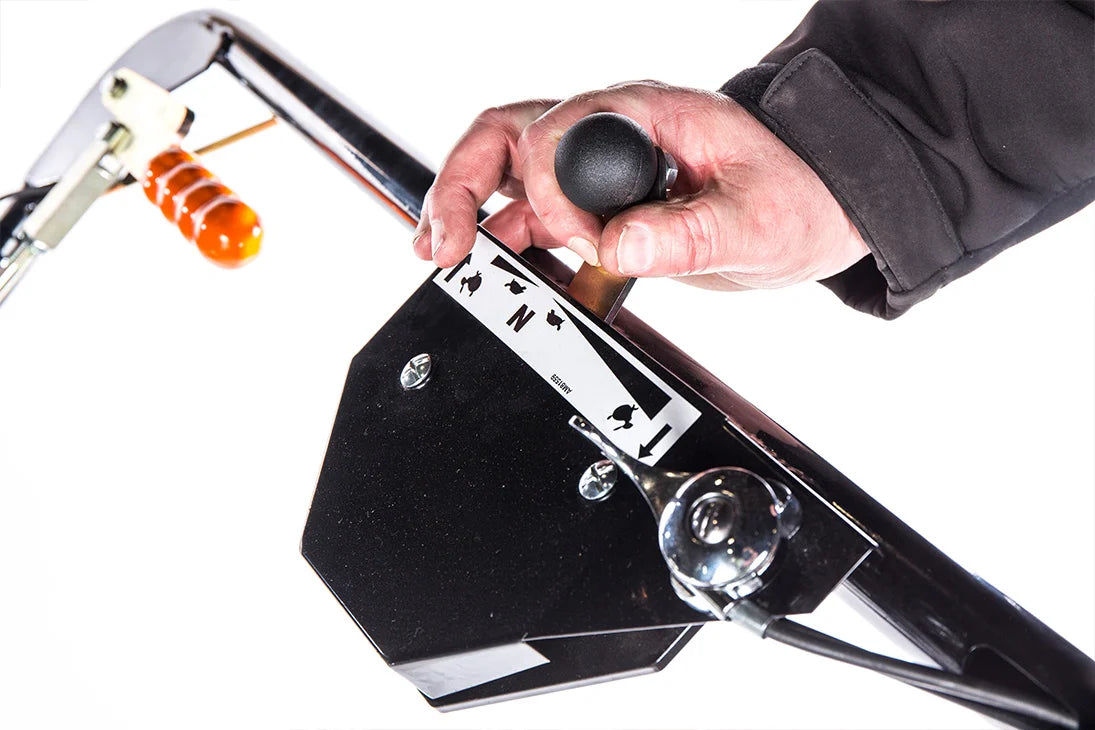

Clip Rate Control
The Allett Regal 36 features infinitely adjustable clip rates, allowing you to fine-tune the number of cuts per metre based on mowing speed — from 169 cpm at 2mph to 42 cpm at 8mph. This gives groundskeepers the flexibility to achieve a finer finish on precision turf or a quicker cut on larger areas, depending on the surface and conditions.

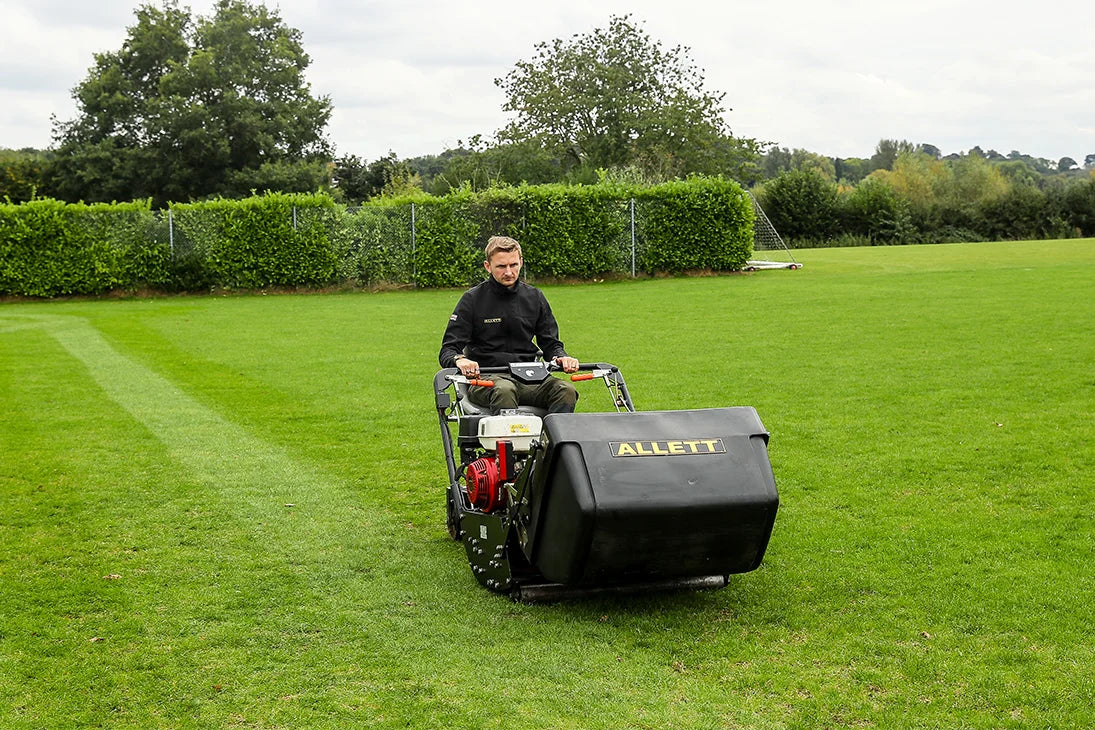

Heavy-Duty Weight for Supreme Turf Levelling
Weighing 352kg, the Allett Regal 36 is built for more than durability—its heavy frame and full-width rear roller help naturally level the turf as you mow. This added weight applies consistent pressure, reducing minor surface imperfections and enhancing the striped finish. Ideal for professional groundskeepers seeking a smooth, even surface on large sports fields and fine turf areas.
Compatible with:
Allett Regal Range
Take a closer look at the Allett Regal 36 — the ultimate professional-grade cylinder mower designed for large open spaces like cricket pitches, sports fields, and stadiums. This video showcases the Regal’s exceptional build quality, smooth hydrostatic drive, precision cutting performance, and signature striping ability with the optional trailing seat. See why groundskeepers around the world trust the Regal for a flawless finish on high-profile turf.
HOW THEY COMPARE
Our comparison table provides a detailed breakdown of the Allett Regal 36 & 42 models along with a Buffalo 34, allowing you to easily compare their technical specifications side by side. From cutting widths and engine power to weight and height adjustments, this table helps you find the perfect mower for your needs.
Sports Pro
Sports Pro
Sports Pro
American Football, Baseball, Cricket Square, Cricket Outfield, Estates, Football, Formal Lawns, Rugby, Parks, Gardens and Larger Lawns
American Football, Baseball, Cricket Square, Cricket Outfield, Estates, Football, Formal Lawns, Rugby, Parks, Gardens and Larger Lawns
American Football, Baseball, Cricket Square, Cricket Outfield, Estates, Football, Rugby
914mm (36")
1,067mm (42")
864mm (34")
1,118mm (44")
1,270mm (50")
1041mm (41")
Honda GX340 engine
Honda GX340 engine
Honda GX160 engine
8kW (10.7hp) @ 3,600 rpm
8kW (10.7hp) @ 3,600 rpm
3.6kW (4.8hp) @ 3,600 rpm
Eaton Model 11 hydrostatic drive (forward and reverse)
Eaton Model 11 hydrostatic drive (forward and reverse)
--
159mm (6.25in) diameter cutting cylinder with 6 blades and greaseable bearings
159mm (6.25in) diameter cutting cylinder with 6 blades and greaseable bearings
200mm (8in) diameter cutting cylinder equipped with 8 blades
6.5mm to 44.5mm (0.25" to 1.75")
6.5mm to 44.5mm (0.25" to 1.75")
10mm to 40mm (0.4" to 1.5")
2mph =169 cpm
3mph= 112cpm
4mph= 84cpm
5mph= 67cpm
6mph= 56cpm
7mph= 48cpm
8mph= 42cpm
2mph =169 cpm
3mph= 112cpm
4mph= 84cpm
5mph= 67cpm
6mph= 56cpm
7mph= 48cpm
8mph= 42cpm
66 clips/metre (60 clips/yd)
irrespective of forward speed
Adjustable handlebar with anti-vibration mounting (optional accessories)
Adjustable handlebar with anti-vibration mounting (optional accessories)
Adjustable handlebar with anti-vibration mounting
Handle-mounted lever engaging triple V belts via rods
Handle-mounted lever engaging triple V belts via rods
Handle-mounted lever engaging triple V belts via cable
Three-piece rubber-covered steel rear-roller with sealed spur gear differential
Three-piece rubber-covered steel rear-roller with sealed spur gear differential
Three-piece rubber-covered rear-roller with steel spur gear differential
All-steel front-roller with sealed end-bearings
All-steel front-roller with sealed end-bearings
All-steel front-roller with sealed end-bearings
Moulded plastic lift and tip grassbox with steel reinforcing strip
Moulded plastic lift and tip grassbox with steel reinforcing strip
Moulded plastic grassbox with steel reinforcing strip
352kg (702lb)
376kg (744lb)
175kg (385lb)
1,016mm (40")
1,016mm (40")
1,010mm (40")
2,083mm (82")
2,083mm (82")
1,280mm (50")
AFK295 Regal Enhanced vibration dampening kit TS100/1 Trailing seat
AFK295 Regal Enhanced vibration dampening kit TS100/1 Trailing seat
Buffalo Speed Reduction kit (slow down forward speed, and increase clip rate) TS100/1 Trailing Seat - Buffalo 34 only as standard
24 Months/1500 Hours for Sports Users
48 Months/1500 Hours for Homeowner Users
24 Months/1500 Hours for Sports Users
48 Months/1500 Hours for Homeowner Users
24 Months/1500 Hours for a Sports User
48 Months/1500 Hours for a Homeowner
FAQ
In our FAQs for the Allett Regal, you'll find answers to common questions about the mower's features, maintenance, and performance. We’ve gathered insights on everything from how to adjust cutting heights and maintain the mower, to recommendations for the best usage on different types of turf.
What type of grounds is the Allett Regal 36 best suited for?
The Regal 36 is ideal for cricket pitches, football and rugby stadiums, parks, and other large open grass areas where a high-quality, defined striped finish is essential.
What makes the Regal 36 different from other cylinder mowers?
The hydrostatic forward and reverse drive provides infinitely variable mowing speeds, allowing tailored cuts per metre for specific turf needs—crucial for venues where consistent pitch quality is key.
How easy is the machine to manoeuvre?
With power steering and independent brakes, the Regal offers exceptional control—even on tighter turns. This is perfect for mowing around posts, dugouts, or boundary lines.
What type of engine does it have?
It runs on a Honda GX340 engine delivering 10.7hp, giving it ample power for tough workloads while ensuring long-term reliability and smooth operation.
Is it suitable for wet and dry conditions?
Yes. The rubber-covered rear roller offers great traction on wet surfaces, while its sealed differential gears and steel front roller ensure smooth operation on dry, hard grounds too.
Is maintenance easy?
Yes. The cylinder engagement uses a simple handle-mounted lever, and the mower is fitted with sealed end bearings and gear systems, making routine maintenance straightforward and hassle-free.
