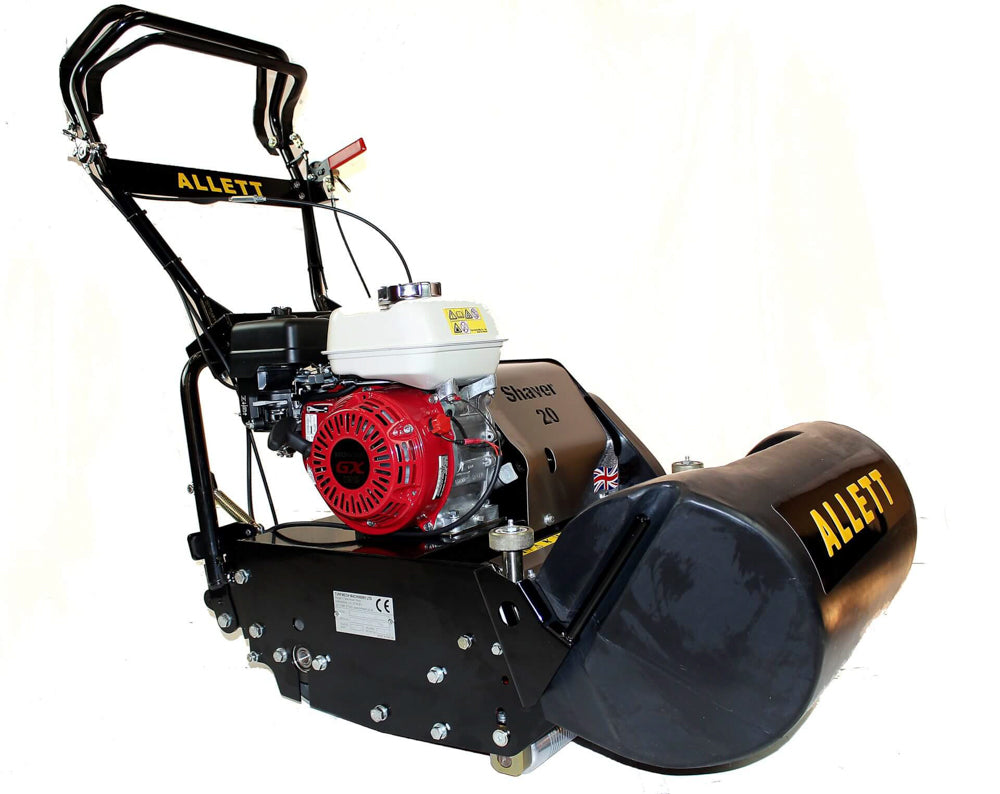

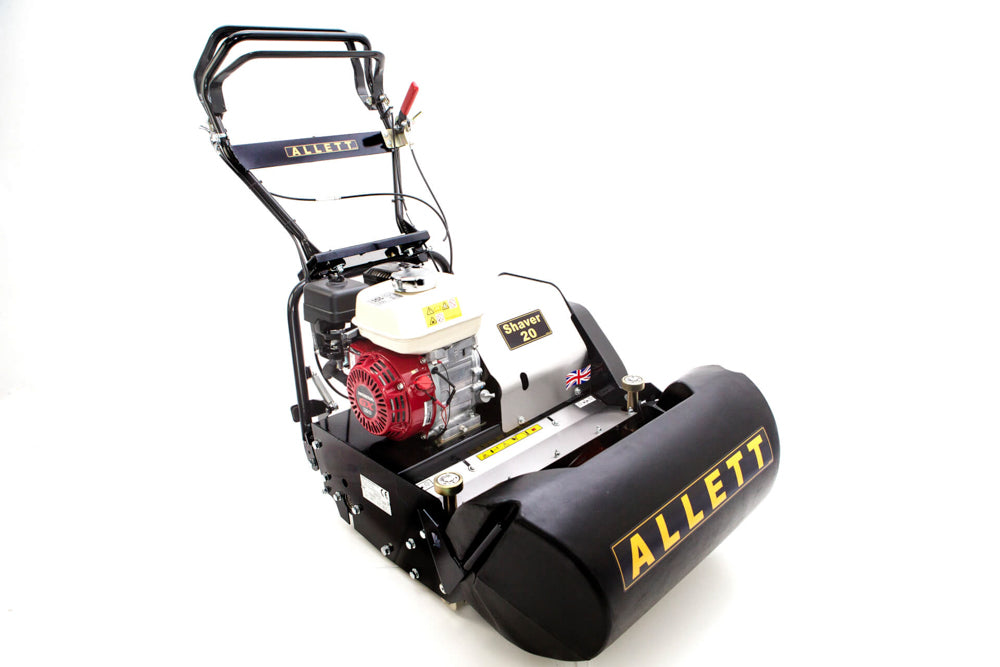

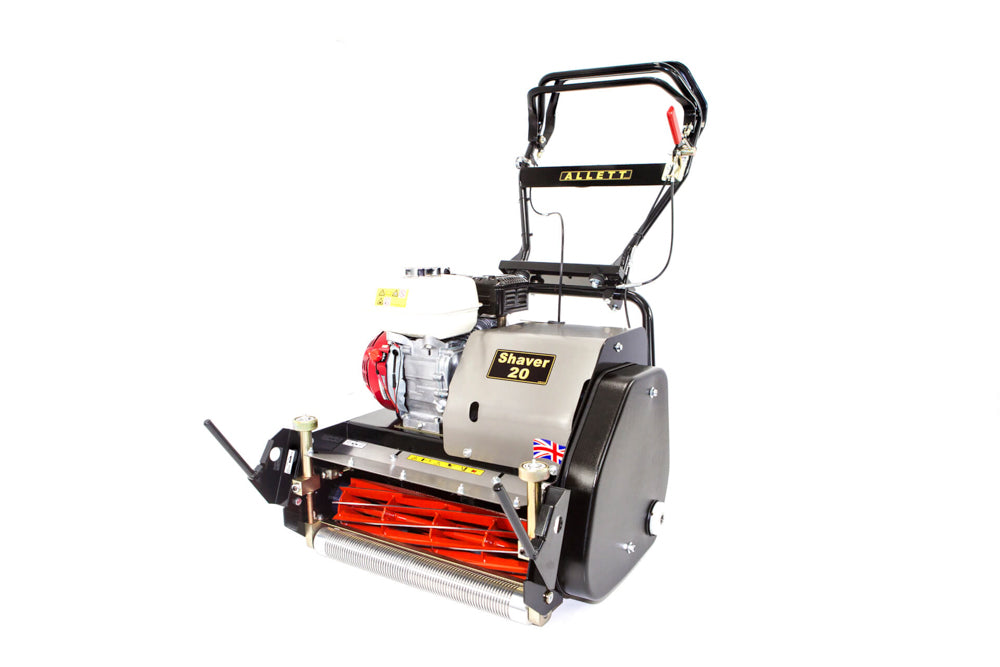

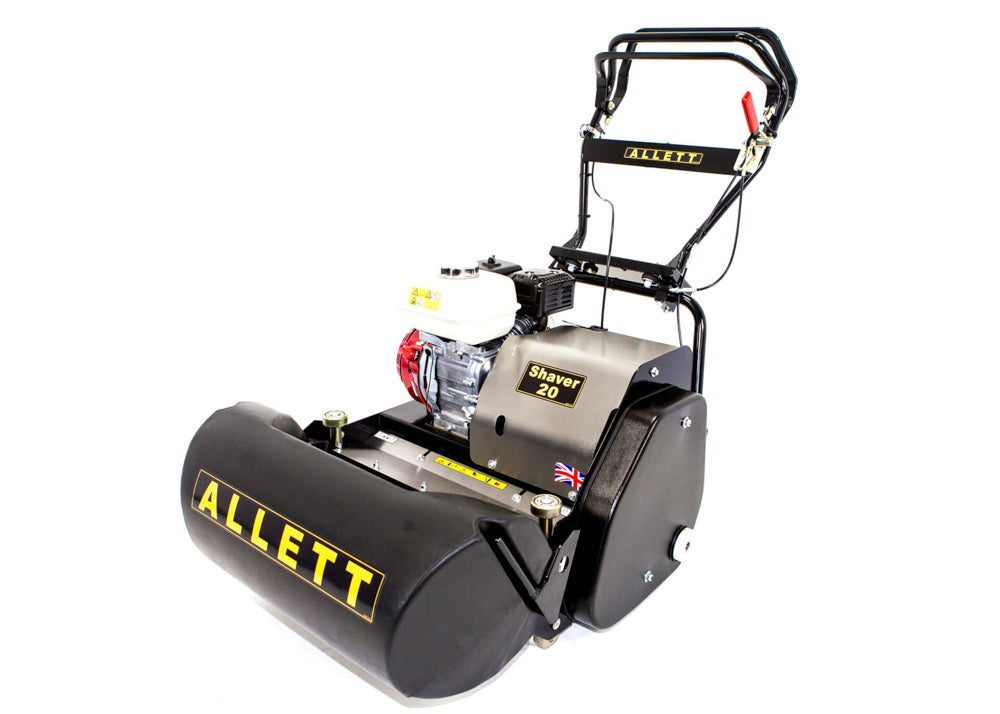

Allett Shaver 20 Cylinder Mower
The Allett Shaver 24 is the ultimate precision mower for professional groundskeepers who demand exceptional quality and performance.
Designed specifically for cricket pitches, bowling greens, and golf course surrounds, this expertly engineered fine-turf mower features a generous 610mm (24") cutting width—ideal for larger areas where an immaculate finish is essential.
Powered by a dependable Honda GX160 engine, the Shaver 24 offers smooth, responsive operation with low fuel consumption, reduced noise, and minimal vibration, ensuring a quiet and comfortable mowing experience. Independent hand-lever clutches for the cutting cylinder and rear roller allow for precise control, while a micrometre-style height adjuster enables effortless, fine-tuned cutting from 2.4mm to 19mm.
Built for durability and performance, the Shaver 24 includes a two-piece aluminium rear roller with a steel bevel gear differential, a grooved aluminium front roller with sealed end bearings, and a 39-litre grassbox for a clean, professional result.
Robust, low-maintenance, and perfectly balanced, the Shaver 24 is a trusted workhorse that delivers a flawless cut—making it the go-to choice for maintaining world-class turf surfaces.
Cutting System
- Cutting Width: 61cm (24″) – ideal for larger areas, offering efficient coverage and a high-quality cut
- Cutting Cylinder: 10-blade, 12cm diameter – 217 cuts per metre (198 cuts per yard)
- Cutting Height Range: 2.4mm – 19mm (0.1″ to 0.75″) – cut a cricket wicket at 8mm and a square at 12mm
- Clip Rate: 217 cuts per metre – promotes healthy, well-maintained turf
- Bottom Blade: 2.4mm (0.1″) standard; 4mm (0.16″) available on request
Engine & Power
- Engine: Honda GX160 with recoil start – reliable, easy to start, and delivers 4.8hp @ 3,600 rpm
- Drive Engagement: Handle-mounted lever engages twin belt drive (24″ model) via cable
- Cylinder Engagement: Handle-mounted lever engages twin belt drive (24″ model) via cable
Grass Management
- Grass Collector: 39-litre moulded plastic box with steel reinforcing strip
Rollers & Stripe Quality

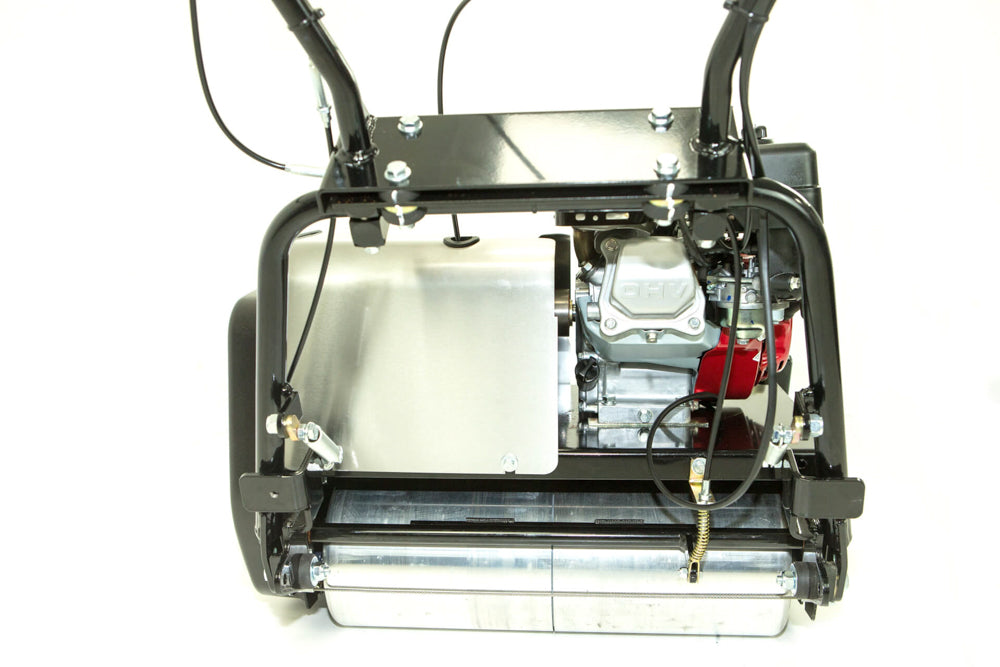

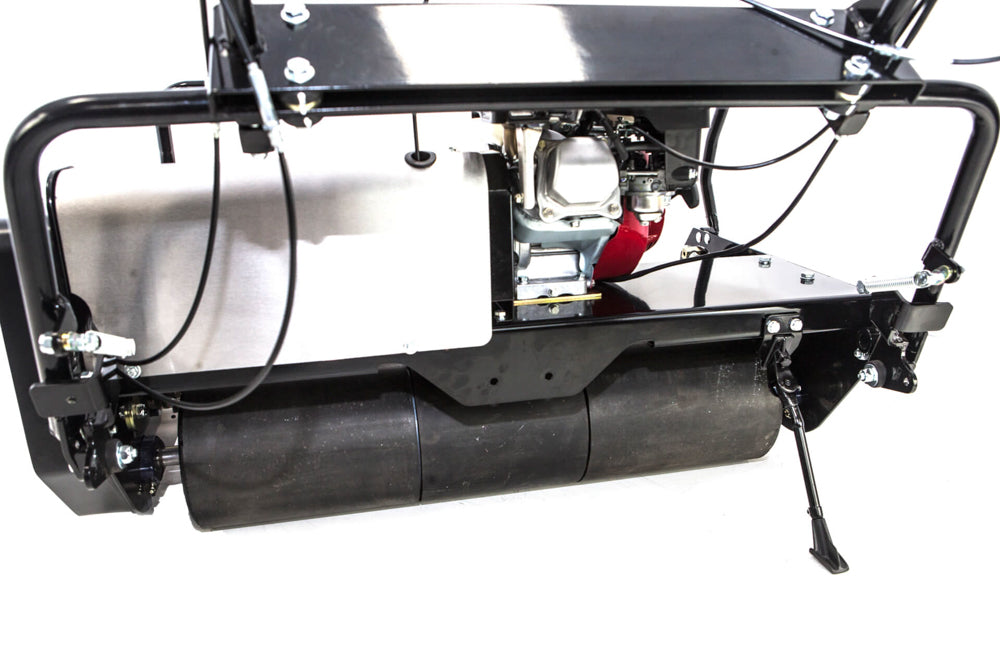

- Rear Roller: Two-piece aluminium with bevel gear differential – excellent striping & manoeuvrability
- Front Roller: Grooved aluminium with scraper and sealed bearings
User Comfort & Storage
- Handlebar: Adjustable with anti-vibration mountings – reduces operator fatigue
- Independent Clutches: Hand lever-operated for cylinder and rear roller control
- Dimensions:
Height – 1,016mm (40");
Length – 1,270mm (50")
Overall Width: 788mm (31"); 1,003mm (39.5") with optional accessories
- Weight: 91.5kg (202lb) – robust and balanced for consistent precision
Low noise and minimal vibration during operation
Warranty
- Warranty: 24 months / 1,500 hours (sports use), 48 months / 1,500 hours (homeowner use)
Ideal for low cut lawns
The Allett Shaver 24 is ideal for turf areas that demand a low, fine finish—such as cricket pitches, bowling greens, and golf course surrounds—thanks to its precise height adjustment, smooth operation, and clean cutting performance.
Anti-vibration Handlebar Mountings
Anti-vibration handlebar mountings help absorb engine vibrations, reducing operator fatigue and improving comfort during prolonged use. This feature makes the mower easier to handle and more enjoyable to operate, even over extended periods.

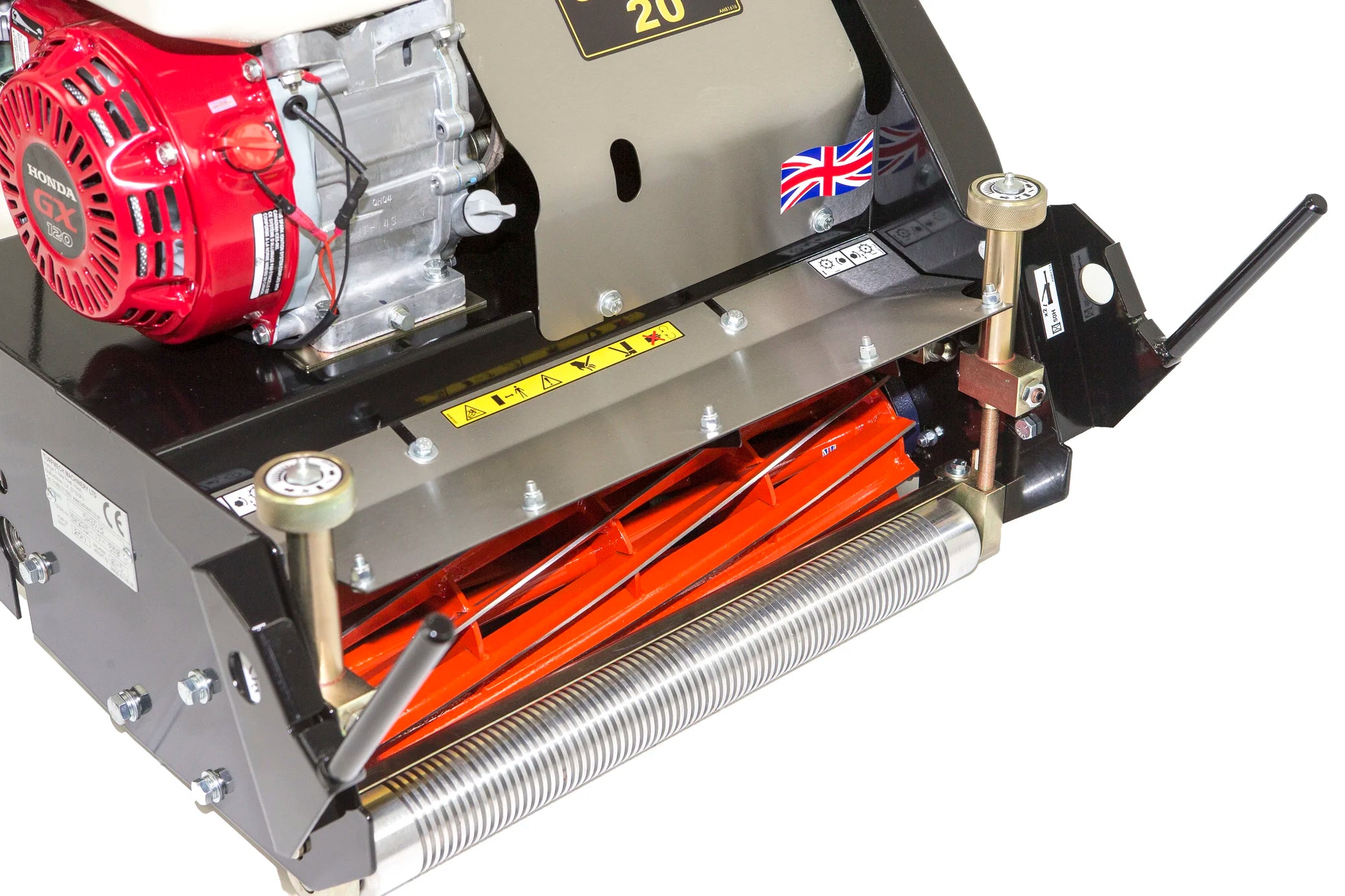

10 Blade Cutting Cylinder Standard
The 10-blade cutting cylinder delivers 217 cuts per metre, producing a clean and consistent finish. It's ideal for fine turf applications such as cricket pitches, bowling greens, and golf course surrounds.

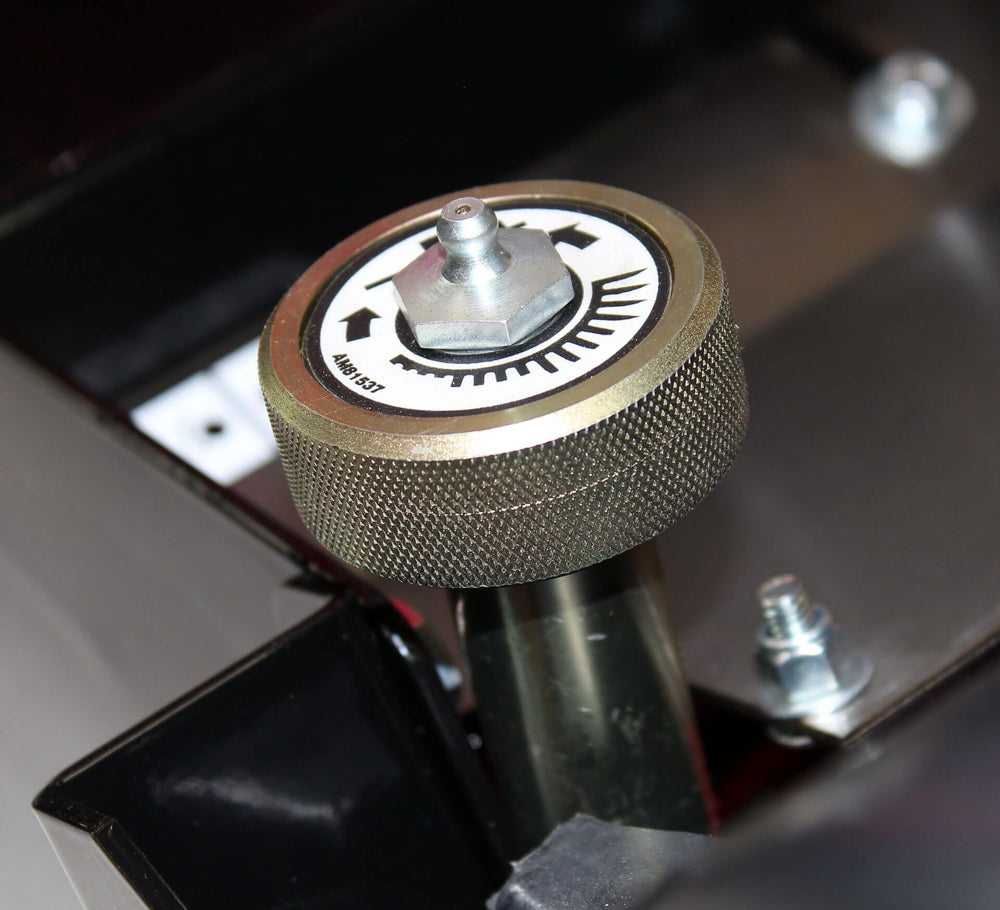

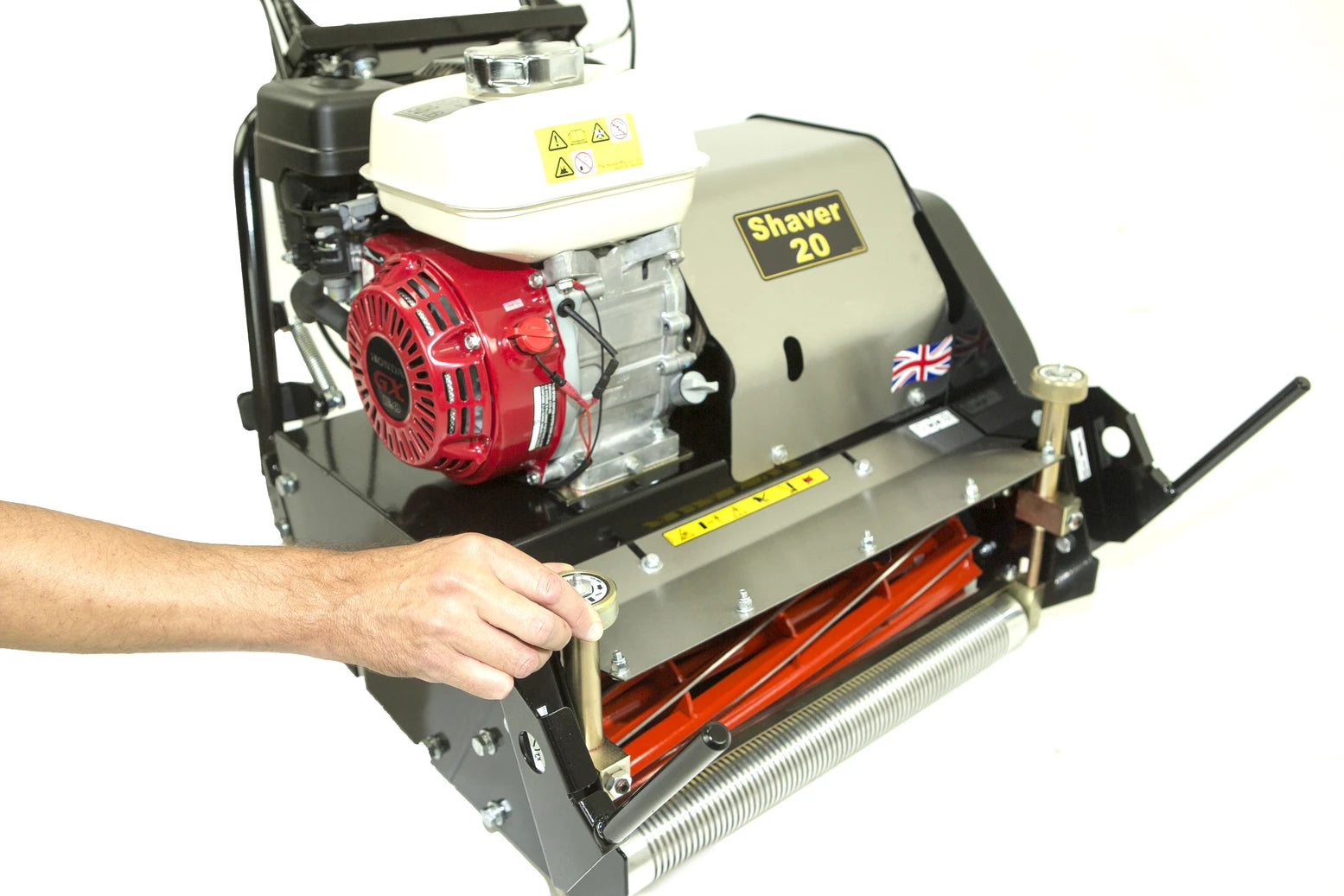

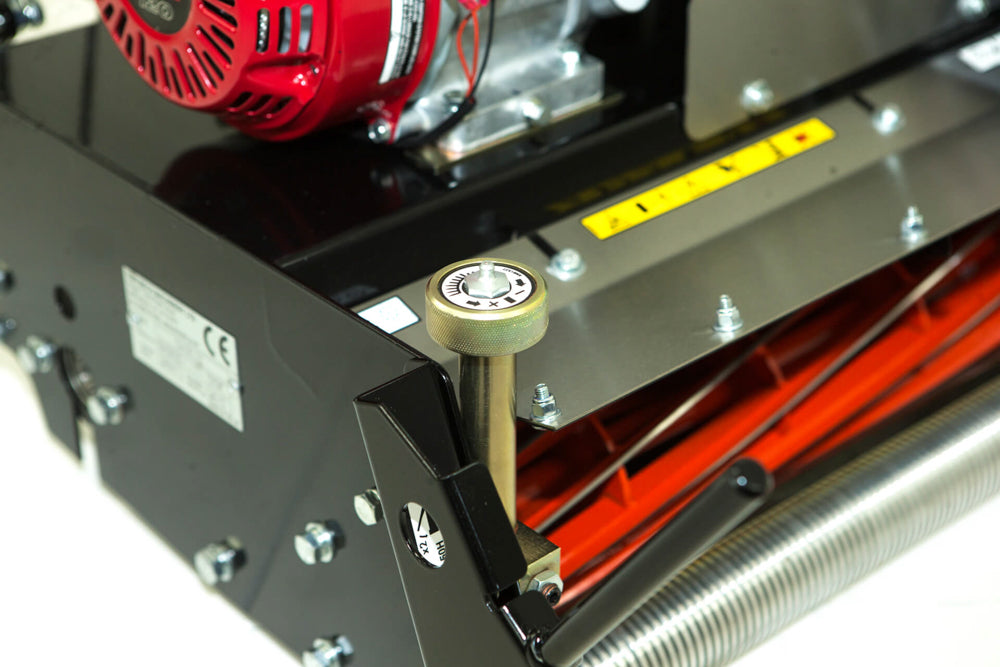

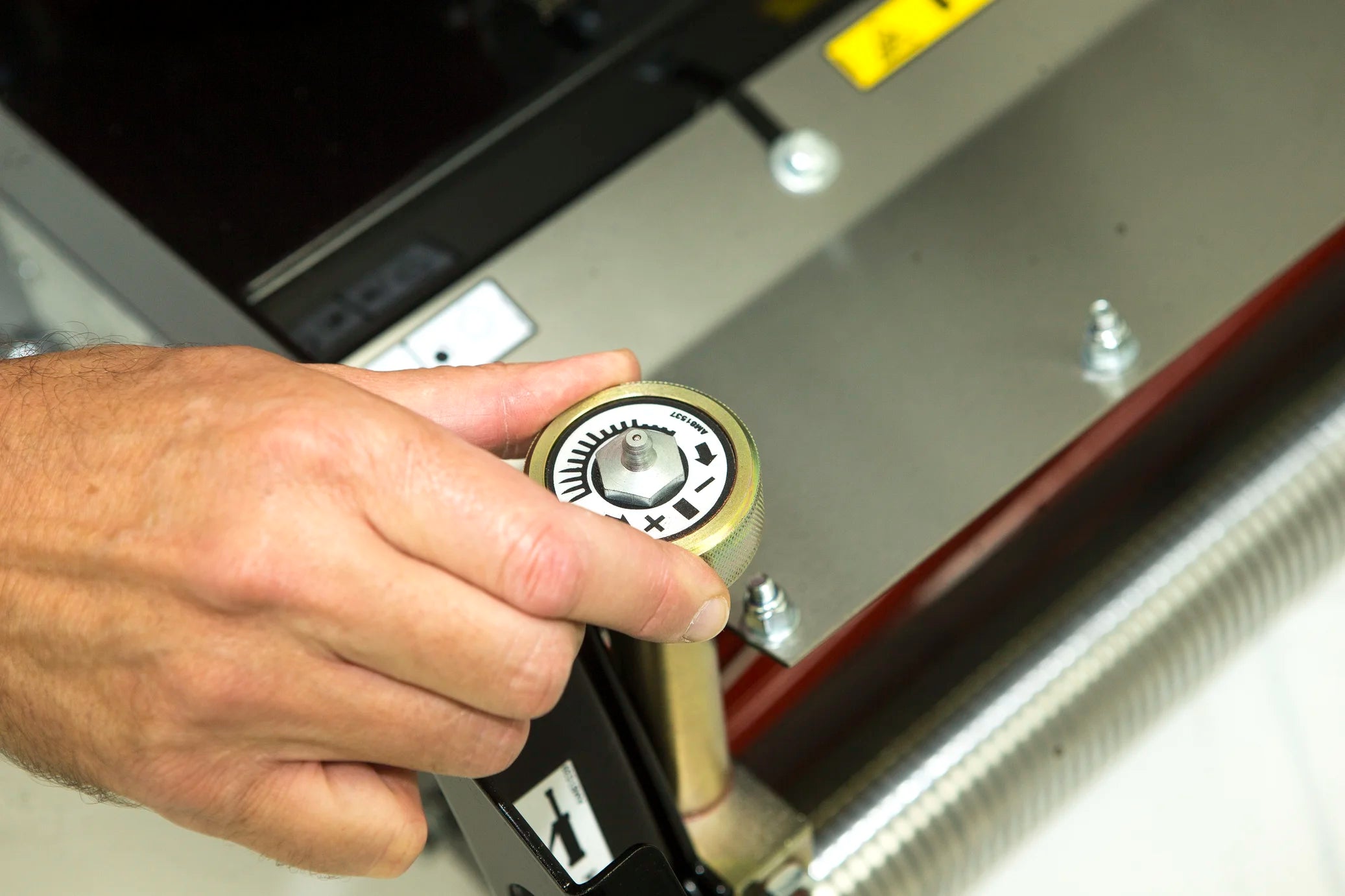

Precise Micrometer HOC adjustment (2.4-19mm)
The Allett Shaver 24 is built for turf areas that require a fine, low finish, featuring a micrometer-style height-of-cut adjustment for quick and precise changes between 2.4mm and 19mm.
Honda GX160 Engine
The Honda GX160 is a powerful and reliable 4-stroke engine delivering 4.8hp at 3,600 rpm. Renowned for its easy starting, fuel efficiency, and low vibration, it’s ideal for demanding turf applications, ensuring consistent performance and durability in professional mowing environments.

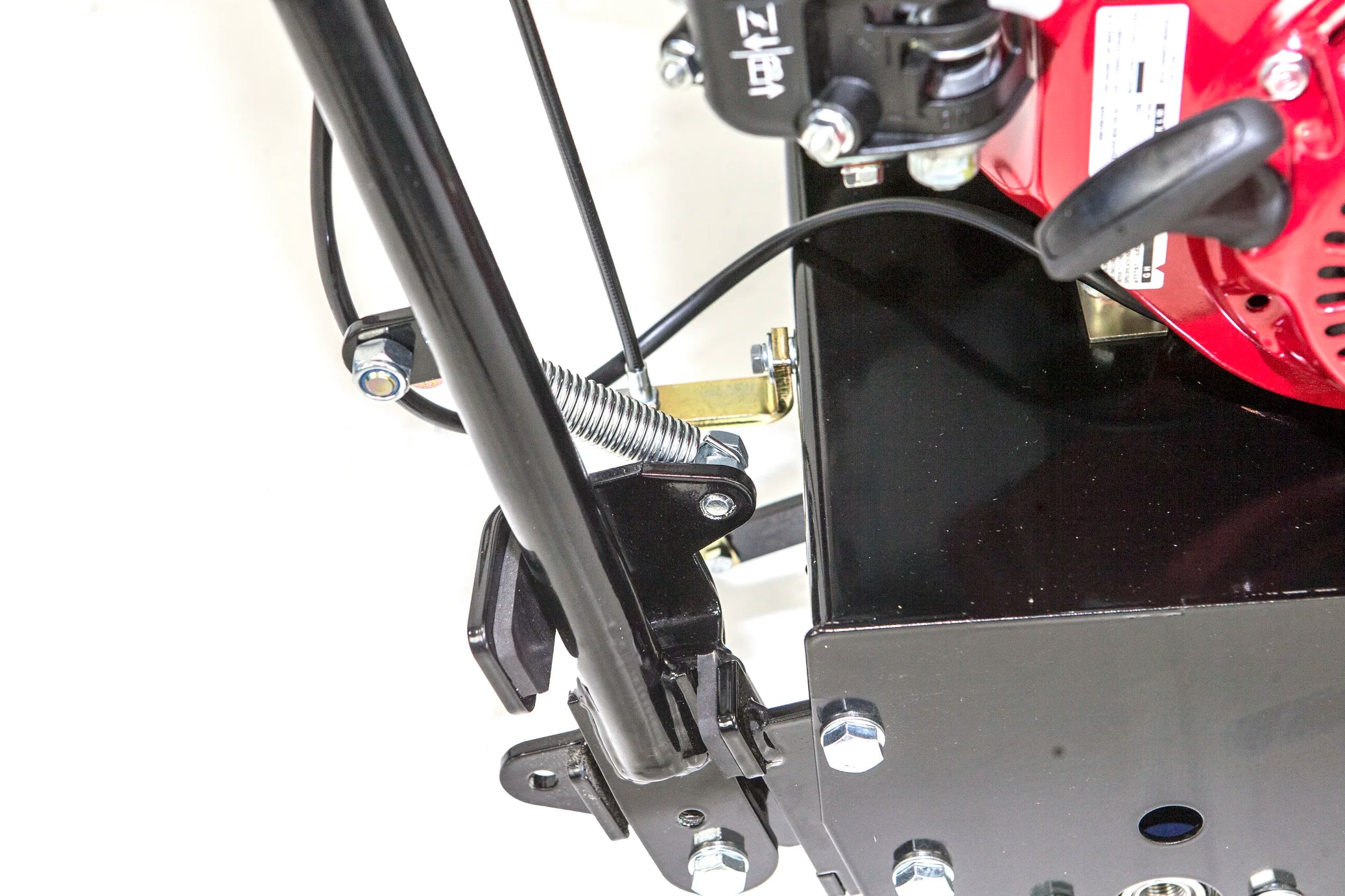

Independent Clutches for Cylinder & Roller
Independent clutches for the cylinder and rear roller provide smooth, responsive control, allowing each to be engaged separately. This improves manoeuvrability, making turning and positioning easier while protecting the quality of the turf.
Compatible with:
Allett Shaver Range
The Allett Shaver 24 is a professional-grade mower designed for achieving a fine, low finish on high-quality turf. With features like a micrometer-style height adjuster, 10-blade cutting cylinder, and Honda GX160 engine, it delivers clean, consistent results with smooth, efficient operation. Hear real feedback from a user putting it to work on the turf.
HOW THEY COMPARE
Our comparison table provides a detailed breakdown of the Allett Shaver 20 & 24 models, along with a Allett Tournament 20. Allowing you to easily compare their technical specifications side by side. From cutting widths and engine power to weight and height adjustments, this table helps you find the perfect Shaver mower for your needs.
Sports Pro
Sports Pro
Sports Pro
Bowls, Cricket Wickets, Croquet, Golf Greens and Surrounds, Golf Tees, Lawn Tennis, Formal Lawn
Bowls, Cricket Wickets, Croquet, Golf Greens and Surrounds, Golf Tees, Lawn Tennis, Formal Lawn
Bowls, Cricket Wickets, Croquet, Golf Greens and Surrounds, Golf Tees, Lawn Tennis, Formal Lawn
61cm (24")
610mm (24")
51cm (20")
788mm (31")
1,003mm (39.5") with transport wheels
788mm (31")
1,003mm (39.5") with transport wheels
686mm (27")
902mm (35.5") with transport wheels
Honda GX160 engine
Honda GX160 engine
Honda GX120 engine
3.6kW (4.8hp) @ 3,600 rpm
3.6kW (4.8hp) @ 3,600 rpm
2.6kW (3.5hp) @ 3,600 rpm
120mm (4.7") diameter cutting cylinder equipped with 10 blades. All-welded construction
120mm (4.7") diameter cutting cylinder equipped with 10 blades. All-welded construction
120mm (4.7") diameter cutting cylinder equipped with 10 blades. All-welded construction
2.4mm (0.1") bottom blade as standard
4mm (0.16") bottom blade available on request
2.4mm (0.1") bottom blade as standard
4mm (0.16") bottom blade available on request
2.4mm (0.1") bottom blade as standard
4mm (0.16") bottom blade available on request
No
54 blades @ 10mm spacing
No
Hand-adjustable from 2.4mm to 19mm (0.1" to 0.75")
Hand-adjustable from 2.4mm to 19mm (0.1" to 0.75")
Hand-adjustable from 2.4mm to 19mm (0.1" to 0.75")
217 cuts/metre (198 cuts/yd) irrespective of forward speed
246 cuts/metre (225 cuts/yd) irrespective of forward speed
217 cuts/metre (198 cuts/yd) irrespective of forward speed
Adjustable handlebar with anti-vibration mounting
Adjustable handlebar with anti-vibration mounting
Adjustable handlebar with anti-vibration mounting
Handle-mounted lever engaging V belt drive via cable
Handle-mounted lever engaging V belt drive via cable
Handle-mounted lever engaging V belt drive via cable
Handle-mounted lever engaging twin V belt drive via cable
Handle-mounted lever engaging twin V belt drive via cable
Handle-mounted lever engaging V belt drive via cable
Two-piece aluminium rear-roller with steel bevel gear differential
Two-piece aluminium rear-roller with steel bevel gear differential
Two-piece aluminium rear-roller with steel bevel gear differential
Grooved aluminium front-roller with scraper and sealed end-bearings
Grooved aluminium front-roller with scraper and sealed end-bearings
Grooved aluminium front-roller with scraper and sealed end-bearings
Moulded plastic grassbox with steel reinforcing strip (37L)
Moulded plastic grassbox with steel reinforcing strip (37L)
Moulded plastic grassbox with steel reinforcing strip (32L)
91.5kg (202lb)
105kg (231lb)
81.5kg (180lb)
1,016mm (40")
1,016mm (40")
1,016mm (40in)
1,270mm (50")
1,270mm (50")
1,270mm (50in)
Smooth front roller in place of grooved roller
AS066 transport wheels & stand
Smooth front roller in place of grooved roller
TS029 transport wheels & stand
Smooth front roller in place of grooved roller
AS064 transport wheels & stand
24 months or 1500 Hours for a Sports User
48 months or 1500 Hours for a Homeowner
24 months or 1500 Hours for a Sports User
48 months or 1500 Hours for a Homeowner
24 months or 1500 Hours for a Sports User
48 months or 1500 Hours for a Homeowner

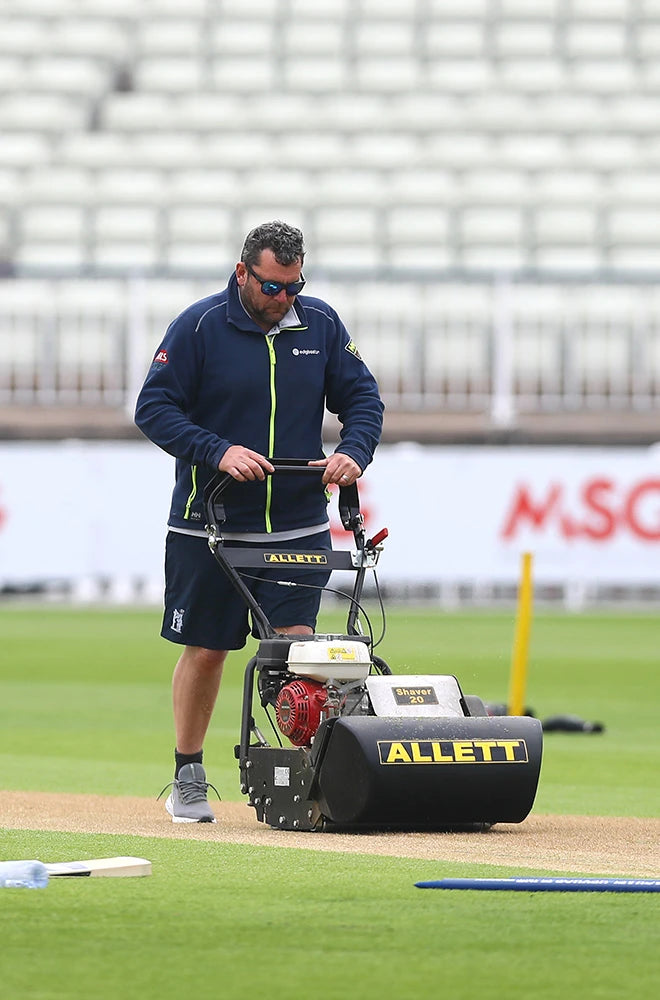

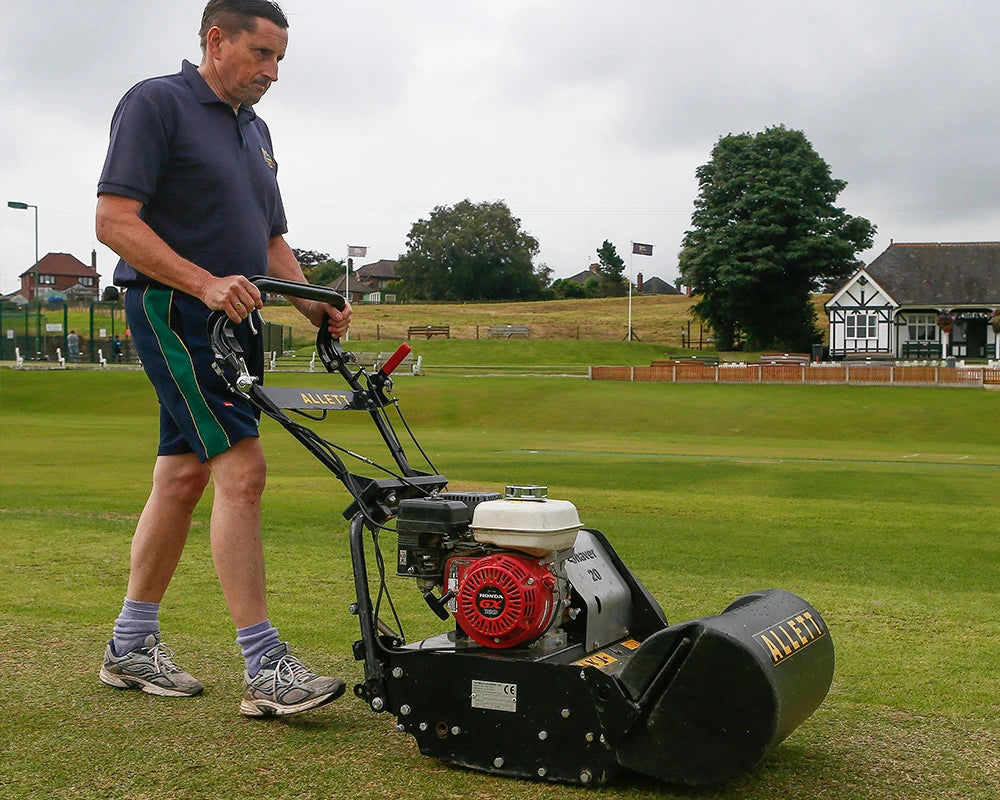

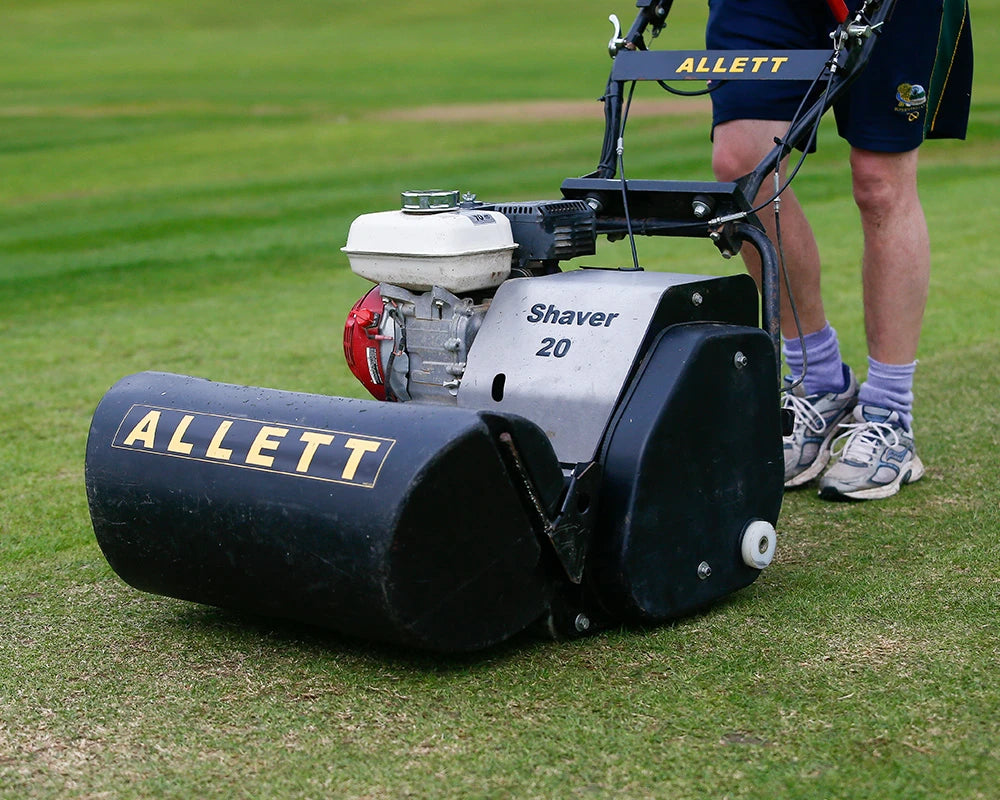

Shaver in Action
Explore the Allett Shaver in action with our curated YouTube playlist, featuring this professional-grade mower being used in top stadiums and sports fields. Watch as groundskeepers achieve immaculate, striped finishes on some of the world’s best pitches. Plus, learn essential maintenance tips and step-by-step guides on how to operate and care for your Shaver mower, ensuring peak performance and longevity. Whether you're a professional turf manager or an enthusiast, these videos provide valuable insights into the power and precision of the Allett Shaver
FAQ
In our FAQs for the Allett Shaver, you'll find answers to common questions about the mower's features, maintenance, and performance. We’ve gathered insights on everything from how to adjust cutting heights and maintain the mower, to recommendations for the best usage on different types of turf.
What is the cutting width of the Allett Shaver 24?
The Allett Shaver 24 has a cutting width of 24 inches (610mm), making it ideal for larger areas like cricket wickets, bowling greens, tennis courts, croquet courts and golf courses where a high-quality finish is required.
What type of engine does the Allett Shaver 24 use?
The mower is powered by a Honda GX160 engine, delivering 4.8hp at 3,600 rpm. This engine provides reliable power with low fuel consumption and minimal noise.
What makes the Shaver 24 comfortable to use for extended periods?
The mower features handlebars with anti-vibration mountings, which absorb vibrations and reduce operator fatigue, ensuring a more comfortable experience during long mowing sessions.
How does the Allett Shaver 24 handle turns and manoeuvrability?
Equipped with a two-piece steel rear roller with a bevel gear differential, ensuring enhanced manoeuvrability and smooth turning, while creating professional turf stripes.
What kind of rear roller does the Shaver 24 use?
The mower is equipped with a two-piece aluminium rear roller featuring a steel bevel gear differential, which ensures smooth, consistent stripes and excellent manoeuvrability.
