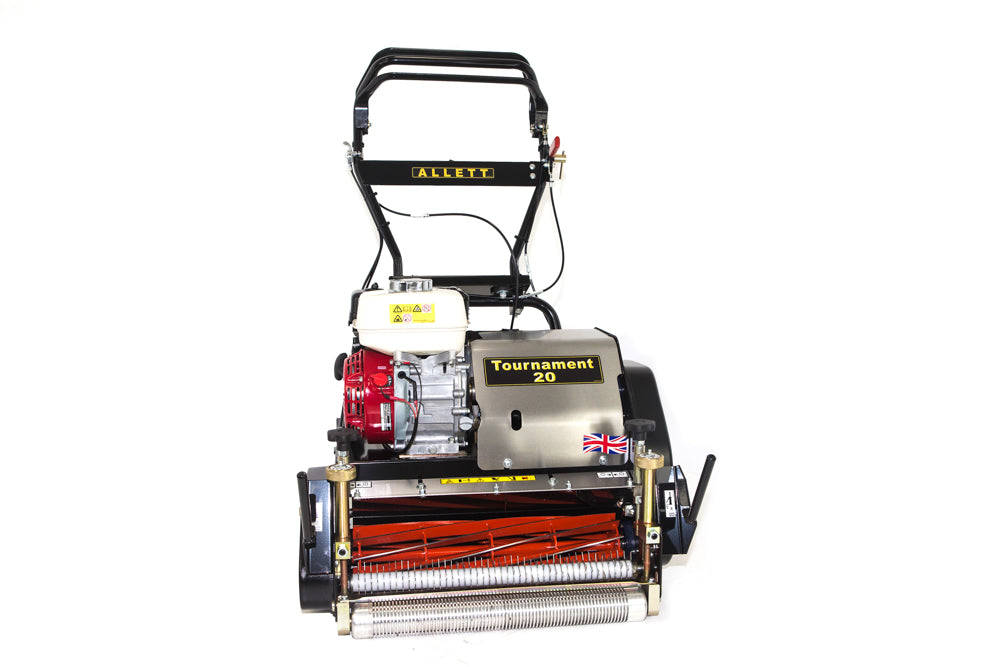

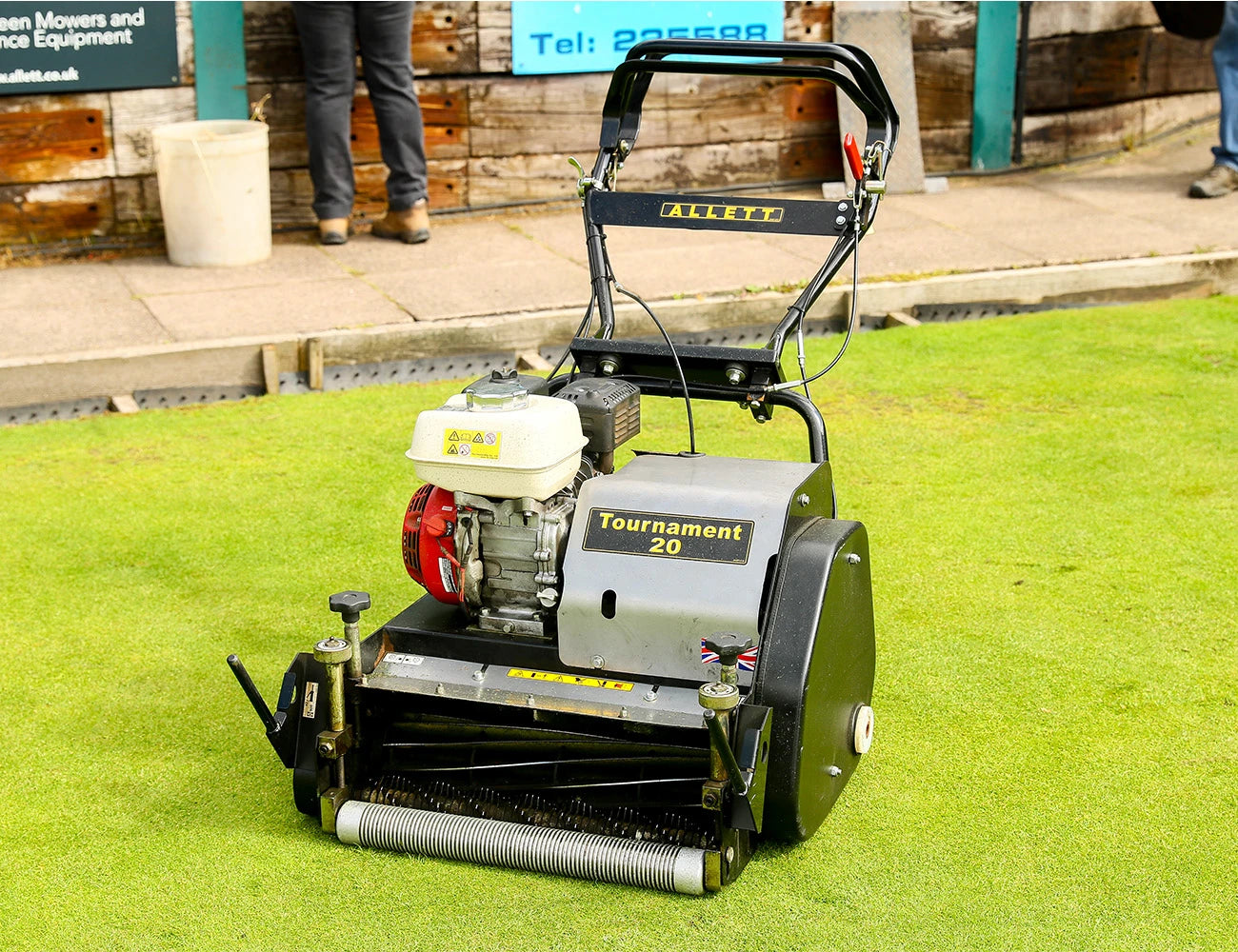

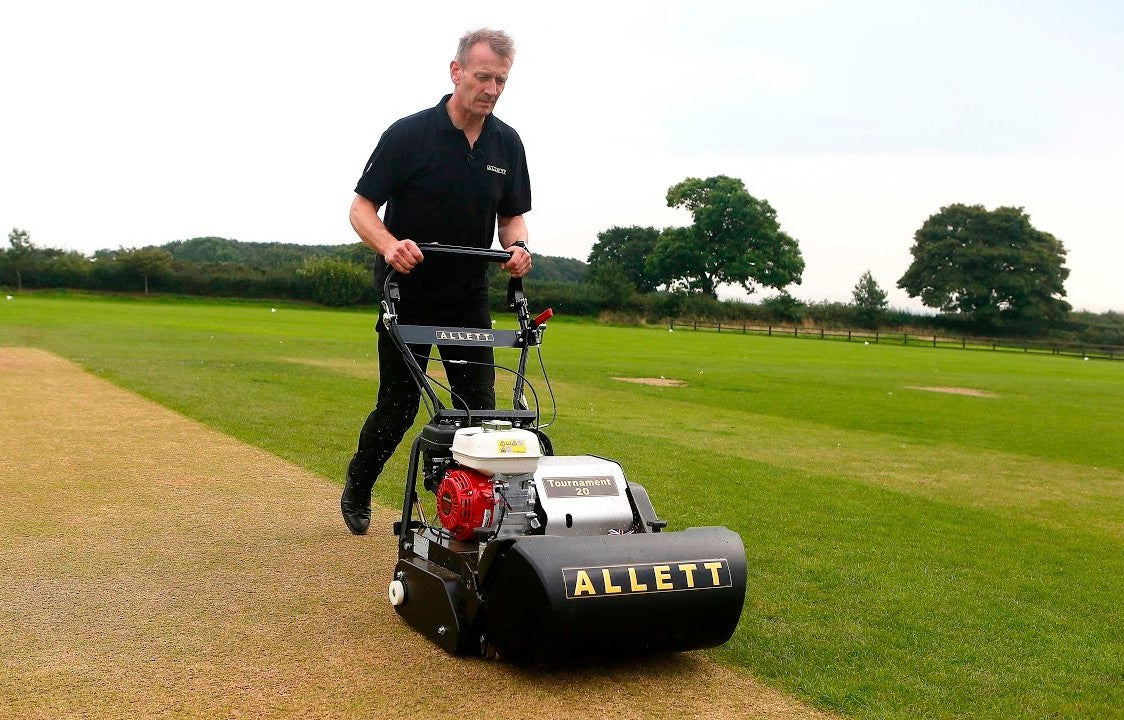

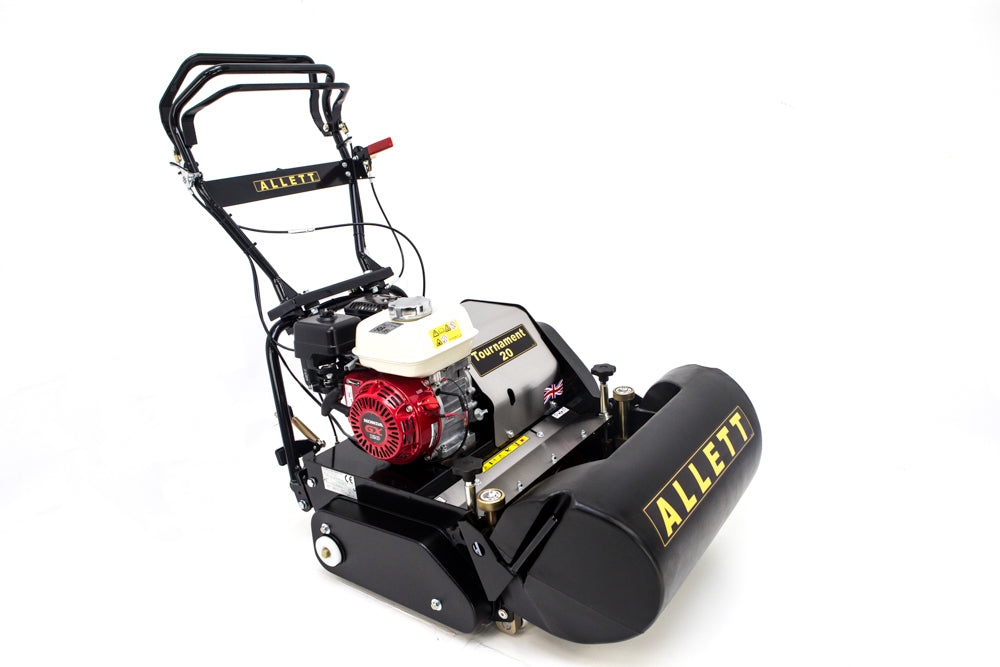

Allett Tournament 20 Cylinder Mower
The Tournament 20 is a precision-engineered turf mower designed to meet the highest standards for maintaining cricket wickets, golf greens and bowling greens. Its advanced features ensure a consistent, true finish with optimal speed and ball run making it ideal for sports that demand precise turf conditions.
Equipped with a Honda GX120 engine that delivers a power output of 2.6 kW (3.5 hp) at 3,600 rpm, the Tournament operates efficiently at low engine speeds, providing low fuel consumption, reduced noise levels, and minimal vibration. This makes the mower a pleasure to use, even for extended periods.
The 51cm (20”) cutting width combined with the 120mm (4.7”) diameter cutting cylinder, ensures an exceptional cut with 217 cuts per metre. Its 10-blade cutting cylinder works in harmony with the integral powered turf groomer, which uses closely spaced vertical blades to lift lateral grasses and runners in front of the cylinder. This results in a uniform, level finish, ideal for maintaining the smooth, even surface required in high-performance sports.
The grooming reel with 45 blades spaced at 10mm intervals further enhances the finish by setting the groomer 2-3mm below the height of cut (HOC) helping to create a firm and consistent playing surface.
The cutting height is adjustable between 2.4mm and 19mm, allowing for precise control of the turf's length to suit specific requirements. The handle-mounted engagement levers provide smooth control for both the cutting cylinder and drive, while the two-piece steel rear roller with a bevel gear differential ensures exceptional manoeuvrability and smooth turns. The front roller is made of grooved aluminium, featuring a scraper and sealed end bearings for enhanced durability and performance.
With a 32L grassbox that is both lightweight and durable, along with optional extras like pneumatic transport wheels, the Tournament is designed for ease of use and maintenance. The mower's robust build is complemented by anti-vibration handlebars, ensuring comfort during operation.
Whether you're maintaining professional sports fields or private clubs the Tournament combines precision engineering, efficient operation and ease of use in a single, powerful package. With a 24-month warranty for sports users (48 months for home users), you can trust that the Tournament will deliver top-quality results for years to come.
Cutting System
- 20” (510mm) cutting width
- 120mm (4.7”) diameter cutting cylinder with 10 blades (217 cuts per metre)
- Clip rate: 246 clips per metre (225 clips/yard), consistent regardless of forward speed
- Cutting height: 2.4mm – 19mm (0.1” to 0.75”) with micro-adjustment
- Fixed 10-blade cutting cylinder
- Optional grooming reel: 45 blades at 10mm spacing (recommended to set 2–3mm below height of cut)
- Standard 2.4mm bottom blade (4mm available on request)
Engine & Power
- Engine: Honda GX120 petrol engine
- Power output: 2.6kW (3.5hp) @ 3,600 rpm
Noise & Weight
- Weight: 96kg (212lb)
- Operator noise levels: 95db
Grass Management
- Grassbox: 32L moulded plastic with steel reinforcing strip
Rollers & Stripe Quality
- Rear roller: Two-piece steel with bevel gear differential
- Front roller: Grooved aluminium with scraper bar and sealed end-bearings
User Comfort & Storage

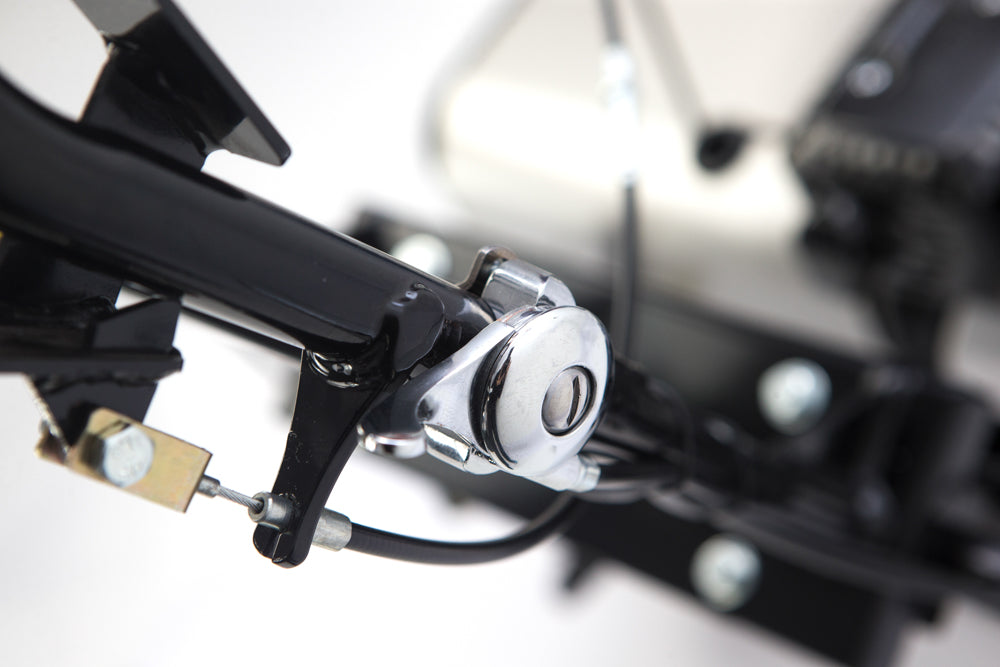

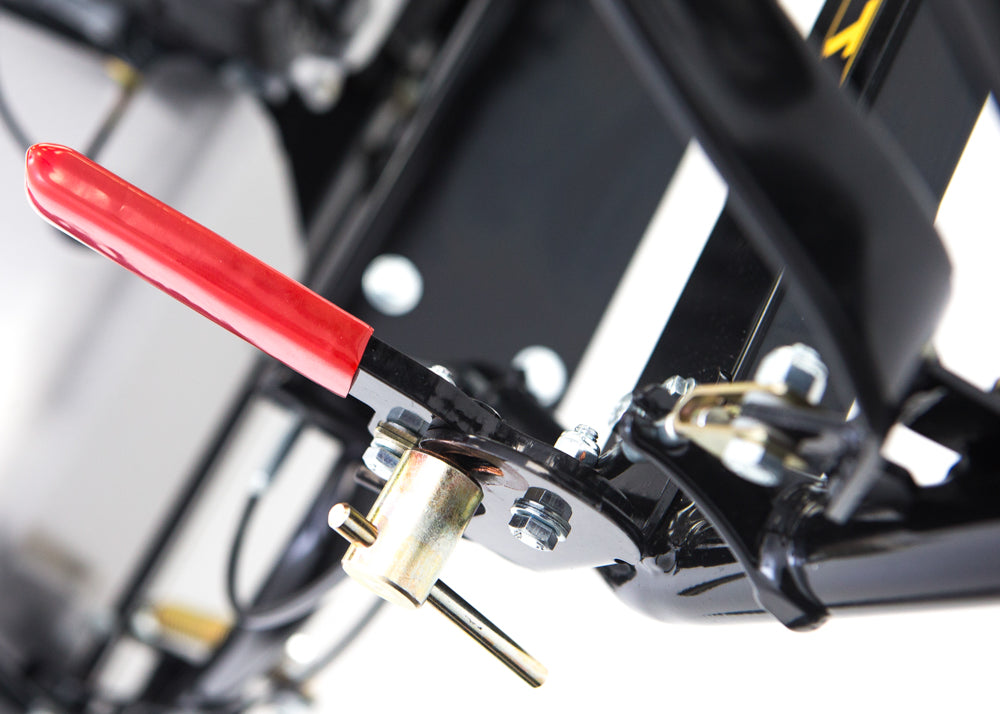

- Handlebar-mounted drive and cylinder engagement levers with V belt drive (twin belts on 24” model)
- Handlebar: Anti-vibration mountings with adjustable height
- Overall height: 1,016mm (40”)
- Overall length: 1,270mm (50”)
Extras
- Optional pneumatic transport wheels & Stand
Warranty
- Sports User: 24 months / 1,500 hours
- Home User: 48 months / 1,500 hours

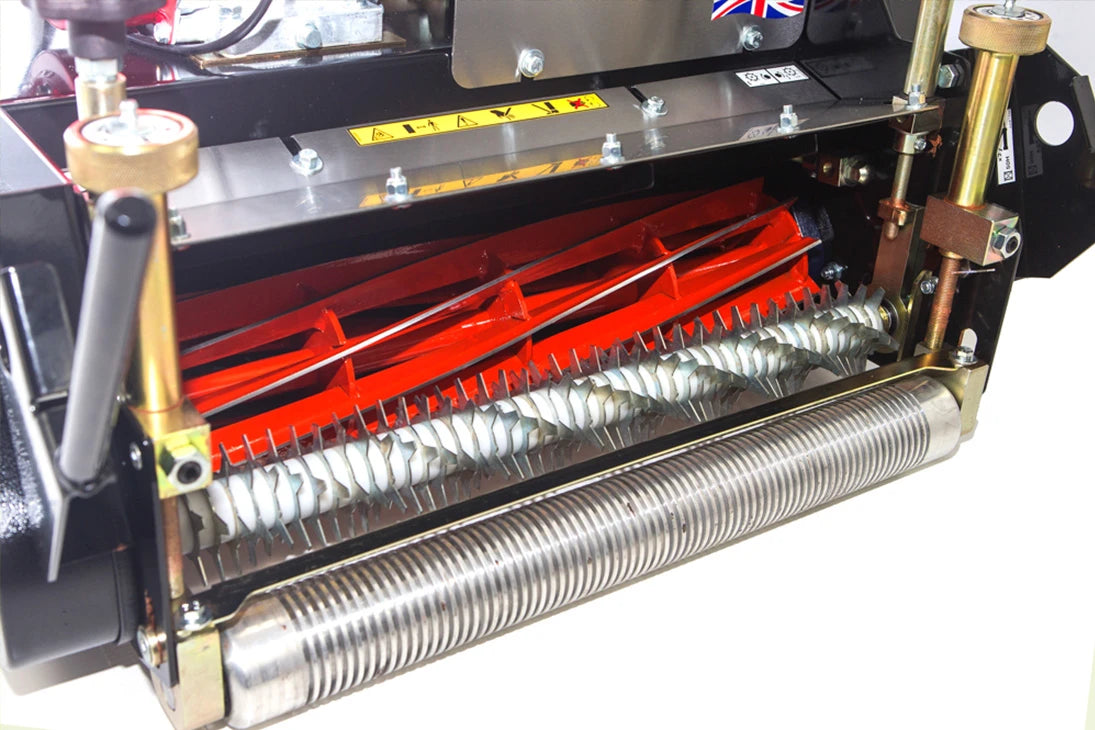

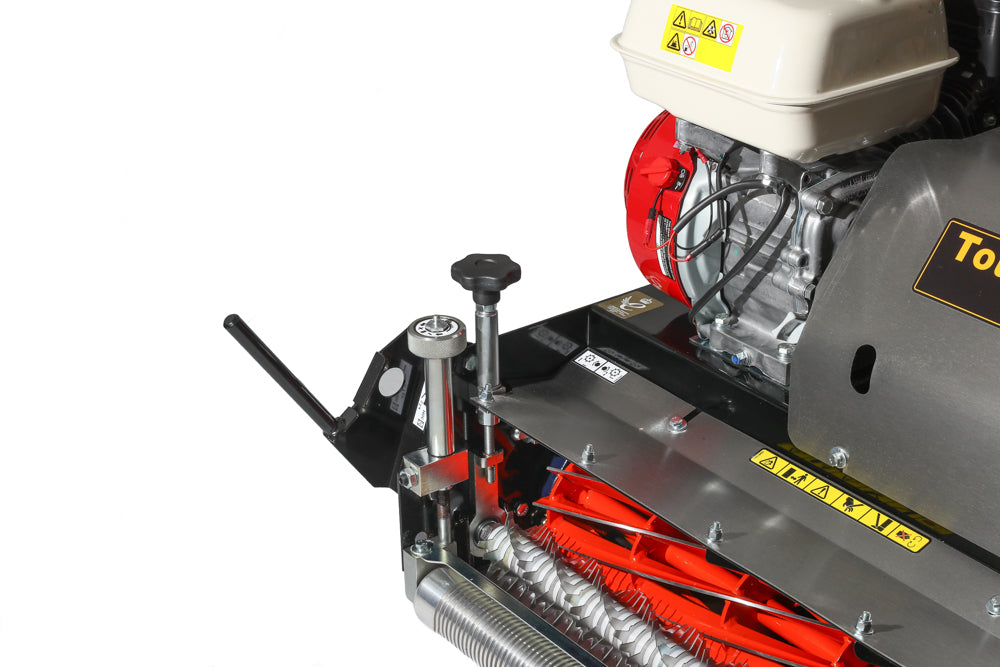

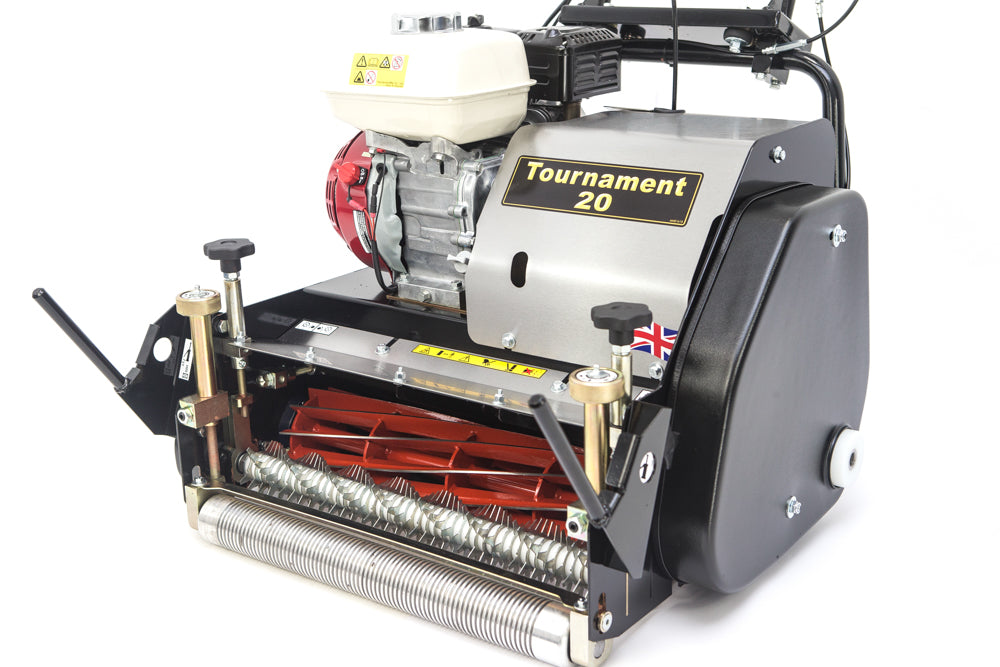

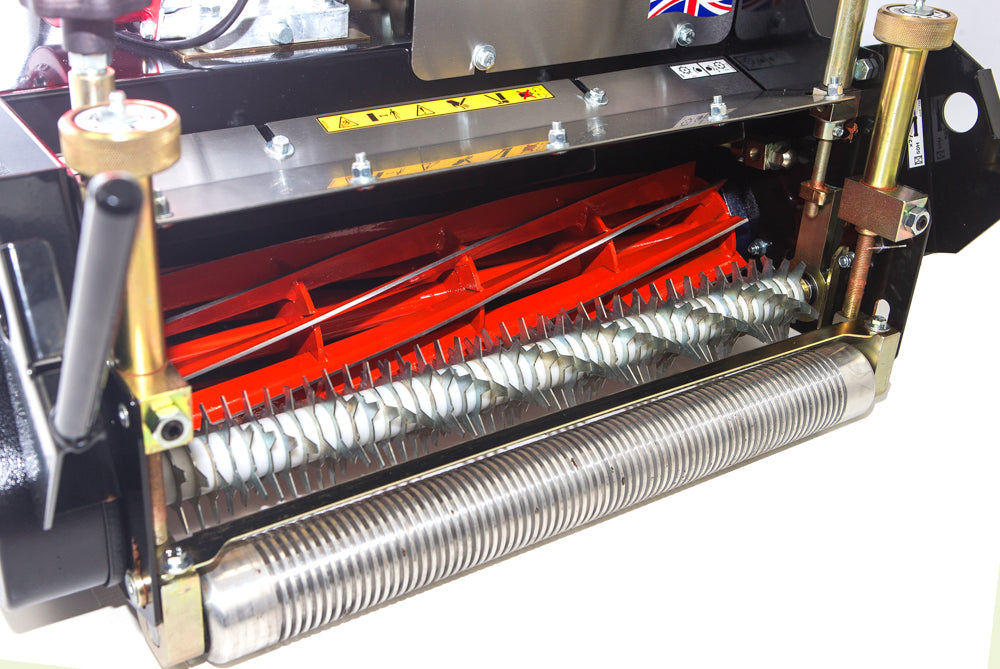

Integrated turf groomer
A powered grooming reel with 45 finely spaced vertical blades lifts lateral grasses and creeping runners, ensuring a smoother, firmer finish and encouraging healthy, upright grass growth before cutting.

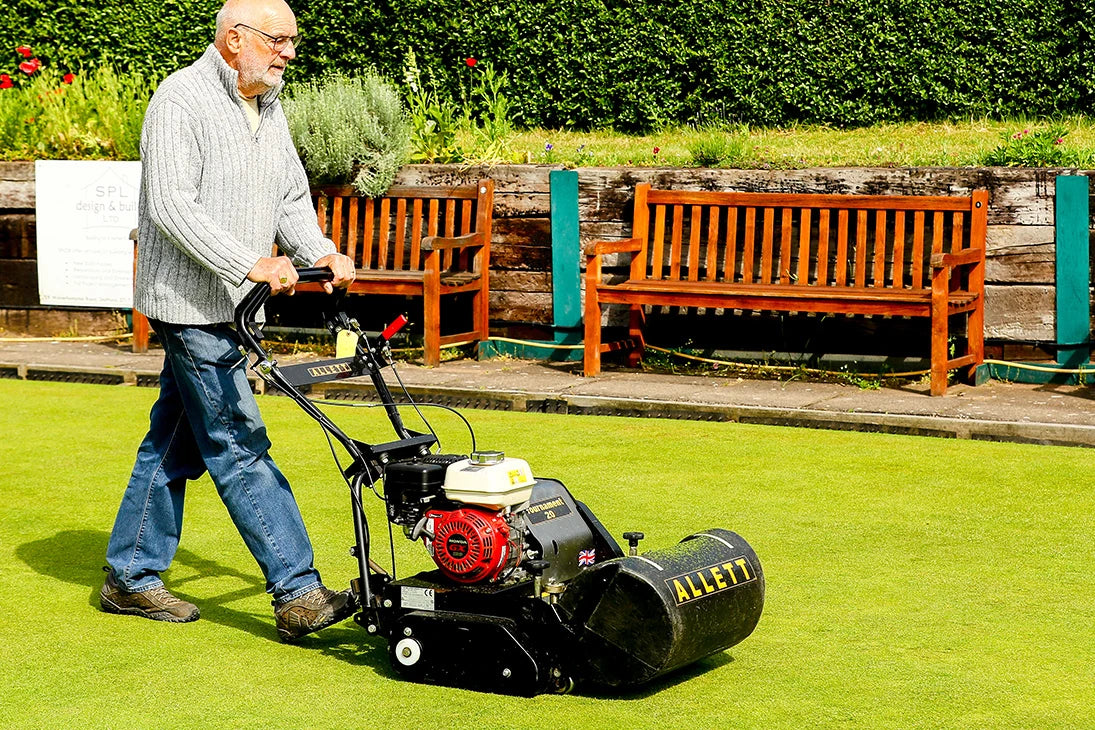

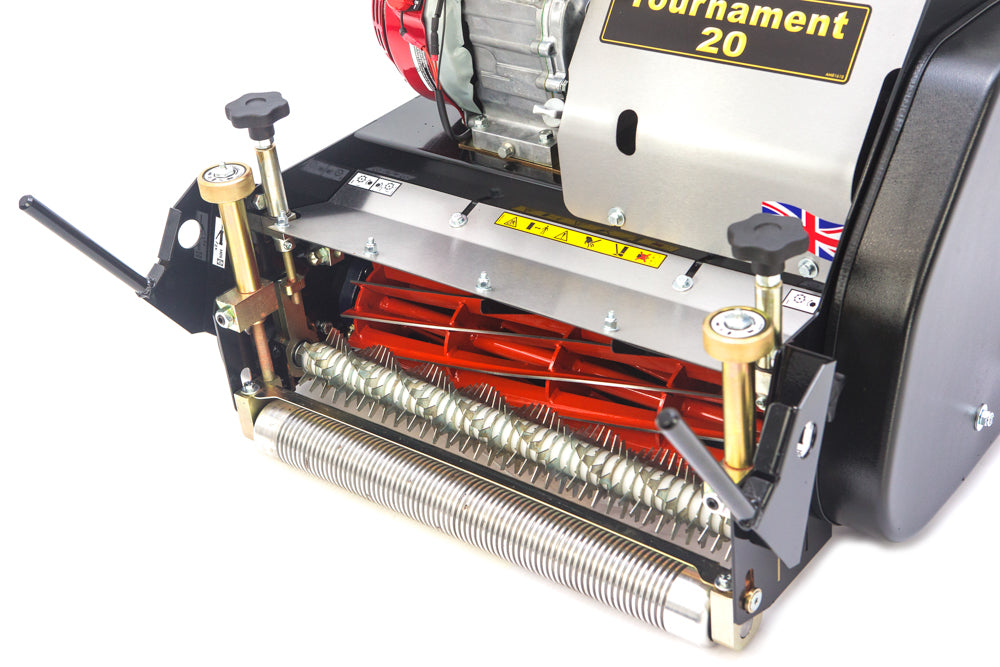

Professional-grade cut
Equipped with a 10-blade precision cylinder delivering 217 cuts per metre, the Tournament 20 produces a consistent, clean cut ideal for cricket wickets, golf greens, and bowling surfaces.

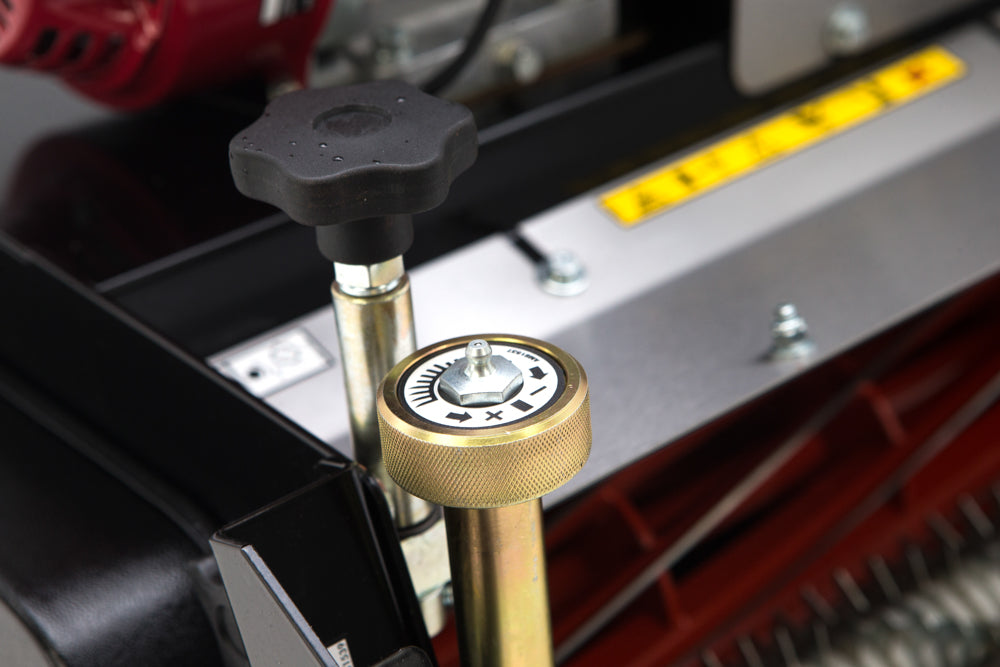

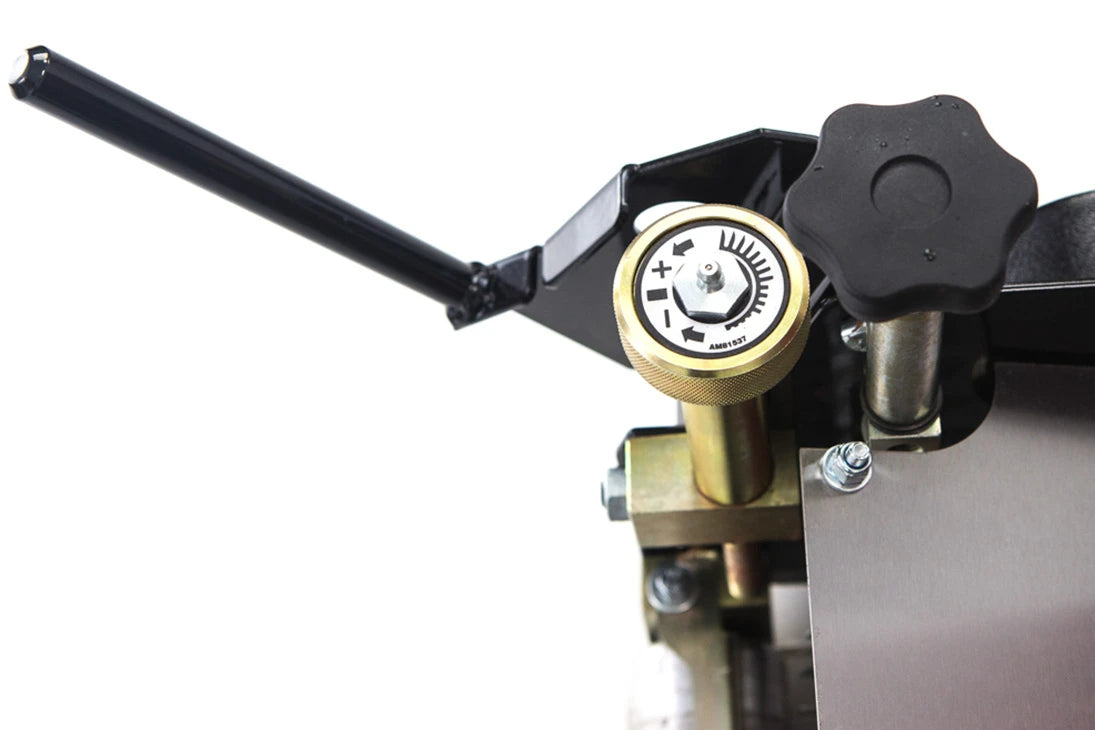

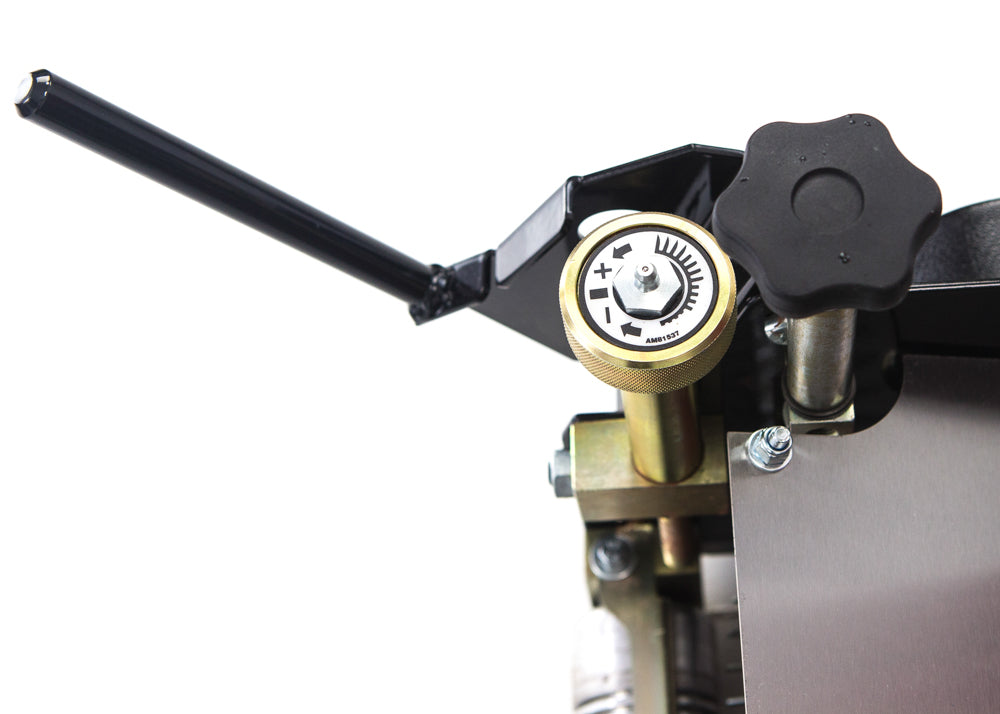

Precise height control

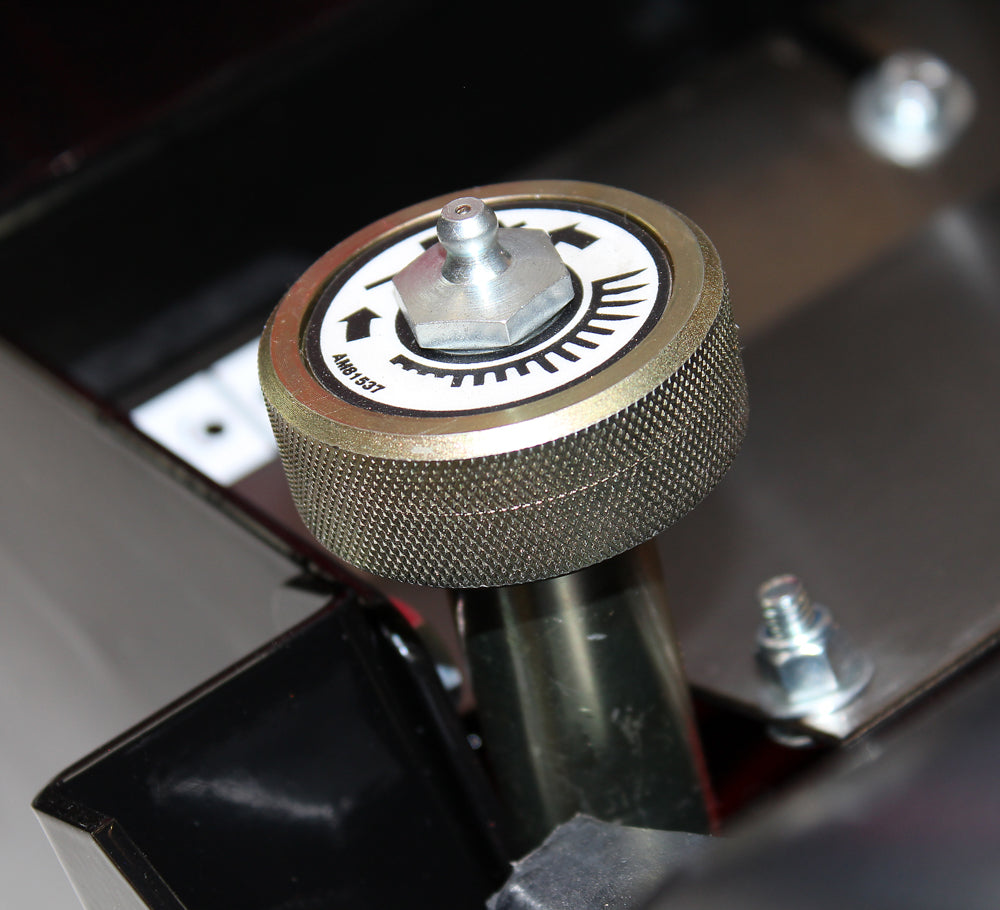

Cutting height can be easily adjusted between 2.4mm and 19mm using the micro-set system, allowing groundskeepers to finely tune turf length to suit specific sport or surface requirements.

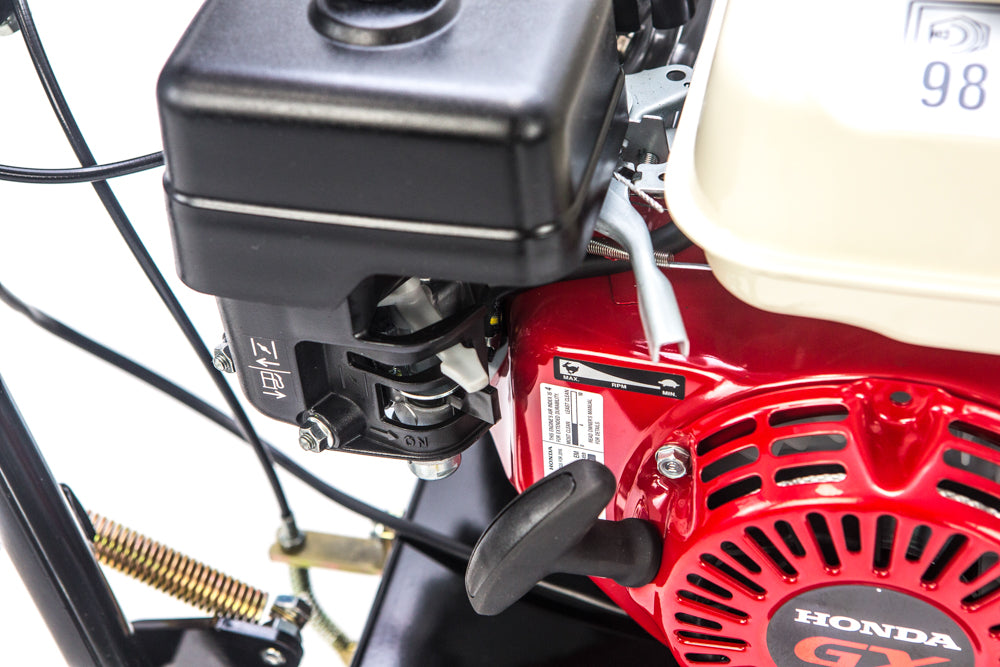

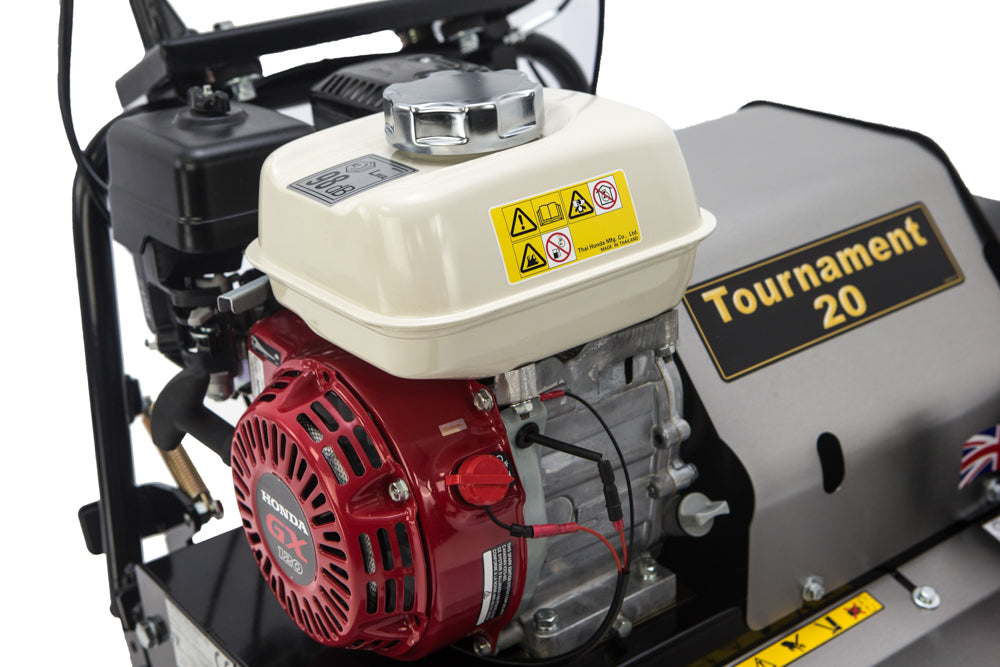

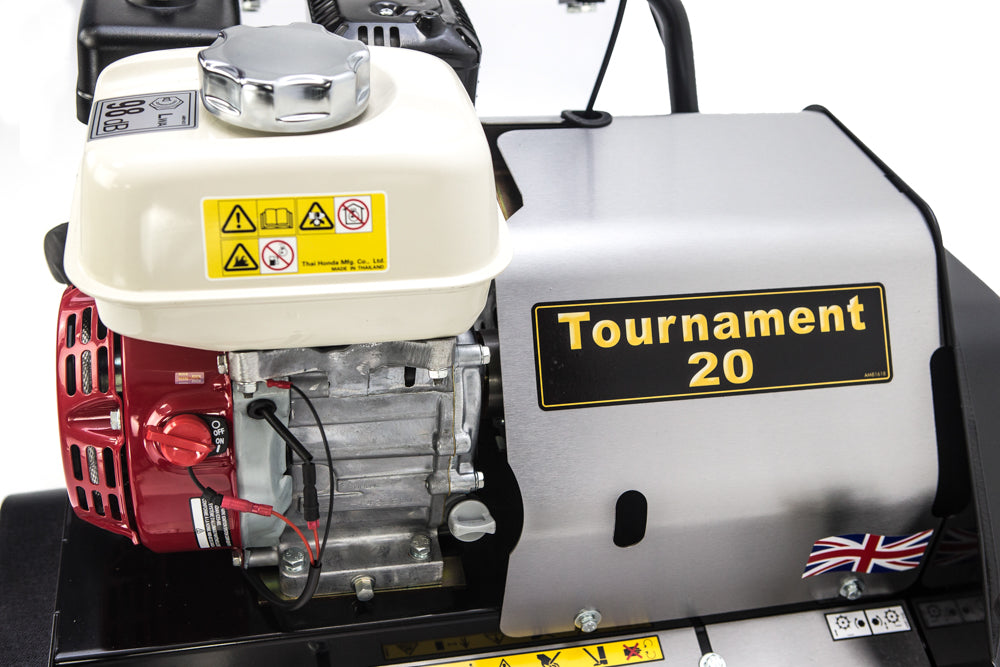

Efficient, quiet engine
Powered by a Honda GX120 engine producing 2.6kW (3.5hp) at 3,600 rpm, it runs quietly and efficiently, with low fuel consumption and reduced vibration for prolonged, comfortable use.

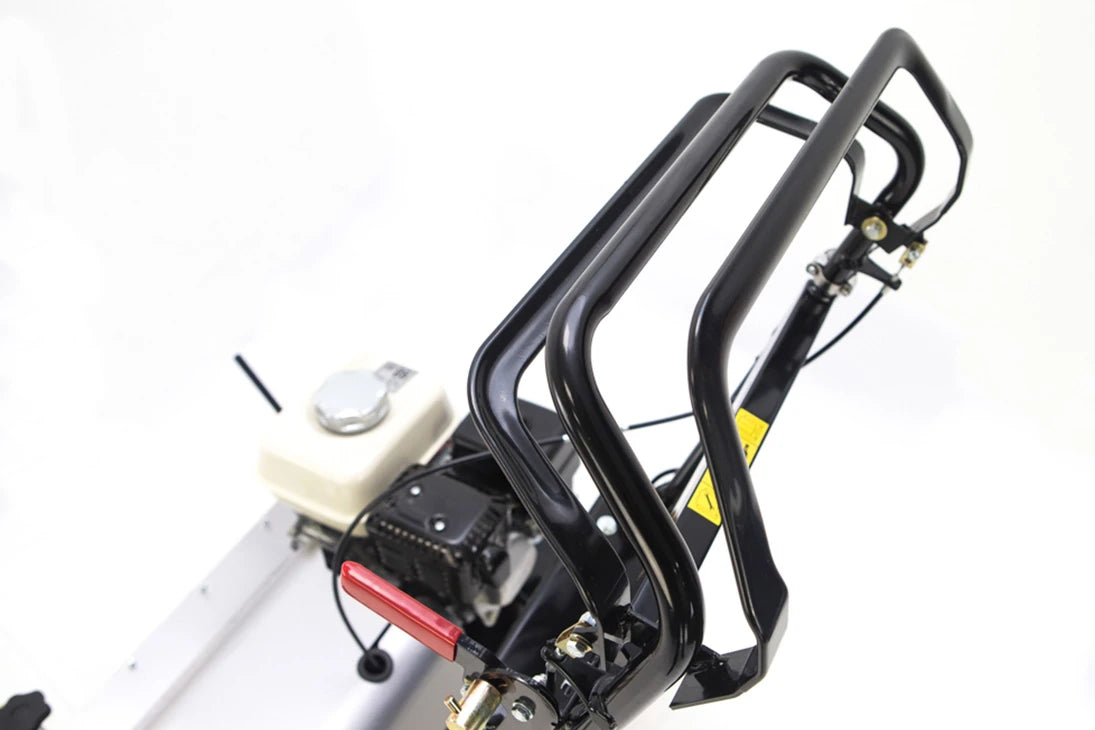

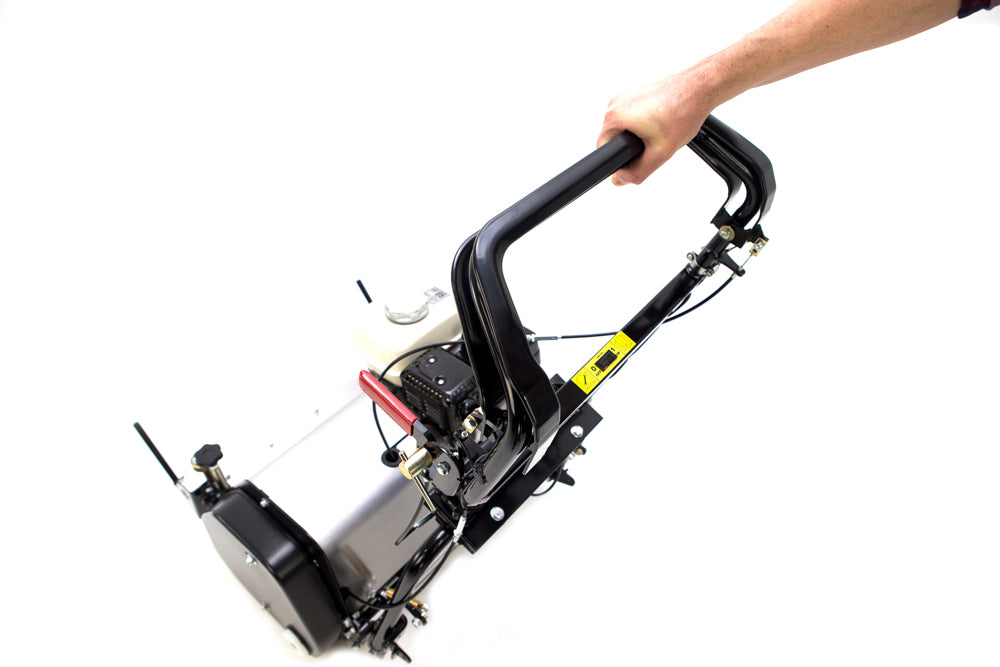

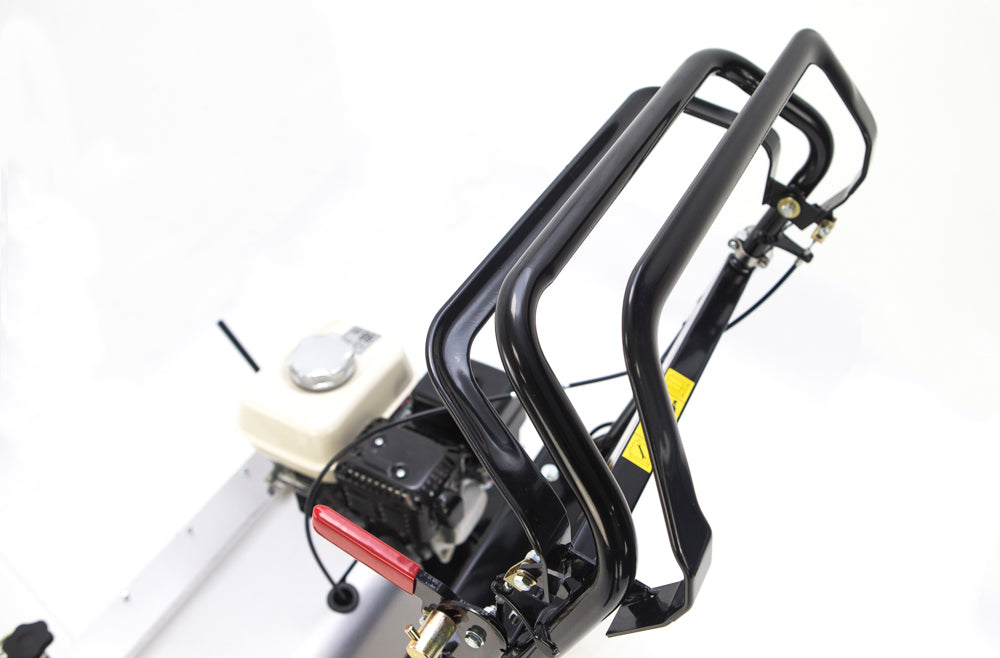

Operator comfort

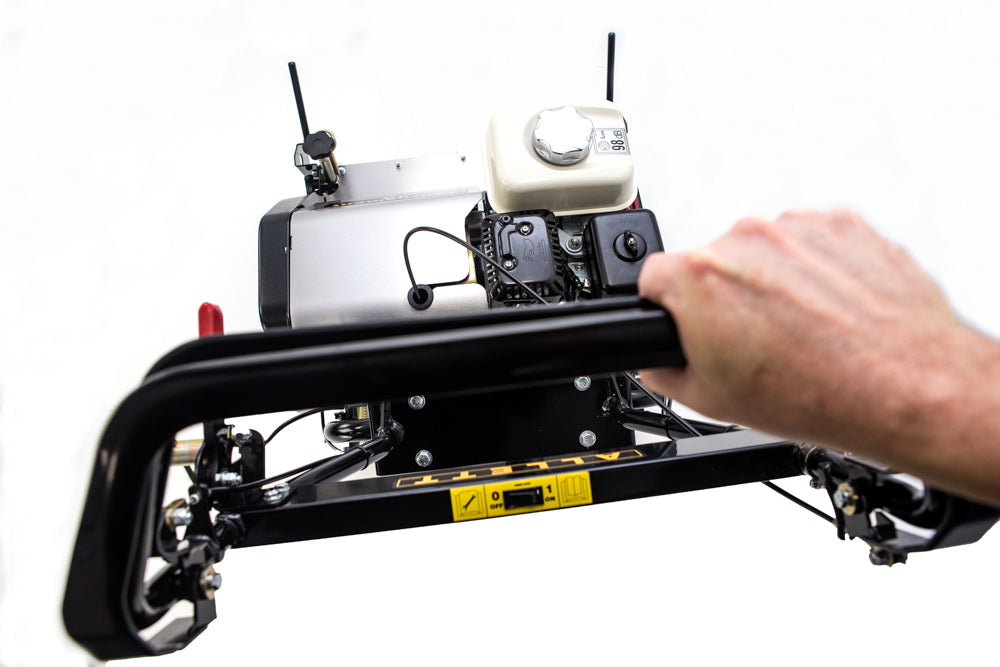

The adjustable handlebar is mounted on anti-vibration brackets, reducing operator fatigue and enhancing control during operation, even over extended sessions on sports fields or formal greens.

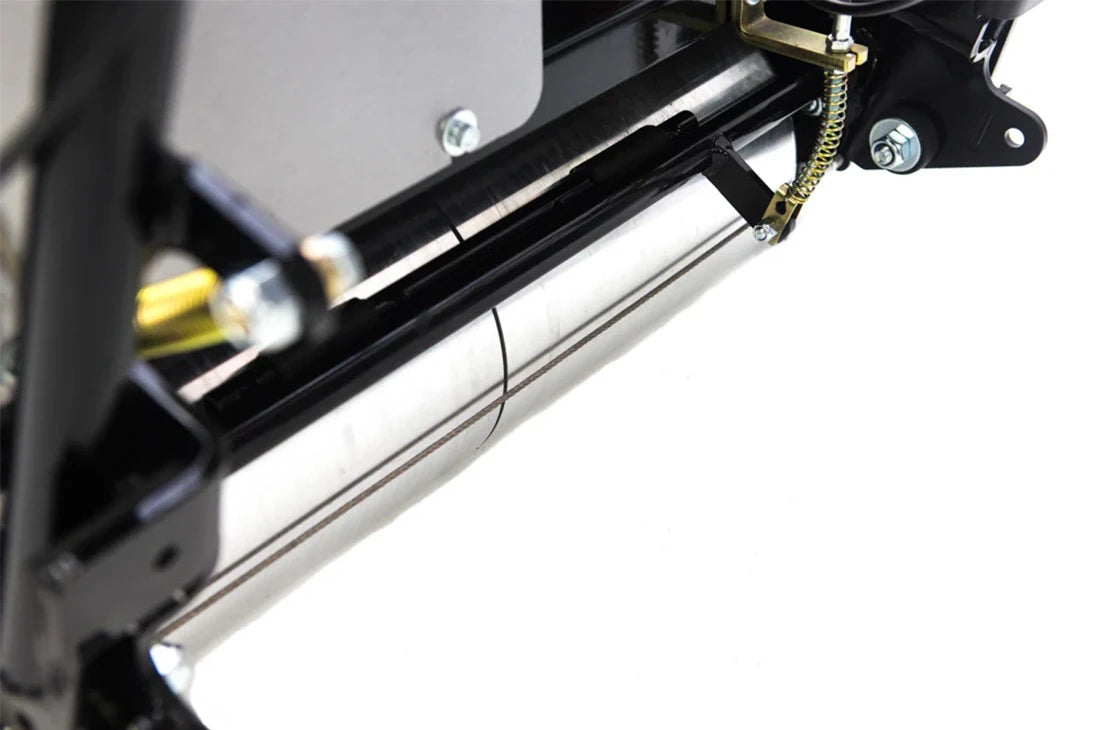

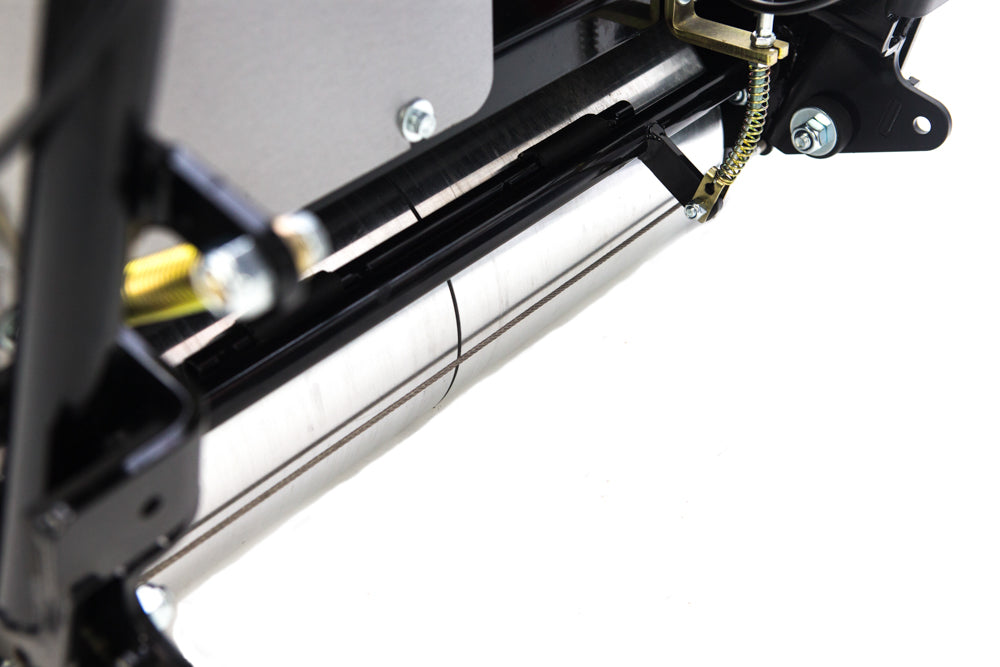

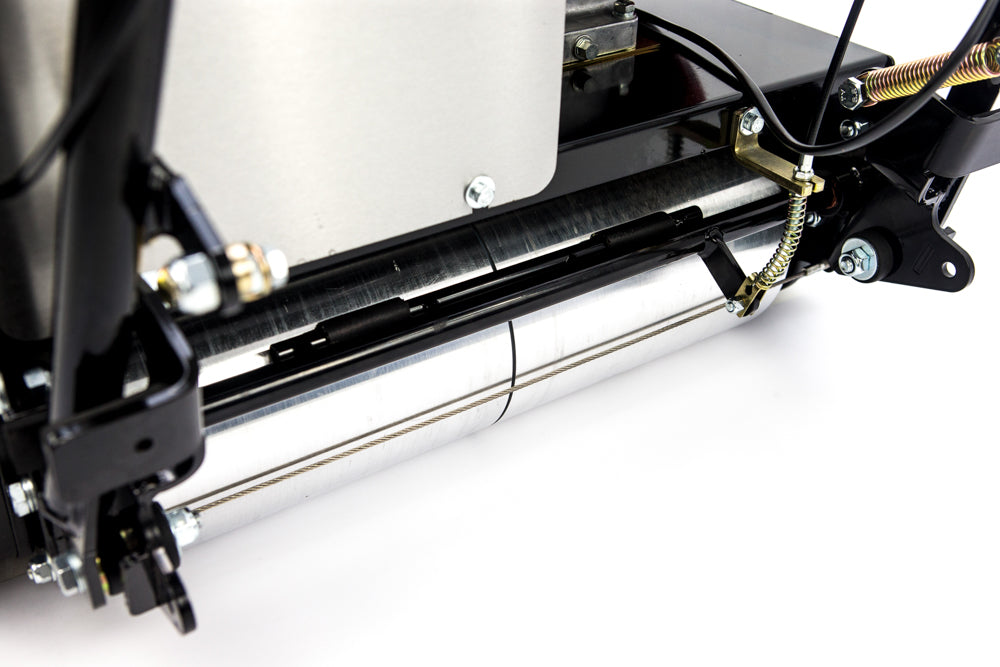

Advanced roller system
Features a two-piece steel rear roller with a bevel gear differential for smooth turning and straight-line control, plus a grooved aluminium front roller with scraper and sealed end-bearings.
Compatible with:
Allett Tournament Range

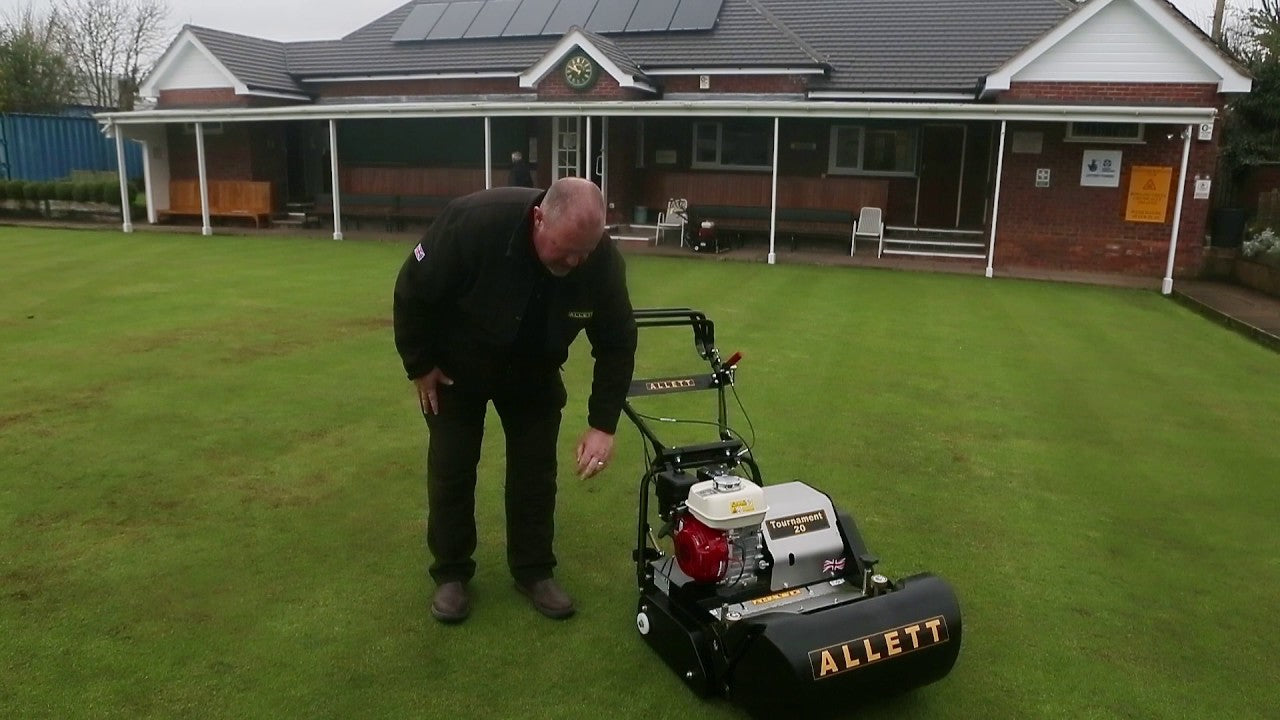

Step into the world of elite turf care with the Allett Tournament 20 — a premium cylinder mower engineered for cricket wickets, golf greens, and bowling greens. In this video, we showcase its exceptional build quality, precision cutting performance, and operator-friendly features that make it the go-to choice for grounds professionals.
Watch as the 10-blade cutting cylinder and powered groomer work in harmony to produce a perfectly level, striped finish. Learn how the Honda GX120 engine offers efficient power with low noise and vibration, and see how adjustable settings make the Tournament 20 ideal for maintaining high-specification playing surfaces.
HOW THEY COMPARE

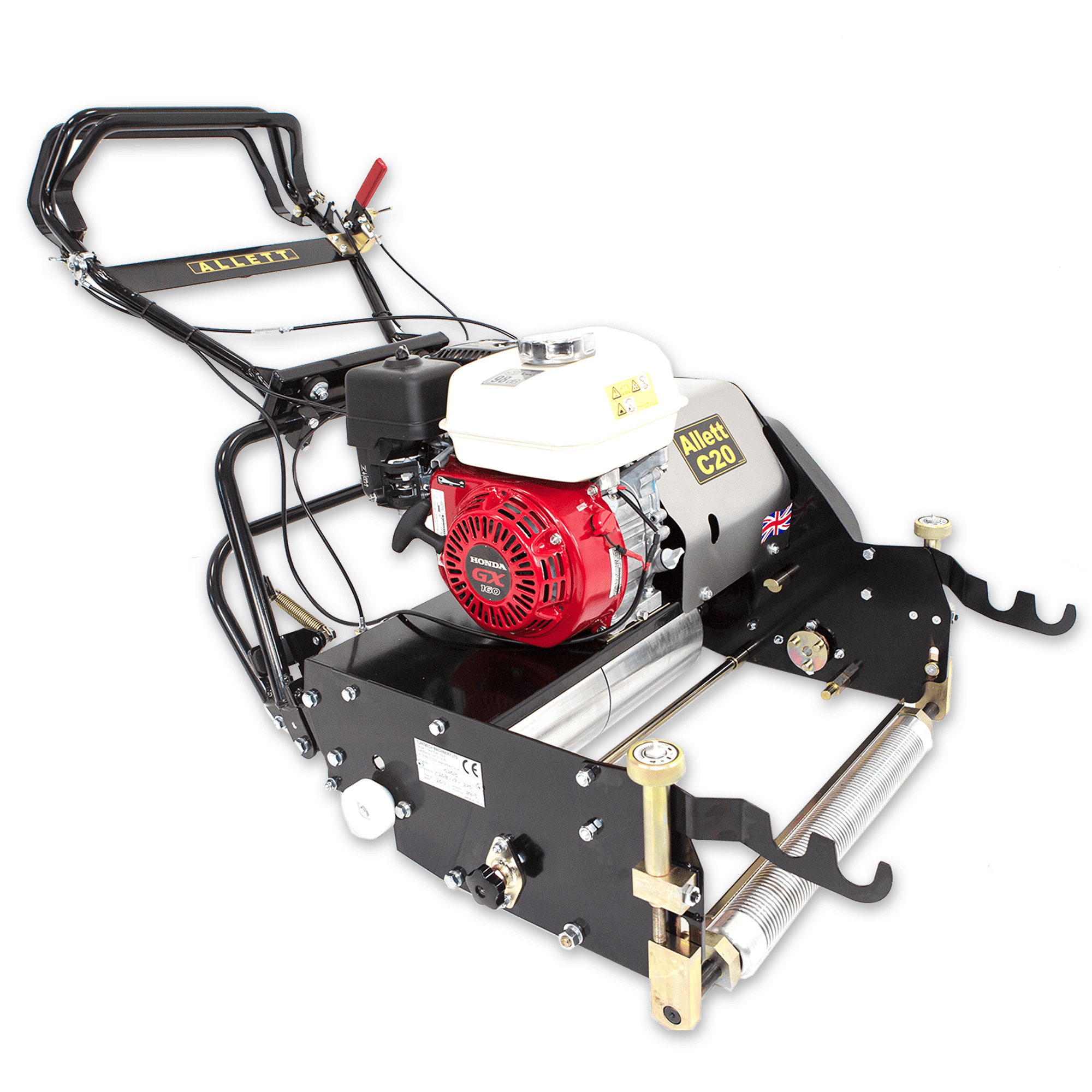

Our comparison table provides a detailed breakdown of the Allett Tournament & C-Range mower models, allowing you to easily compare their technical specifications side by side. From cutting widths and engine power to weight and height adjustments, this table helps you find the perfect mower for your needs.
Sports Pro
Sports Pro
Sports Pro
Bowls, Cricket Wickets, Croquet, Golf Greens and Surrounds, Golf Tees, Lawn Tennis, Formal Lawn
Bowls, Cricket Wickets, Croquet, Golf Greens and Surrounds, Golf Tees, Lawn Tennis, Formal Lawn
Bowls, Cricket Wickets, Croquet, Golf Greens and Surrounds, Golf Tees, Lawn Tennis, Formal Lawn
51cm (20")
61cm (24")
51cm (20")
686mm (27")
902mm (35.5") with transport wheels
788mm (31")
1,003mm (39.5") with transport wheels
790mm (31")
Honda GX120 engine
Honda GX160 engine
Honda GX160 engine
2.6kW (3.5hp) @ 3,600 rpm
3.6kW (4.8hp) @ 3,600 rpm
3.6kW (4.8hp) @ 3,600 rpm
120mm (4.7") diameter cutting cylinder equipped with 10 blades. All-welded construction
120mm (4.7") diameter cutting cylinder equipped with 10 blades. All-welded construction
120mm (4.7in) diameter cutting cylinder equipped with 10 blades. All-welded construction (optional extra)
2.4mm (0.1") bottom blade as standard
4mm (0.16") bottom blade available on request
2.4mm (0.1") bottom blade as standard
4mm (0.16") bottom blade available on request
2.4mm (0.1") bottom blade as standard
4mm (0.16") bottom blade available on request
45 blades @ 10mm spacing
54 blades @ 10mm spacing
45 blades @ 10mm spacing (Optional extra)
Hand-adjustable from 2.4mm to 19mm (0.1" to 0.75")
Hand-adjustable from 2.4mm to 19mm (0.1" to 0.75")
Hand-adjustable from 2.4mm to 19mm (0.1" to 0.75")
246 cuts/metre (225 cuts/yd) irrespective of forward speed
246 cuts/metre (225 cuts/yd) irrespective of forward speed
6 blade: 93 cuts/metre
10 blade: 155 cuts/metre
Adjustable handlebar with anti-vibration mounting
Adjustable handlebar with anti-vibration mounting
Adjustable handlebar with anti-vibration mounting
Handle-mounted lever engaging V belt drive via cable
Handle-mounted lever engaging V belt drive via cable
Handle-mounted lever engaging V belt drive via cable
Handle-mounted lever engaging V belt drive via cable
Handle-mounted lever engaging twin V belt drive via cable
Handle-mounted lever engaging V belt via cable
Two-piece aluminium rear-roller with steel bevel gear differential
Two-piece aluminium rear-roller with steel bevel gear differential
Two-piece aluminium rear-roller with steel bevel gear differential
Grooved aluminium front-roller with scraper and sealed end-bearings
Grooved aluminium front-roller with scraper and sealed end-bearings
Grooved aluminium front-roller with scraper and sealed end-bearings
Moulded plastic grassbox with steel reinforcing strip (32L)
Moulded plastic grassbox with steel reinforcing strip (37L)
Moulded plastic grassbox with steel reinforcing strip (79L)
96kg (212lb)
105kg (231lb)
88.5kg (195lb)
1,016mm (40")
1,016mm (40")
1090mm (43")
1,270mm (50")
1,270mm (50")
1375mm (54")
Smooth front roller in place of grooved roller
TS029 transport wheels & stand
Smooth front roller in place of grooved roller
TS030 transport wheels & stand
Scarifier with Tunsten tipped blades, Scarifier, Turf Rake, 6 bladed cylinder, 10 bladed cylinder, Sorrel Roller, Brush, 10 bladed cylinder with groomer, Verticut, Slitter
C027 Cartridge Stand and C015 Transport Wheel Kit
24 months or 1500 Hours for a Sports User
48 months or 1500 Hours for a Homeowner
24 months or 1500 Hours for a Sports User
48 months or 1500 Hours for a Homeowner
24 months or 1500 Hours for a Sports User
48 months or 1500 Hours for a Homeowner

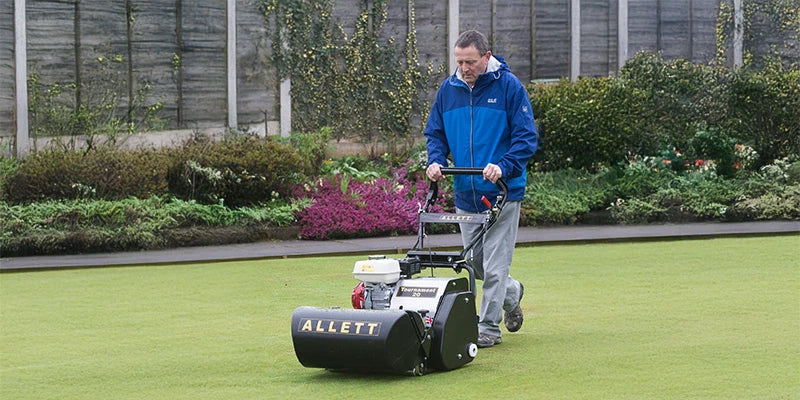

Tournament in Action
Explore the Allett Tournament in action with our curated YouTube playlist, featuring this professional-grade mower being used in top stadiums and sports fields. Watch as groundskeepers achieve immaculate, striped finishes on some of the world’s best pitches. Plus, learn essential maintenance tips and step-by-step guides on how to operate and care for your Tournament mower, ensuring peak performance and longevity. Whether you're a professional turf manager or an enthusiast, these videos provide valuable insights into the power and precision of the Allett Tournament
FAQ
In our FAQs for the Allett Tournament, you'll find answers to common questions about the mower's features, maintenance, and performance. We’ve gathered insights on everything from how to adjust cutting heights and maintain the mower, to recommendations for the best usage on different types of turf.
What makes the Tournament 20 suitable for sports turf?
Its precision cutting cylinder, grooming reel, and adjustable cutting heights make the Tournament 20 ideal for high-performance sports like cricket, golf, and bowls, where a level, consistent surface is crucial.
How does the rear roller on the Tournament 20 work?
The two-piece steel rear roller with a bevel gear differential ensures excellent manoeuvrability, smooth turns, and consistent, professional-looking stripes on turf, while the front grooved aluminium roller provides durability and a smooth finish.
What is the cutting width of the Allett Tournament 20?
The Allett Tournament 20 has a cutting width of 20 inches (510mm), which is ideal for maintaining cricket wickets, golf greens, tennis, croquet and bowling greens, ensuring a high-quality finish on sports turf.
What is the clip rate for the Tournament 20's cutting cylinder?
The 10-blade cutting cylinder delivers 217 cuts per metre (225 cuts per yard) irrespective of forward speed, ensuring a consistent, fine finish on high-performance turf.
