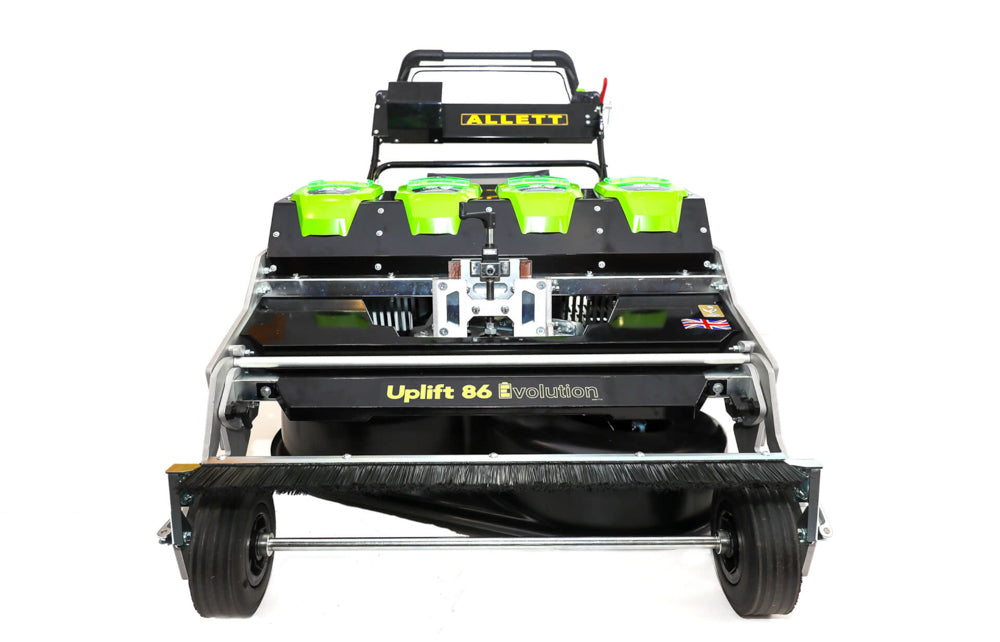

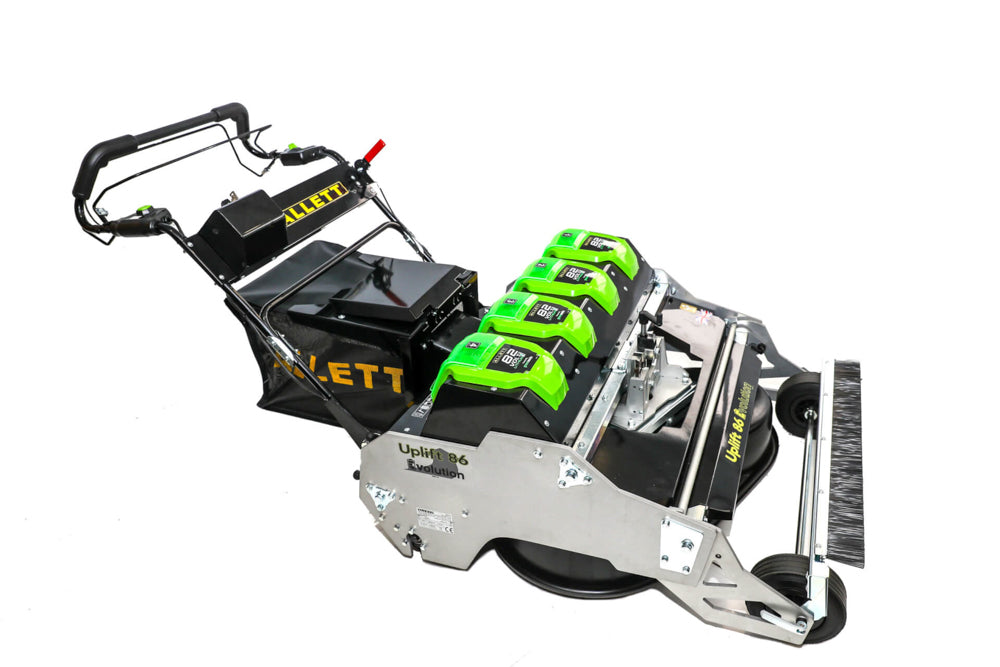

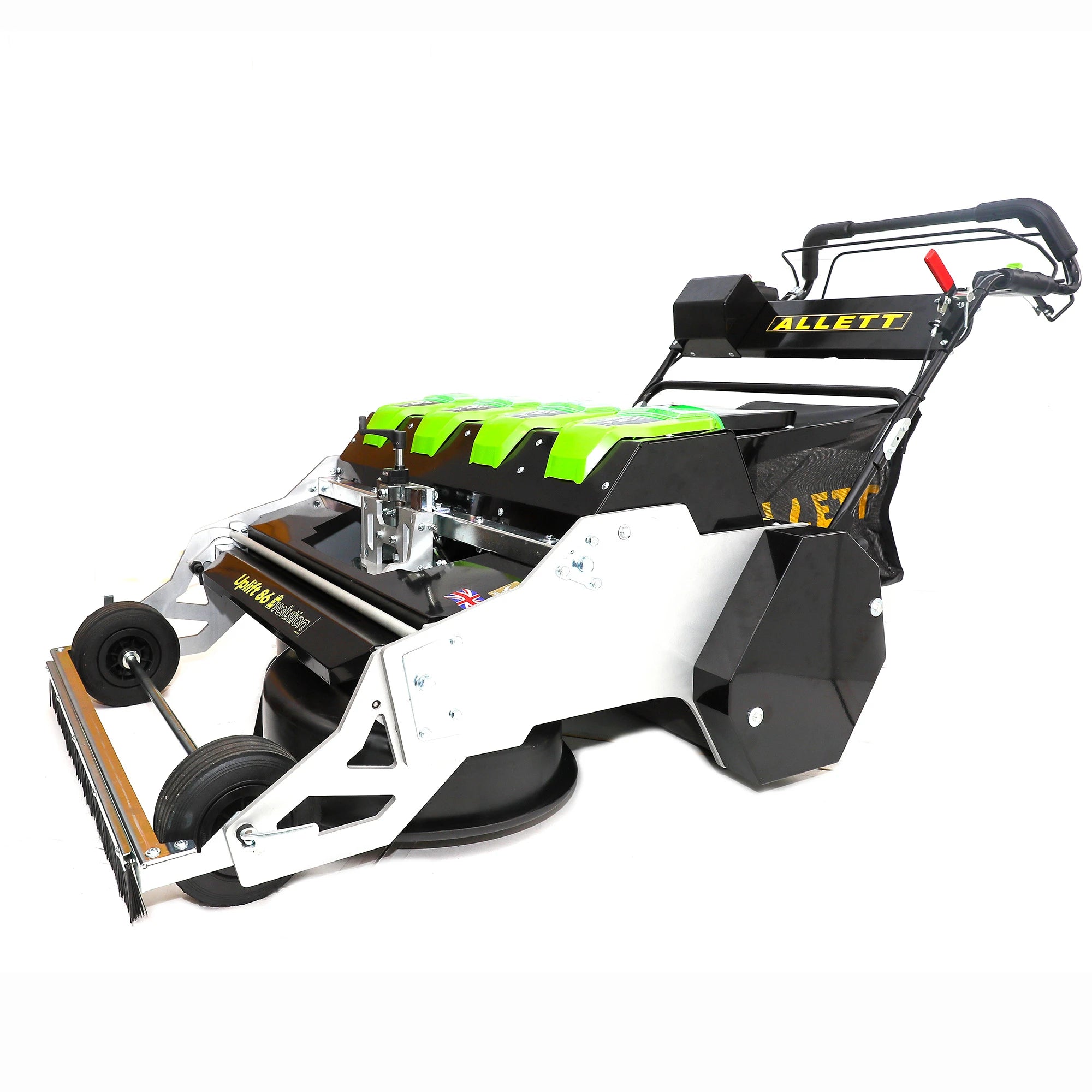

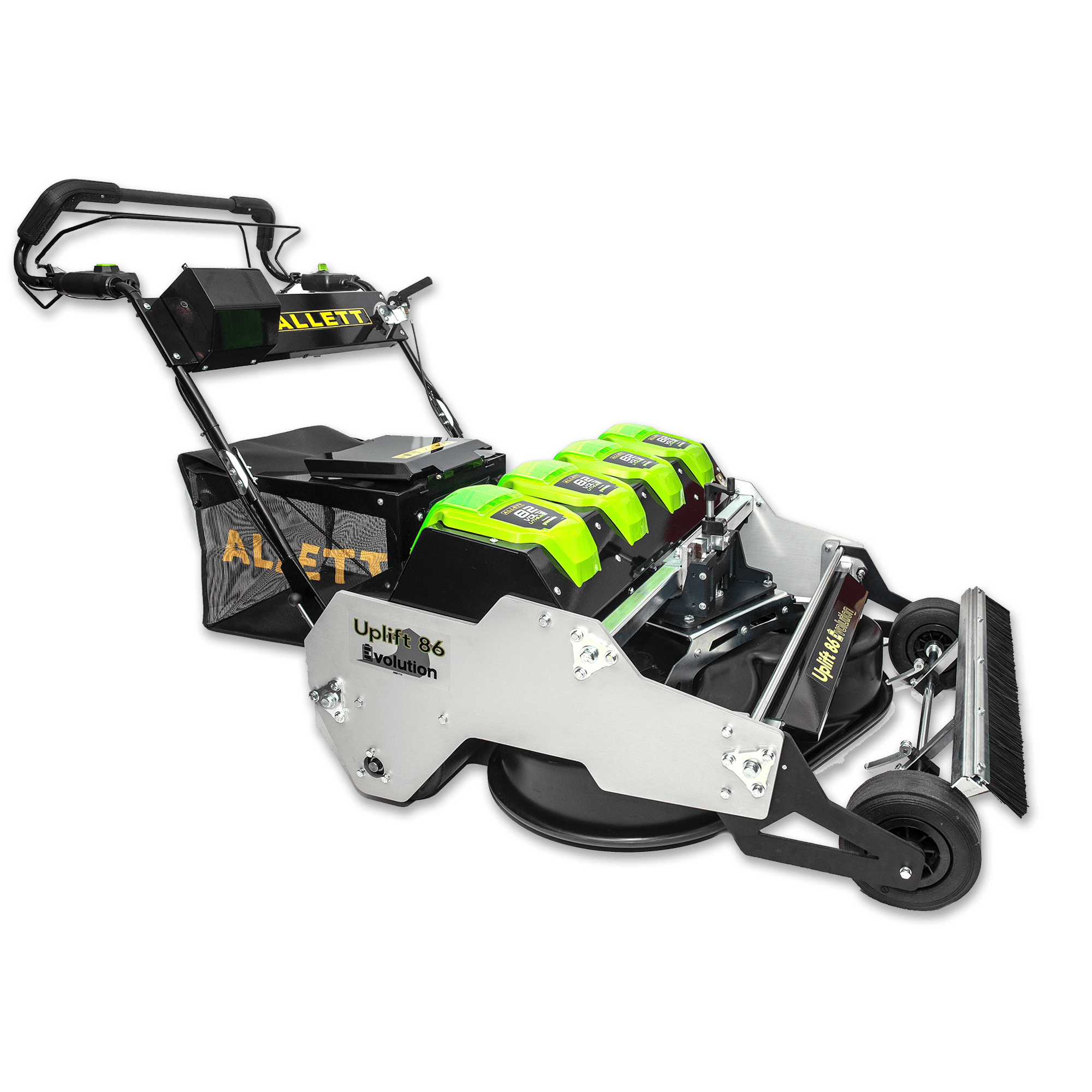

Allett Uplift 86E(UP86E/2) Evolution Stadium Rotary Mower
Allett Uplift 86 Evolution – Precision. Power. Zero Emissions.
The Allett Uplift 86E (Evolution) is the next-generation rotary mower engineered for elite grounds care professionals. Designed for stadium sports pitches, training grounds, and large estate lawns, this battery-powered high suction rotary mower delivers the premium striped finish expected from Allett—without the noise, fumes, or hassle of petrol.
Equipped with four high-capacity 82V 8Ah lithium-ion batteries, the Uplift 86E combines cutting precision, rugged build quality, and quiet operation, making it ideal for post-match clean-up or routine maintenance cutting. Its dual high-lift blades provide a sharp, even cut across the full 86cm (34") width, while the durable plastic-moulded deck maximises airflow for efficient collection of grass and debris into the 90L grass bag.
Whether you're preparing a pitch for kick-off or grooming estate lawns, the Uplift 86E brings speed, versatility, and professional striping performance—without compromise.
- Cutting Width: 86cm (34") – Covers large areas quickly and evenly
- Cutting Height: 20–75mm (0.8"to 2.95") – Single-point adjustment for precise control
- Blade System: Twin 457mm (18") contra-rotating and overlapping high-lift blades
- Speed Control: Variable up to 6.7 km/h, with half-speed mode for turning and tight areas

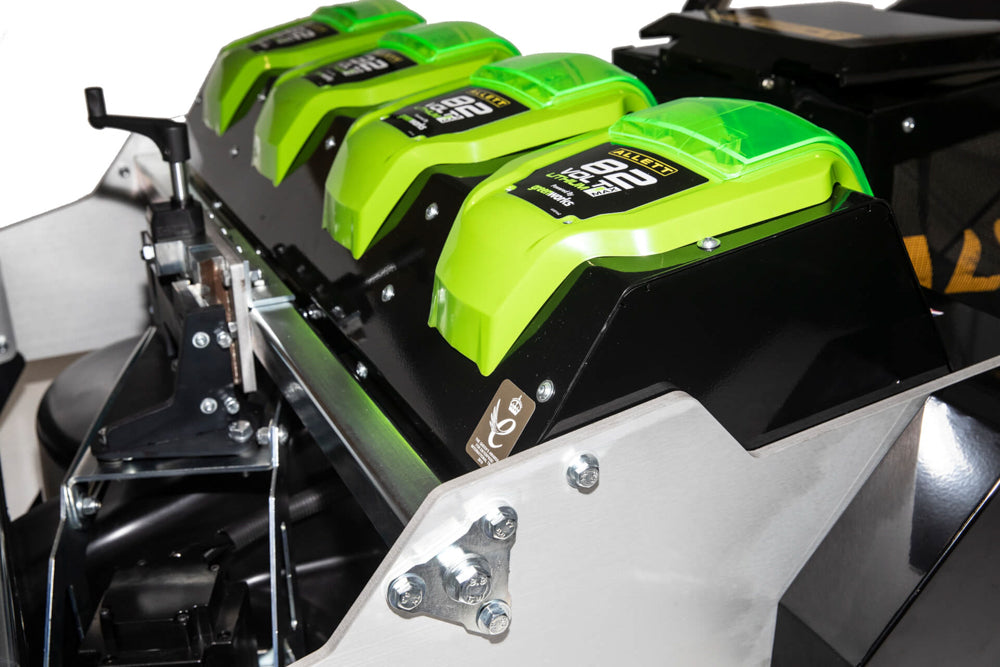

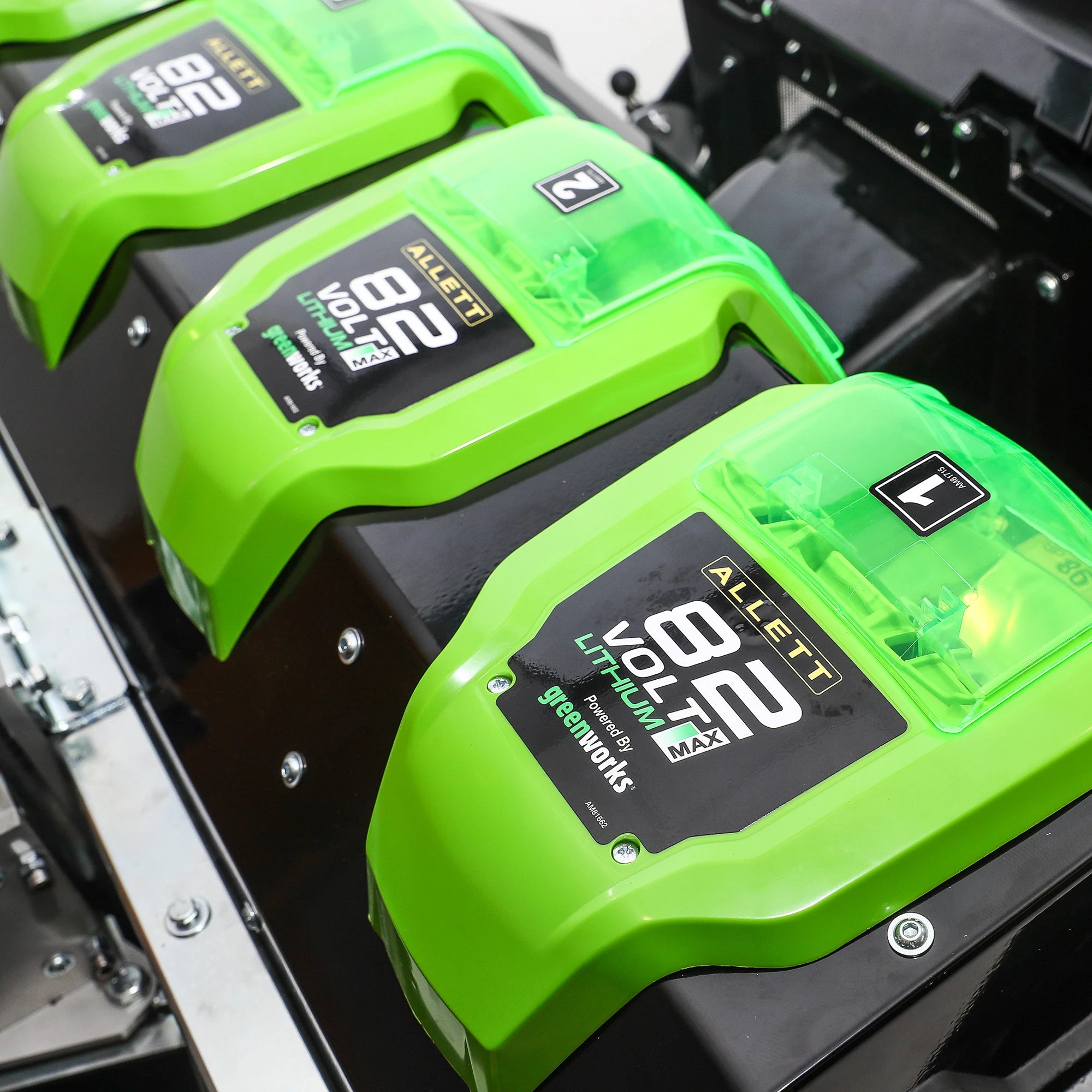

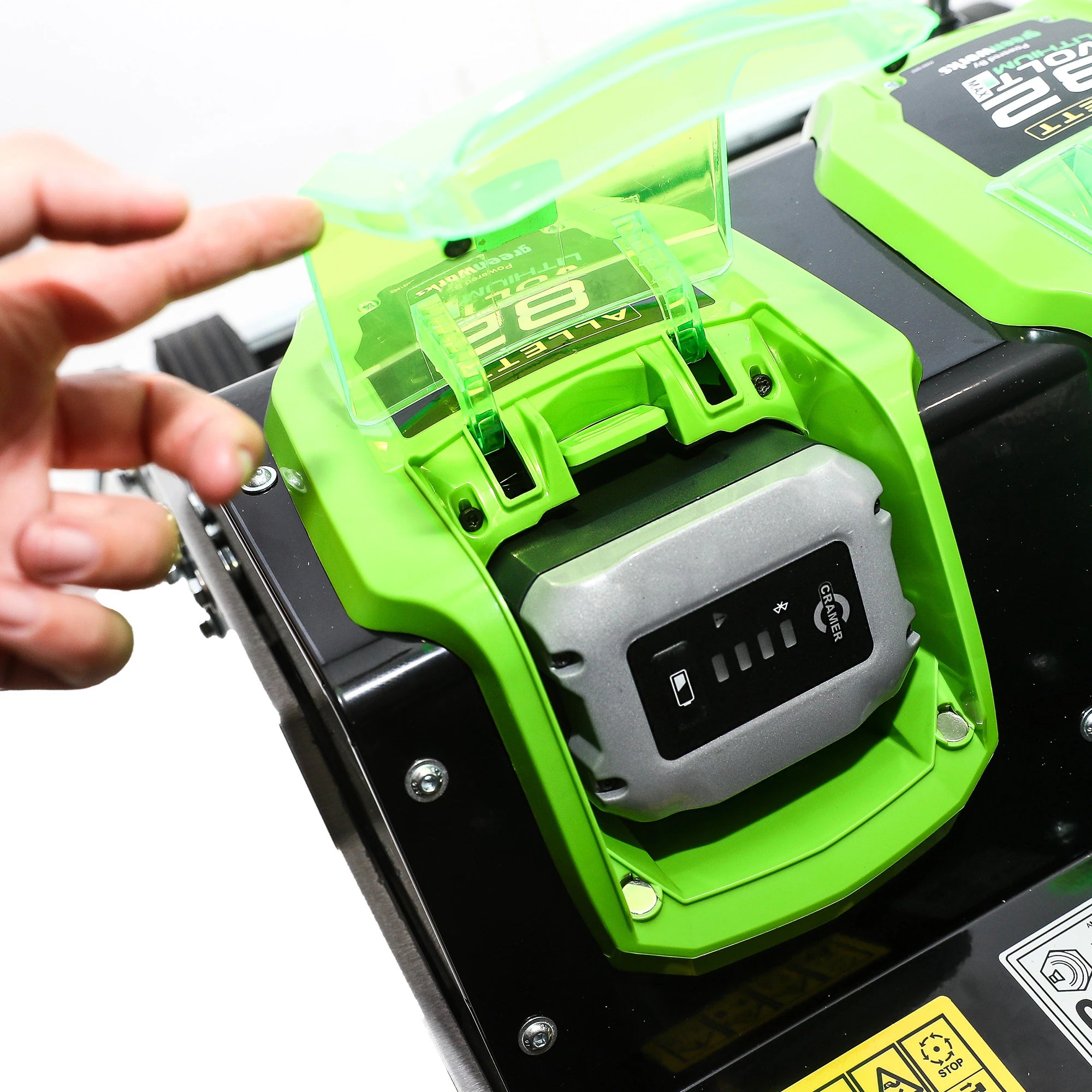

- Power Source: 4 x 82V 8Ah lithium-ion batteries
- Battery Compatibility: Part of the Cramer 82V 8aH system (used in C27E, C34E)
- Monitoring: Bluetooth battery diagnostics via smartphone
- Deck Construction: Lightweight airflow-optimised plastic moulding

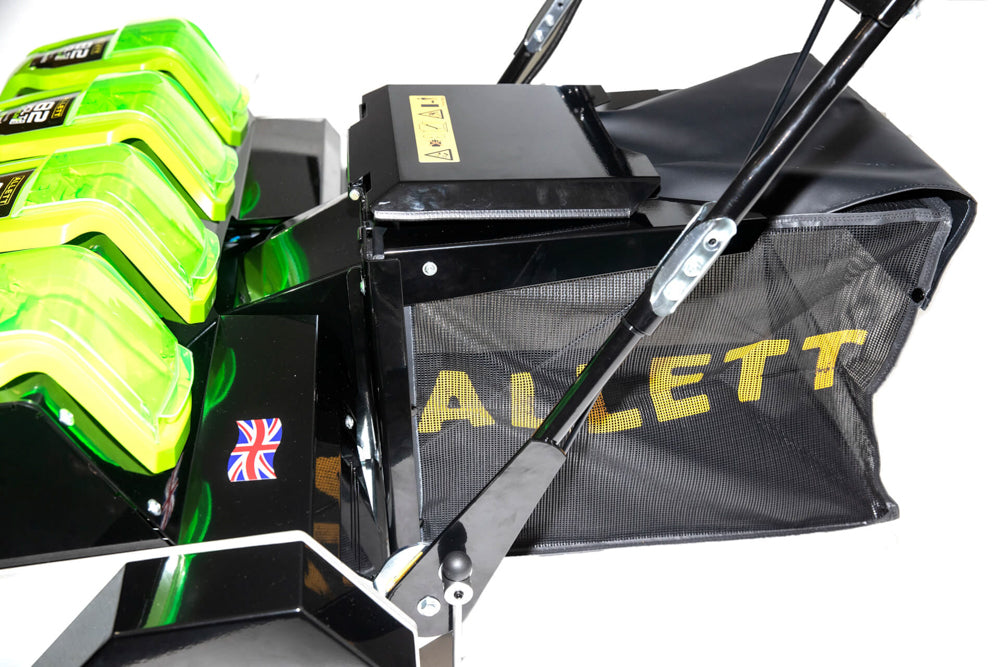

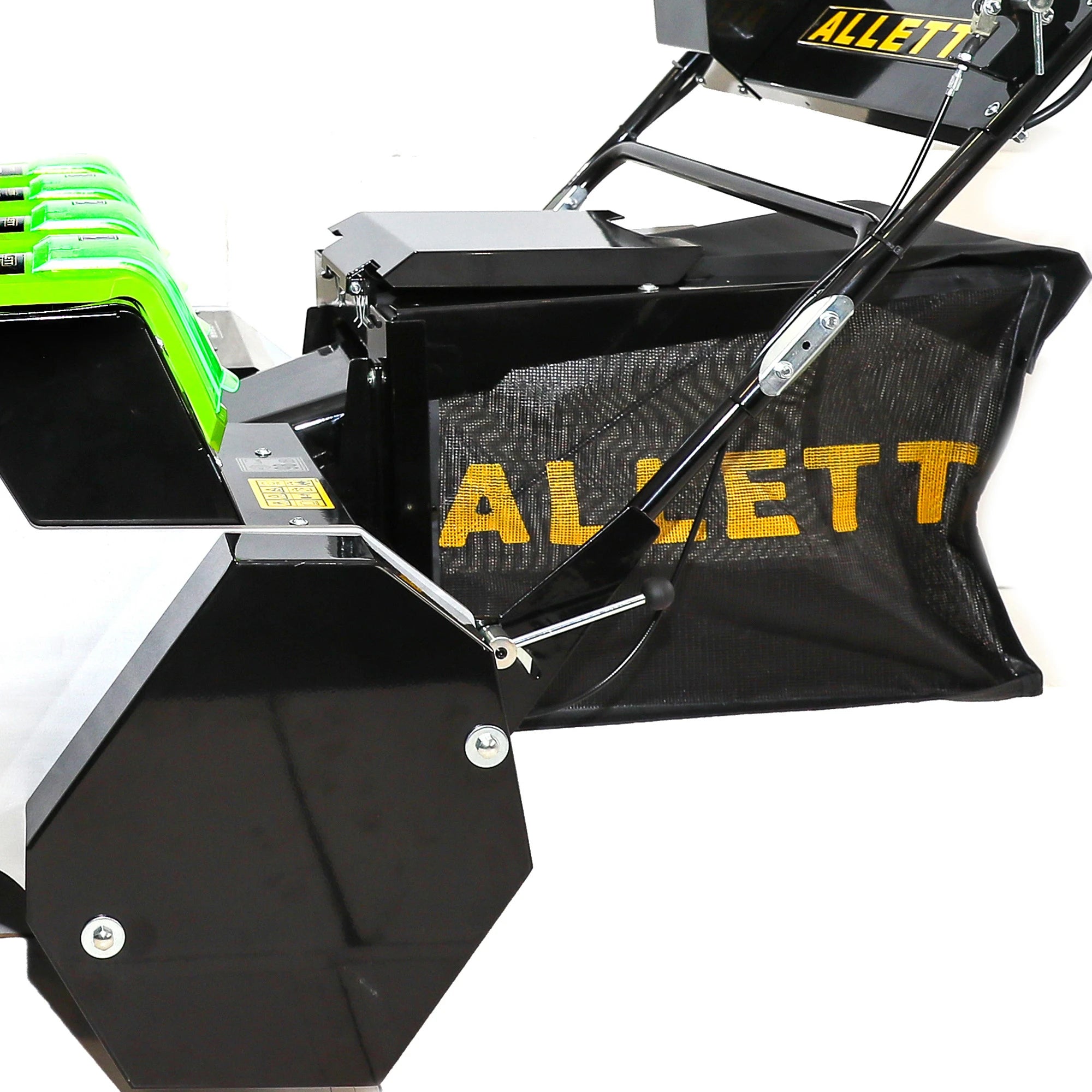

- Grass Collection: 90L mesh bag with wide rear discharge chute
- Roller: Rubberised steel rear roller with differential for classic stripes
- Weight: 190kg – Stable and rugged for professional turf conditions
- Noise Level: Quiet operation – safe for use around spectators and during events
- Charge Time: Approx. 1.5 hours (twin dock charger included)

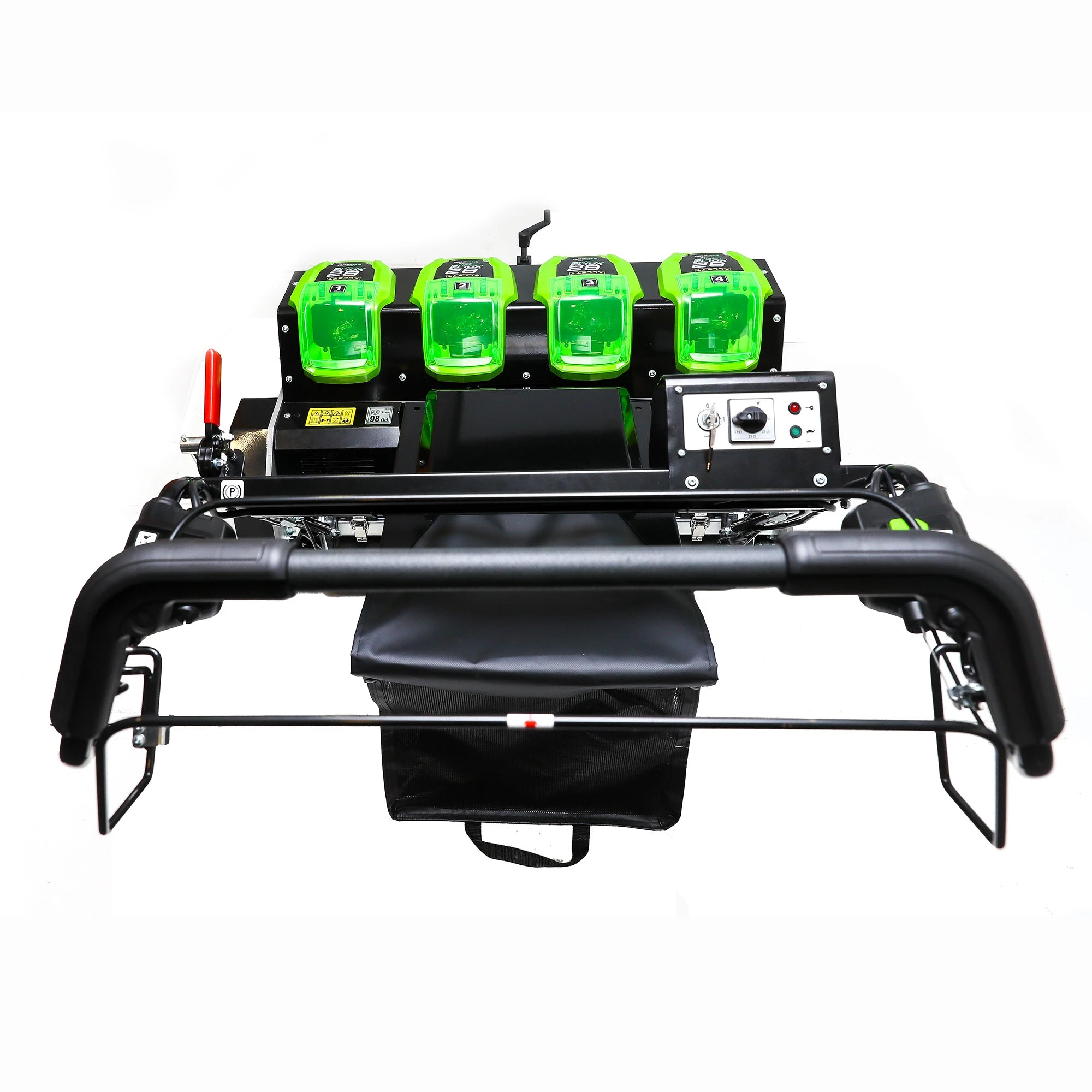

- Handlebars: Foldable, ergonomic, tilt-back for easy cleaning access

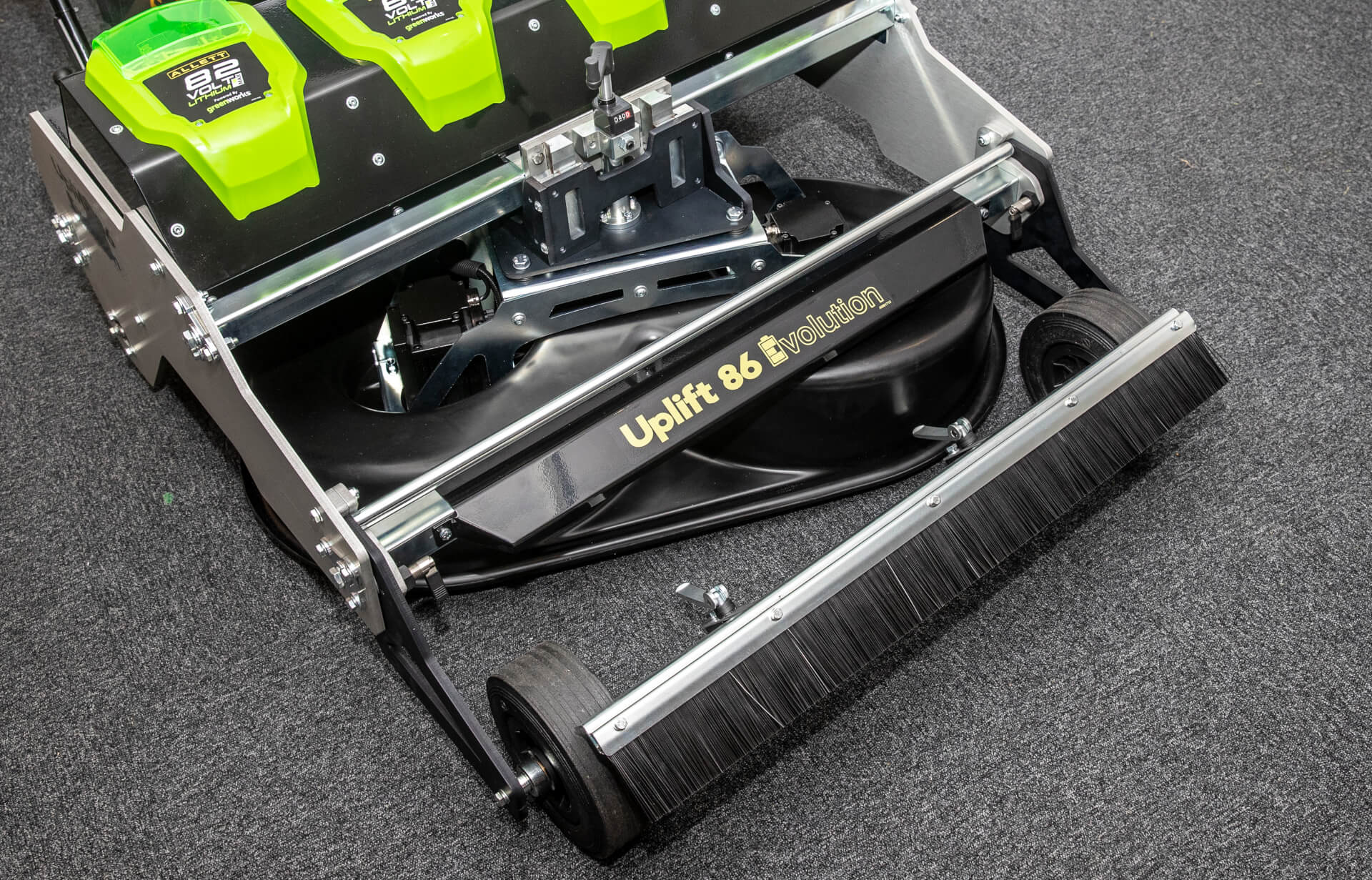

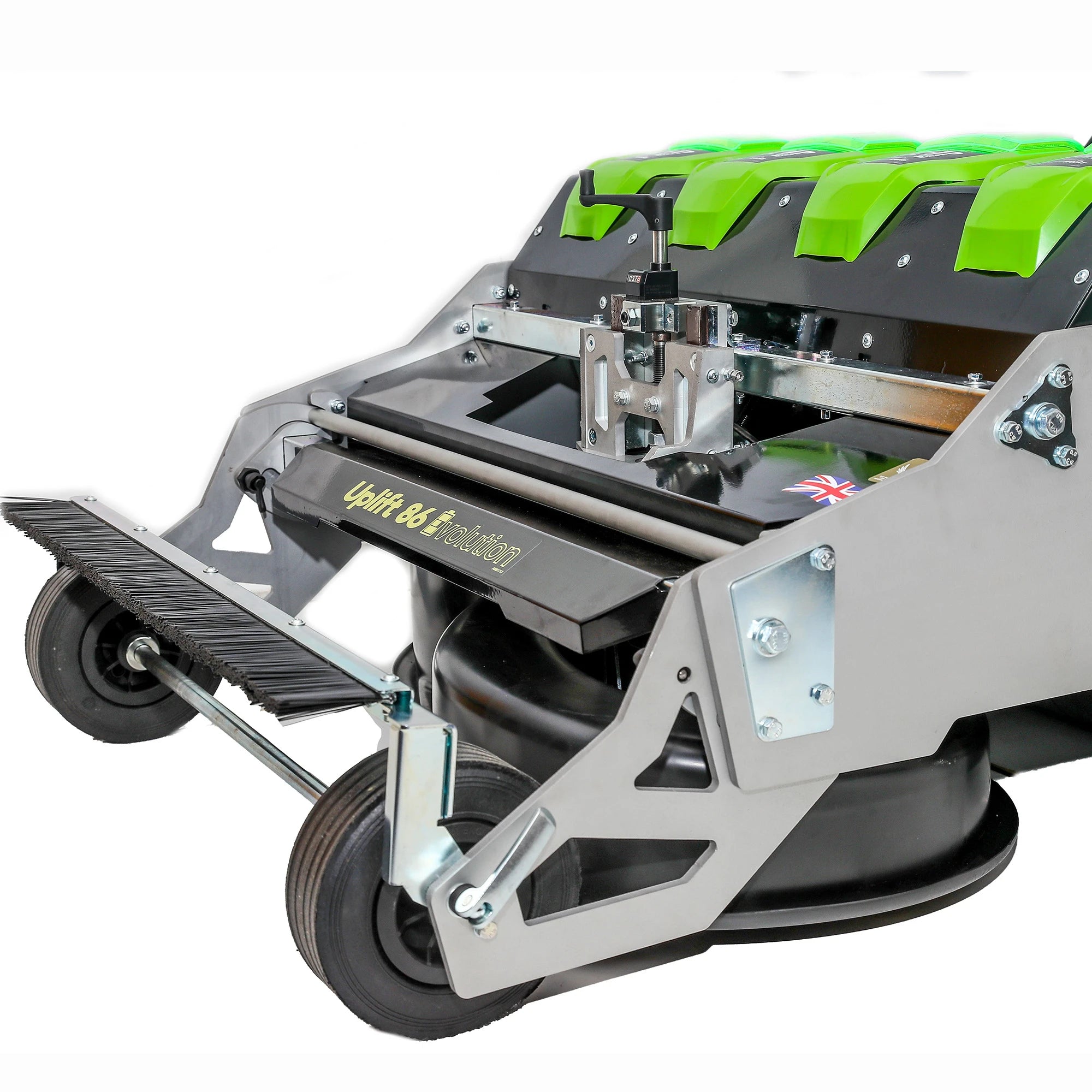

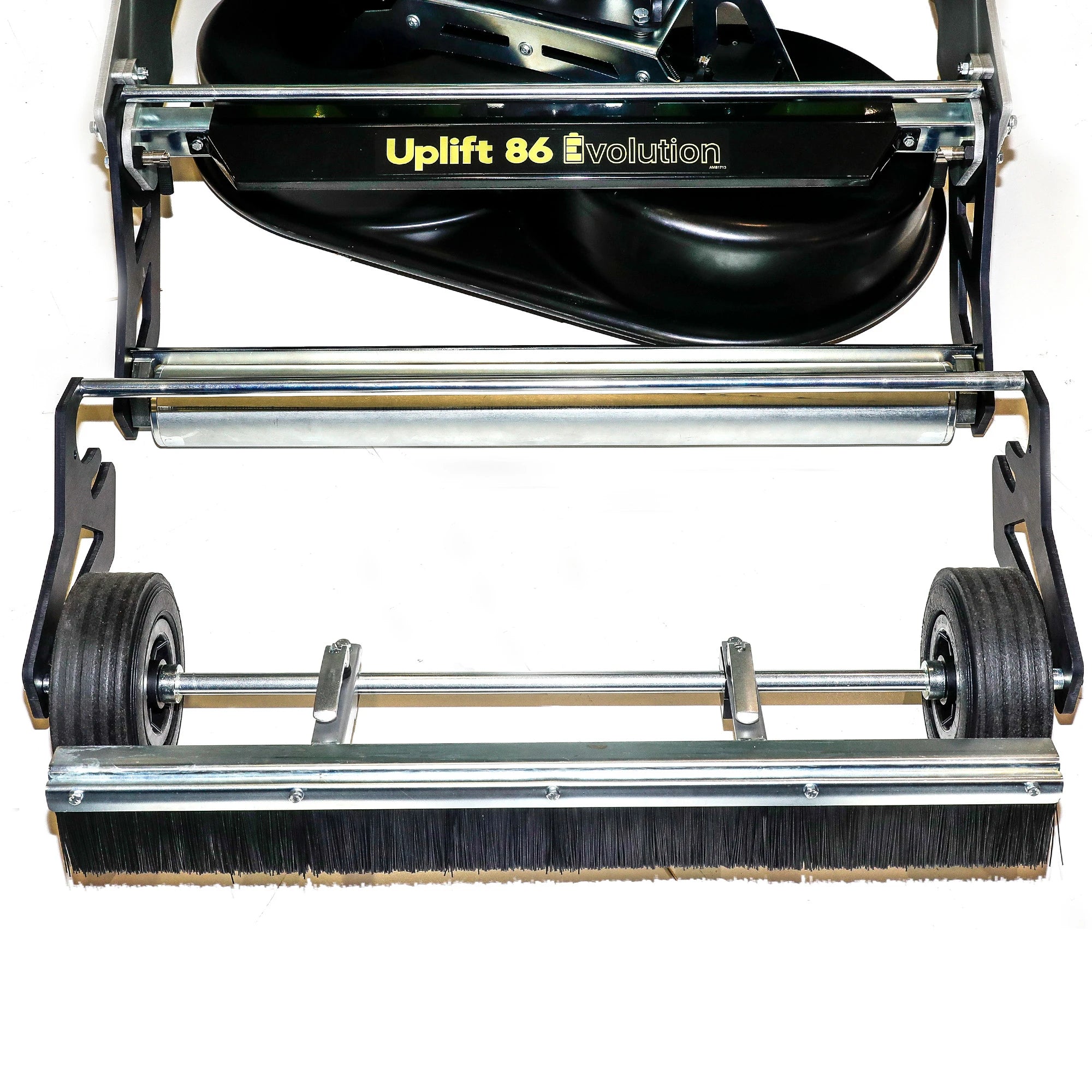

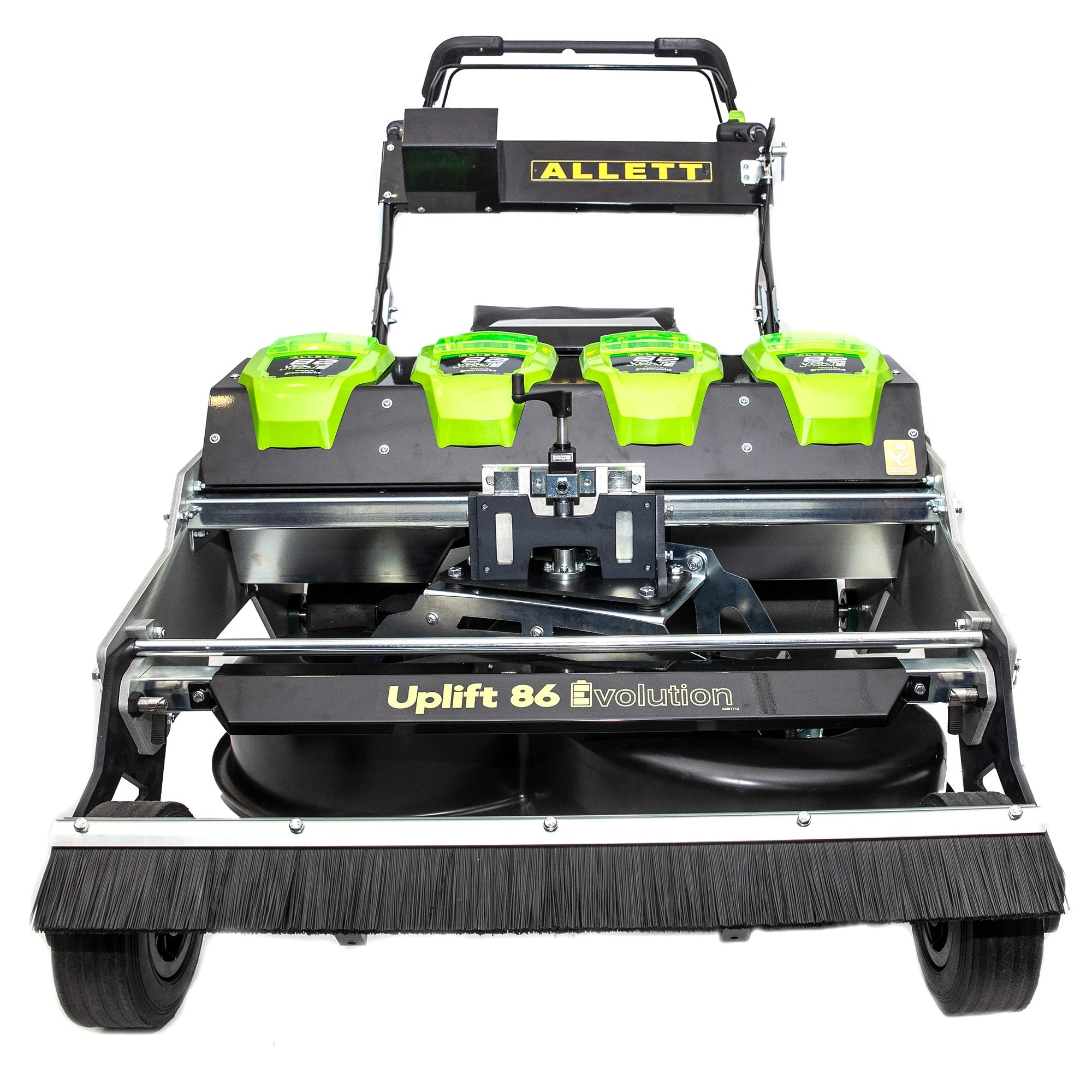

- Optional Accessories: Strip brush, rake kit, front roller kit
- Dimensions (L x W x H): 2000 x 940 x 950–1080mm
- Warranty:
Sports Use: 24 months / 1500 hours
Domestic Use: 36 months / 1500 hours

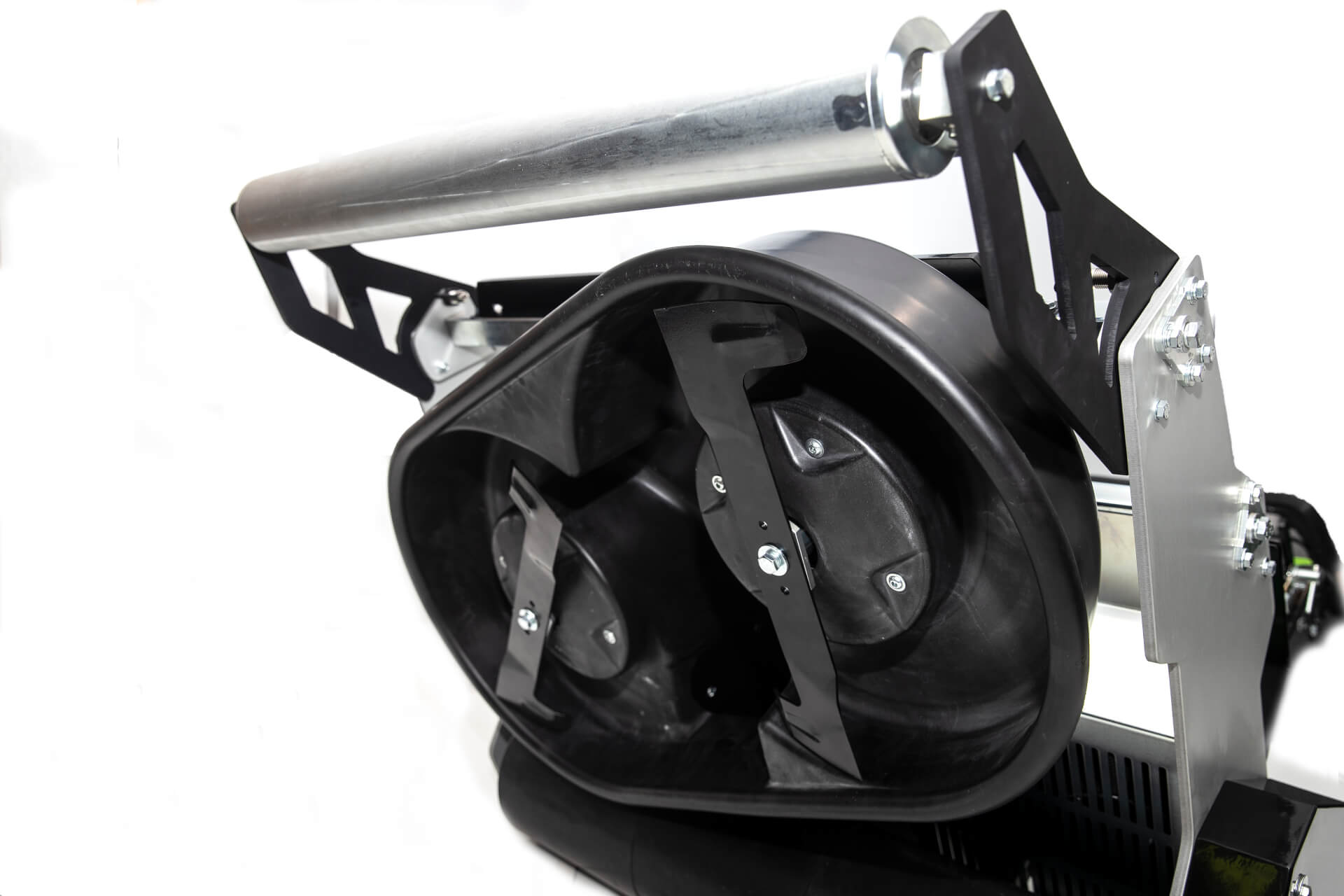

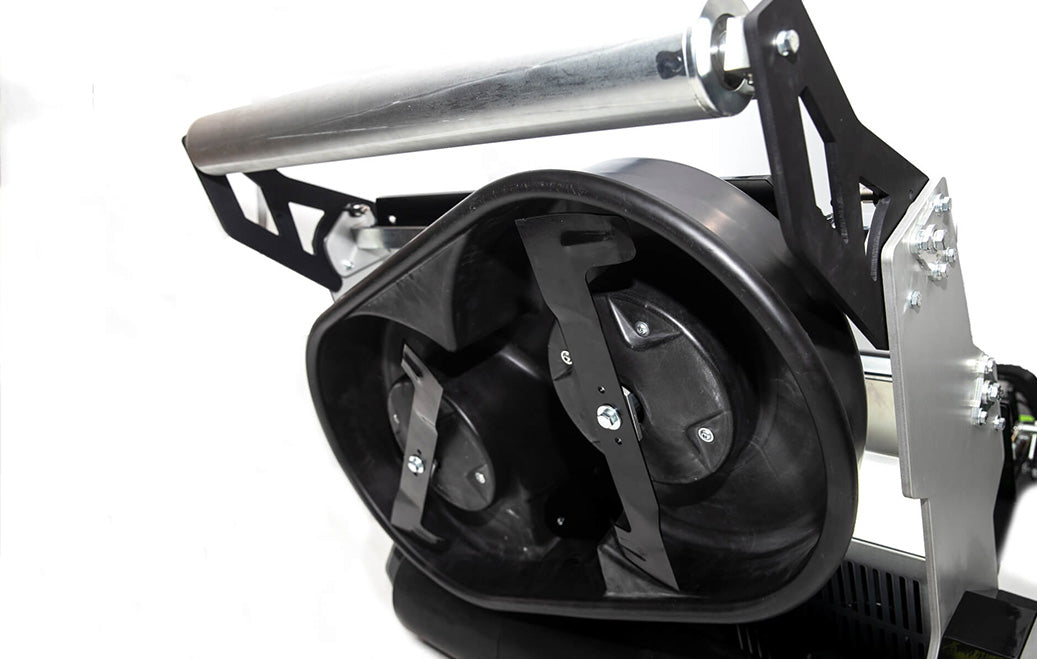

Twin blade high lift vacuum system
The Uplift 86 features a twin-blade high-lift vacuum system that powerfully lifts and collects debris, clippings, and divots in one pass. This ensures a clean, even finish on sports turf, making it perfect for post-match cleanup on football and rugby pitches.

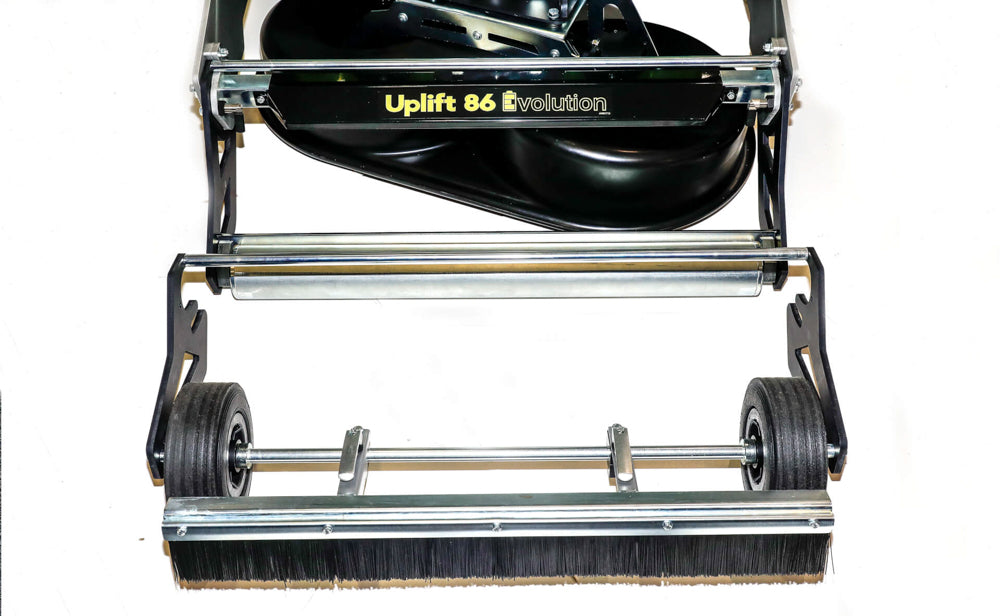

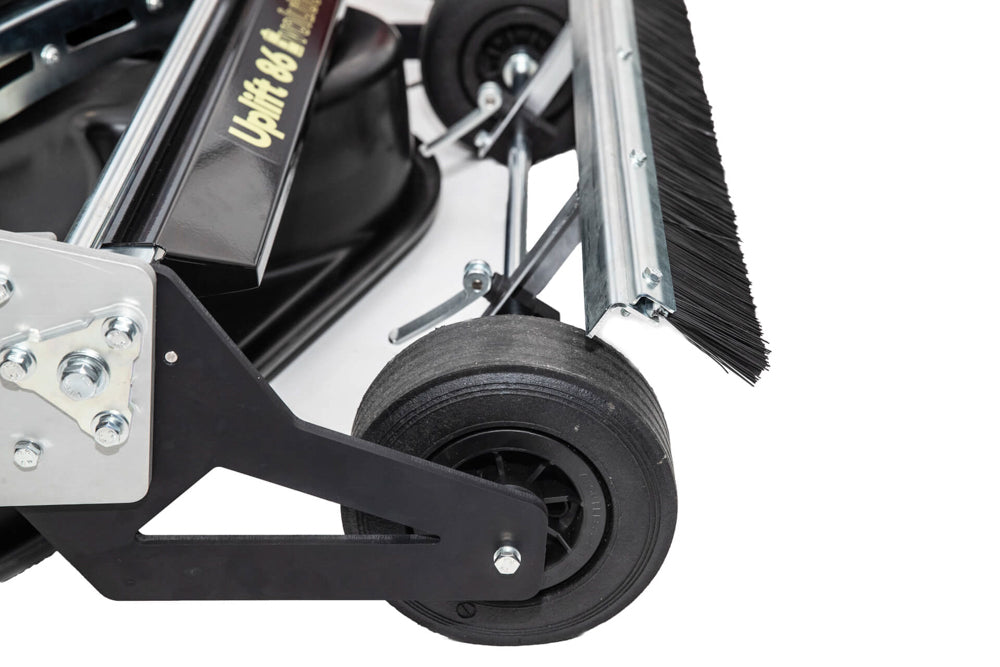

200mm 8”diameter Solid front wheels on bronze bushes
Durable 200mm (8") solid front wheels mounted on bronze bushes provide smooth operation and long-term reliability. Designed to handle frequent use on sports pitches, they offer stability and reduce wear during tight turns and regular mowing.

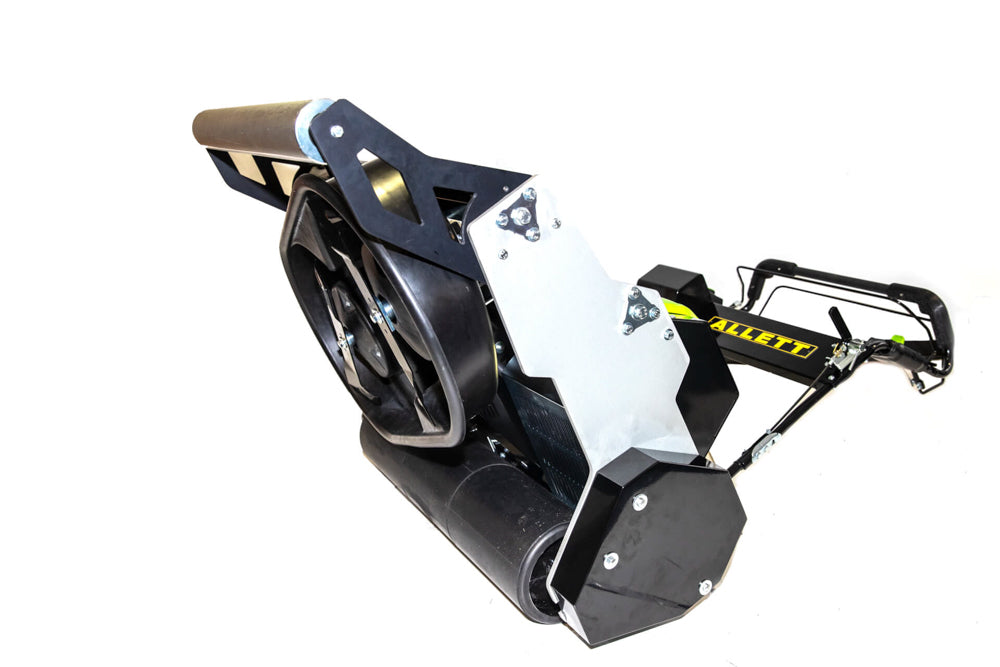

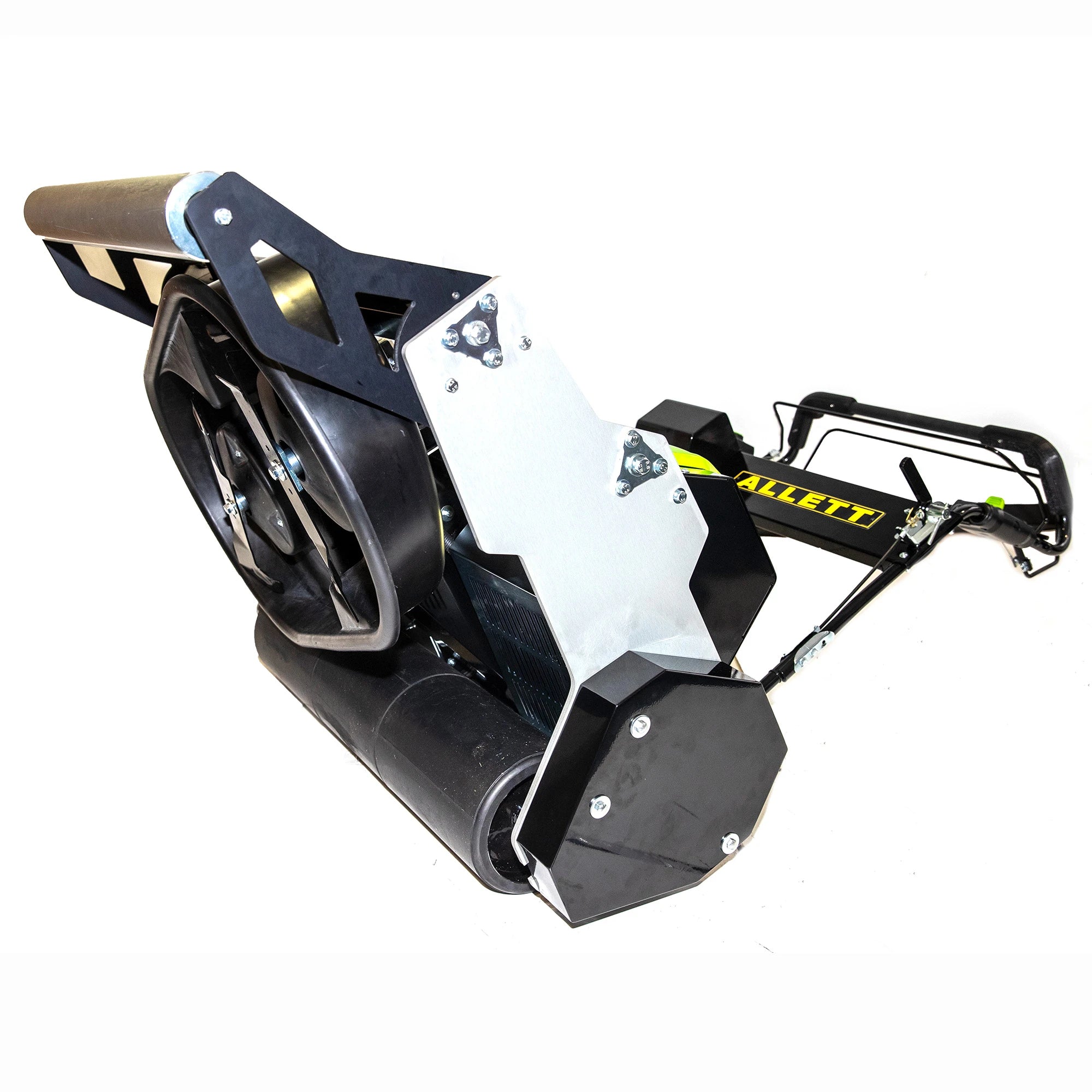

Full-width 3-piece steel rear roller rubber covered
The Uplift 86’s full-width 3-piece steel rear roller delivers strong, consistent stripes across the entire working width. Its segmented design, with a differential, ensures smooth turning and excellent traction without scuffing the turf—ideal for stadium presentation.

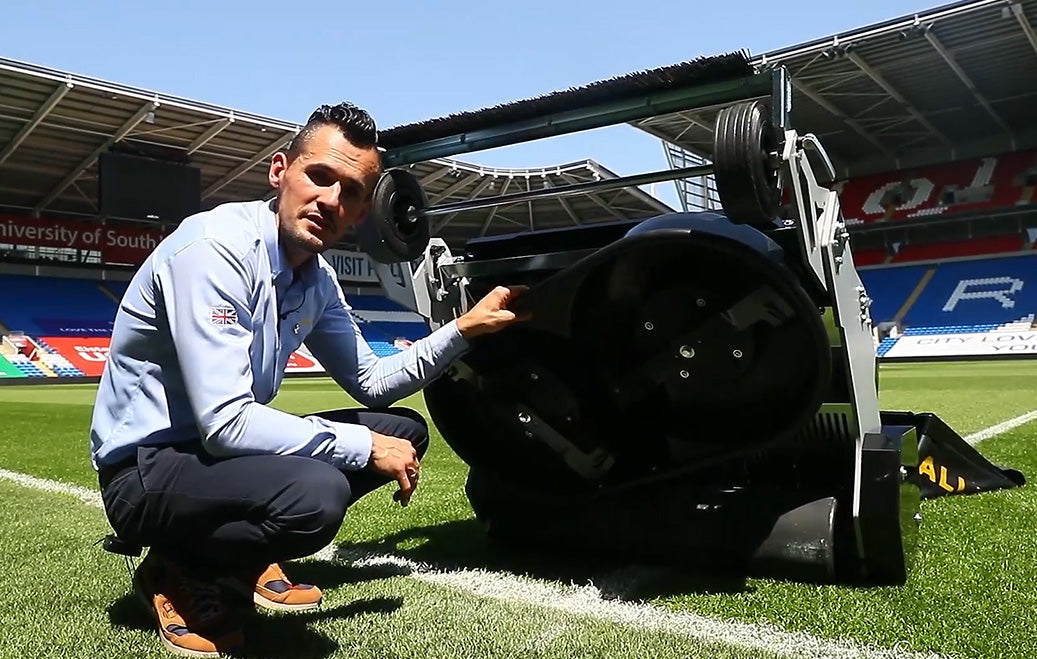

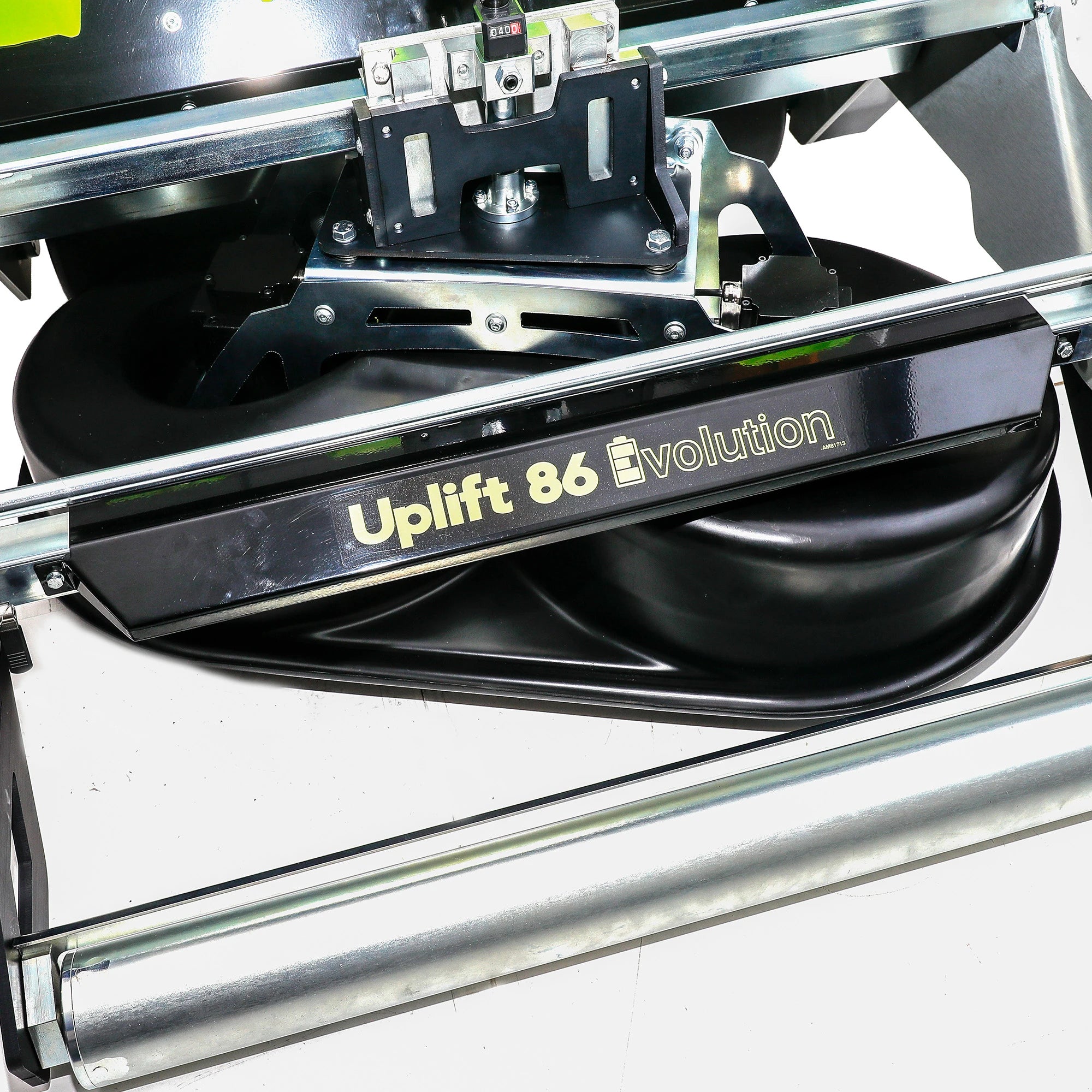

Composite deck with non-stick surface
The Uplift 86 Evolution features a lightweight composite deck with a non-stick surface, reducing grass build-up and enhancing airflow for consistent cutting and efficient grass collection.

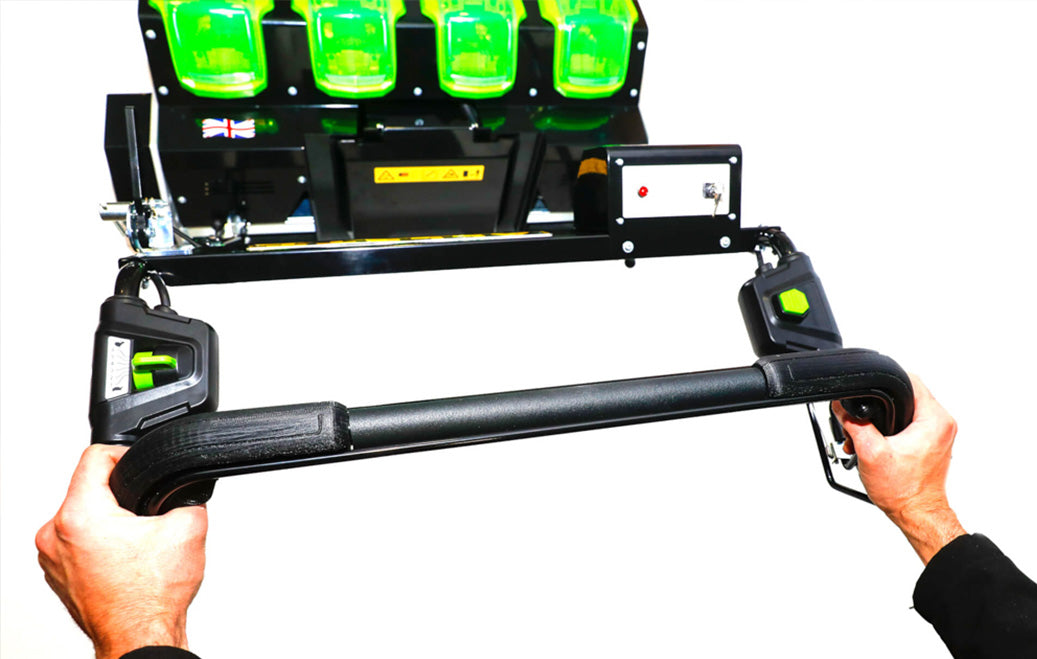

Variable drive speed & dual blade speeds
The Uplift 86 Evolution offers variable forward speed up to 6.7 km/h and two blade speed settings, allowing operators to adjust both pace and cutting intensity for optimal control—whether mowing or carrying out a quick post-match clean-up.

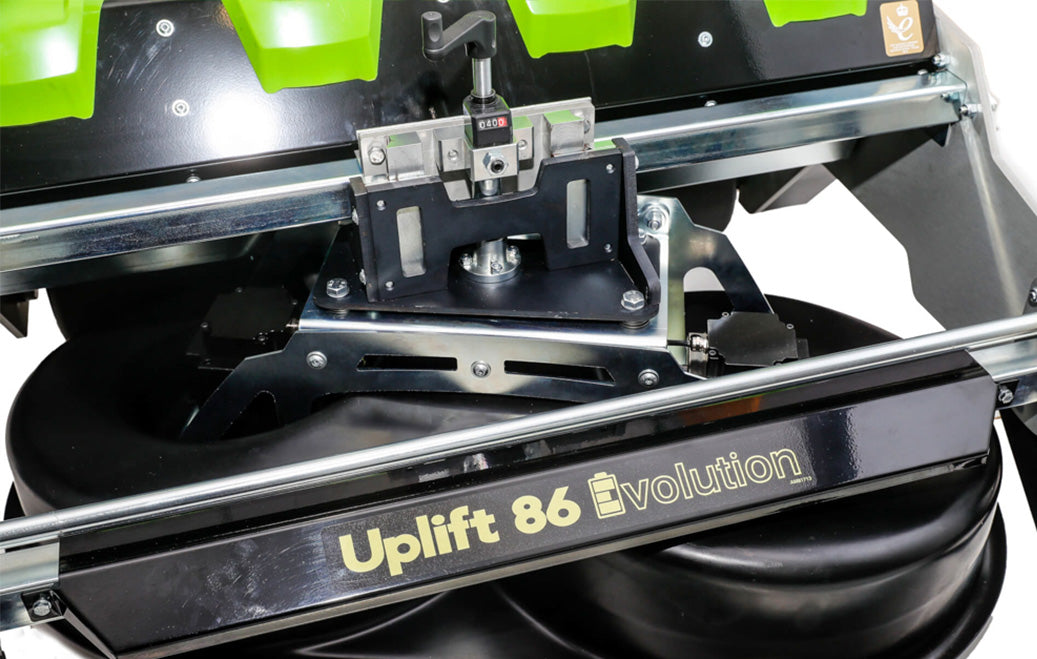

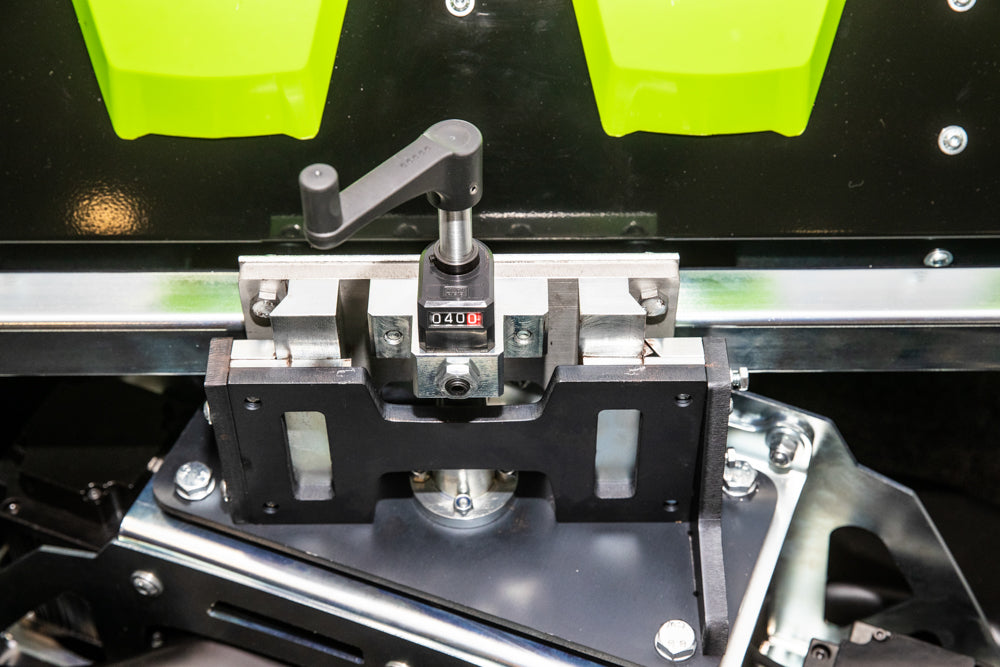

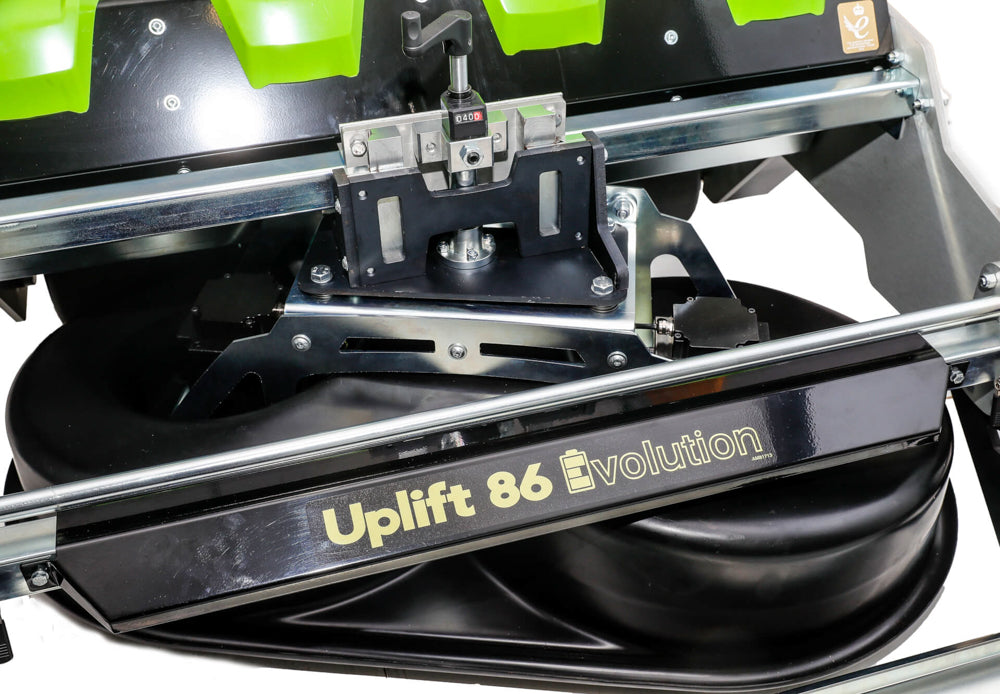

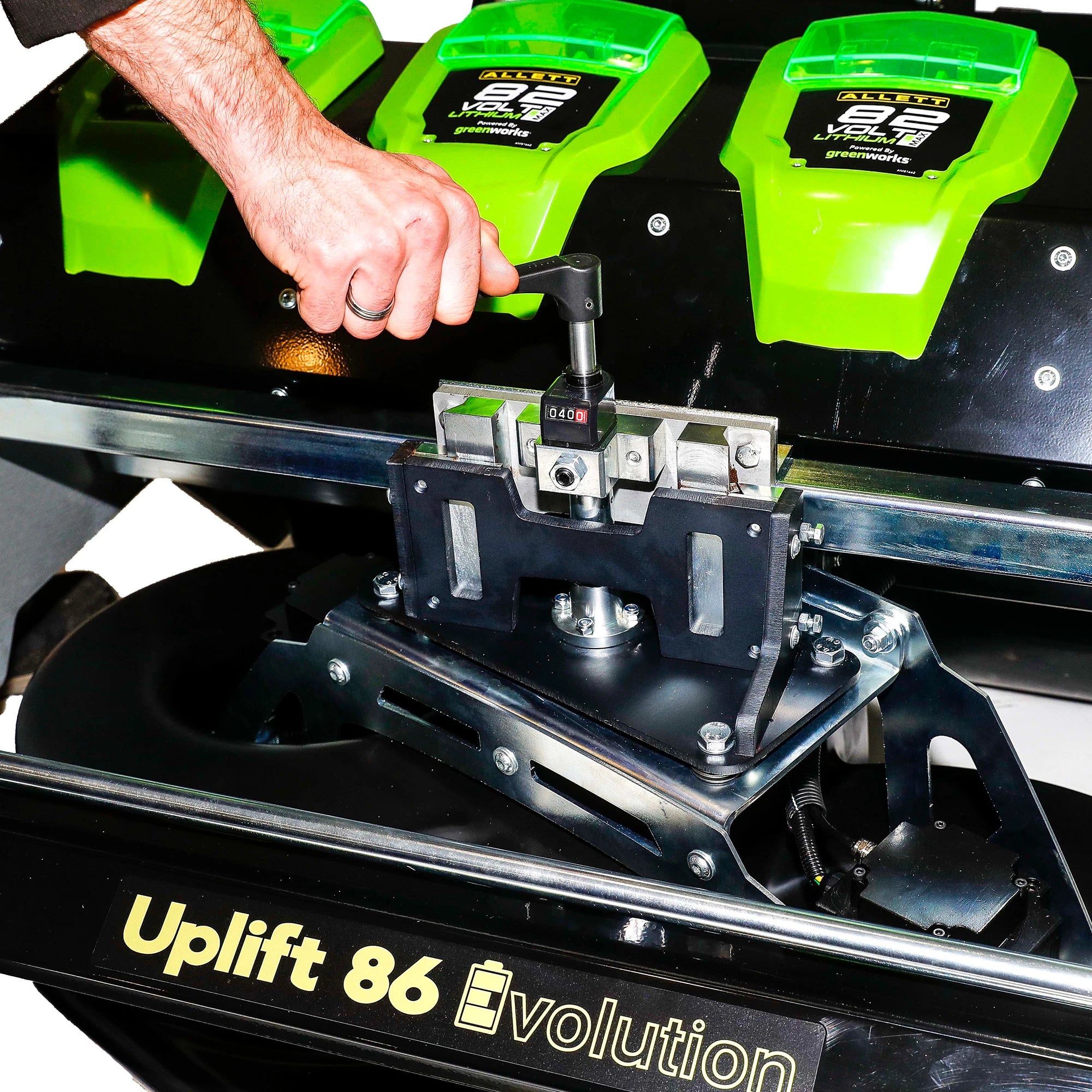

Easy & precise HOC adjustment
The Allett Uplift 86 is ideal for football and rugby pitches, with twin blades and a strong vacuum to lift debris after matches. Its 86 cm cut, full-width rear roller, and 90L collector deliver fast, striped, professional results on large turf areas.
Compatible with:
Allett Uplift86 Evolution

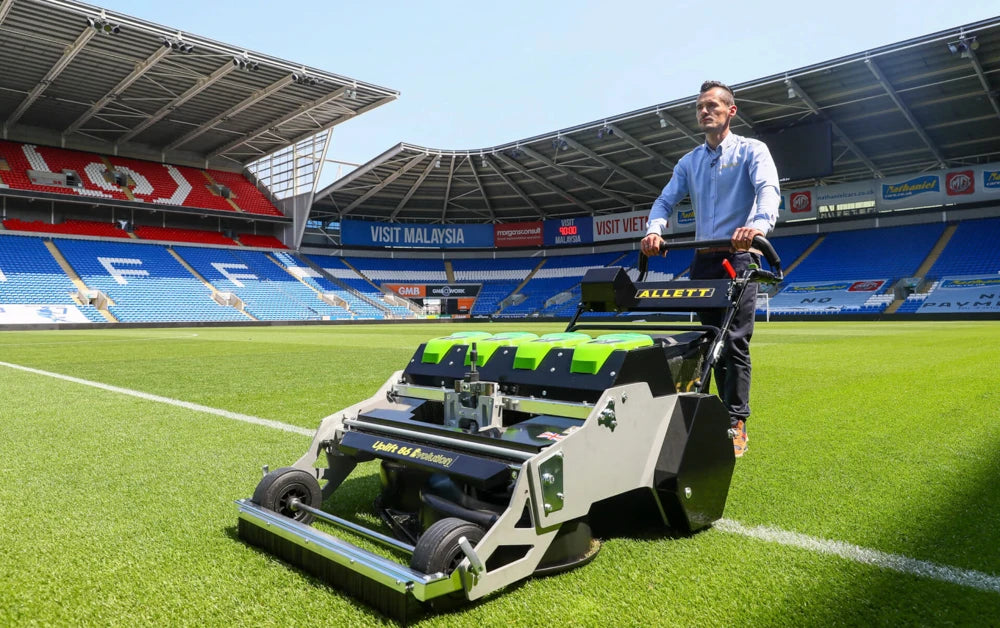

Take a closer look at the Allett Uplift 86 Evolution in action — a high-performance stadium rotary mower engineered for elite-level turf care on football and rugby pitches. This video highlights its upgraded high-lift twin-blade vacuum system, full-width rear roller for defined striping, and 86 cm cutting width for fast, efficient coverage. Watch as the Uplift 86 Evolution makes light work of post-match cleanup, lifting debris with power and precision to deliver a consistently clean, professional finish.
HOW THEY COMPARE

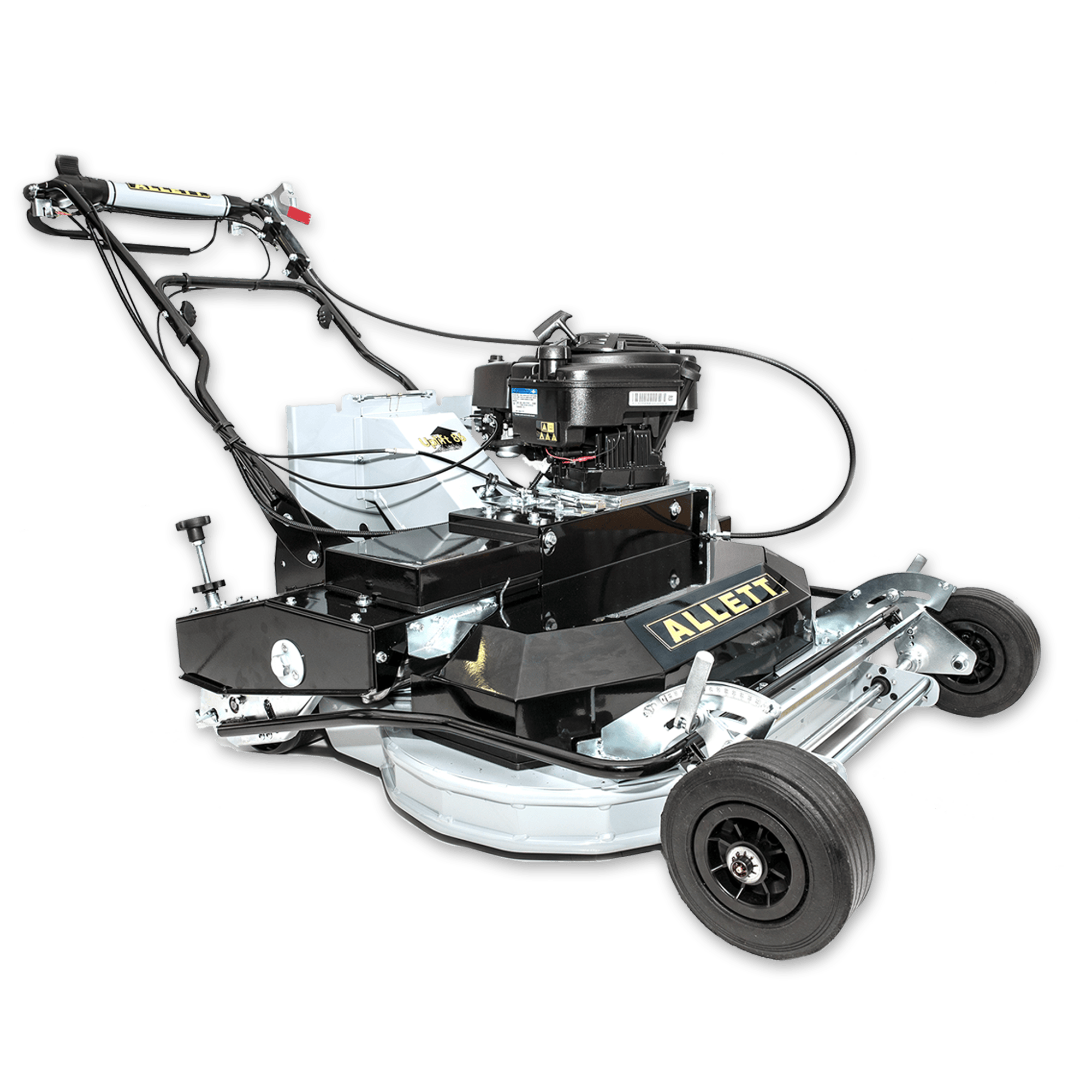

Our comparison table provides a detailed breakdown of the Allett Uplift 86, and the Uplift 86E, allowing you to easily compare their technical specifications side by side. From cutting widths and engine power to weight and height adjustments, this table helps you find the perfect Uplift for your needs.
Twin-blade rotary mower with rear-roller
Twin-blade rotary mower with rear-roller
Football, Rugby, American Football, Baseball, Cricket Square, Estates, Formal Lawns, Parks, Gardens and Larger Lawns
Football, Rugby, American Football, Baseball, Cricket Square, Cricket Outfield, Estates, Formal Lawns, Parks, Gardens and Larger Lawns
2 x 457mm (18in) high lift blades, contra-rotating and timed producing high volume air flow
2 x 457mm (18in) high lift blades, contra-rotating and overlapping to ensure every blade is cut
86cm (34in)
86cm (34in)
Height of cut adjustable from 15-75mm (0.6in to 2.96in)
Height of cut adjustable from 20-75mm (0.8in to 2.96in)
2 point micro height adjusters with front wheel height locking
Single point, effortless graduated mechanical counter showing precise height of cut read out in mm
3 piece steel, full-width rear-roller with steel differential gears
3 piece steel, full-width rubberised rear-roller with steel differential gears
5 speed gearbox
1st 1.9km/h (1.2mph)
2nd 3.0km/h (1.9mph)
3rd 4.5km/h (2.8mph)
4th 5.7km/h (3.6mph)
5th 6.7km/h (4.2mph)
Step-less forward speed up to 6.7 km/h (4.2mph) for maximum comfort and control
90 litres
90 litres
223cc Briggs & Stratton 950E vertical crankshaft engine featuring "Ready Start". Single cylinder, 4-stroke, air-cooled, OHV (Overhead Valve)
82V 8Ah battery system, featuring 4 quick change battery docking stations. Can use any number of batteries from 1 to 4. Batteries can be used in other Cramer products
Belt drive to spindle. Blade brake clutch (operator presence controls)
2 action safety switch & bale bar for blade engagement
Separate bale bar for roller drive & blades allows 3 modes:
1) Roller drive only
2) Blades only or
3) Roller drive and blades.
Separate bale bar for roller drive & blades allows 3 modes:1) Roller drive only2) Blades only or3) Roller drive and blades.
Yes
Yes
Steel fabricated
Plastic moulded deck for optimised airflow
145kg (320lb)
190kg (419lb)
200mm (8in) diameter solid front wheels running on bronze bushes (greasable)
220mm (8in) diameter pneumatic front wheels running on Bronze bushes.
Adjustable handlebar heights for operator comfort

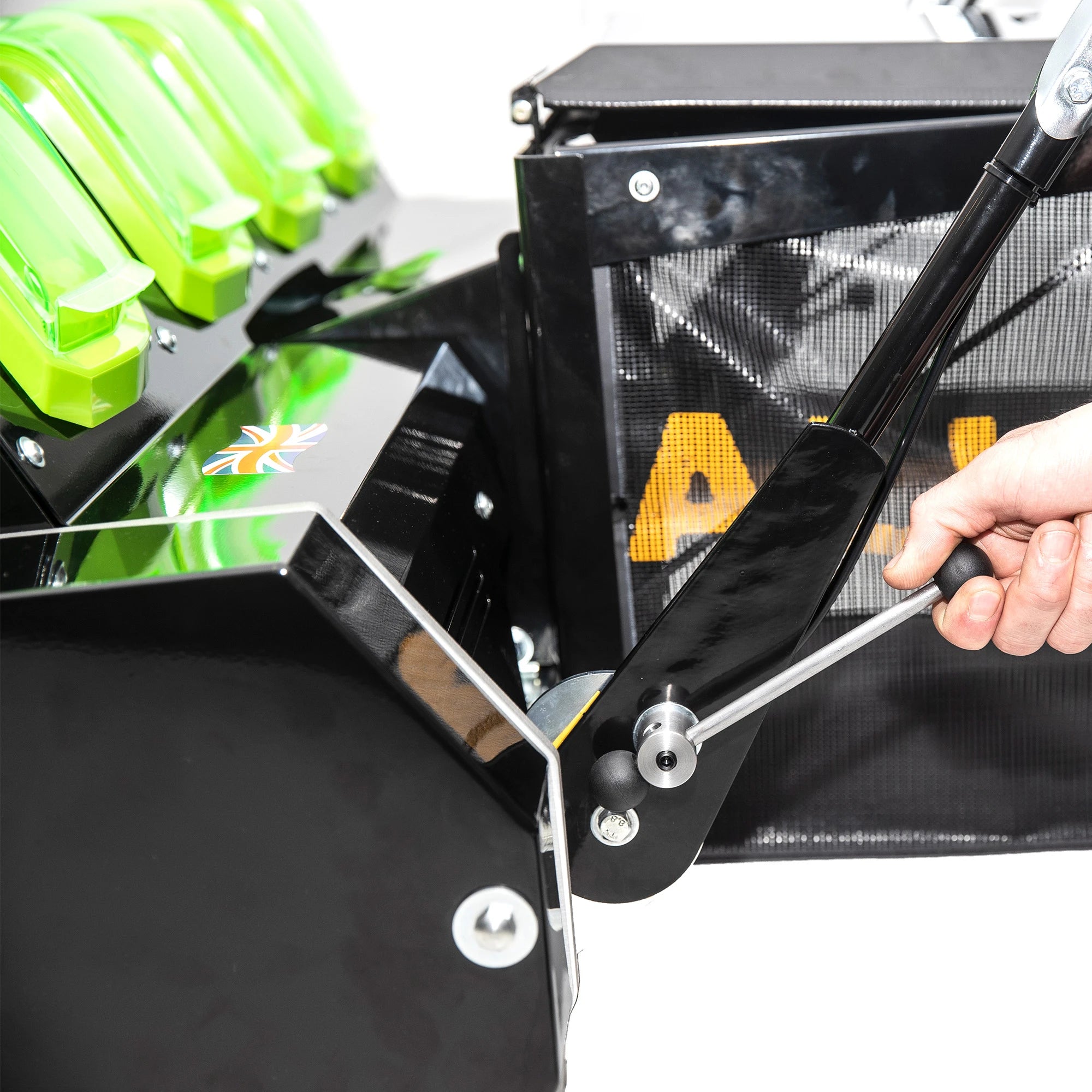

Handle bars fold upright for convenient storage, folding allows mower deck to be tilted back for easy cleaning and maintenance.
Wide handle bar with turning control switch for high productivity.

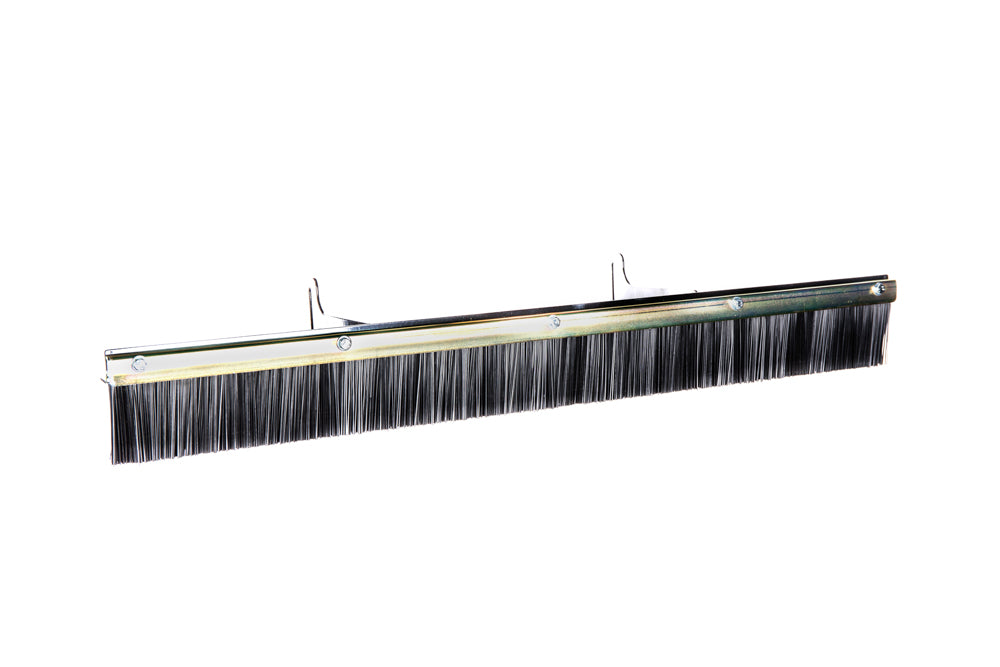

UPLIFT 86B fixed strip brush for Uplift 86 (soft, medium or hard bristle)
Fixed Front Rake, Front Roller Kit, Front Brush (soft, medium or hard bristle)
24 months /1500 Hours for Sports Users. 48 Months/1500 Hours for Homeowners
24 months /1500 Hours for Sports Users. 36 Months/1500 Hours for Homeowners
FAQ
In our FAQs for the Allett Uplift86 Evolution, you'll find answers to common questions about the mower's features, maintenance, and performance. We’ve gathered insights on everything from how to adjust cutting heights and maintain the mower, to recommendations for the best usage on different types of turf.
What applications is the Uplift 86E rotary mower used in?
This mower is popular in football clubs and rugby clubs for cleaning up debris after matches.
How does the high-lift vacuum system work?
The mower features a high-lift vacuum system with twin contra-rotating blades, which generate strong suction, ensuring efficient grass collection and a pristine finish.
What is the power source for the Allett Uplift 86E?
The Uplift 86E is powered by four 82V 8Ah lithium-ion batteries. This eco-friendly, rechargeable power source offers excellent performance and a quick charge time of around 1.5 hours.
How adjustable is the cutting height on the Uplift 86E?
The cutting height is adjustable between 20mm to 75mm (0.8in to 2.95in), providing flexibility for different grass types and conditions.
How does Bluetooth integration work with the Uplift 86E?
Bluetooth capability allows you to monitor battery performance directly from your smartphone, giving you real-time feedback on battery levels and charge status for better operational management.
Can the Uplift 86E be used with other Allett products?
Yes, the Uplift 86E’s interchangeable batteries can also be used with other Allett products, such as the C27E and C34E models, improving operational efficiency across multiple machines.
